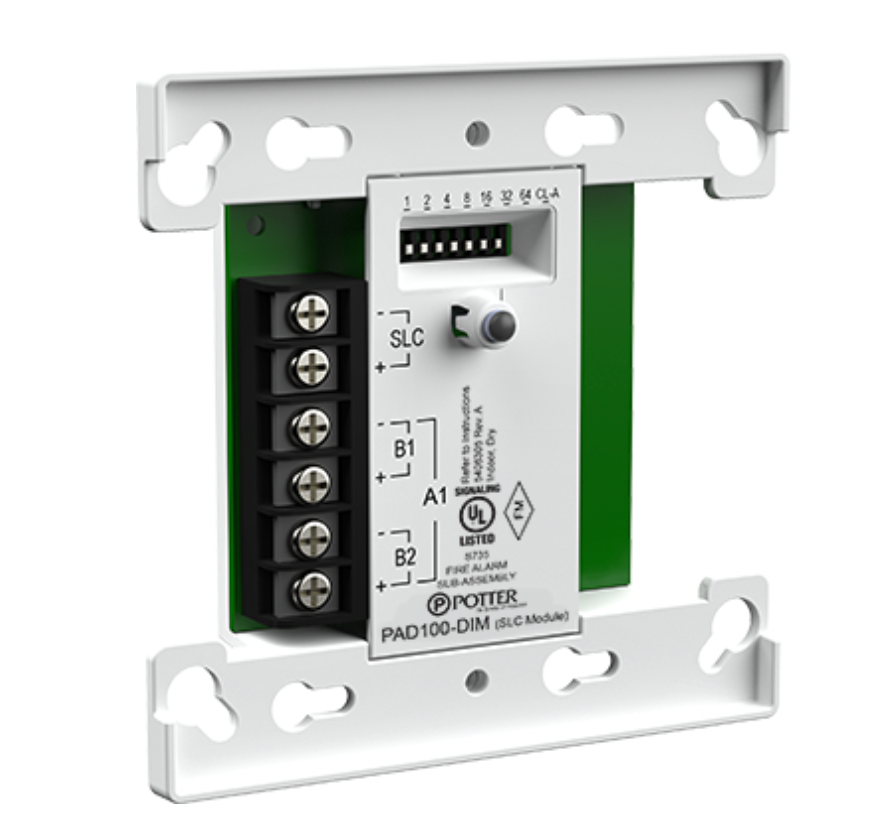

PAD100-DIM Dual Input Module

The Potter PAD100-DIM is an addressable dual input module that monitors either two Class B circuits or one Class A circuit while using only a single SLC loop address. This compact module is perfect for monitoring sprinkler waterflow and valve tamper switches located in close proximity. It mounts easily to a 4" square or double gang electrical box and includes a red LED for visual status indication—flashing during panel polling and blinking rapidly upon input activation.

Key Features:
✔ Monitors 2 Class B or 1 Class A input circuits
✔ Uses only 1 SLC loop address
✔ LED status indicator: polling and activation
✔ Ideal for paired waterflow and tamper switch inputs
✔ Standard mounting on 4” square or double gang box
✔ Fully addressable for PAD protocol systems

Ideal For:
Installers and system integrators needing efficient input monitoring for paired devices like valve tampers and waterflow switches—without consuming multiple SLC addresses.

Why Choose This:
The PAD100-DIM offers high efficiency, dual input monitoring, and space-saving performance in a single addressable module, helping streamline your fire system design and installation.

FAQs:

Q: How many circuits can the PAD100-DIM monitor?
A: It monitors either two Class B input circuits or one Class A circuit.

Q: How many loop addresses does it use?
A: Only one SLC loop address is required, even when using both inputs.

Q: What is the LED behavior?
A: The red LED flashes when polled and blinks rapidly when an input is activated.

Q: What are the mounting options?
A: It mounts on a standard 4" square or double gang electrical box.

Q: What is the maximum number of these modules per loop?
A: Up to 127 PAD100-DIM modules can be installed per SLC loop.

Operating Voltage: 24.0V

Max SLC Standby Current: 240 μA

Max SLC Alarm Current: 240 μA

Max Wiring Resistance of IDC: 100 Ω

Max Wiring Capacitance of IDC: 1 μF

EOL Resistor: 5.1K Ω

Operating Temperature Range: 32 to 120ºF (0 to 49ºC)

Operating Humidity Range: 0 to 93% (non-condensing)

Max Number of Modules Per Loop: 127 units

Dimensions: 4.17” (106 mm) L × 4.17” (106 mm) W × 1.14” (29 mm) D

Mounting Options: Standard 4” Square or Double Gang Box
