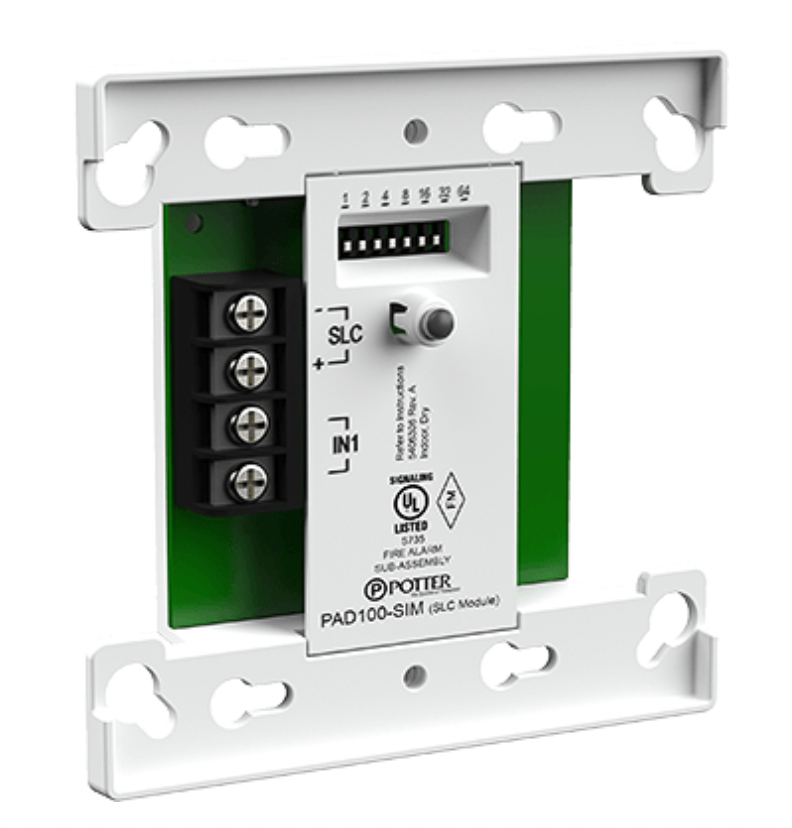

PAD100-SIM Single Input Module
The PAD100-SIM is a compact, intelligent input module designed to monitor a single Class B circuit using only one SLC loop address. Ideal for integrating contact-type devices into your fire alarm or control system, this module offers efficient performance and a straightforward installation.
Key Features:
• Monitors one (1) Class B input circuit
• Uses only one SLC loop address
• Compact design mounts on a 4" square or double gang box
• Status LED flashes during normal polling
• Fast LED flash indicates input activation
Ideal For:
Integrating contact-type devices such as pull stations, tamper switches, or other normally open inputs into a fire alarm control panel system.
Why You Should Use This:
The PAD100-SIM offers a reliable and space-saving solution for expanding your system’s input capacity with real-time status feedback through onboard LED indicators.
Key Highlights:
• Class B input monitoring with minimal SLC address usage
• Red LED status feedback for polling and activation
• Surface or box mount flexibility
Frequently Asked Questions:
Q: What type of circuit does the PAD100-SIM monitor?
A: It monitors one Class B input circuit.
Q: How is the module mounted?
A: It can be mounted on a 4" square or double gang box.
Q: What does the LED indicate?
A: A slow flash during normal polling and a fast flash when the input is activated.
