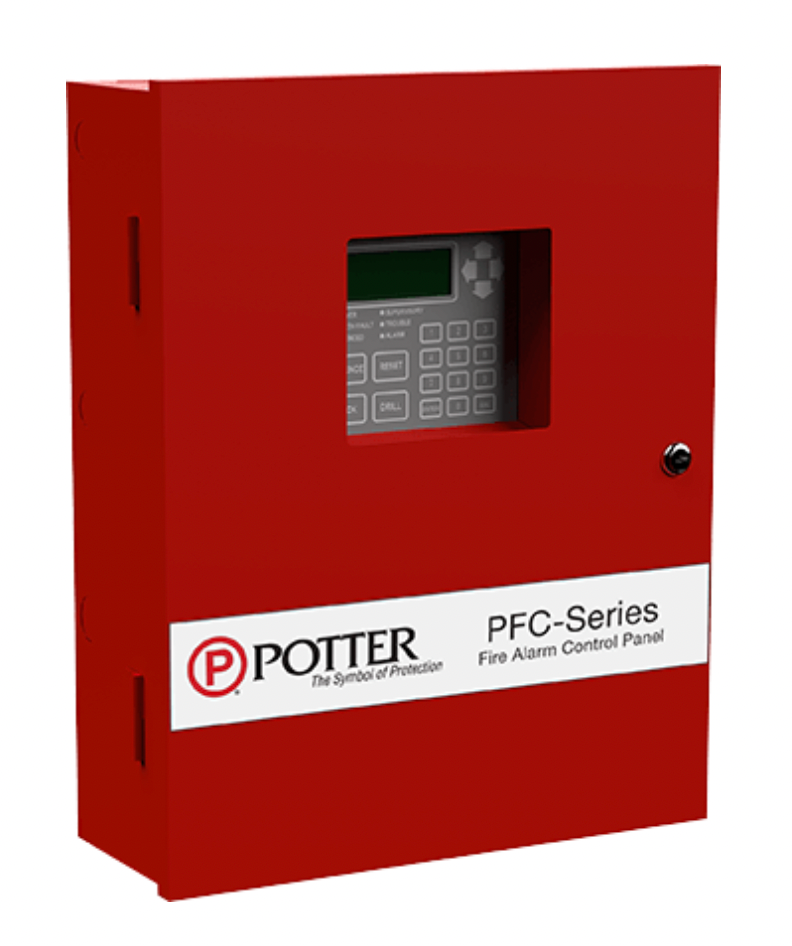

Potter | PFC-6006 Conventional Fire Alarm Control Panel

Potter | PFC-6006 Conventional Fire Alarm Control Panel

SKU: PFC-6006-R

Regular price $449.99 USD
Regular price Sale price $449.99 USD
Sale Sold out

 3 in stock

View full details

PFC-6006 Conventional Fire Alarm Control Panel

The PFC-6006 is a compact, listed conventional fire alarm control panel specifically designed for small fire protection systems such as fire sprinkler monitoring. With six input zones, including a selectable Class A/B water flow input and two-wire smoke detection options, the PFC-6006 offers powerful control in a small package.

Key Features:
• Six programmable input zones, with one selectable Class A/B water flow input
• Supports two-wire smoke detectors and other selectable input types
• Built-in 1.0 amp power supply with 0.5A NAC and 0.5A auxiliary power
• Auxiliary power can be set to constant or resettable
• 32-character LCD display with clear system status indicators
• Event history buffer and system status LEDs
• Lockable metal cabinet with lexan viewing window
• Onboard dual-line DACT for remote monitoring and programming
• Supports up to four RA-6075 remote annunciators via P-Link bus

Ideal For:
Small commercial, industrial, or institutional properties needing a reliable, low-footprint fire alarm system for sprinkler monitoring and basic zone detection.

Why You Should Use This:
The PFC-6006 delivers reliable performance, flexible input configuration, and remote communication capabilities — all in a secure, compact, and easy-to-install panel.

Key Highlights:
• Simple installation with removable circuit assembly
• Dual-line DACT for monitoring station connectivity
• Compatible with RA-6075 annunciators for full remote control

Frequently Asked Questions:
Q: How many input zones does the PFC-6006 support?
A: Six zones, including one Class A/B water flow input.

Q: Can this panel communicate with a central station?
A: Yes, it includes a dual-line digital alarm communicator transmitter (DACT).

Q: What remote annunciators are compatible?
A: The panel supports up to four RA-6075 annunciators via P-Link.

Technical Specifications:

Size (H × W × D): 18-1/2" × 14-1/4" × 4-3/4"

Enclosure: Eighteen (18) gauge sheet steel with hinged, removable locked door

AC Mains: 1.0 amp @ 120 VAC, 60 Hz

Battery:

    105 mA Standby

    160 mA Alarm

Temperature: 32° to 120°F

Humidity: 93% non-condensing

Standards / Approvals: UL-864, NFPA-70, NFPA-72
