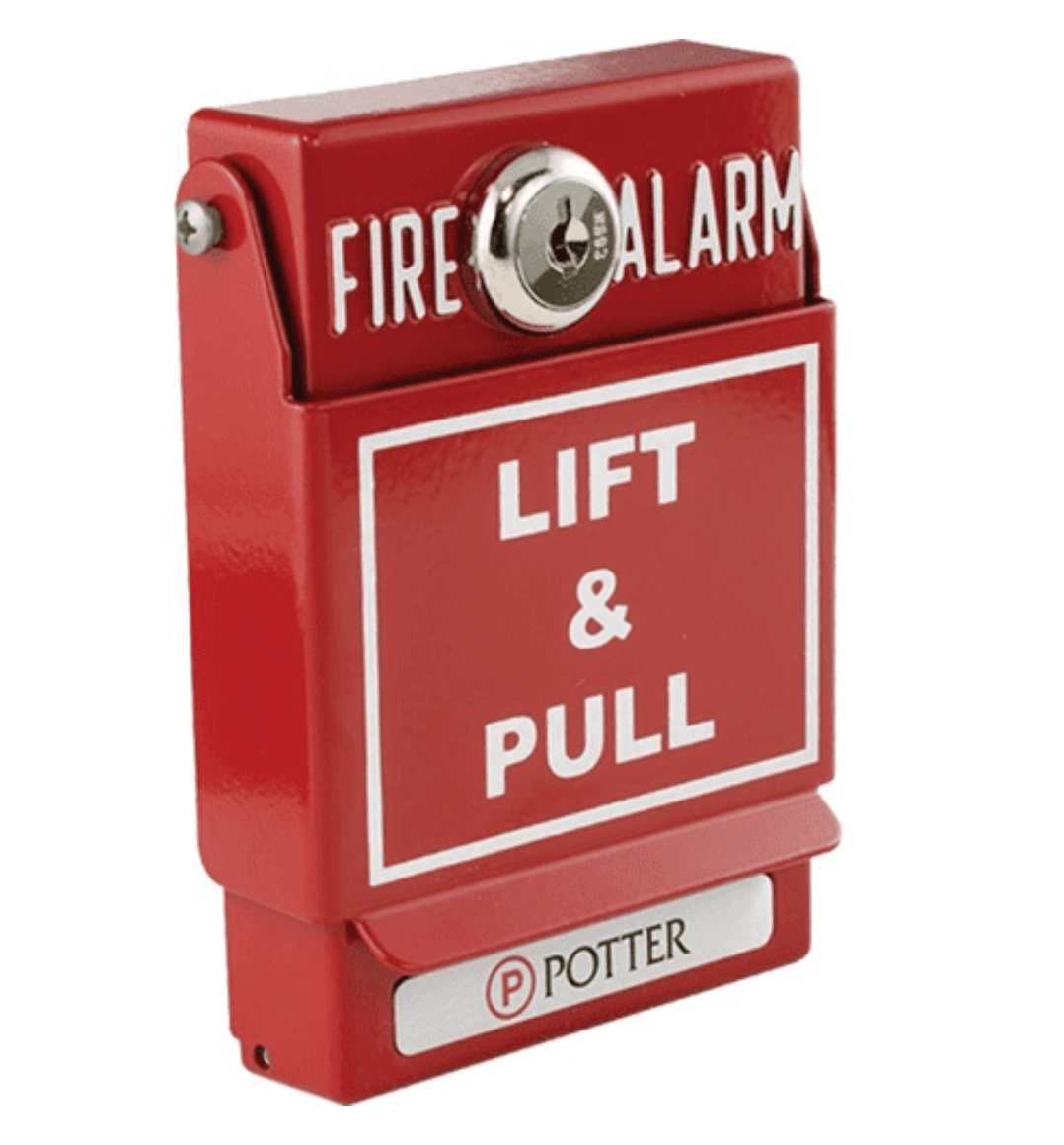

POTTER | Pull Station Dual Action Addressable PAD100-PSDA

POTTER | Pull Station Dual Action Addressable PAD100-PSDA

SKU: PAD100-PSDA

Regular price $139.99 USD
Regular price $169.99 USD Sale price $139.99 USD
Sale Sold out

 235 in stock

View full details

PAD100-PS Series Addressable Pull Stations – Single & Dual Action

The PAD100-PS Series from Potter offers a durable, addressable manual pull station available in both single-action and dual-action configurations. Designed for reliable operation and seamless integration with Potter fire alarm systems, these pull stations are built with heavy-duty die-cast metal construction and are compatible with IPA Series panels, supporting SLC Class A, Class B, and Class X wiring.

The PAD100-PSSA (single-action) is triggered by pulling the white “T” bar handle downward. The PAD100-PSDA (dual-action) requires lifting the cover before pulling the handle. Once activated, the handle locks in place and cannot be reset without opening the front cover using the Potter WS-93 key. Opening the cover alone will also initiate an alarm, ensuring a secure and tamper-resistant setup.

Key Features:
✔ Available in single-action (PSSA) and dual-action (PSDA) models
✔ Rugged die-cast metal housing
✔ Addressable with DIP switch programming
✔ Requires WS-93 key for reset and cover access
✔ Compatible with AFC-100, AFC-50, ARC-100 fire panels
✔ Supports Class A, B, and X SLC wiring
✔ UUKL Listed for Smoke Control Systems
✔ Reset key matches Potter fire alarm control panels

Ideal For:
Fire alarm contractors and system installers seeking robust, addressable manual pull stations for commercial and institutional fire safety applications.

Why Choose This:
The PAD100-PS Series delivers reliability, tamper protection, and easy integration into Potter addressable systems, making it a dependable choice for new installations or retrofits.

FAQs:

Q: What is the difference between the single and dual action versions?
A: The single-action (PSSA) model activates when the handle is pulled down. The dual-action (PSDA) model requires the front cover to be lifted before pulling the handle.

Q: How is the device reset?
A: Use the Potter WS-93 key to unlock the front cover. Once opened, push the handle back into place and close the cover to reset the unit.

Q: Does opening the front cover trigger an alarm?
A: Yes. Opening the front cover alone will activate the alarm, ensuring tamper protection.

Q: Which Potter control panels is it compatible with?
A: It is compatible with AFC-100, AFC-50, ARC-100, and other IPA Series panels.

Q: Is it UUKL listed?
A: Yes, it is UUKL listed for Smoke Control applications.

Manufacturer: Potter Electric Signal Company, LLC

Brand: Potter

Product Series: PAD Series: Addressable Detectors and Bases

Model: PAD100-PSSA (Single Action), PAD100-PSDA (Dual Action)

Construction: Die-Cast Metal

Color: Red

Operation: Dual-Action or Single-Action, Key Reset

Programming: DIP Switch

Compatibility: AFC-100, AFC-50, ARC-100, IPA Series

SLC Support: Class A, Class B, Class X

UL & UUKL Listed: Yes (Smoke Control Systems)

Dimensions: 1.75 × 3.25 × 4.75 in

Weight: 1.46 lbs

Condition: New
