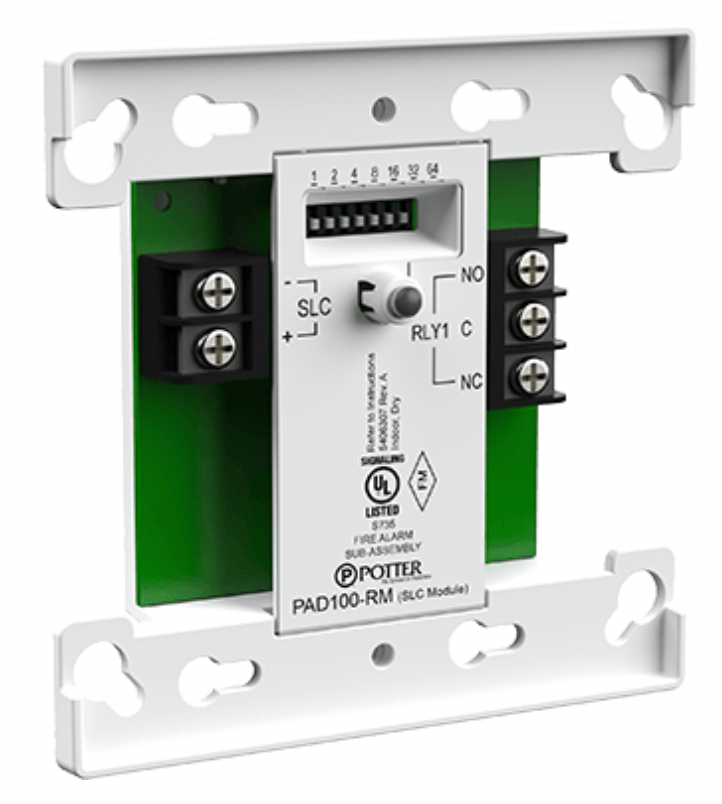

PAD100-RM Addressable Relay Module
The PAD100-RM is a compact addressable relay module designed to provide one Form C relay contact using a single SLC loop address. Built for easy integration into fire alarm control systems, the module features an LED indicator to show communication status with the panel.
Key Features:
• One (1) Form C relay contact
• Uses one (1) SLC loop address
• Mounts on standard 4" square or double gang box
• Red LED status indicator flashes during polling
• Compact and easy to install
Ideal For:
Fire alarm systems that require an addressable relay for control functions such as door release, fan shutdown, or other automated emergency responses.
Why You Should Use This:
With its minimal address usage, reliable contact output, and real-time LED status feedback, the PAD100-RM is an essential component for enhancing system control and automation.
Key Highlights:
• Efficient use of loop address space
• Clear visual status indication via red LED
• Flexible mounting compatibility
Frequently Asked Questions:
Q: What type of relay contact does the PAD100-RM provide?
A: It provides one Form C contact.
Q: How is the status of the module indicated?
A: A red LED flashes during normal polling by the control panel.
Q: How is it mounted?
A: It mounts on a 4" square or double gang electrical box.
