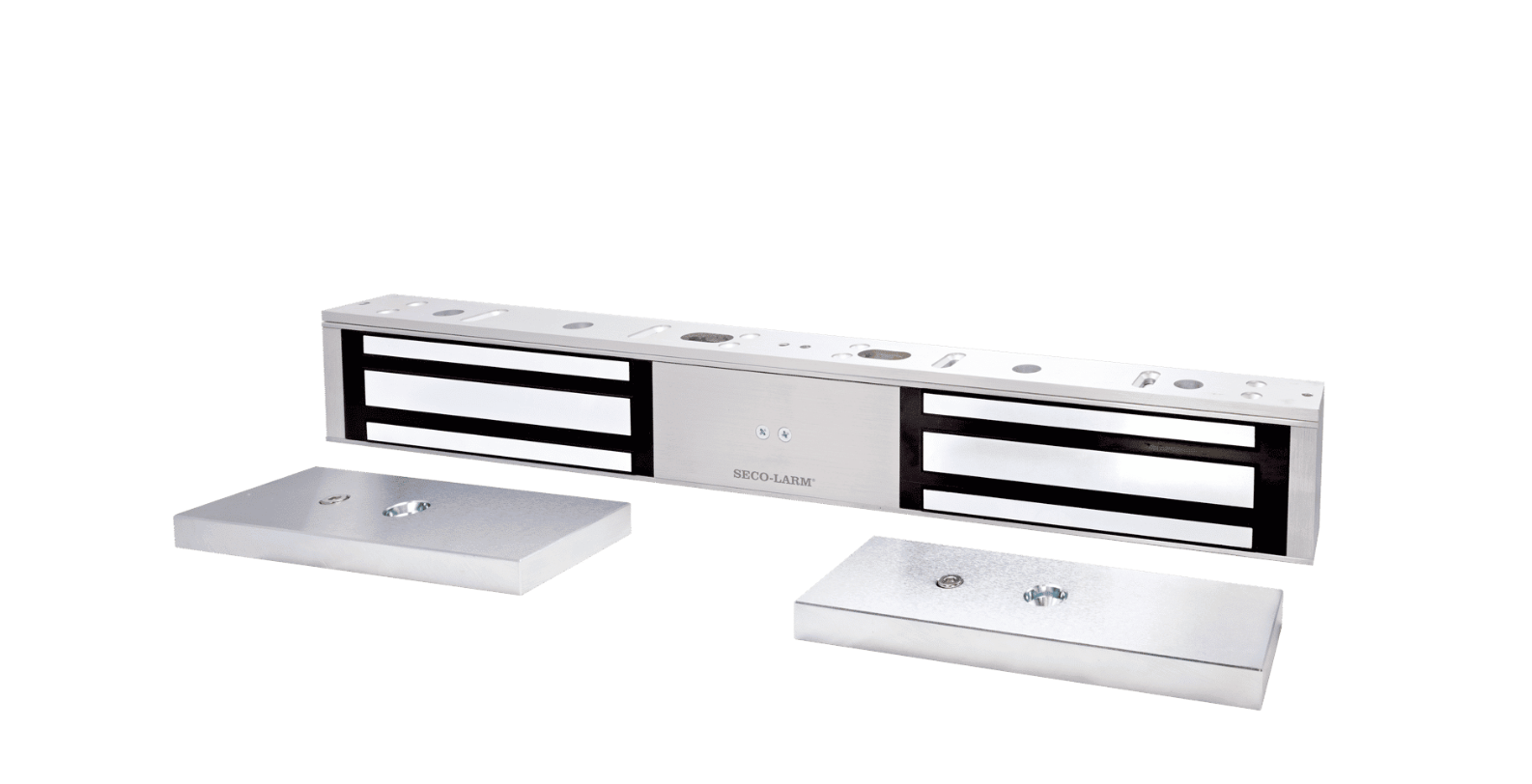

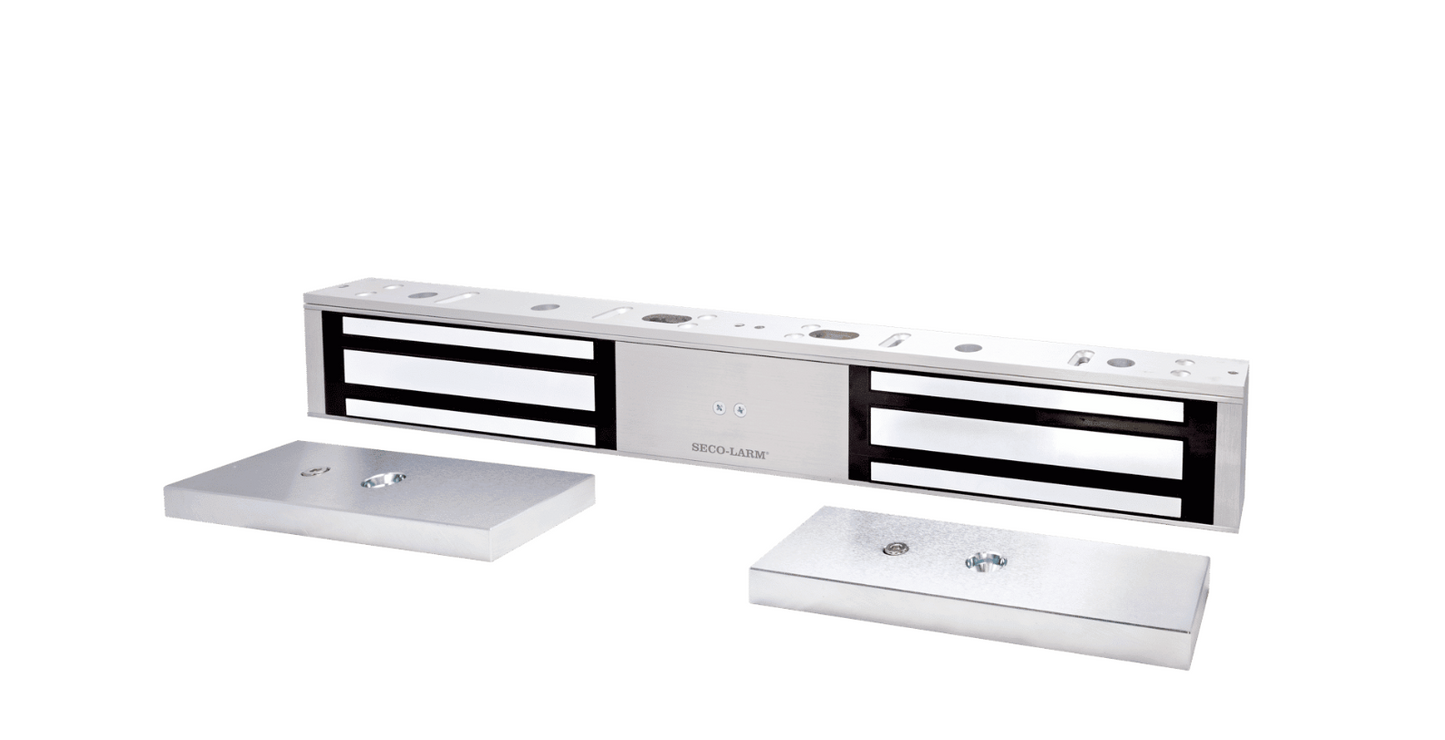

SECO-LARM E-941DA-1K2Q – 1,200-lb Electromagnetic Lock (Double-Door, UL Listed)
Heavy-duty, dual-door electromagnetic lock with UL certification for high-security commercial installations.
The SECO-LARM E-941DA-1K2Q provides 1,200 lbs of holding force per door, delivering robust and reliable security for double-door access points. Featuring a durable anodized aluminum housing, MOV surge protection, and no residual magnetism, this lock is ideal for controlled access in offices, institutions, or commercial spaces. UL294, UL10B/10C, and ULC-S104 listed for safety and compliance.
Key Features:
• Holding Force: 1,200 lbs per door
• Voltage: 12/24 VDC selectable
• Surge Protection: MOV integrated
• Mounting: Adjustable bracket and detachable faceplate for easy install
• Certification: UL294, UL10B, UL10C, ULC-S104 compliant
• Warranty: Lifetime limited (USA & Canada)
Ideal For:
• Securing double doors in commercial buildings
• Fire-rated door installations requiring UL compliance
• High-traffic entries needing high holding force
Why You Should Use This:
• Certified safe and compliant with multiple UL standards
• Durable aluminum housing with full mounting hardware
• Consistent, secure magnetic locking with adjustable installation
Key Highlights:
- ✅ 1,200-lb holding force per door
- ✅ No residual magnetism
- ✅ MOV surge protected
- ✅ UL and ULC certified for safety and fire resistance
Frequently Asked Questions:
Q: Can I use this on fire-rated doors?
A: Yes, it meets UL10B, UL10C, and ULC-S104 fire door standards.
Q: Does it include mounting hardware?
A: Yes, all typical mounting hardware is included.
Q: What power supply is required?
A: A 12VDC or 24VDC source is needed, drawing 1A total @12V or 540mA total @24V.
