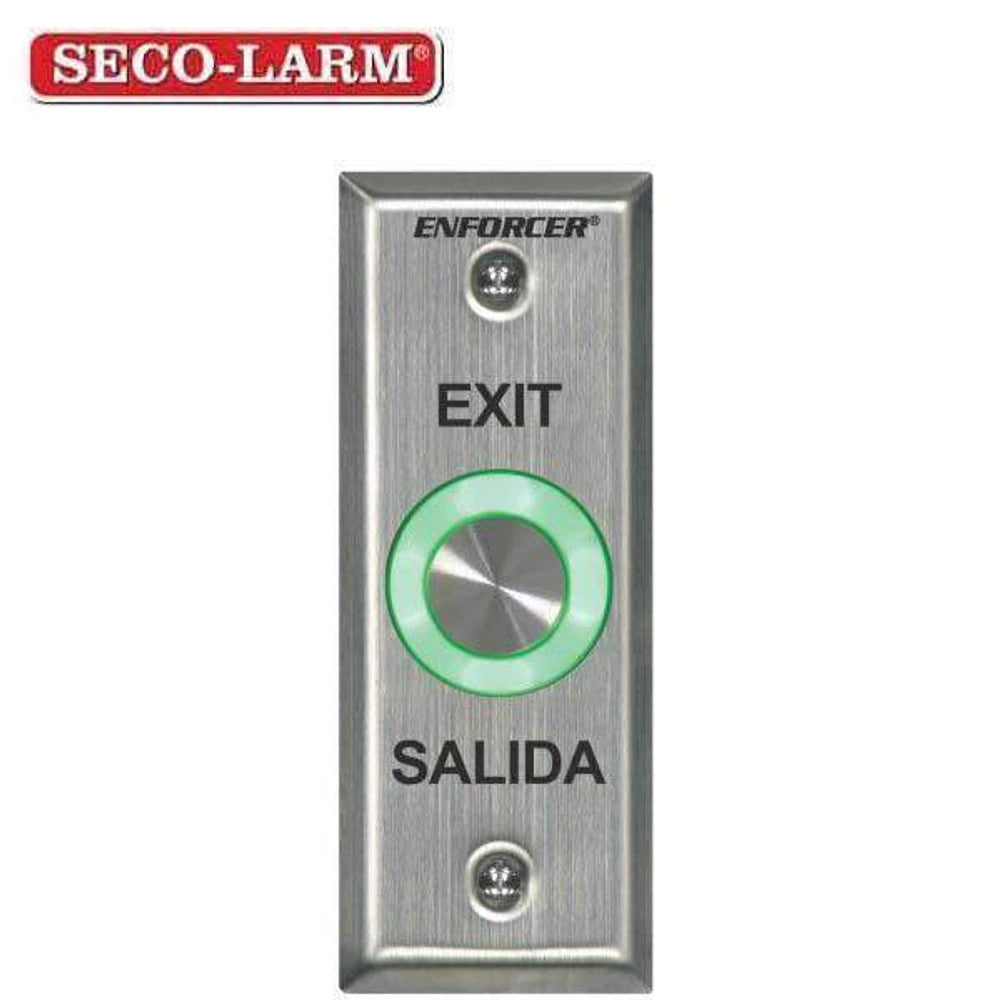

SECO-LARM SD-6176-SS1Q – Outdoor Slimline Piezoelectric Request-to-Exit Button
Weatherproof touch-activated exit button with programmable LED indicator and stainless steel faceplate for secure and hygienic egress control.
The SD-6176-SS1Q is a slim, piezoelectric request-to-exit button designed for both indoor and outdoor use. It features a rugged stainless steel faceplate and programmable ring LED that changes color upon activation. With no moving parts and IP65 weather protection, it’s ideal for high-traffic and harsh environments. The unit supports timed or toggle output, and the LED behavior is easily adjustable for custom installations.
Key Features:
• Activation: Piezoelectric touch sensor (no moving parts)
• LED Indicator: Programmable ring LED (Red/Green reversible)
• Output Type: SPDT relay rated 2.5A @ 24 VAC/VDC
• Output Mode: 1~30 seconds or toggle
• IP Rating: IP65 weatherproof for outdoor use
• Faceplate Material: Stainless steel
• Operating Voltage: 12~24 VDC
• Current Draw: 40mA @ 12VDC
• Dimensions: Slimline design (see tech specs)
• Certifications: ETL listed, conforms to UL Std. 294
Ideal For:
• Touch-free and durable egress solutions
• Outdoor gates, vestibules, and access doors
• Schools, hospitals, warehouses, and clean rooms
Why You Should Use This:
• Durable and reliable with no mechanical components
• Visible feedback with color-changing LED ring
• Engineered for rugged, high-use environments
Key Highlights:
- ✅ Touch-activated piezoelectric technology
- ✅ Weatherproof stainless steel design (IP65)
- ✅ Programmable LED ring with reversible color feedback
- ✅ Ideal for indoor/outdoor use where hygiene and durability matter
Frequently Asked Questions:
Q: Does this require physical pressing?
A: No, it uses touch-sensitive piezoelectric technology with no moving parts.
Q: Is this suitable for outdoor gates?
A: Yes, it is IP65 rated and designed for harsh environments.
Q: Can the LED color be customized?
A: Yes, the ring LED can be configured to switch from red-to-green or green-to-red when activated.
