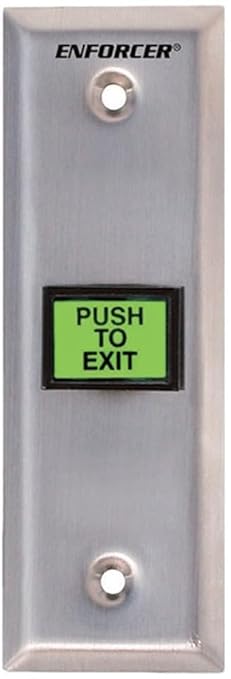

SECO-LARM SD-7103GC-PEQ – Slimline Illuminated Push-to-Exit Plate
Stainless steel momentary exit plate with interchangeable multilingual messages and weather-resistant illuminated push button.
The SD-7103GC-PEQ is a slimline, illuminated request-to-exit plate with a durable stainless steel face and a large push-to-exit button. Designed for secure indoor or protected outdoor environments, it includes interchangeable faceplates in English, Spanish, and French. The LED backlight enhances visibility, and the switch is rubber-sealed to prevent liquid intrusion. ETL-listed and conforms to UL 294 standards.
Key Features:
• Activation: Momentary DPST switch (N.O. / N.C.)
• Contact Rating: 5A @ 24VAC
• LED Illumination: Green LED, ~35,000-hour lifespan
• Power: 12/24 VAC/VDC
• Message Language: Interchangeable plates – English, Spanish, French
• Weather Resistance: IP-rated switch (when properly installed)
• Wiring: Six 12" color-coded wire leads with spade lugs
• Certifications: ETL listed, conforms to UL Std. 294
• Construction: Brushed stainless steel faceplate
• Dimensions: 4-1/2" x 1-1/2" x 1-15/16" (114 x 38 x 49 mm)
Ideal For:
• Narrow door frames and mullion mounting
• Commercial access control systems
• Indoor or protected outdoor request-to-exit applications
Why You Should Use This:
• Slim form factor with multilingual faceplates
• Long-life LED for visual feedback
• Weather-resistant and sealed for longevity
Key Highlights:
- ✅ Slim stainless steel design for tight installations
- ✅ DPST switch rated for 5A @ 24VAC
- ✅ Multilingual button label options included
- ✅ Weather-resistant, rubber-sealed switch
Frequently Asked Questions:
Q: Does this include all three language faceplates?
A: Yes, English, Spanish, and French plates are included for field replacement.
Q: Is the switch weatherproof?
A: The switch is sealed and weather-resistant when properly installed.
Q: What is the power requirement for the LED?
A: Operates on 12/24 VAC/VDC with no external resistor needed.
