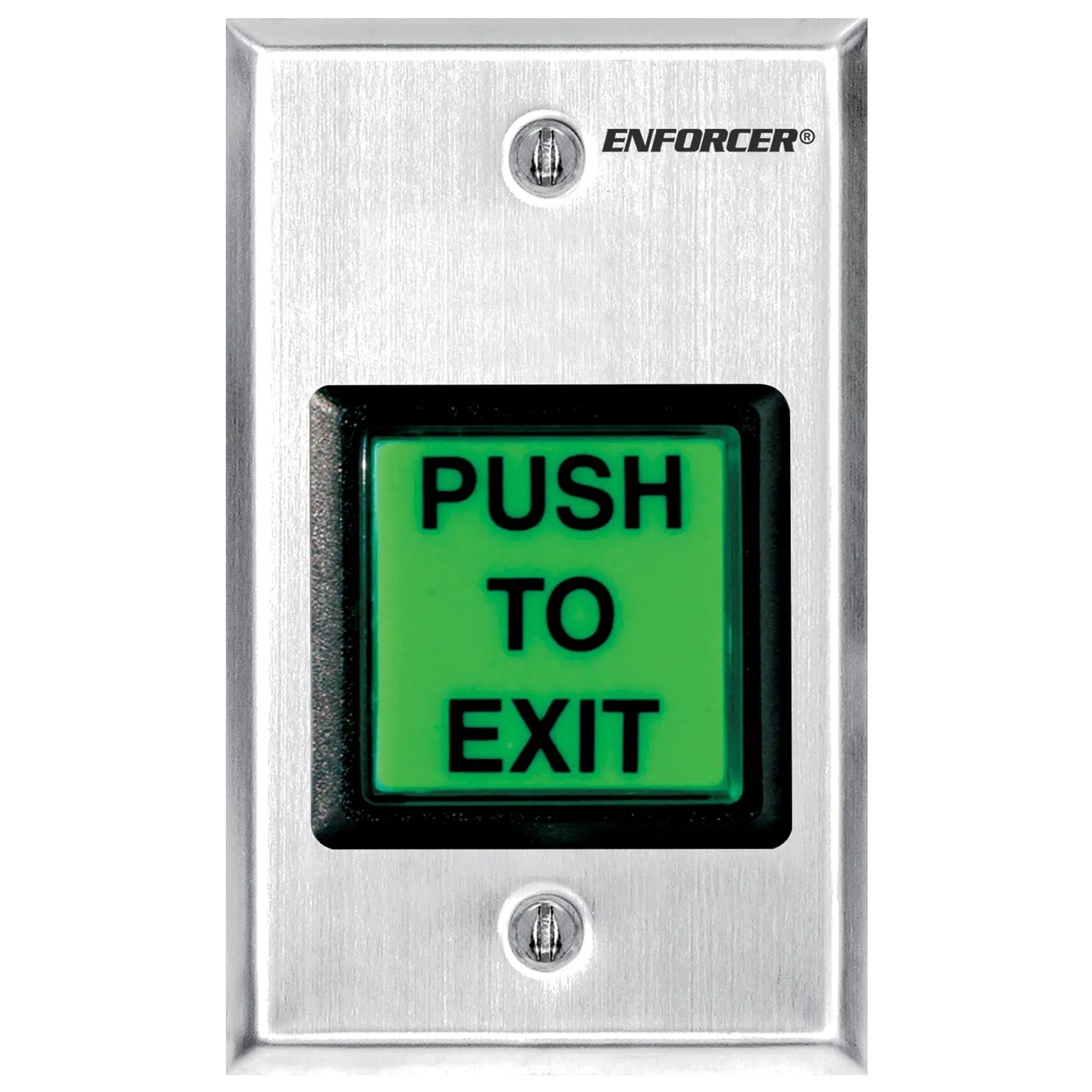

SECO-LARM SD-7202GC-PEQ – Square Illuminated Push-to-Exit Plate
Illuminated stainless steel request-to-exit button with multilingual message plates, rated for heavy-duty use in access control systems.
The SD-7202GC-PEQ is a high-durability push-to-exit plate featuring a large illuminated button marked "PUSH TO EXIT." It includes three interchangeable message plates in English, Spanish, and French. Designed for rugged environments, it is IP65-rated and ideal for use in access control, automation, and emergency egress applications.
Key Features:
• Message Options: English, Spanish, and French plates included
• Illumination: High-visibility LED rated for 50,000+ hours
• Power: 12~24 VDC (no resistor required)
• Switch Rating: 50A @ 24VAC
• Mounting: Standard stainless steel single-gang plate
• IP Rating: IP65 weather-resistant
• Certification: ETL Listed, conforms to UL Std. 294
• Wiring: Five color-coded 12" wire leads with spade lugs
• Dimensions: 4-1/2″ x 2-3/4″ x 2-3/4″ (114 x 70 x 70 mm)
Ideal For:
• Request-to-exit doors and gate systems
• Commercial and public access control systems
• Indoor or protected outdoor installations
Why You Should Use This:
• Multilingual labels allow flexible deployment
• Bright LED ensures visibility in low-light conditions
• Heavy-duty switch rating supports long-term reliability
Key Highlights:
- ✅ Large illuminated square button with multilingual faceplates
- ✅ Supports 50A @ 24VAC with IP65-rated construction
- ✅ 12–24VDC operation with easy wiring
- ✅ ETL certified and UL 294 compliant
Frequently Asked Questions:
Q: What languages are included for the button label?
A: English ("Push to Exit"), Spanish ("Presione para salir"), and French ("Appuyez pour sortir") plates are included.
Q: Is it suitable for outdoor use?
A: Yes, it has an IP65 rating for weather-resistant performance.
Q: Does it require a resistor for 24V use?
A: No, it can be powered from 12–24VDC without any additional resistors.
