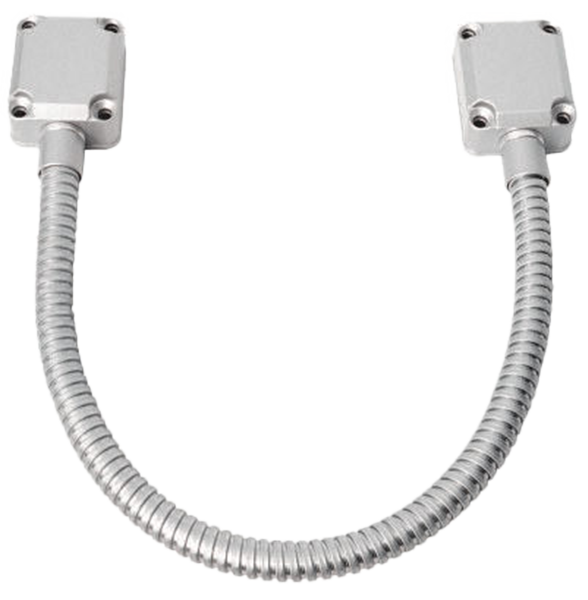

SECO-LARM SD-969-S18Q – Armored Door Cord with Die-Cast Aluminum End Caps (16")
Durable armored door loop designed to route wiring safely between the door and frame for powered locks or access devices.
The SD-969-S18Q armored door cord offers a secure and protected conduit for wiring in access control installations. It features stainless steel cable sheathing with die-cast aluminum end caps, ideal for surface mounting between the door and frame. This model helps prevent pinched or damaged wires in swinging door installations and ensures clean cable management for electric locks, sensors, or strikes.
Key Features:
• Cord Type: Stainless steel armored cable
• End Caps: Die-cast aluminum for durability
• Cord Length: 16″ (40 cm)
• Inside Diameter: 5/16″ (8 mm)
• Outside Diameter: 1/2″ (12.7 mm)
• Mounting: Surface-mount with included screws
• End Cap Dimensions: 1-7/8″ x 7/8″ x 1-9/16″ (48 x 22 x 40 mm)
Ideal For:
• Routing power or data wiring from frame to door
• Electric strikes, maglocks, or request-to-exit devices
• Commercial access control installations
Why You Should Use This:
• Prevents wire damage caused by door movement
• Surface-mounts easily with strong die-cast end caps
• Offers clean, professional cable routing for door systems
Key Highlights:
- ✅ 16″ flexible stainless steel armored cable
- ✅ Die-cast aluminum end caps for strength and stability
- ✅ Surface-mount installation with included hardware
- ✅ Protects wiring from wear, stress, and damage
Frequently Asked Questions:
Q: Can this be used with a maglock or electric strike?
A: Yes, it’s designed to carry wiring for any door-mounted access device.
Q: Is it rated for outdoor use?
A: While durable, it’s intended for indoor or covered applications unless otherwise protected.
Q: How is it mounted?
A: It surface-mounts using the included screws; one end attaches to the door frame and the other to the door itself.
