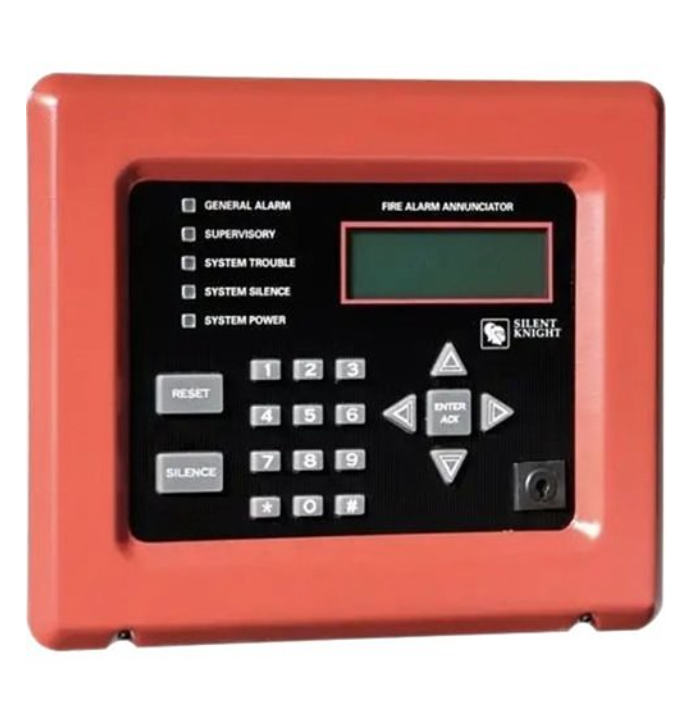

5860 Remote Annunciator for IntelliKnight Systems
The 5860 Remote Annunciator extends the full control of your IntelliKnight fire alarm panel to multiple areas within your facility. With an intuitive interface identical to the panel’s built-in annunciator, the 5860 allows authorized users to perform all system operations from up to twelve remote locations.
Key Features:
• 80-character backlit LCD display for clear, real-time system info
• Ergonomic keypad with tactile and audible feedback
• Supports system operations including reset, silence, fire drill, and programming
• Secure access via firefighter’s key or user code
• Programming access requires a separate installer code
• Communicates with panel via RS-485 system bus
• Supports wire runs up to 6000 feet
Ideal For:
Multi-zone buildings that require remote fire system monitoring and control in areas like lobbies, security offices, or mechanical rooms.
Why You Should Use This:
The 5860 provides full remote functionality, improved user access, and increased control flexibility for IntelliKnight installations — all with a familiar interface.
Key Highlights:
• Install up to 12 annunciators throughout a facility
• RS-485 connectivity with long-range capability
• Secure and user-friendly with backlit display and full keypad
Frequently Asked Questions:
Q: What IntelliKnight functions can be accessed remotely?
A: Reset, silence, fire drill, status checking, and full programming (with installer code).
Q: How is access secured?
A: Access is restricted via user code or firefighter’s key, and programming requires a special code.
Q: How far can the annunciator be installed from the panel?
A: Up to 6000 feet via RS-485 system bus wiring.
