Tripp Lite by Eaton UPS SmartPro 120V 1kVA 750W Medical-Grade Line-Interactive Tower UPS 4 Outlets Full Isolation Expandable Runtime - SMART1200XLHG
Key Features
- 28 min. runtime at half load; 10 min. at full load
- 4 NEMA 5-15R-HG outlets
- Corrects under- and overvoltages from 81V to 143V
- Expandable runtime with optional external battery packs
- Front-panel LEDs indicate load, power, voltage and battery statuses
Product Overview

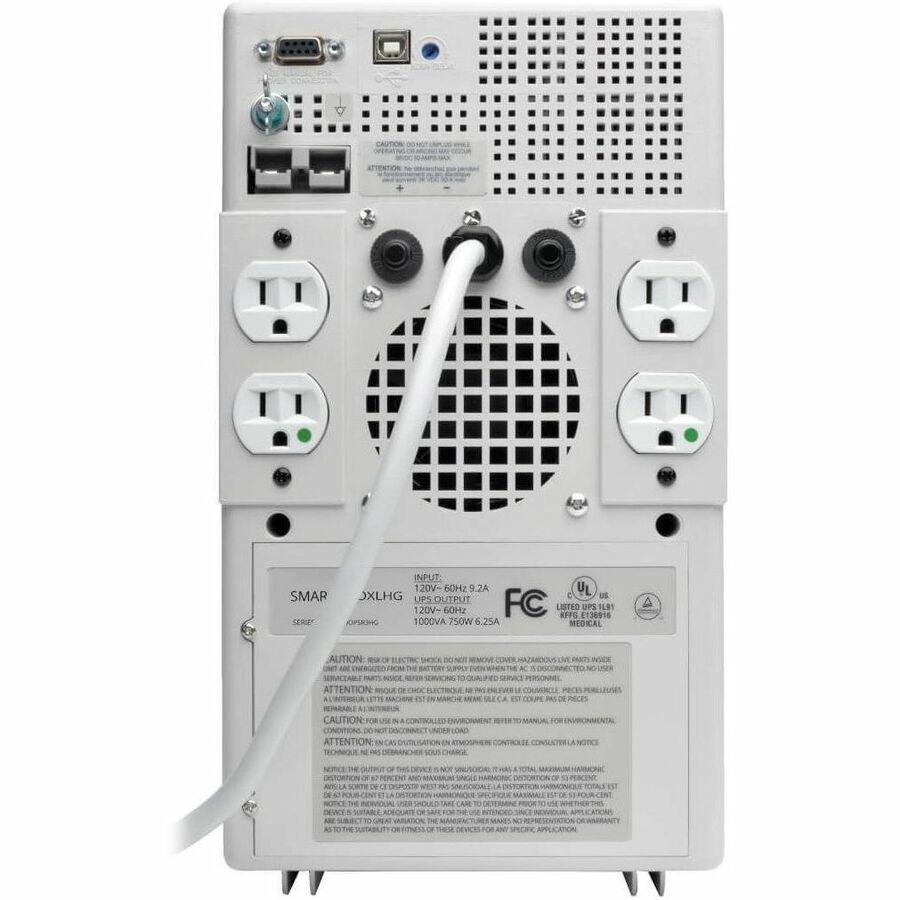

Tripp Lite's SMART1200XLHG medical-grade UPS system provides dependable battery backup and is fully compliant with UL 60601-1 regulations when plugged into a hospital-grade outlet, making it ideal for use in patient-care vicinities. The 1kVA/750W capacity provides up to 28 minutes of runtime for a half load or 10 minutes for a full load, so you can work through short power failures and perform an orderly system shutdown in a prolonged blackout. Built-in line-interactive voltage regulation corrects brownouts as low as 81V and overvoltages as high as 143V to normal 120V nominal output without drawing battery power. The SMART1200XLHG's built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise, while maintaining full AC surge suppression in all modes. This UPS system features four NEMA 5-15R-HG hospital-grade outlets and has a hospital-grade NEMA 5-15P-HG plug with a six-foot cord for flexibility in placement. All four outlets provide both backup protection and surge protection rated to 940 joules. The SMART1200XLHG also features diagnostic LEDs, as well as a USB port and a DB9 serial port that work with Tripp Lite's included PowerAlert software for safe, unattended system shutdown and file saves in the event of a prolonged power failure.Ideal UPS Backup in Healthcare Facilities
- Complies with UL 60601-1 standards for use in patient-care facilities
- Isolation transformer with Faraday shield offers full isolation and removes common mode noise
- 6 ft. power cord with 120V NEMA 5-15P-HG plug
- Floating AC output prevents noise coupling and meets agency requirements for isolation
Reliable Battery Backup and Surge Protection
- Supports half load up to 28 min. and full load up to 10 min.
- 4 NEMA 5-15R-HG outlets with 940-joule surge protection
- Filters out disruptive EMI/RFI line noise that can cause equipment damage or data loss
- Resists electrostatic discharge
LEDs and Audible Alarms

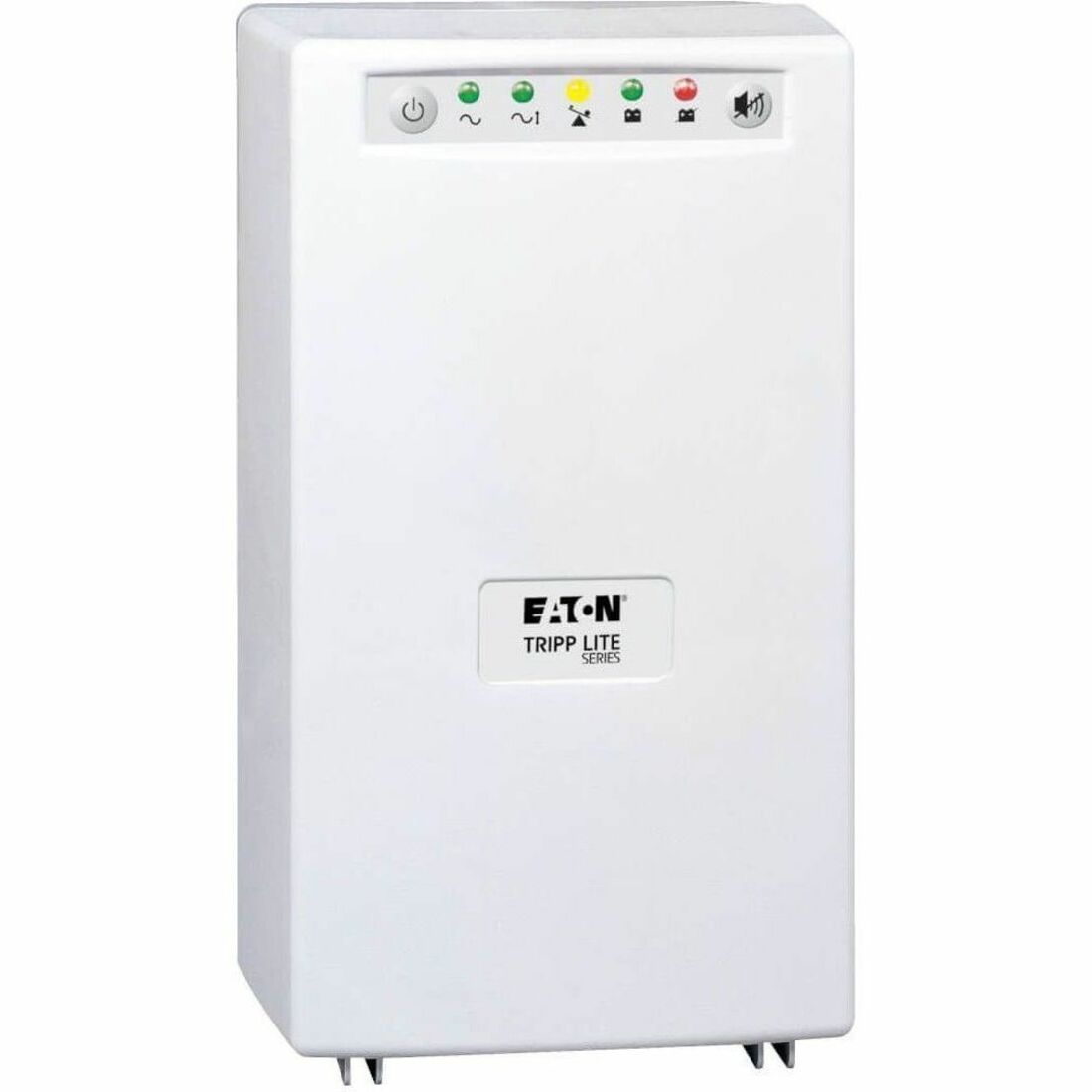

- Front LEDs indicate power, mode, load and battery status
- Alarms alert you to power failure, overload and low battery
- Mute/quiet mode ideal for use in quiet patient-care vicinities
Saves Files When You're Away
- Included PowerAlert® software enables safe, unattended system shutdown and file saving during power failures
- Connects to computer via DB9 or USB port with included cables
General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: SMART1200XLHG
- Brand Name: Tripp Lite series
- Product Line: SmartPro
- Product Name: SmartPro 1200XLHG UPS
- Product Type: Line-interactive UPS
Technical Information
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R
- Receptacle Detail: 4 x NEMA 5-15R
- Cord Length: 6 ft
- Transfer Time: 4 ms
Power Description
- Load Capacity (VA): 1000 VA
- Load Capacity (Watt): 750 W
- Input Voltage: 120 V AC
- Output Voltage:
- 115 V AC
- 120 V AC
Management
- Network Management: SNMP Manageable
- Alarm:
- On Battery
- Overload
- Low Battery
Controls/Indicators
- Status Indicators: Includes 5 front-panel indicator LEDs to show battery charge level, AC line voltage levels, automatic voltage regulation status, UPS load level and replace battery warning
Interfaces/Ports
- USB: Yes
Battery Information
- Battery Chemistry: Lead Acid
- Backup/Run Time (Full Load): 10 Minute
- Backup/Run Time (Half Load): 28 Minute
- Battery Life: 6 Year
- Hot Swappable: Yes
- Typical Battery Recharge Time: 4 Hour
Environmental Conditions
- Maximum Operating Temperature: 104°F (40°C)
Physical Characteristics
- Height: 12.75"
- Width: 7.50"
- Depth: 9"
- Form Factor: Tower
- Weight (Approximate): 44.60 lb
Miscellaneous
- Package Contents:
- SmartPro 1200XLHG UPS
- SMART 1200XLHG Medical Grade Tower UPS System
- PowerAlert Software and cabling
- Warranty information
- Instruction manual
- Country of Origin: Taiwan
Warranty
- Limited Warranty: 2 Year
