Tripp Lite series 48V Extended Battery Module (EBM) for SmartOnline UPS Systems, 2U Rack/Tower - BP48RT
Key Features
- Connects to select expandable SmartOnline UPS systems to add critical runtime
- Daisy-chain connector supports additional battery packs for even longer runtime
- Includes heavy-gauge battery cabling with high-current 48V DC connectors
Product Overview
Provides extended runtime for compatible UPS systems in education, healthcare, military, government and other IT applications in small or mid-size networks.
Features | Backup Battery Module Gives Your Compatible UPS System Extended Runtime
The valve-regulated lead-acid (VRLA) BP48RT offers extended battery runtime when used in conjunction with SU1500RTXLCD2U, SU1500RTXLCDN, SUINT1000LCD2U and SUINT1500LCD2U SmartOnline® UPS systems. It can also be daisy-chained for a maximum of four matching battery packs to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation.
Versatile Installation Options
You can mount the BP48RT in 2U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or an optional 2-post rail kit (RK2PC, sold separately). You can also adapt it for tower installation using the UPS system's support stands.
General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: BP48RT
- Brand Name: Tripp Lite series
- Product Model: BP48RT
- Product Name: 48V Extended Battery Module (EBM) for SmartOnline UPS Systems, 2U Rack/Tower
- Product Type: External Battery Pack
Technical Information
- Battery Characteristics:
- Valve-regulated
- Hot-swappable
- User Replaceable
- Battery Chemistry: Lead Acid
- Hot Swappable: Yes
- Output Voltage: 48 V DC
Environmental Conditions
- Minimum Operating Temperature: 32°F (0°C)
- Maximum Operating Temperature: 104°F (40°C)
Physical Characteristics
- Height: 3.4"
- Width: 17.3"
- Depth: 17.7"
- Weight (Approximate): 59.50 lb
Miscellaneous

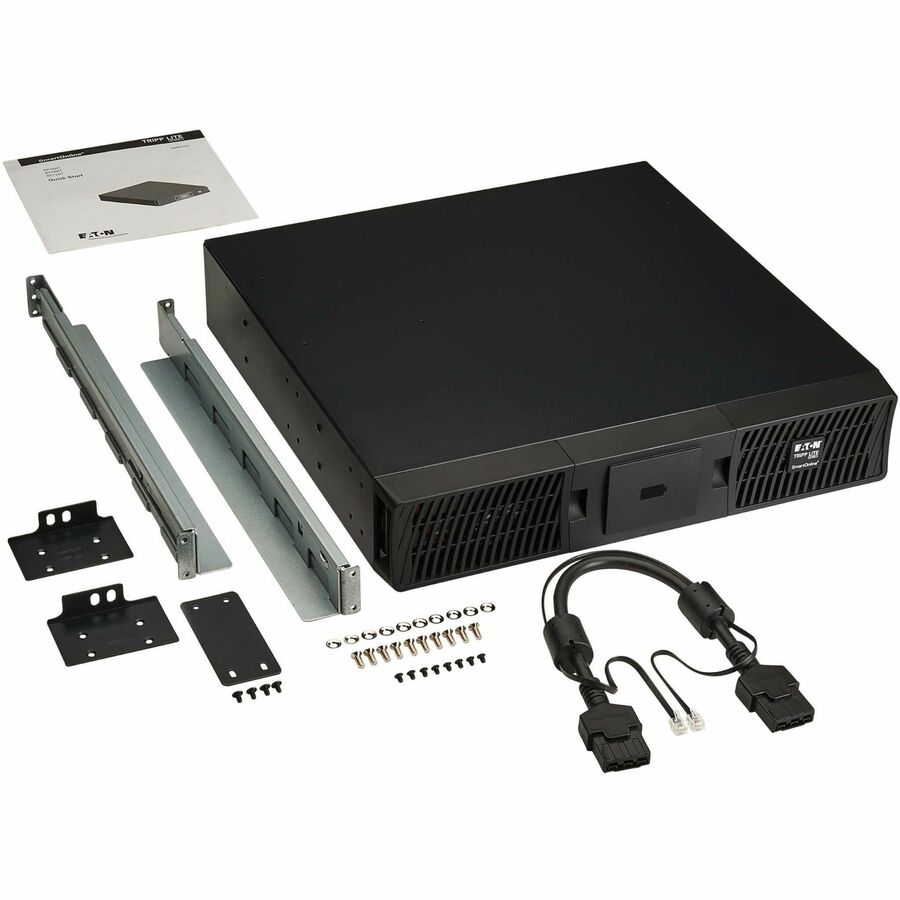

- Package Contents:
- 48V Extended Battery Module (EBM) for SmartOnline UPS Systems, 2U Rack/Tower
- External Battery Cable
- Rack-mounting Hardware
- Quick Start Guide
- Compatibility:
Tripp Lite SmartOnline UPS Systems:
- SU1500RTXLCD2U
- SU1500RTXLCDN
- SUINT1000LCD2U
- SUINT1500LCD2U
- Country of Origin: Philippines
- Environmentally Friendly: Yes
- Environmental Compliance:
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 2 Year
- Additional Warranty Information:
Extended Service Plans: 5-year depot exchange plan: TL9SW5Y-3000BCExpedited parts coverage for 5 yearsParts, electronics and batteries coverageNext business day shippingTechnical support5-year onsite plan: TLWEBN75XX-7000BCOnsite parts and labor coverage for 5 yearsParts, electronics and batteries coverage24x7 onsite labor coverage, next-day responseNext-day shippingTechnical support
