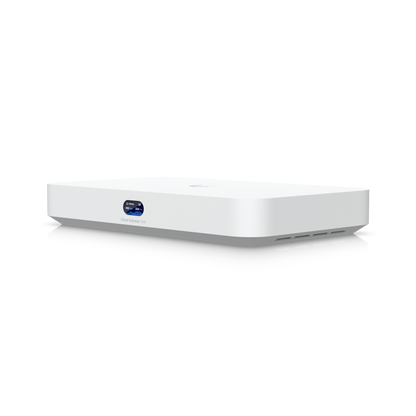

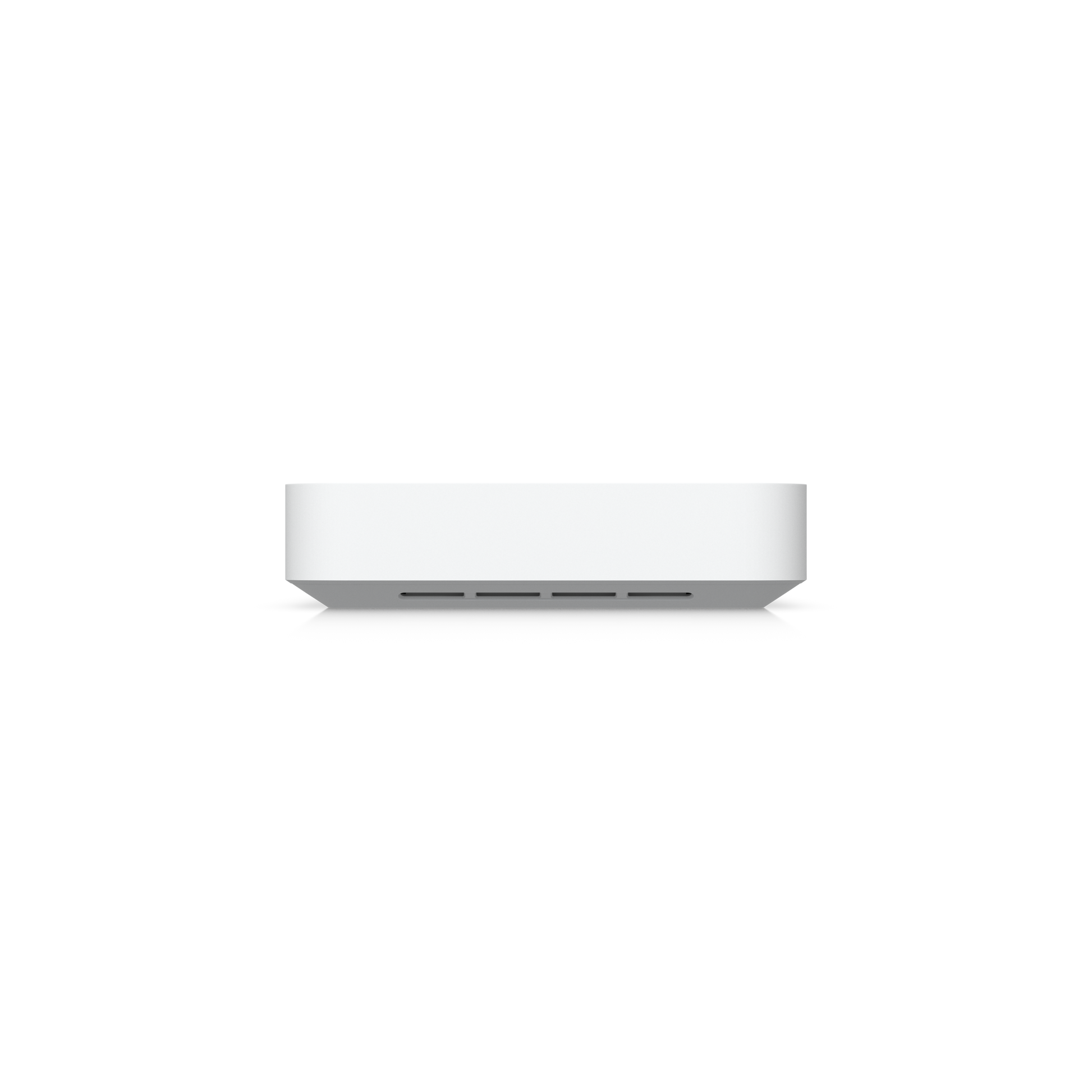

Ubiquiti Cloud Gateway Fiber (UCG-Fiber)
The Ubiquiti Cloud Gateway Fiber delivers powerful 10G performance in a compact desktop form factor. Designed for modern high-speed networks, it combines gateway, switching, storage, and full UniFi application support into one versatile solution.
Key Features
• Compact desktop 10G cloud gateway with integrated 4-port 2.5 GbE switch
• Full UniFi application suite: Network, Protect, Access, Talk, Connect
• Supports 50+ UniFi devices and up to 500+ simultaneous users
• Advanced security with stateful firewall, Layer 7 filtering, IDS/IPS, and content filtering
• License-free SD-WAN and multiple VPN protocols (WireGuard, IPsec, OpenVPN, L2TP)
• Built-in NVR with selectable NVMe SSD storage up to 2 TB
• 30W PoE budget with 54V DC adapter included
• Quad-core ARM® Cortex®-A73 2.2 GHz processor with 3 GB memory
• 10G WAN/LAN flexibility: (1) 10G SFP+, (1) 10 GbE RJ45, (4) 2.5 GbE RJ45
Ideal For
IT administrators, small businesses, and advanced home users who need a high-performance UniFi gateway with advanced routing, security, and application management in one device.
Why You Should Use This
The UCG-Fiber provides enterprise-grade networking, security, and VPN features without recurring license fees. It’s a complete UniFi ecosystem controller in a single desktop gateway that scales with your network.
Bonus Highlights
• DPI and traffic identification
• Advanced NAT (SNAT/DNAT/NAT pooling)
• Integrated RADIUS server with TLS support
• Internet failover via UniFi LTE backup
• CE, FCC, IC certified and NDAA compliant
FAQs
Q: Does this support UniFi Protect cameras?
A: Yes, up to 15 HD, 8 2K, or 5 4K cameras.
Q: Is there a license fee for SD-WAN or VPN?
A: No, all features are license-free.
Q: Can I expand the storage?
A: Yes, with selectable NVMe SSD up to 2 TB.
Dimensions
212.8 x 127.6 x 30 mm
(8.3 x 5 x 0.5 ")
UniFi Application Suite
Network ✓
Protect ✓
Access ✓
Talk ✓
Connect ✓
Managed UniFi Devices
50+
Managed Cameras
(15) HD
(8) 2K
(5) 4K
Simultaneous Users Connected
500+
Max. WAN Port Count
6
Default WAN Ports
(1) 10G SFP+
(1) 10 GbE RJ45

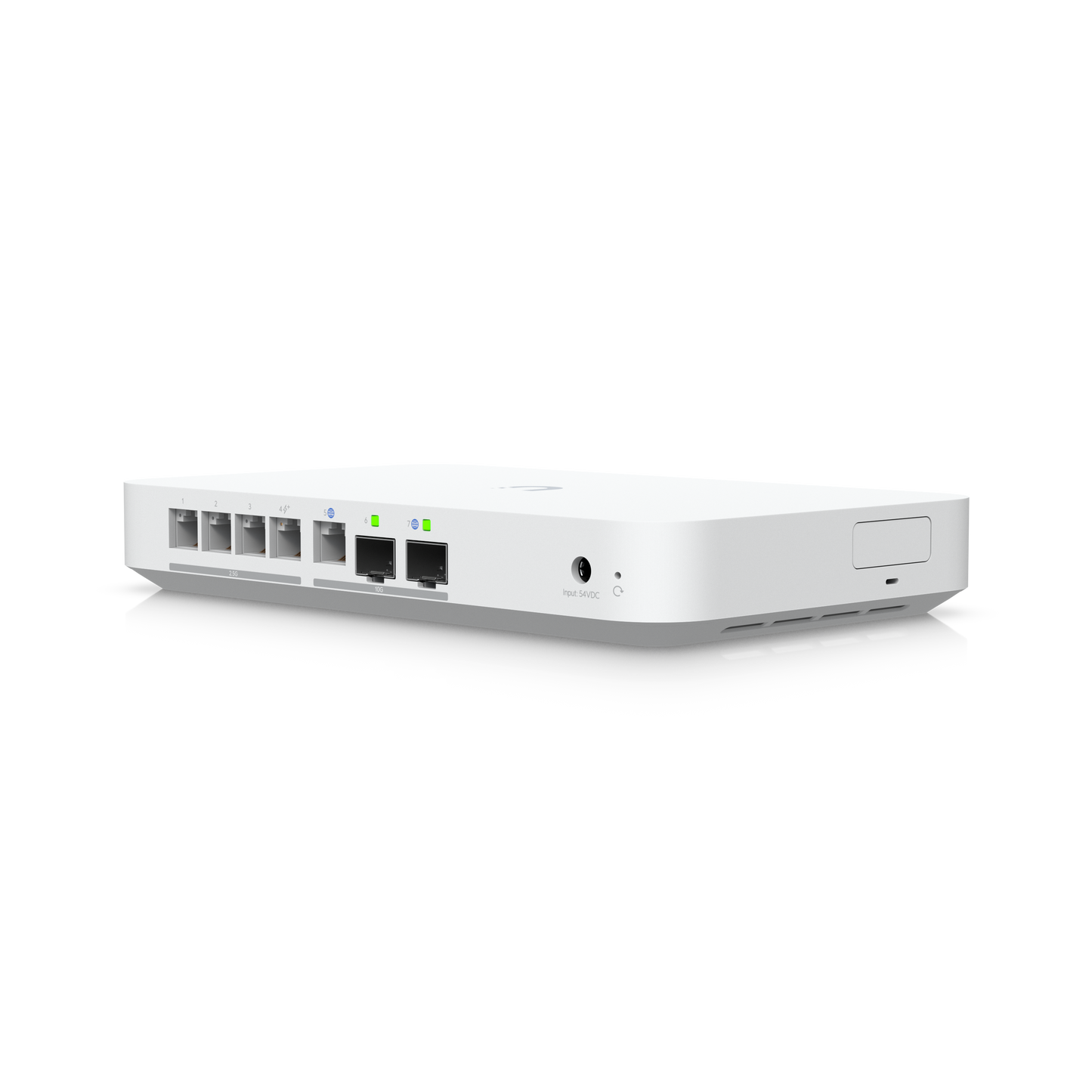

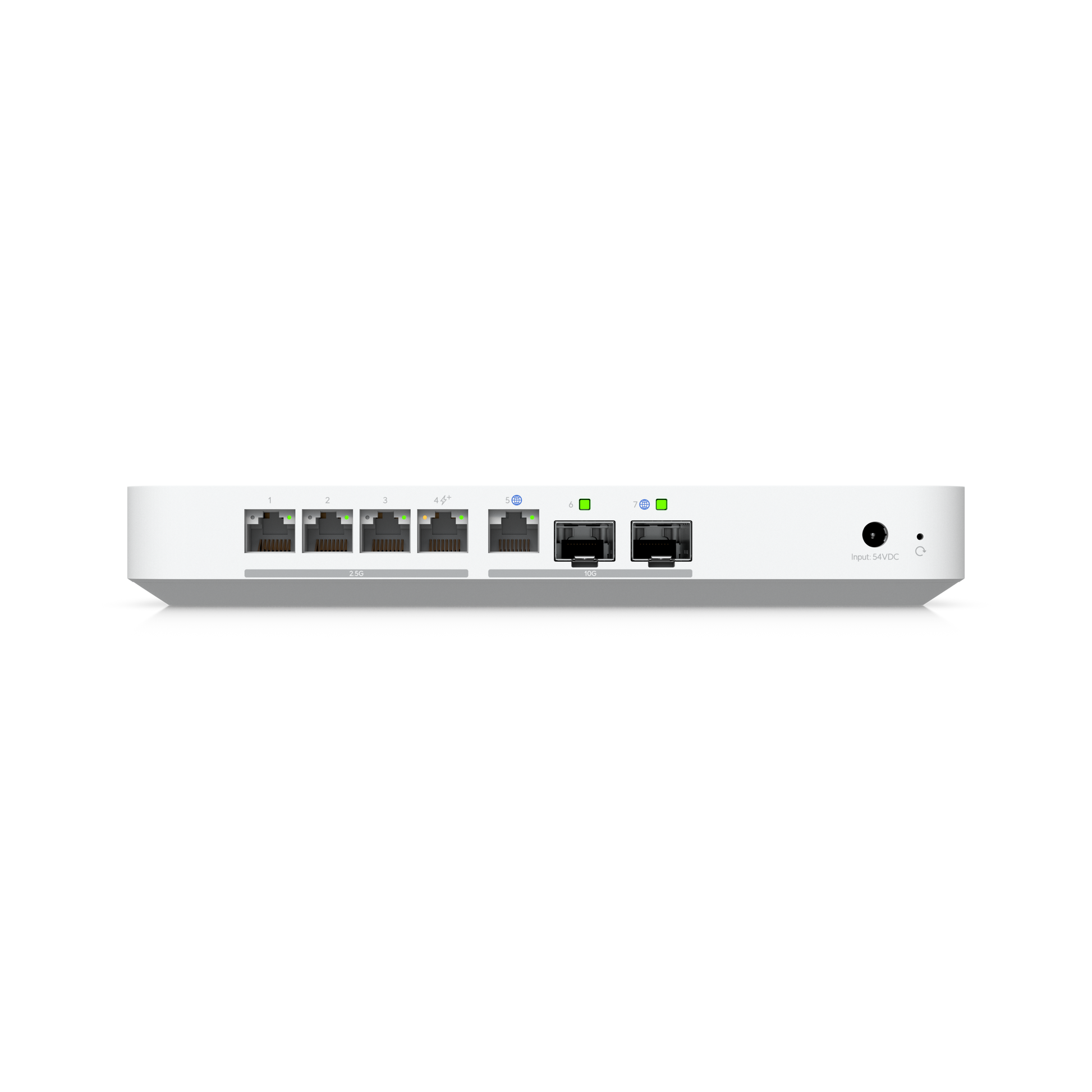

Port Layout
2.5 GbE RJ45: 4 (2.5G/1G/100M/10M)
10 GbE RJ45: 1 (10G/2.5G/1G)
10G SFP+: 2 (10G/1G)
IDS/IPS Throughput
5 Gbps
Form Factor
Compact desktop
Security
Stateful Firewall ✓
Application-Aware Layer 7 Firewall ✓
DPI & Traffic Identification ✓
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) ✓
Content Filtering ✓
Intrusion Prevention (IPS/IDS) ✓
Ad Blocking ✓
IDS/IPS Signatures: 55,000+ with CyberSecure
VLAN/Subnet-based Traffic Segmentation ✓
VPN & SD-WAN
License-Free SD-WAN ✓
Site-to-Site VPN: Site Magic ✓
IPsec ✓
OpenVPN ✓
VPN Server: Identity Endpoint One-Click VPN ✓
Teleport Zero-Configuration VPN ✓
WireGuard ✓
OpenVPN ✓
L2TP ✓
VPN Client: OpenVPN ✓, WireGuard ✓
Networking
Multi-WAN Load Balancing ✓
Dynamic Routing: OSPF ✓
Advanced QoS ✓
Multicast DNS (mDNS) ✓
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) ✓
Integrated RADIUS Server ✓
RADIUS over TLS (RadSec) ✓
Additional Internet Failover with UniFi LTE Backup ✓
Internet Quality and Outage Reporting ✓
MAC Address Table Size: 4,000
Hardware
NVR Storage: Selectable NVMe SSD up to 2 TB
PoE Budget: 30W
Voltage Range PoE Mode: 50–57V
Max. Power Consumption: 29.4W (Excluding PoE output)
Power Method: DC jack (54V DC/1.1A)
Power Supply: 54V DC/1.1A (adapter included)
Supported Voltage Range: 100–240V AC
Processor: Quad-core ARM® Cortex®-A73 at 2.2 GHz
System Memory: 3 GB
Weight: Without SSD: 675 g (1.5 lb), With SSD: 734 g (1.6 lb)
Enclosure Material: Polycarbonate

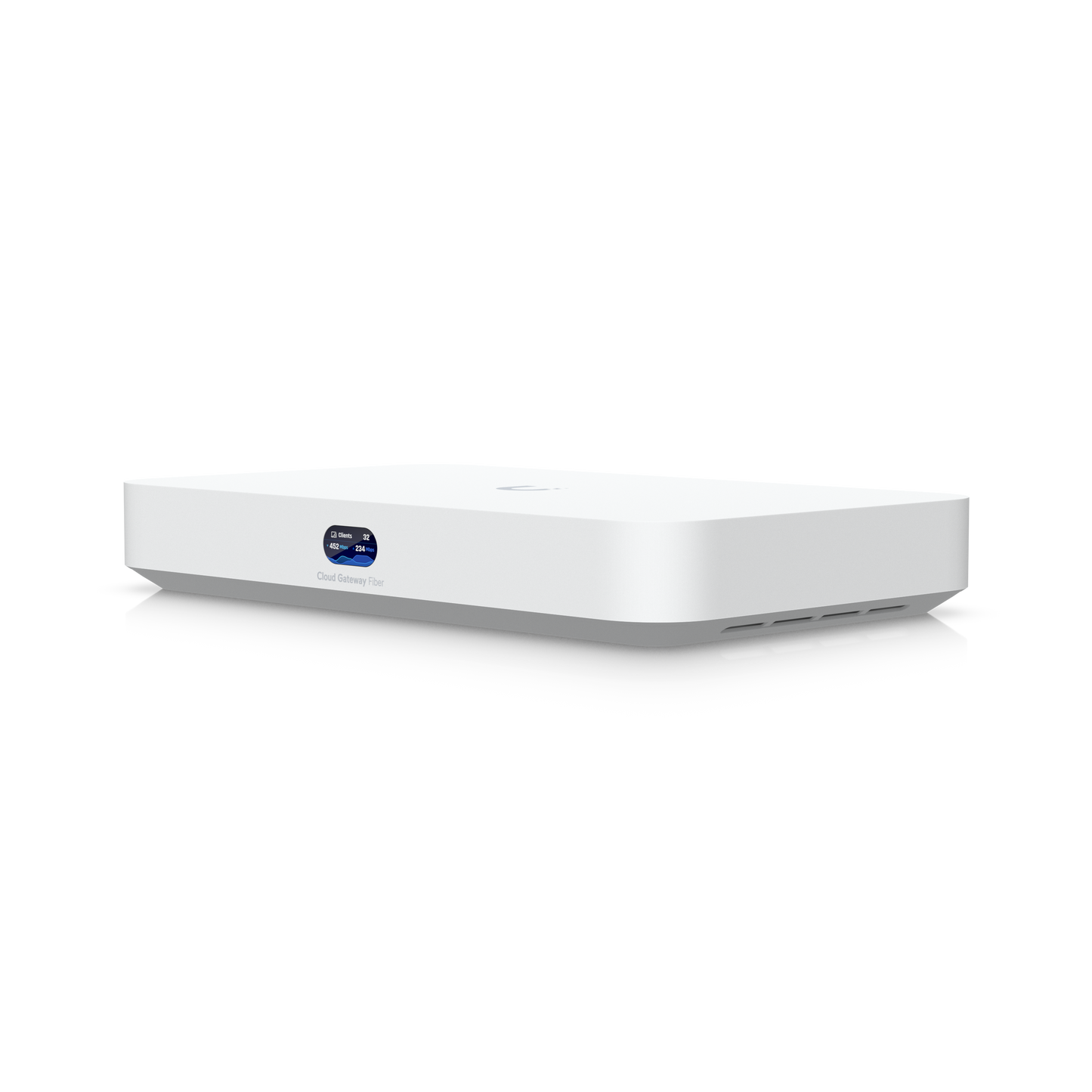

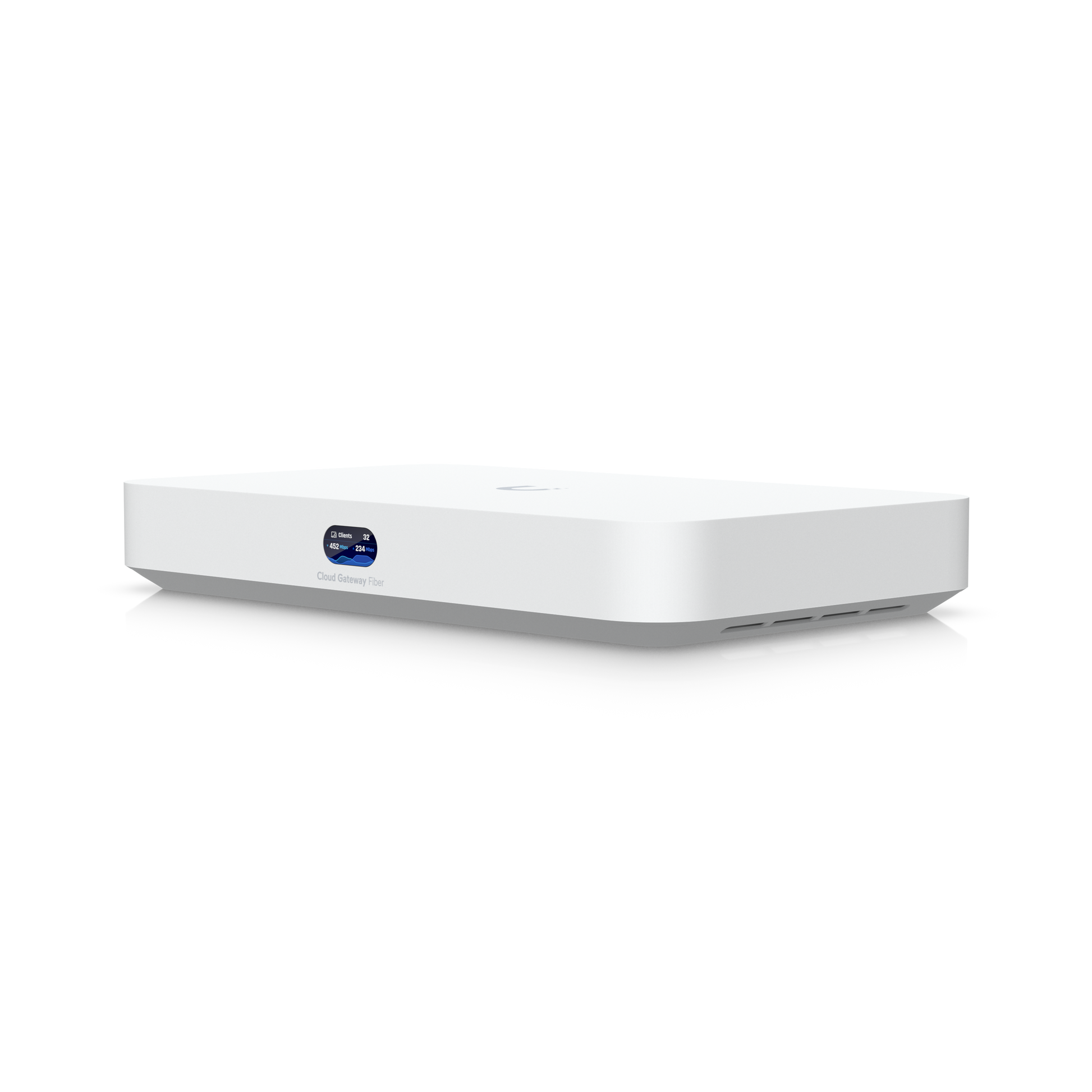

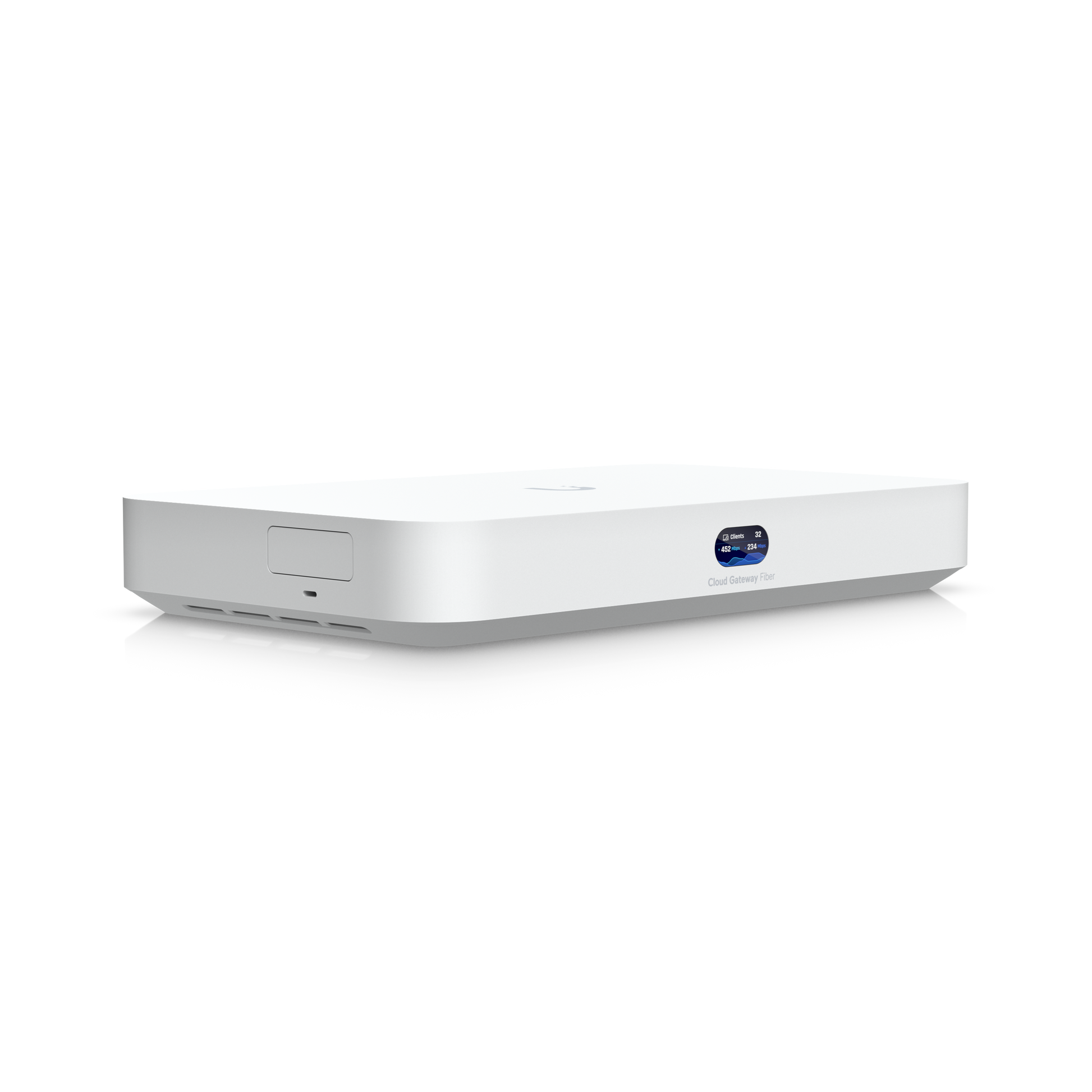

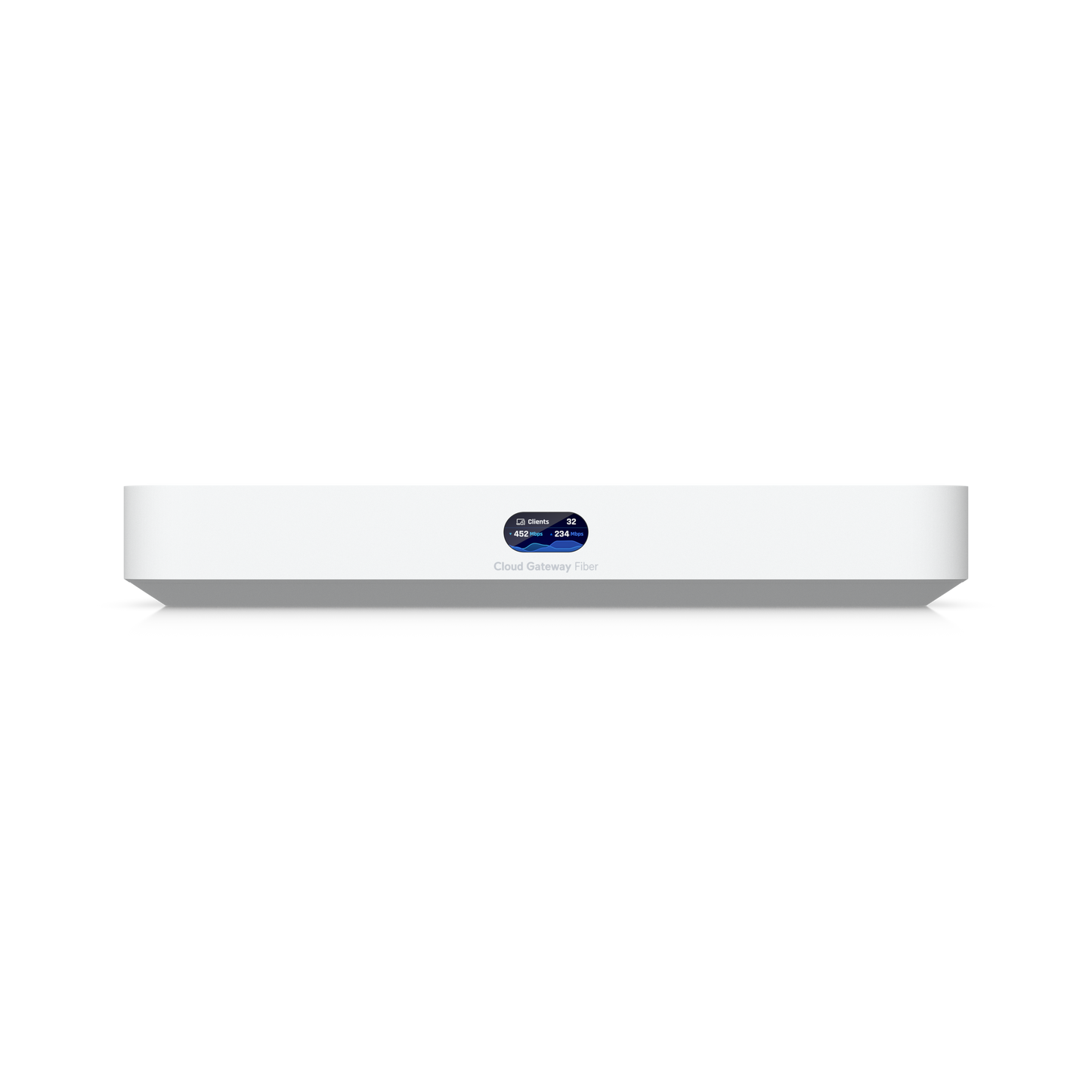

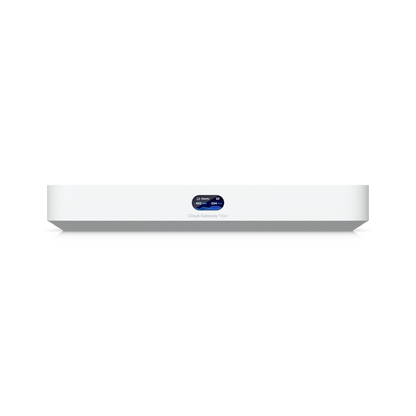

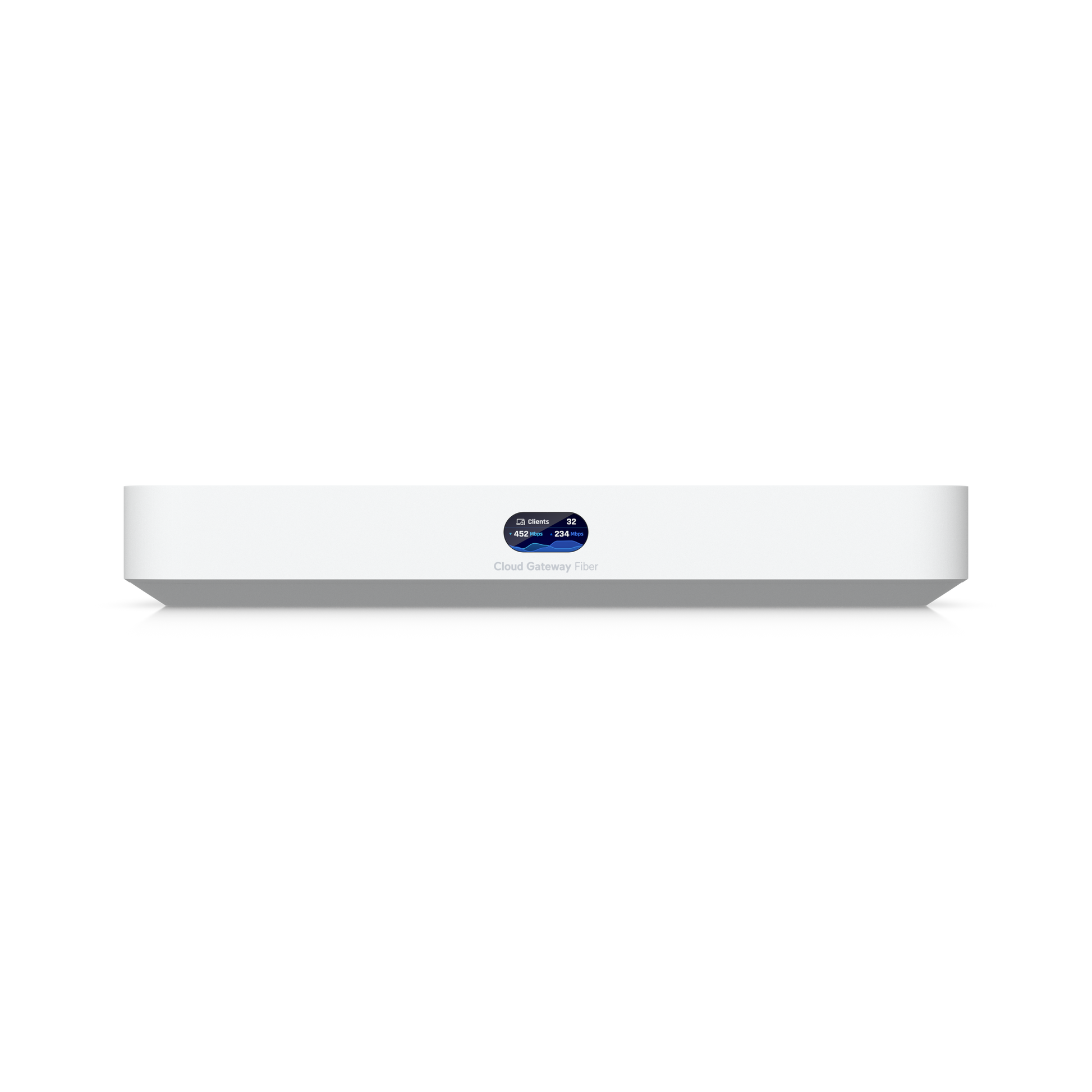

LCM Display: 0.96" status display
Management
Ethernet ✓
Bluetooth ✓
LEDs
Ethernet ✓
SFP+ ✓
Button
(1) Factory-reset
ESD/EMP Protection
Air: ± 8kV, Contact: ± 4kV
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC
