Ubiquiti Device Bridge Pro – 60GHz + 5GHz High-Speed Point-to-Point Wireless Link
Ultra-Fast, Low-Interference Wireless Bridge for Long-Range Networking
The Ubiquiti Device Bridge Pro is a professional-grade point-to-point wireless bridge designed to deliver high-throughput connectivity using a 60GHz primary link with a 5GHz backup channel. Supporting up to 1 Gbps+ real-world throughput with low latency, it's ideal for building-to-building connections, remote site networking, and fiber replacement scenarios.
Key Features:
• Dual-Band Operation: Primary 60GHz with automatic 5GHz failover
• High-Speed Throughput: Up to 1 Gbps+ real-world performance
• Precision Alignment: Built-in aiming tools with touchscreen LCM display
• Long Range: Up to 1.5+ km (line of sight)
• Full Weatherproofing: IPX6-rated enclosure for outdoor deployments
• UniFi Integration: Manage via UniFi Controller for centralized network control

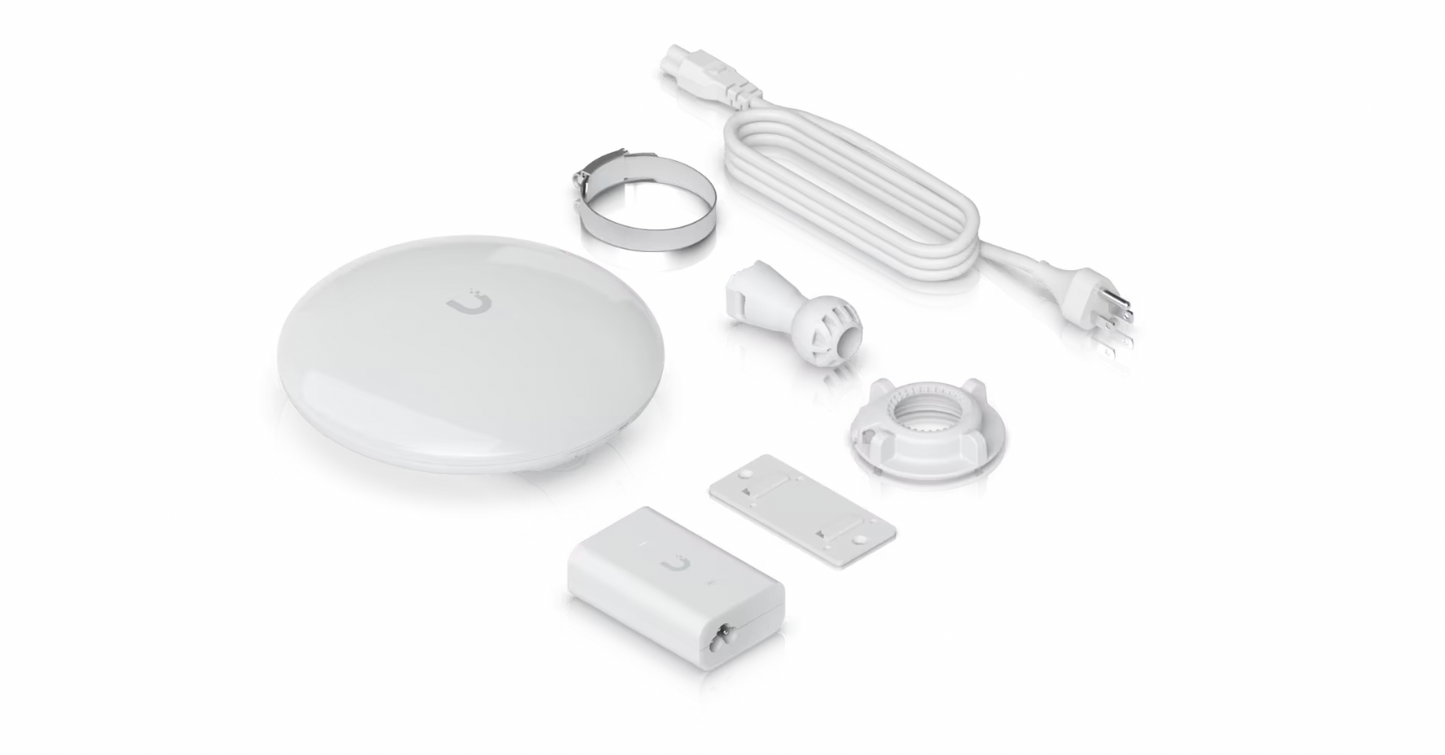

• Secure Mounting: Pole mount included for stable outdoor installation
Ideal For:
Building-to-building links
Fiber alternative in hard-to-wire locations
Campus networks
Security camera backhaul
Remote site connectivity
Why Choose the Device Bridge Pro?
This advanced wireless bridge delivers gigabit speeds over long distances without the complexity or cost of trenching fiber — a perfect solution for reliable, high-performance outdoor point-to-point links.
ZOverview
Dimensions: Ø189.5 x 64.3 mm (Ø7.4 x 2.5")
WiFi Standard: WiFi 5
Spatial Streams: 2
Coverage Area: 5 km (3.1 mi)
Mounting Locations: Wall, pole
Weatherproofing: IPX6
Power Method: PoE
PoE+ (Required for PoE output)
Performance
MIMO: 5 GHz – 2 x 2
Max. Data Rate (5 GHz): 867 Mbps (BW80)
Antenna Gain (5 GHz): 19 dBi
Max. TX Power (5 GHz): 25 dBm
Max. Conducted TX Power: 25 dBm (Combined)
Supported Data Rates:
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: 6.5 Mbps to 300 Mbps (MCS0–MCS15, HT 20/40)
802.11ac (WiFi 5): 6.5 Mbps to 866.7 Mbps (MCS0–MCS9 NSS1/2, VHT 20/40/80)
Wireless Security: WPA2 AES (Always On)
Hardware
Max. Power Consumption: 9W
Supported Voltage Range: 42.5–57V DC
Networking Interface: (2) GbE RJ45 ports
Antennas: Internal
Management: (1) PoE in (PoE output not used), (1) Passive PoE output
Wind Loading: 69 N at 200 km/h (15.5 lbf at 125 mph)
Weight: Device: 431 g (0.95 lb); With mount: 515 g (1.1 lb)
Mount Material: UV-stabilized polycarbonate, stainless steel
Enclosure Material: UV-resistant polycarbonate
Pole Mount Diameter: 0.8–2.1" (20–53.1 mm)
Button: (1) Factory-reset
LEDs: System – Power, Ethernet, (4) signal strength
Channel Bandwidth: 20/40/80 MHZ
US/CA:
U-NII-1: 5150–5250 MHz
U-NII-2A: 5250–5350 MHz
U-NII-2C: 5470–5725 MHz
U-NII-3: 5725–5850 MHz
Worldwide: 5150–5875 MHz
Environmental
Ambient Operating Temperature: –40 to 60°C (–40 to 140°F)
Ambient Operating Humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC
NDAA Compliant: Yes
