5 GHz Point-to-Point Wireless Bridge with 19 dBi Antenna, 5 km Range, Dual GbE Ports with PoE Passthrough, and UniFi Network Integration
The Ubiquiti UniFi Device Bridge Pro is a dedicated 5 GHz point-to-point wireless bridge that creates high-throughput Ethernet links between buildings, remote structures, and separated network segments up to 5 km apart. The integrated 19 dBi directional antenna and 2x2 MIMO deliver up to 867 Mbps of wireless throughput while the IPX6-rated enclosure handles rain, dust, and exposed outdoor mounting without an additional weatherproof box.
The UDB-Pro includes two GbE RJ45 ports with PoE passthrough on the second port, letting you power a remote device like an access point or camera at the far end of the link without running a separate power source. Managed through the UniFi Network controller, the bridge integrates into your existing UniFi dashboard for monitoring signal strength, throughput, and link status alongside the rest of your infrastructure.
Where the UDB-Pro Fits
- Building-to-building connections where trenching fiber is impractical or too expensive and you need a reliable wireless Ethernet link for LAN extension, VoIP, or IP camera backhaul between structures
- Remote site connectivity where outbuildings, guard houses, barns, or construction trailers need network access and the UDB-Pro delivers a dedicated link without depending on mesh WiFi range
- Camera and access point backhaul where the PoE passthrough port powers a remote UniFi device at the far end of the bridge, eliminating the need for a separate power source or injector at the remote location
What the UDB-Pro Delivers
- 5 km range with 19 dBi antenna: High-gain directional antenna maintains stable throughput over long distances. Built-in signal strength LEDs simplify alignment during installation without requiring a laptop on the pole.
- 867 Mbps wireless throughput: 802.11ac 2x2 MIMO on 80 MHz channels provides real-world speeds suitable for multi-camera backhaul, VoIP trunks, and full LAN extension between sites.
- PoE passthrough to remote devices: Second GbE port delivers passive PoE to power a camera, access point, or other device at the far end. One cable run from the bridge powers the remote equipment.

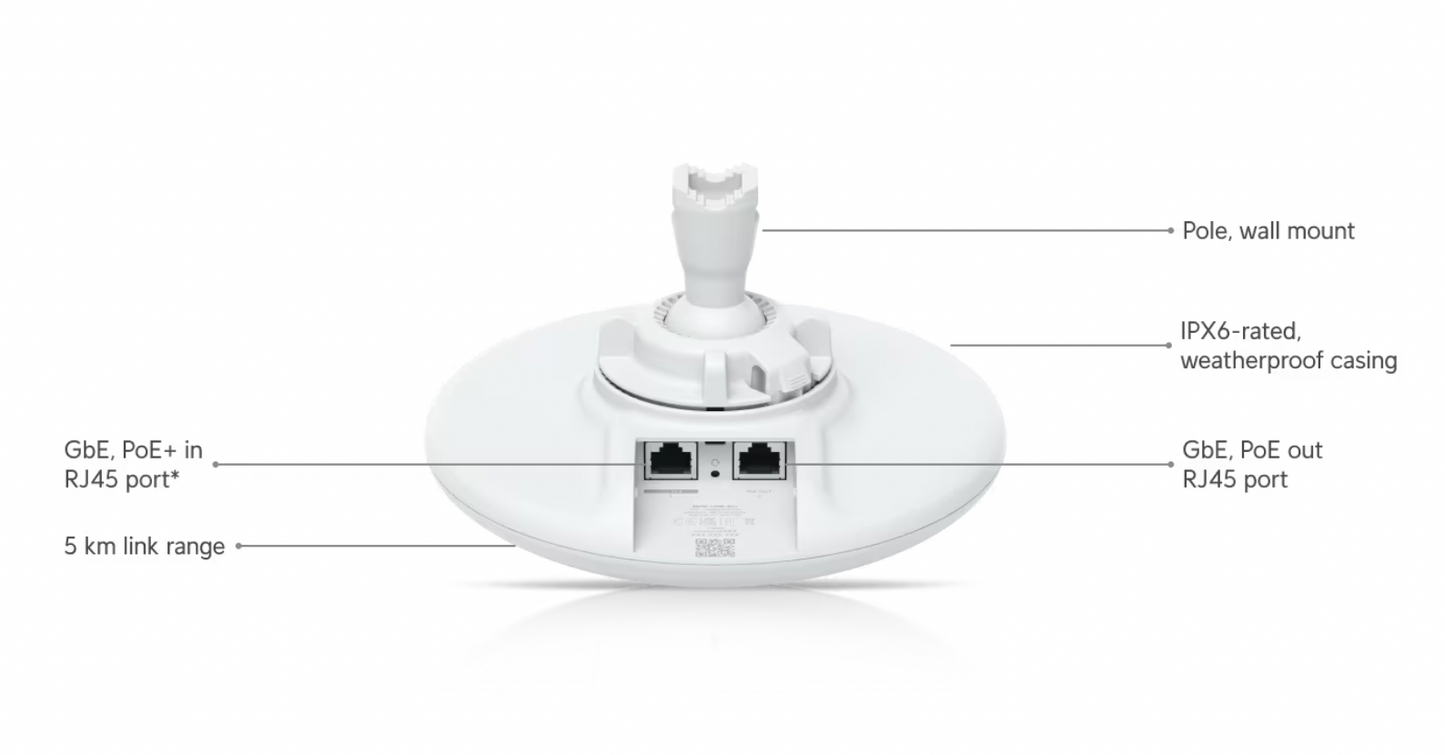

- IPX6 outdoor enclosure: UV-resistant polycarbonate housing rated for direct water jets, operating from -40 to 60 C. Pole mount included for masts up to 53 mm diameter.
- UniFi Network management: Adopts into the UniFi controller for centralized configuration, firmware updates, and real-time link monitoring alongside switches, APs, and gateways.
