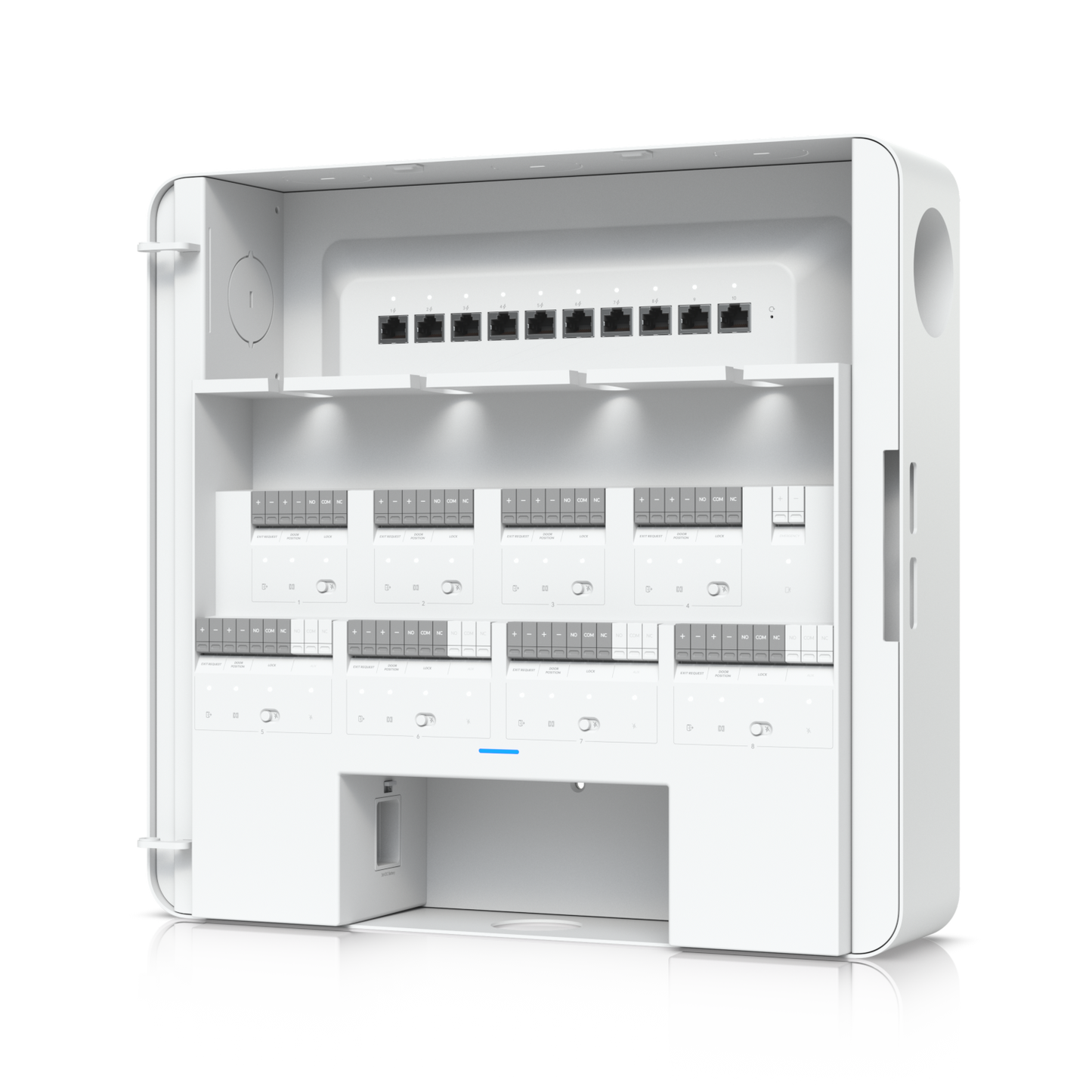

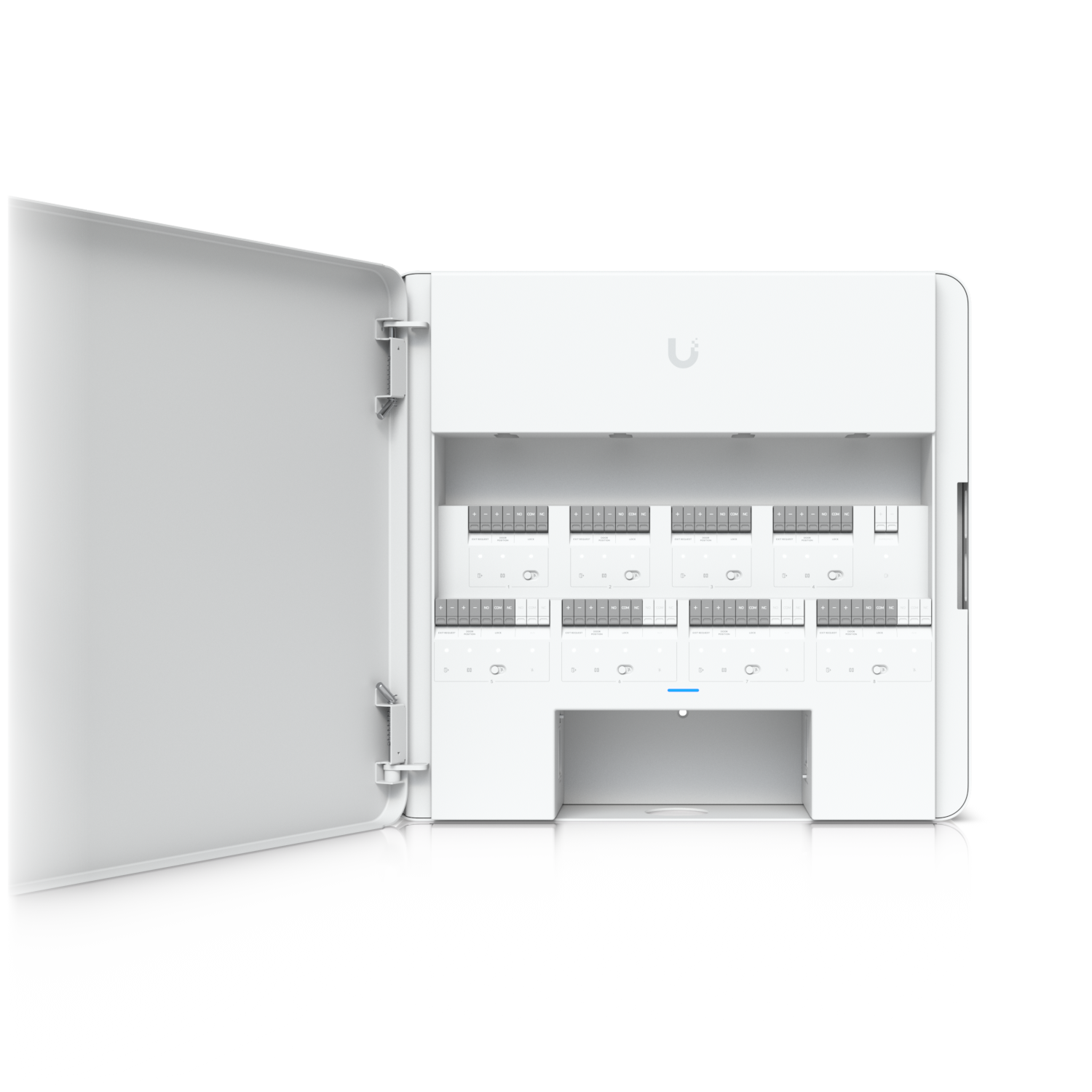

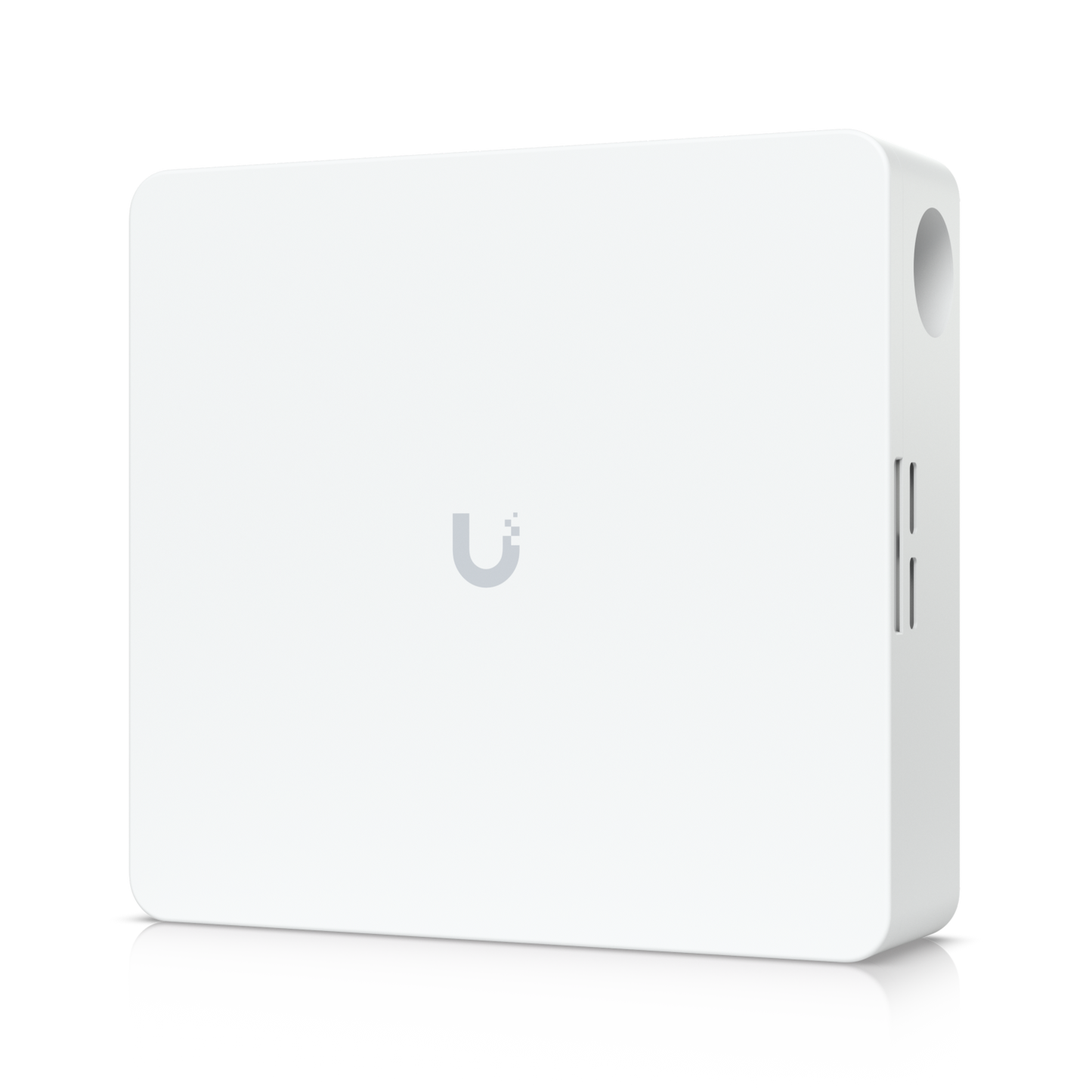

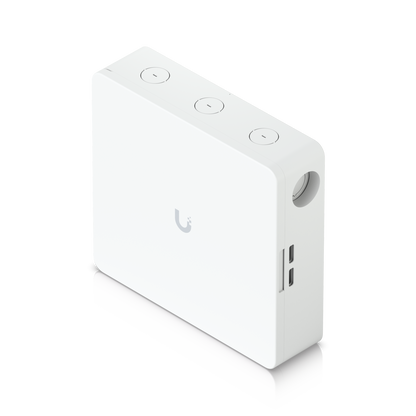

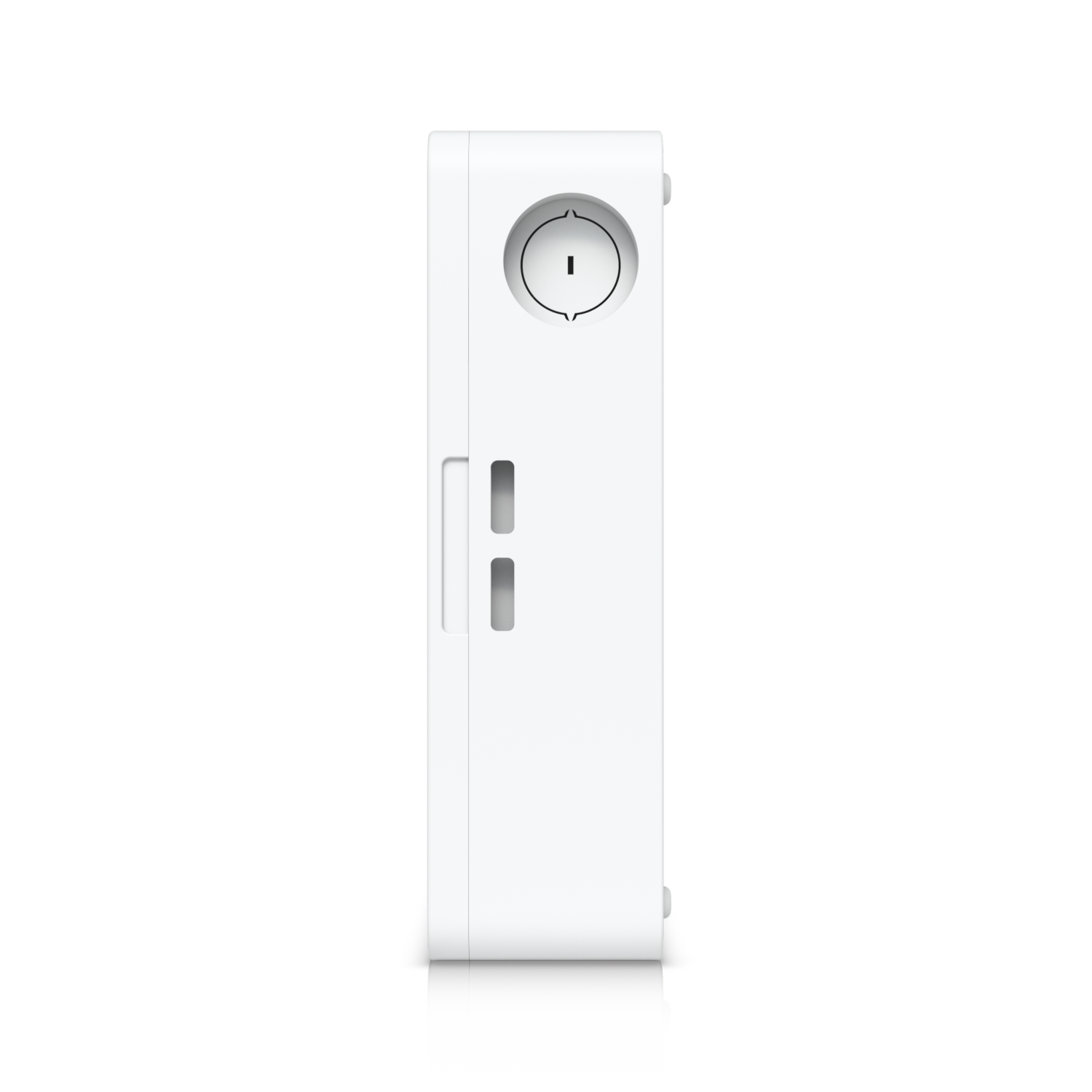

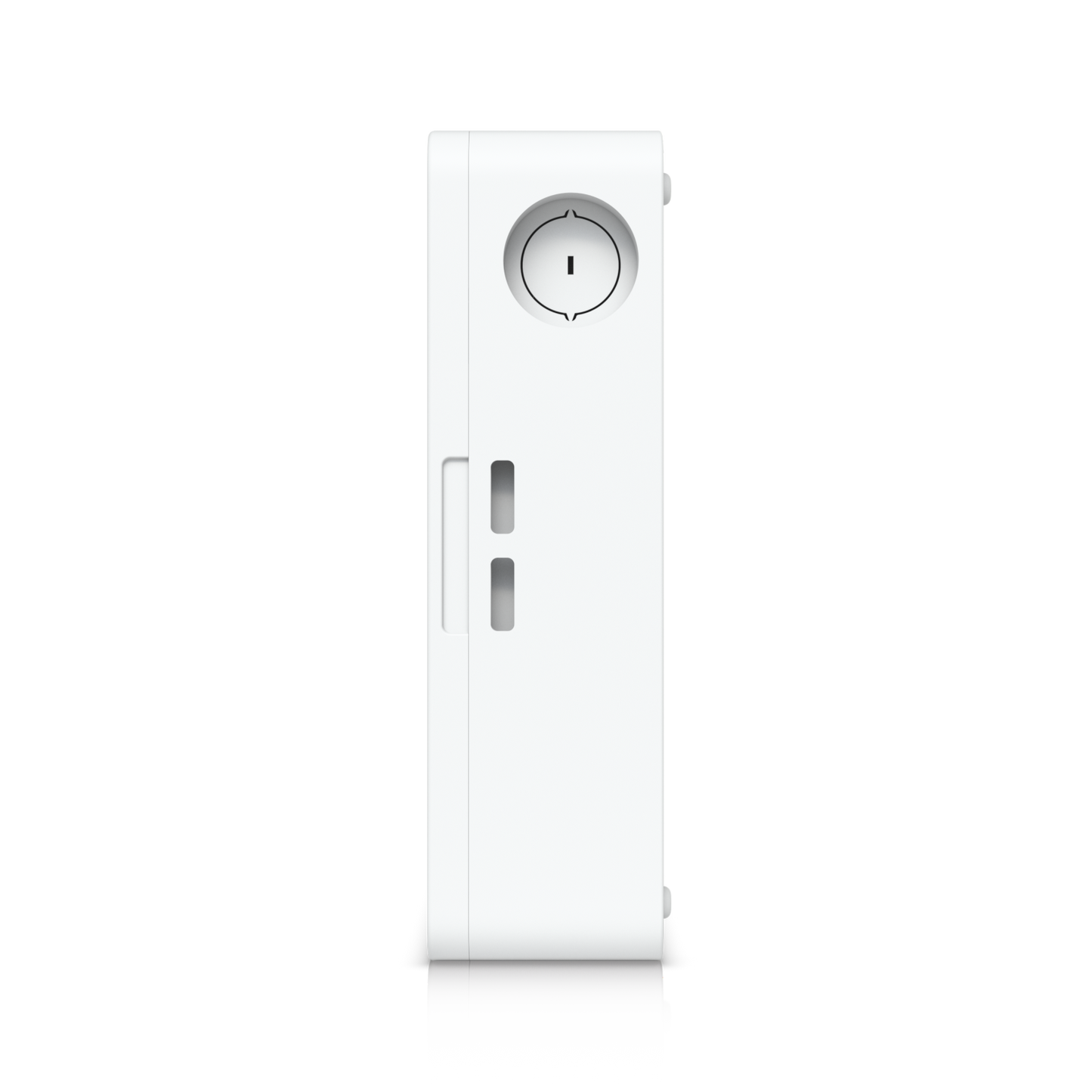

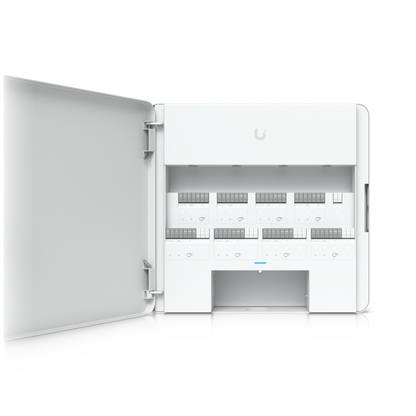

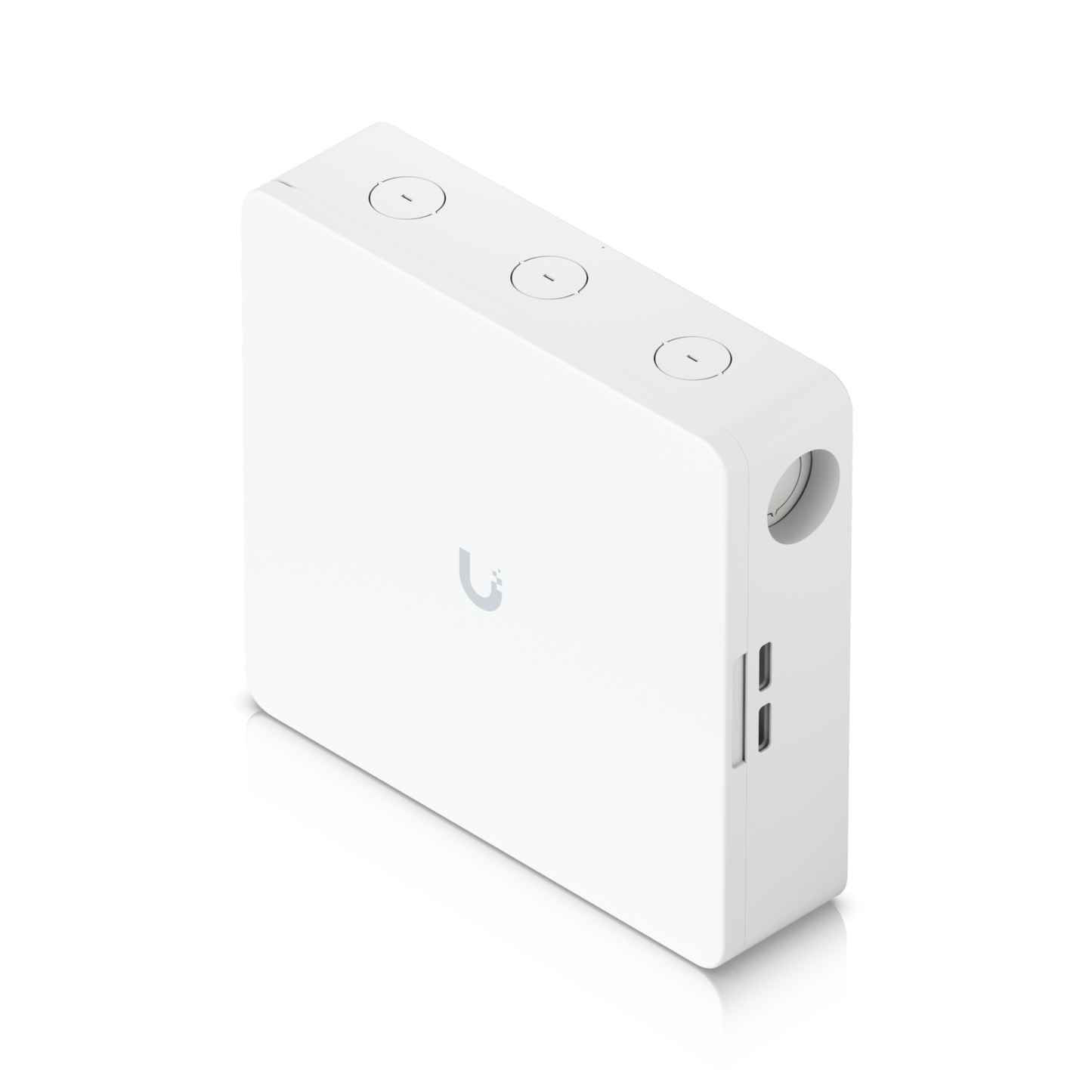

EAH-8 | Enterprise Access Hub for 8-Door Control with PoE & Backup

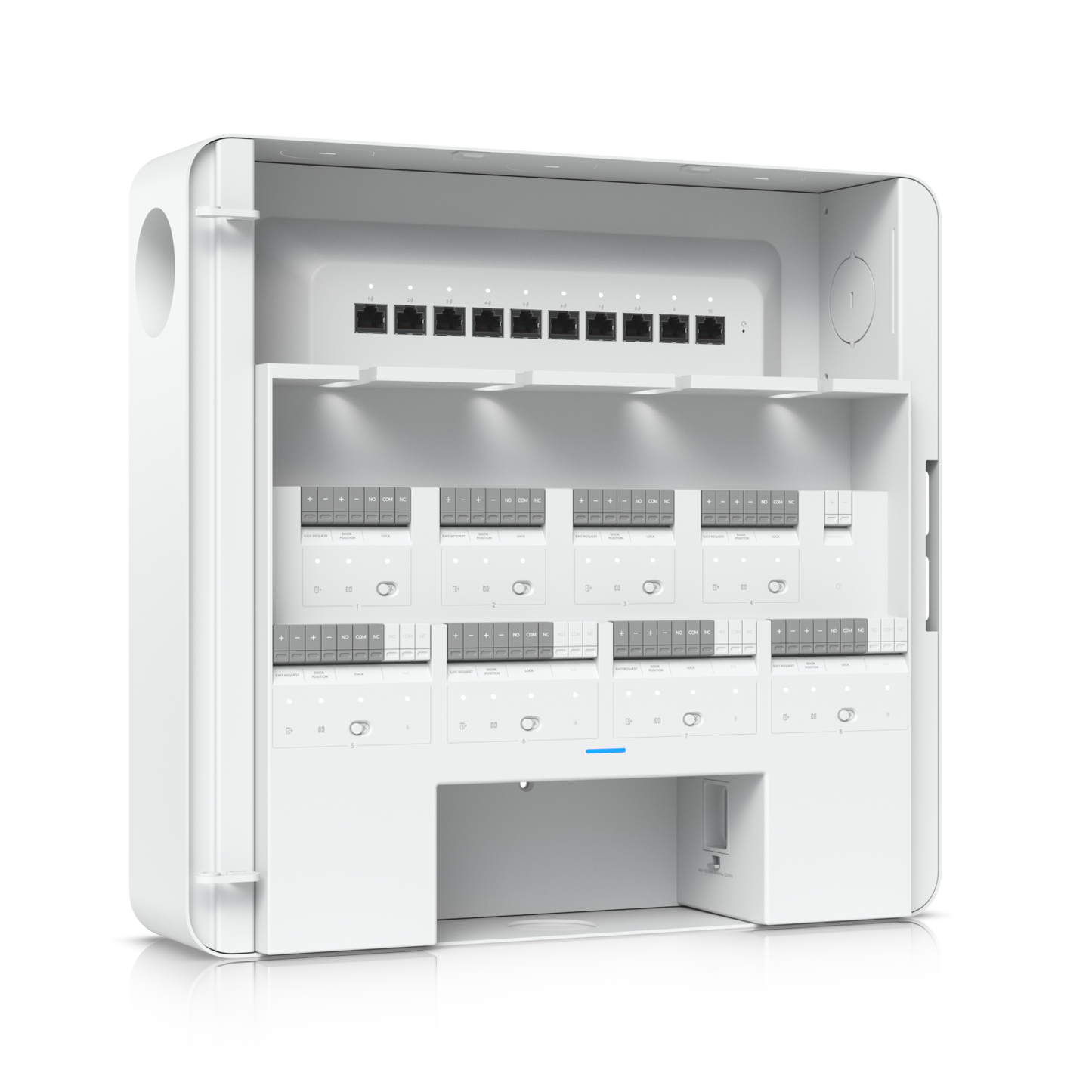

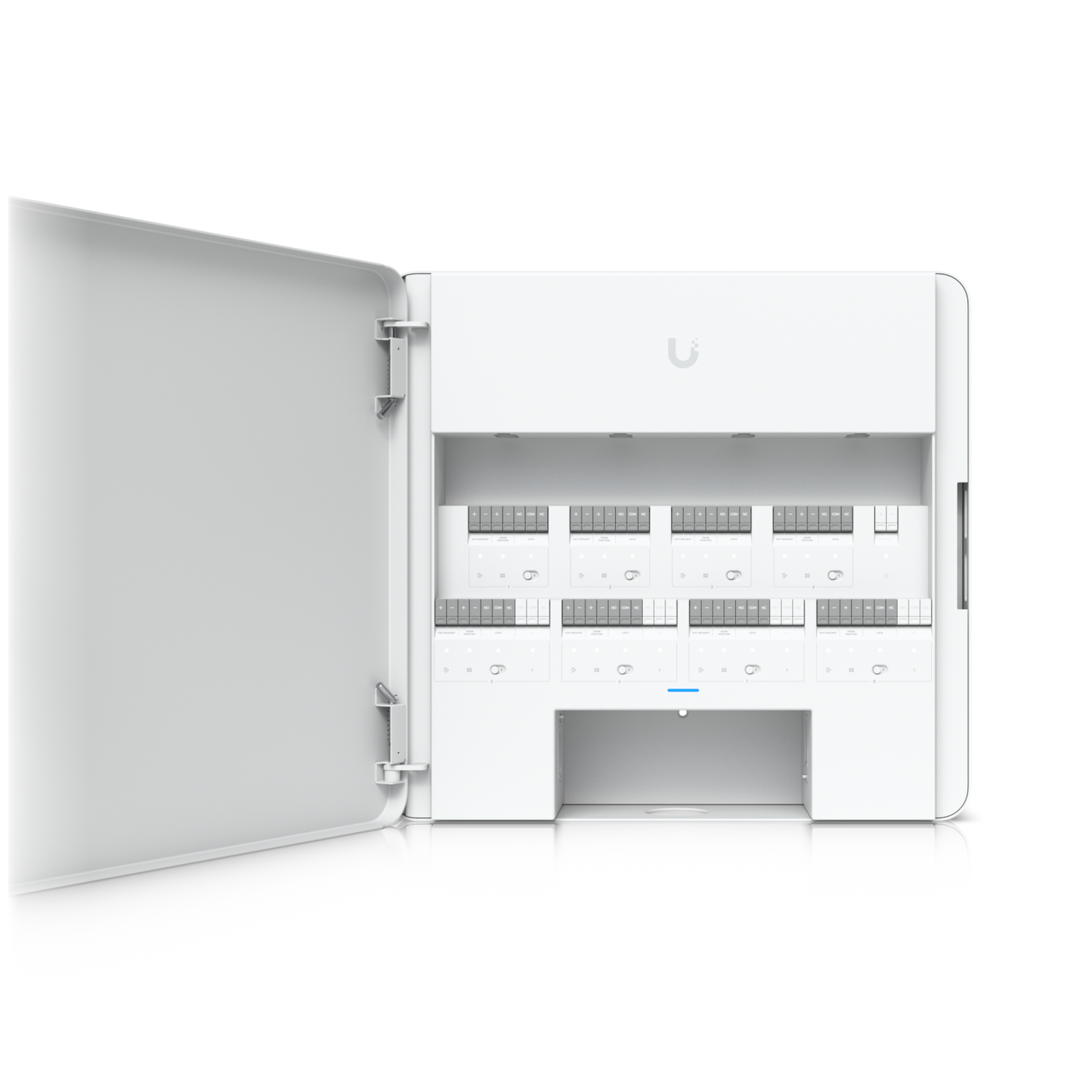

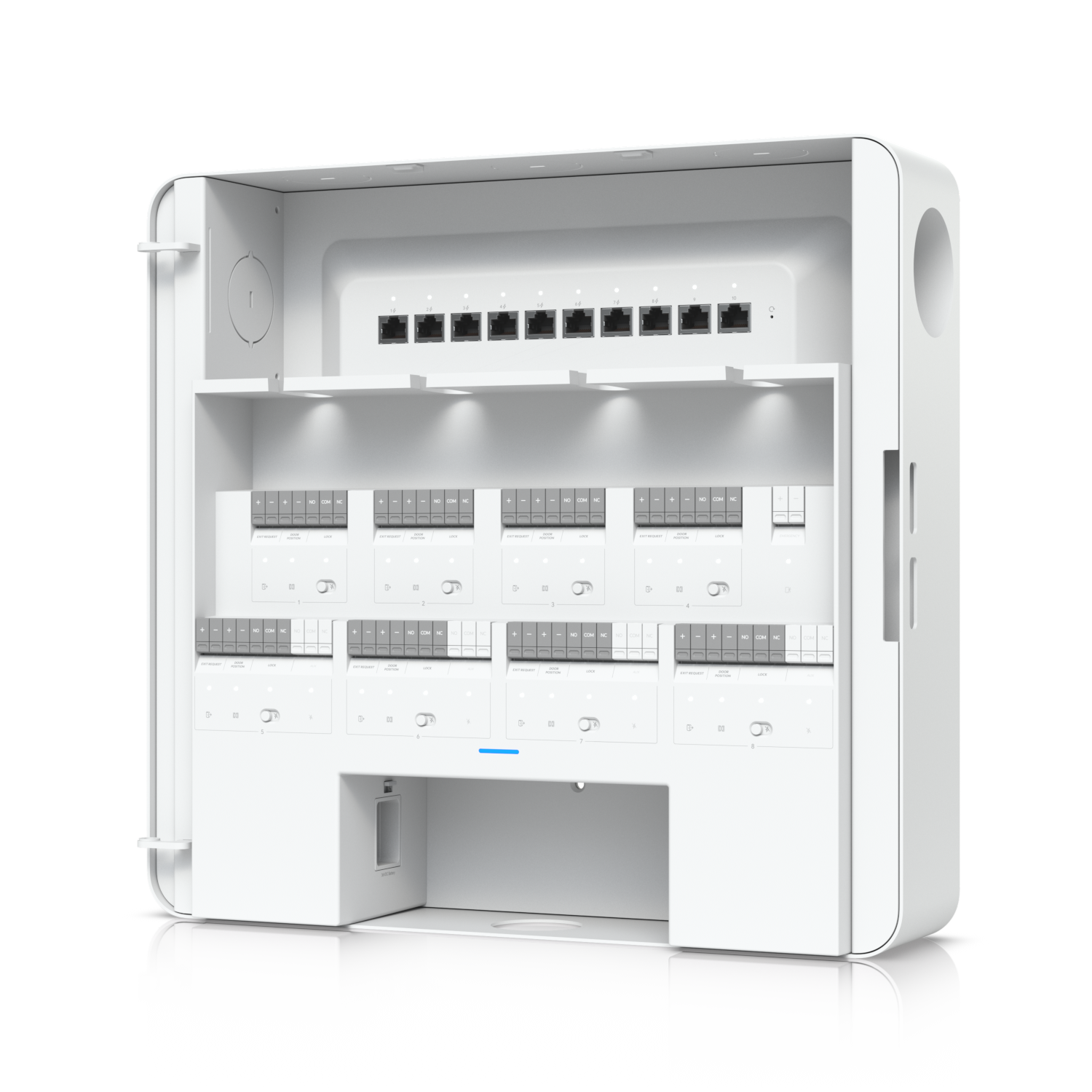

The Ubiquiti EAH-8 is an enterprise-grade access control hub that supports up to eight entry and exit doors. Built for robust security deployments, it features dry and powered relay outputs, PoE support, emergency input, and dual power options — including lead-acid battery backup. Designed for seamless integration with UniFi Access, the EAH-8 ensures secure, scalable, and high-availability access control in indoor environments.
Ideal For:
High-security enterprise facilities with multiple access points
Organizations requiring centralized control of entry/exit doors with backup power
Why You Should Use This:
✓ Manages up to 8 doors with full request-to-exit and door position input
✓ Supports PoE across 8 ports with 60W total output
✓ Includes UL 294 Level I certification and indoor steel enclosure
Key Highlights:
✓ Wall-mounted SGCC steel housing
✓ Redundant power via AC and 32–48V lead-acid battery
✓ Advanced relay outputs for locks, sirens, or chimes
Frequently Asked Questions:
Q: Is this compatible with UniFi Access?
A: Yes, it is managed via the UniFi Access application.
Q: Can this unit operate during a power outage?
A: Yes, it supports 32–48V lead-acid battery backup for uninterrupted operation.
Dimensions: 379 x 355 x 105 mm (15 x 14 x 4.1")
Weight: Device: 9.1 kg (20 lb), Mount: 624 g (1.4 lb)

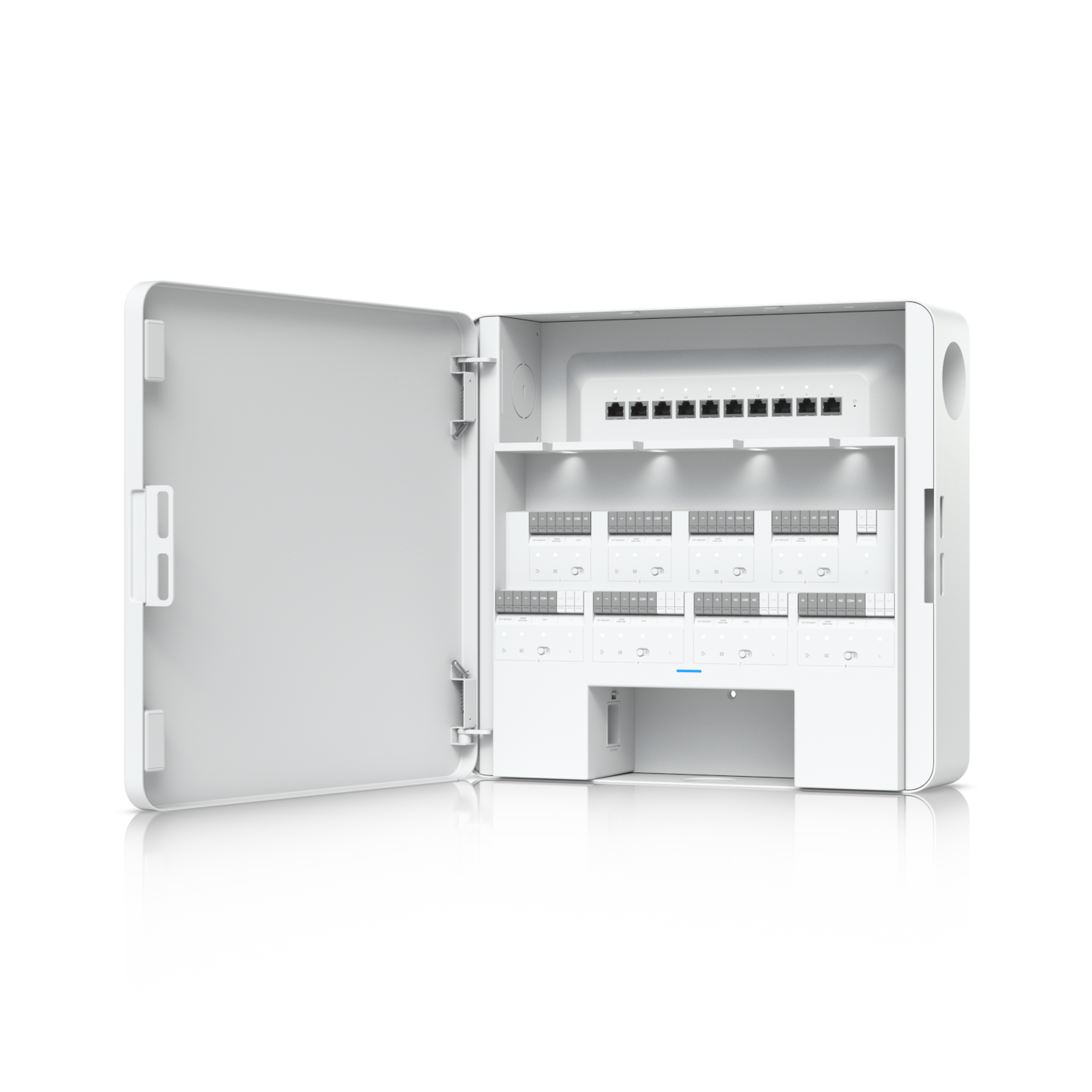

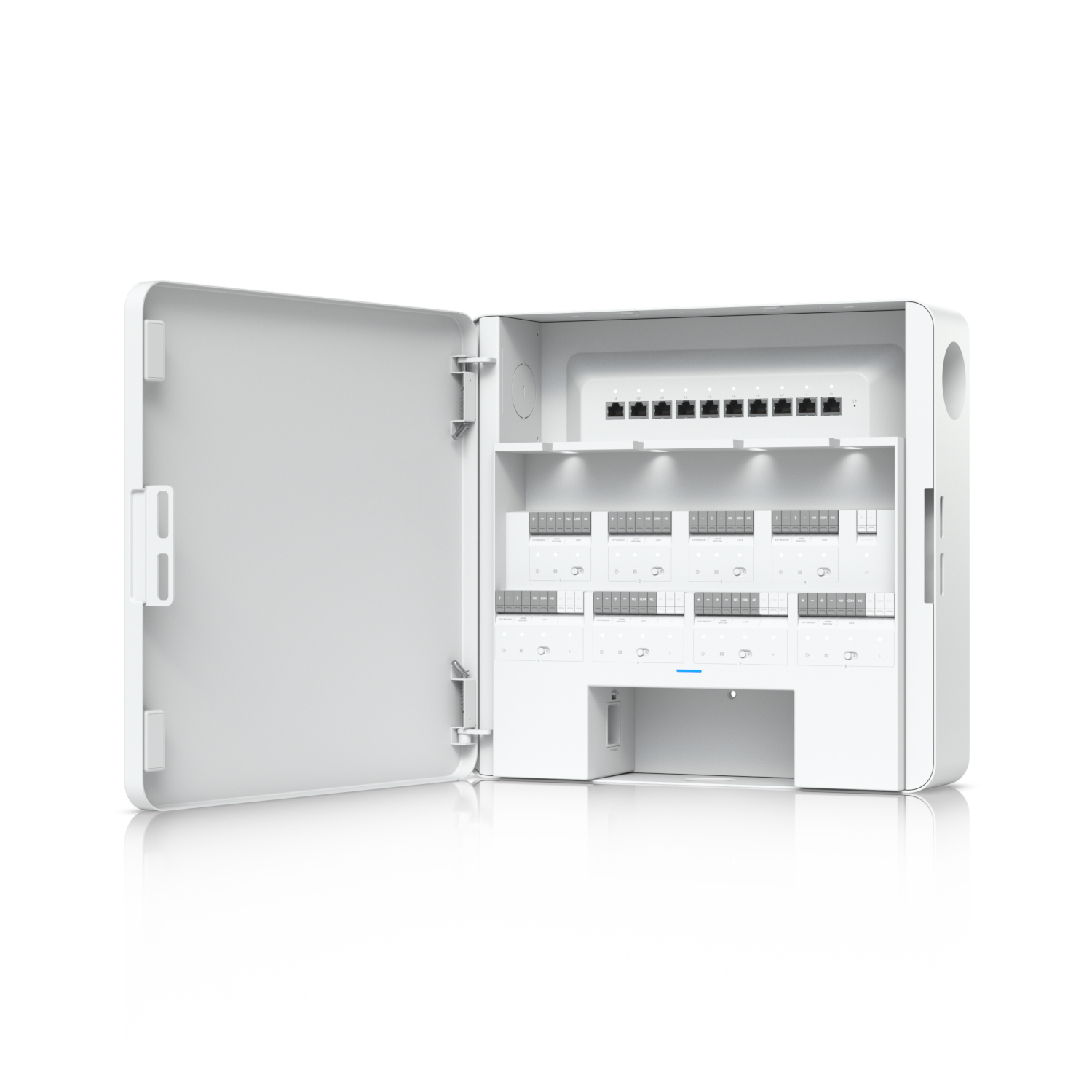

Enclosure Material: SGCC steel housing with polycarbonate cover

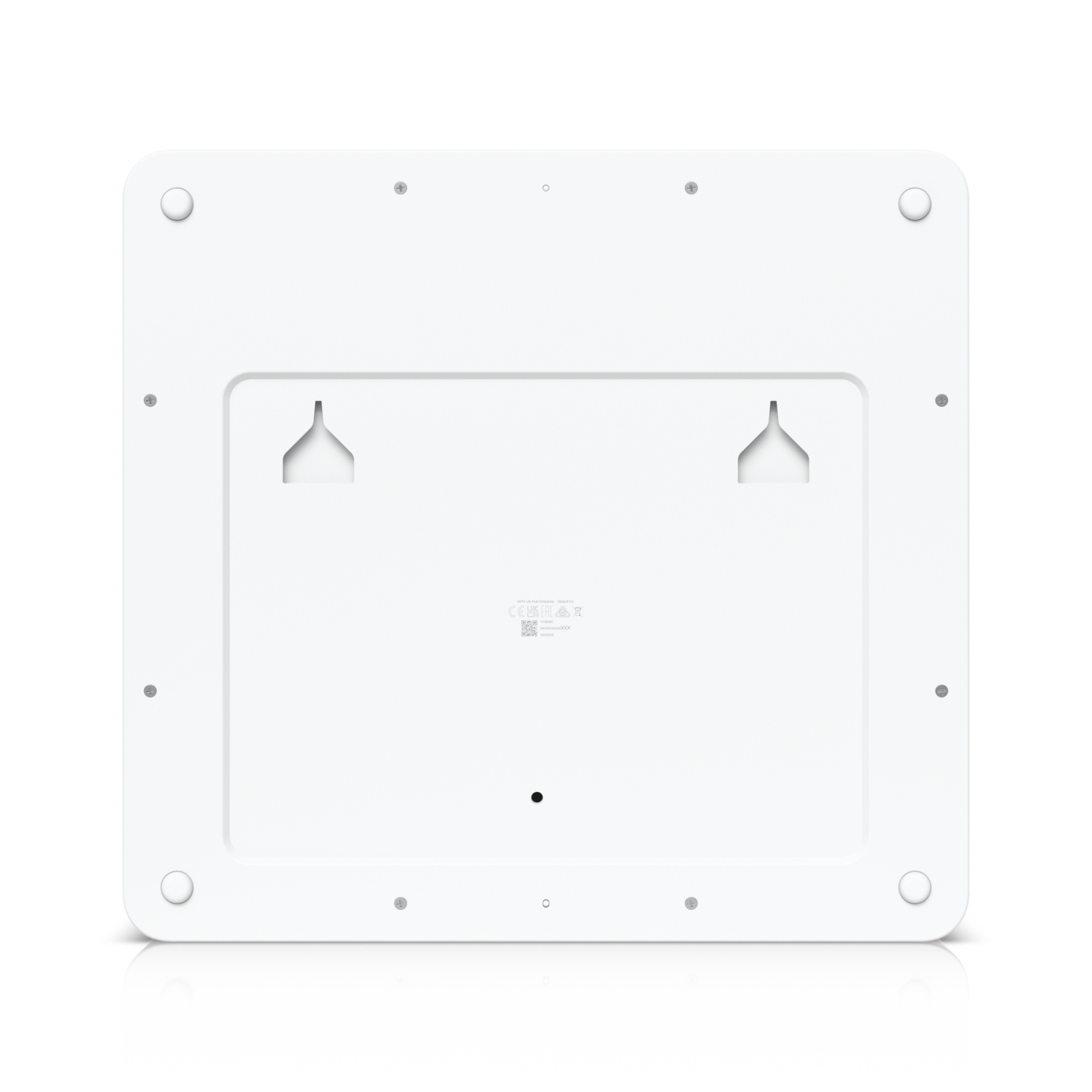

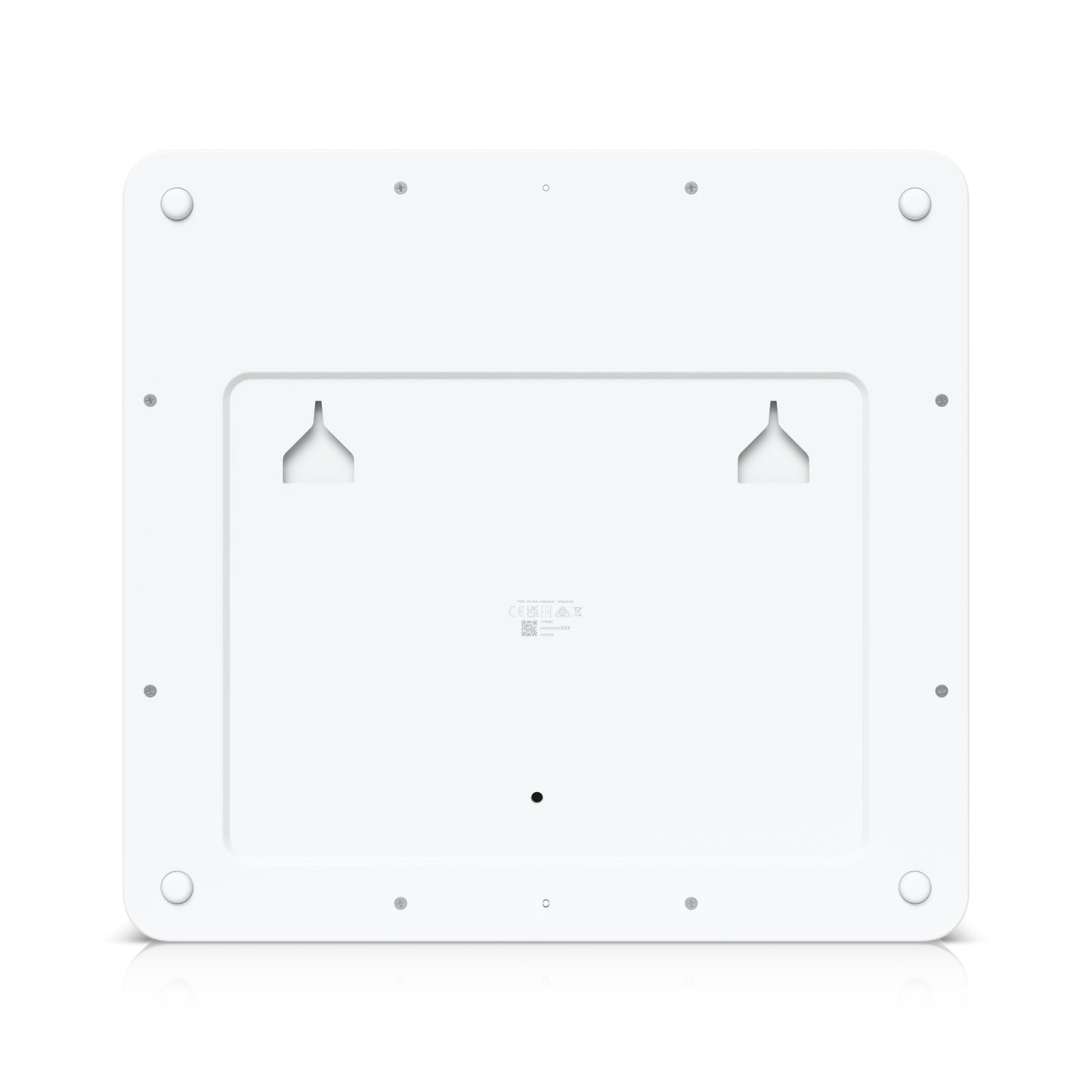

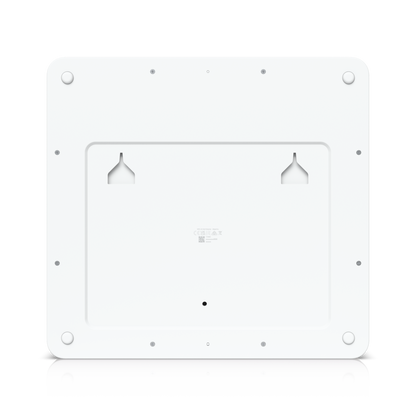

Mounting: Wall
Supported Doors: 8
Input Terminals:
- (8) Door exit request
- (8) Door position
- (1) Emergency
Digital Inputs: (8) Request-to-exit, (8) Door position, (1) Emergency
Dry Output Relay: (8) Lock terminals (12V or Dry), (4) AUX terminals (chime/siren/opener)
Powered Output Relay:
- Lock: 12V DC, 1A / Dry
- Aux: Dry only
Indoor/Outdoor Use: Indoor only
Ambient Operating Temperature: 0 to 40°C (32 to 104°F)
Ambient Operating Humidity: 5 to 95% noncondensing
Networking Interface: (10) 10/100/1000 Base-T
PoE Interface: (8) PoE ports
Total Available PoE: 60W
Max. PoE Wattage per Port: 30W
Power Method:
- Universal AC Input: 100–240V AC, Max. 4.4A, 50/60 Hz
- DC Input: 32–48V Lead Acid Battery, Max. 7.5A @ 32V
Power Supply: Internal AC/DC
Max. Power Consumption: 240W
Buttons: Factory Reset
LEDs: White/Blue Learn More Indicator
Mount Material: SGCC steel
Recommended Max. Cable Length:
- UA-Lock-Electric (400mA): 18 AWG – 66 m (217 ft)
- UA-Lock-Magnetic-540kg (500mA): 18 AWG – 80 m (262 ft)
- UA-Lock-Magnetic-270kg (800mA): 18 AWG – 46 m (151 ft)
- Other locks (1A): 18 AWG – 36 m (118 ft)
PoE Cabling Requirements:
- Minimum: Cat5e
- Patch Cords: ≥26 AWG
- Horizontal/Riser: ≥24 AWG
UL 294 Level I Compliance:
- Destructive Attack: Level I
- Line Security: Level I
- Endurance: Level I
- Standby Power: Level I
Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Grade Assignment: Grade I
Management Software: UniFi Access
