24-Port Multi-Gig Layer 3 Switch with 25G SFP28 Uplinks, 1050W PoE Budget, and Redundant Hot-Swap Power

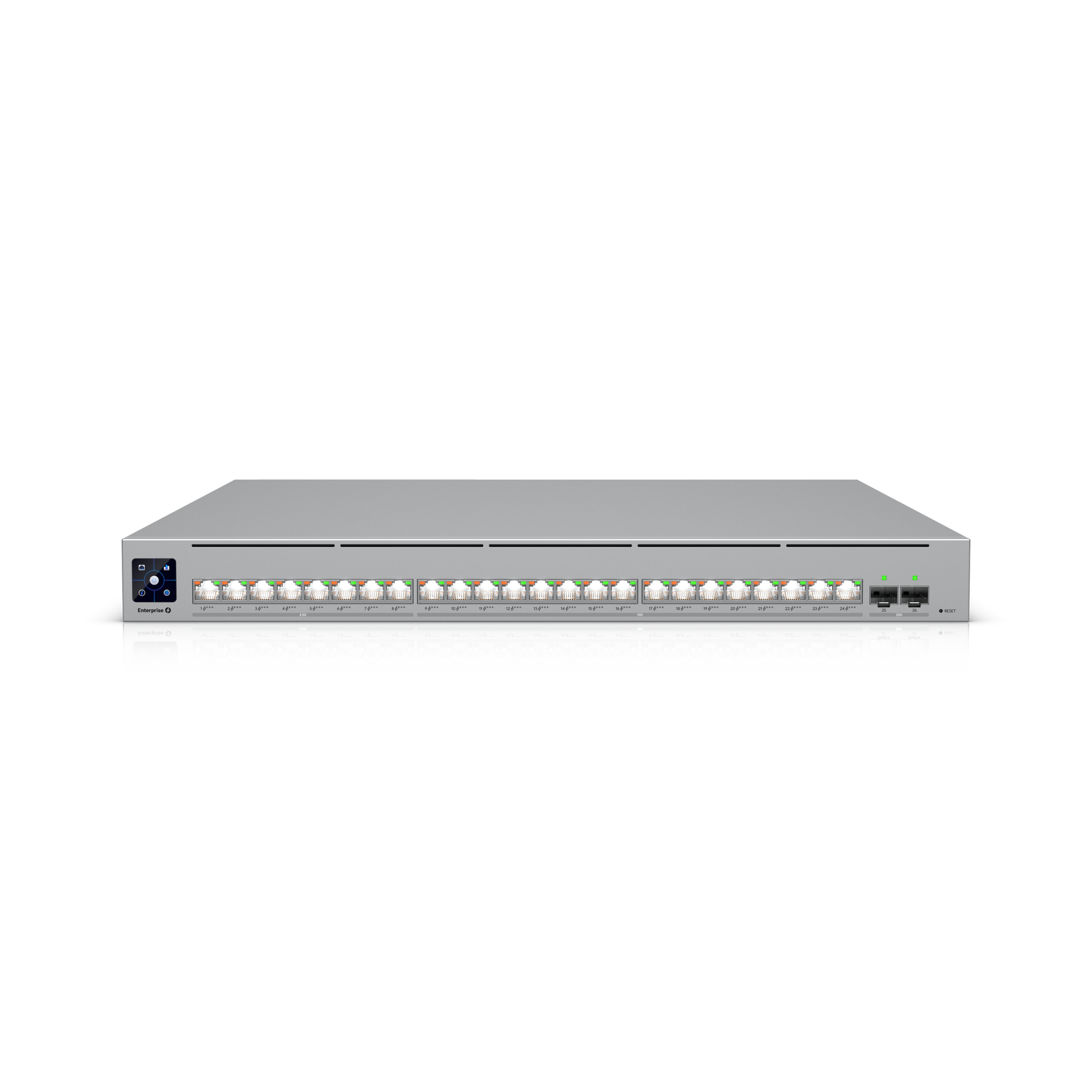

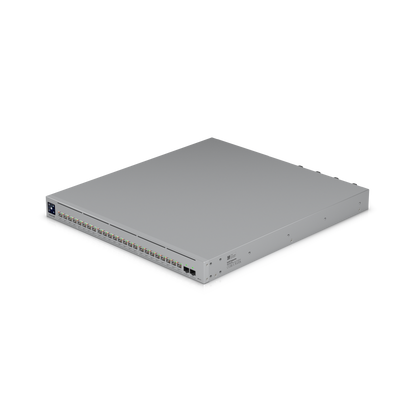

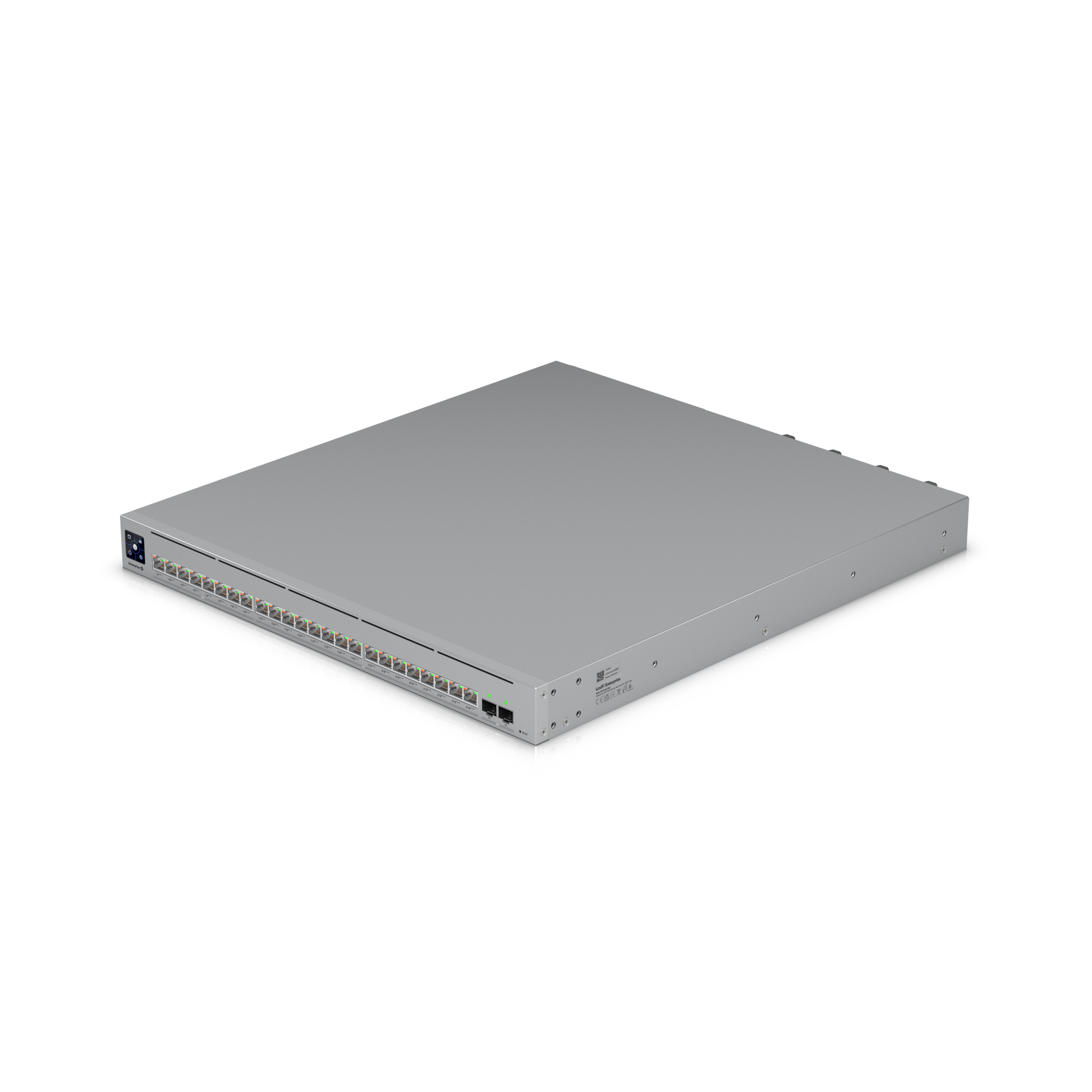

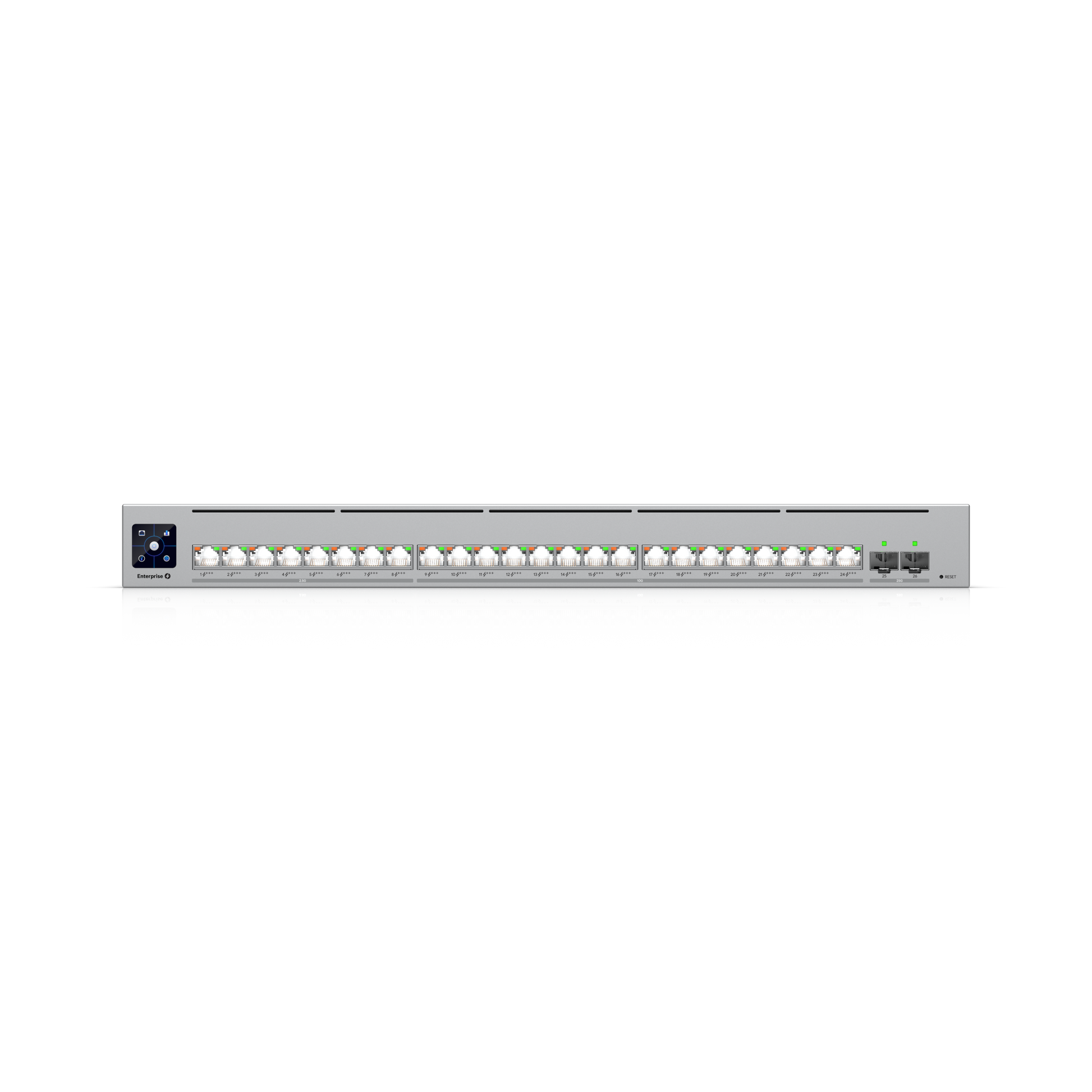

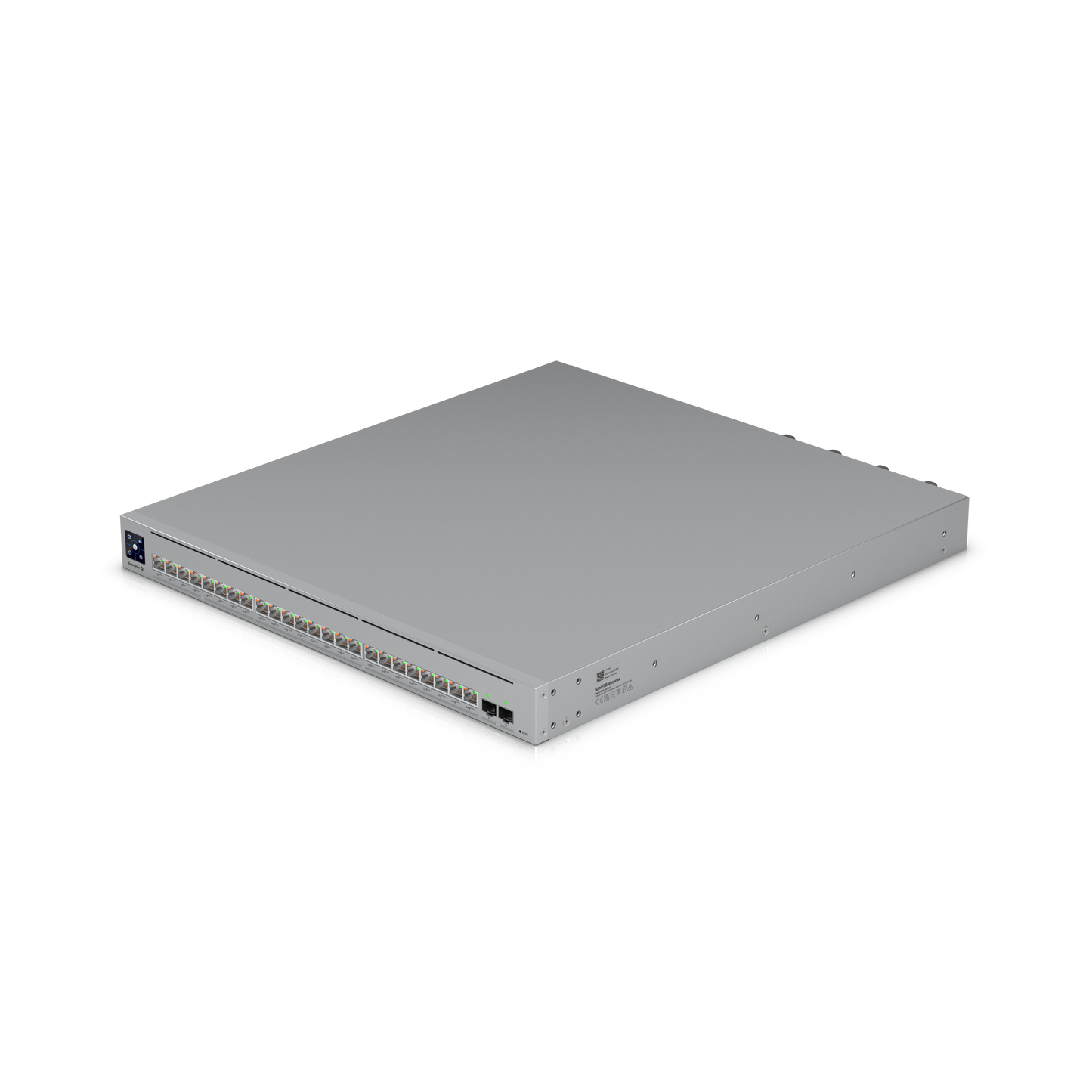

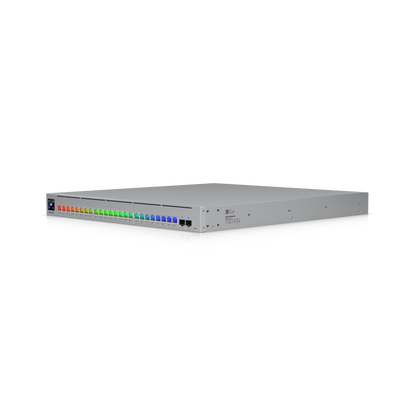

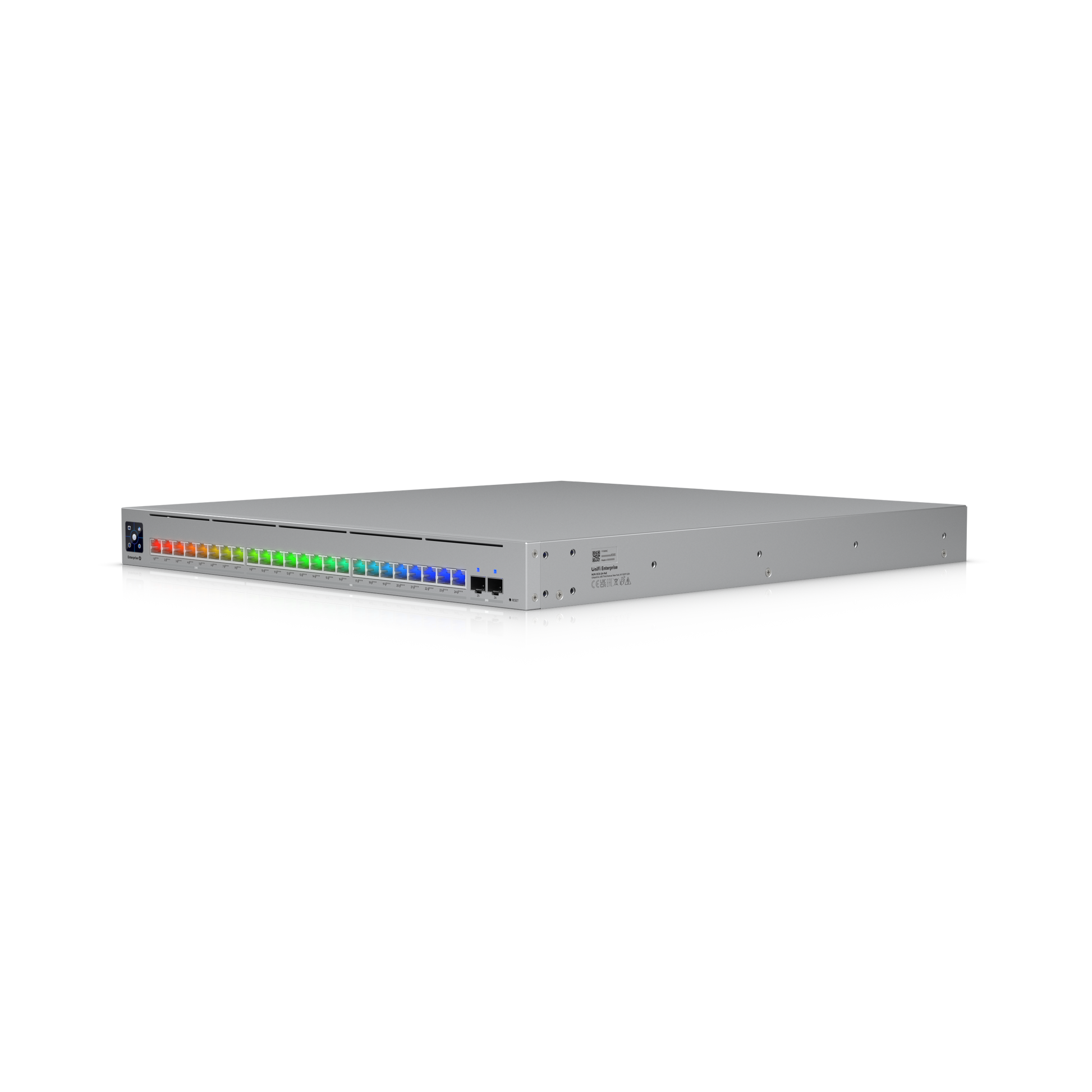

The Ubiquiti Enterprise Campus Switch ECS-24-PoE is a 1U rack-mount Layer 3 managed switch with 24 multi-gig PoE++ (802.3bt) ports, two 25G SFP28 uplinks, a 1050W total PoE budget, and dual redundant hot-swappable power supplies. Sixteen ports deliver up to 10 GbE speeds and eight ports deliver up to 2.5 GbE, all with 802.3bt PoE++ capable of powering the highest-draw devices in an enterprise deployment.
The Enterprise line sits above the standard UniFi switches in the Ubiquiti portfolio, targeting campus aggregation and distribution roles where redundant power, 25G fiber uplinks, and per-port multi-gig flexibility are non-negotiable. Managed through UniFi Network alongside the rest of the deployment, it brings enterprise-grade hardware reliability without a separate management plane.
Where the ECS-24-POE Fits
- Campus distribution and aggregation layers where the switch aggregates traffic from access-layer switches via 10G downlinks and connects upstream to a core or data center via 25G SFP28 fiber, with redundant PSUs ensuring no single power failure drops the layer
- High-density WiFi 7 and camera deployments where every port needs both multi-gig speed (2.5G-10G) and PoE++ power (up to 90W per port) to serve access points, PTZ cameras, and access controllers from a single switch with a 1050W budget
- Healthcare, education, and government campuses requiring Layer 3 inter-VLAN routing at the distribution layer, hot-swap PSU redundancy for uptime SLAs, and 25G uplinks to handle aggregate throughput from 24 multi-gig ports without a backhaul bottleneck
What the ECS-24-POE Delivers
- 16x 10G + 8x 2.5G, all PoE++ (802.3bt): Sixteen ports negotiate up to 10 GbE and eight ports negotiate up to 2.5 GbE. Every port delivers 802.3bt PoE++ (up to 90W per port). 1050W total PoE budget powers a full complement of high-draw APs, cameras, and controllers.
- 2x 25G SFP28 uplinks: Fiber uplinks at 25 Gbps aggregate the output of all 24 multi-gig ports without creating a backhaul bottleneck. Also supports 10G and 1G SFP modules for backward compatibility with existing fiber infrastructure.
- Layer 3 switching: Inter-VLAN routing, static routes, DHCP relay, and DHCP snooping handled in hardware. Cross-VLAN traffic stays local at the distribution layer instead of traversing the WAN link to a central firewall.

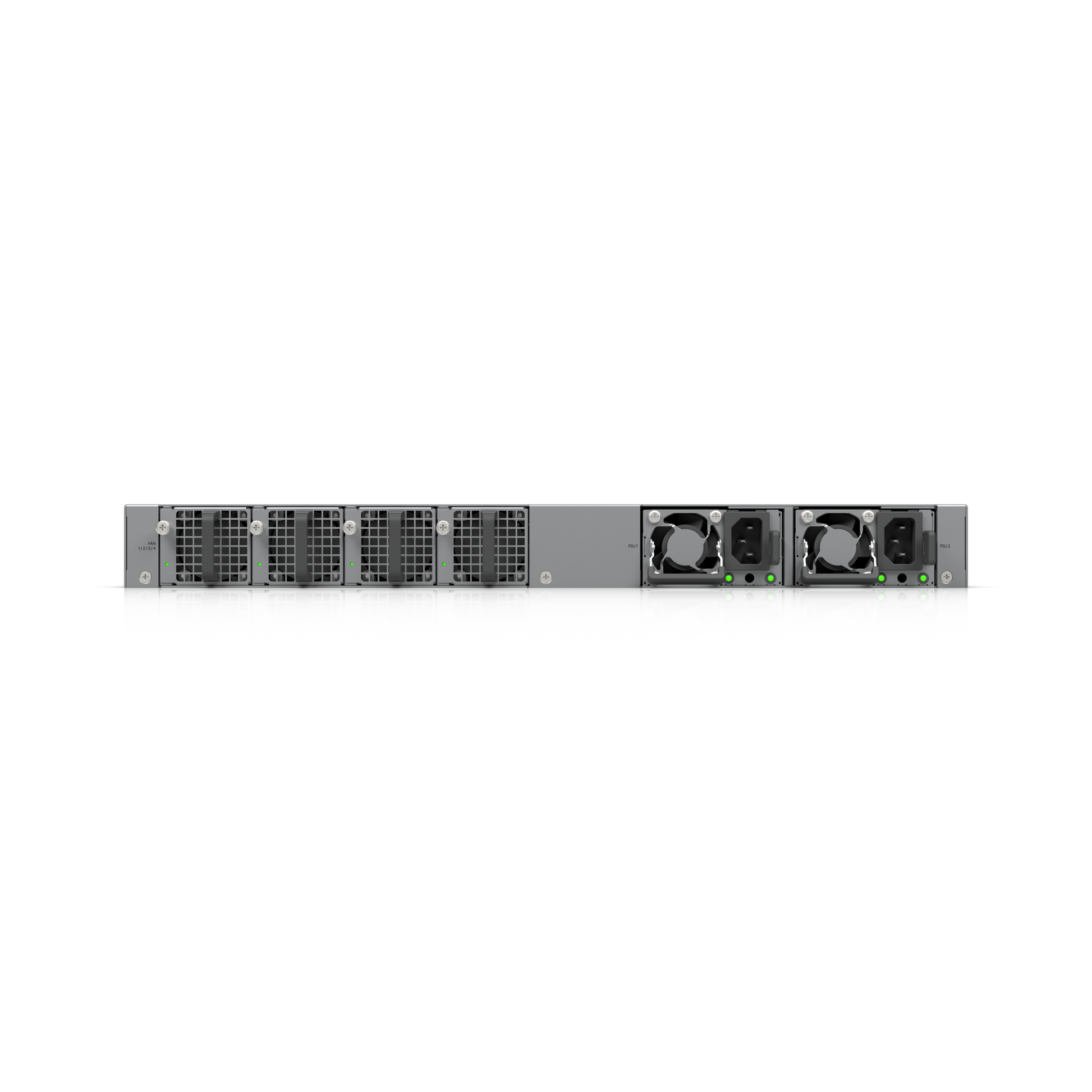

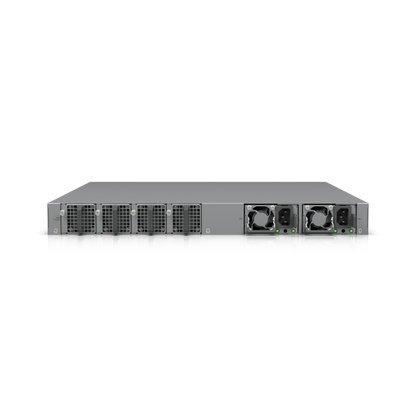

- Redundant hot-swappable PSUs: Two power supplies installed, each independently replaceable without powering down the switch. If one PSU fails, the second carries the full load with zero interruption to PoE devices or network traffic.
- Enterprise build quality: SGCC steel 1U chassis at 20.86 lb. 802.1x port security, broadcast storm control, and full Layer 2/Layer 3 feature set. Designed for 24/7 operation in conditioned network closets and data center environments.

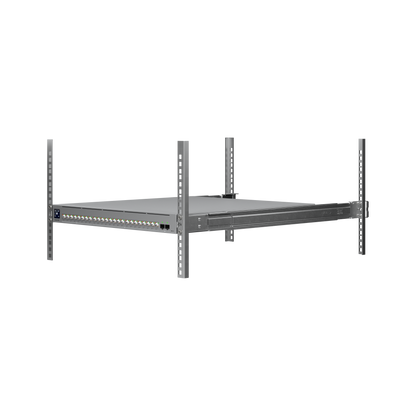

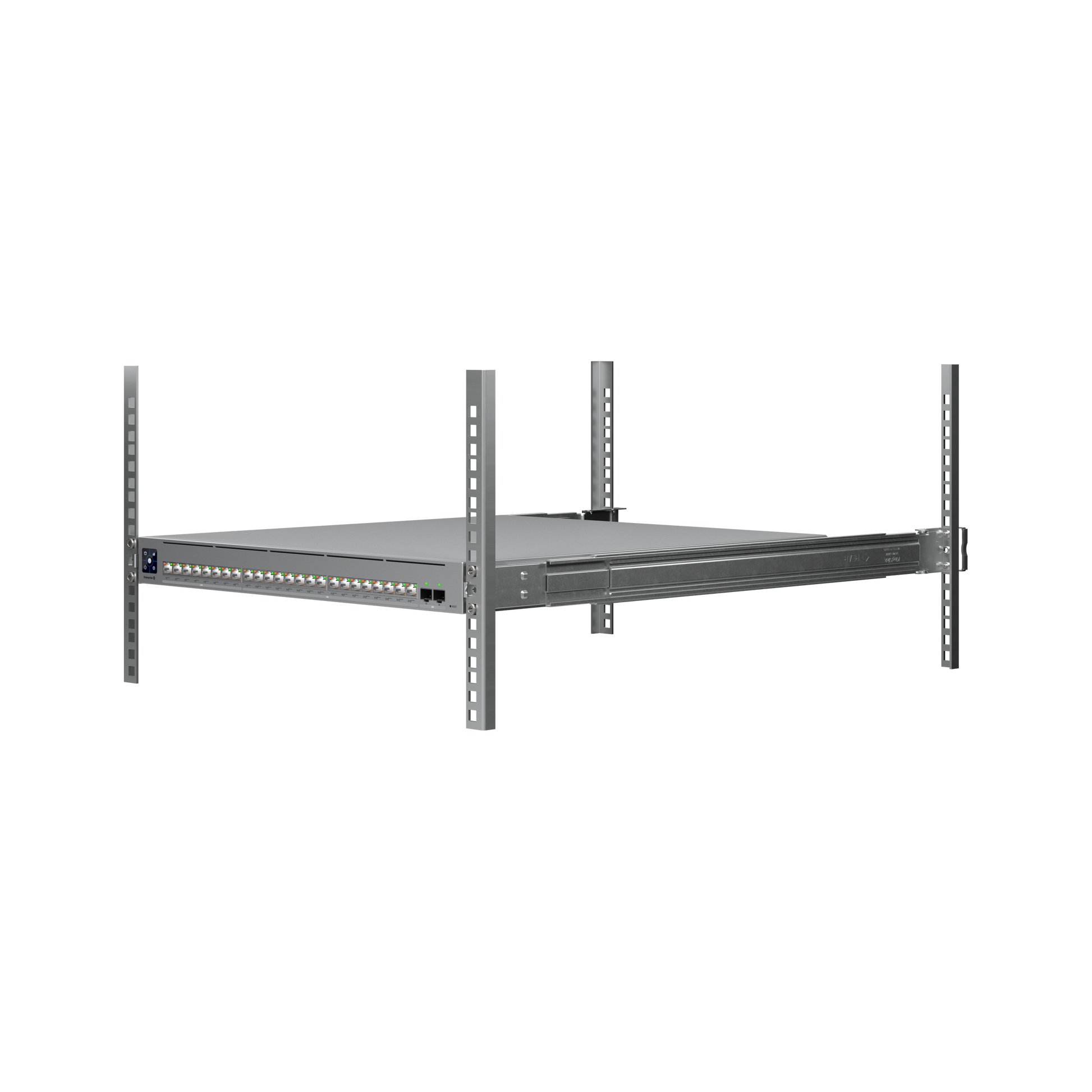

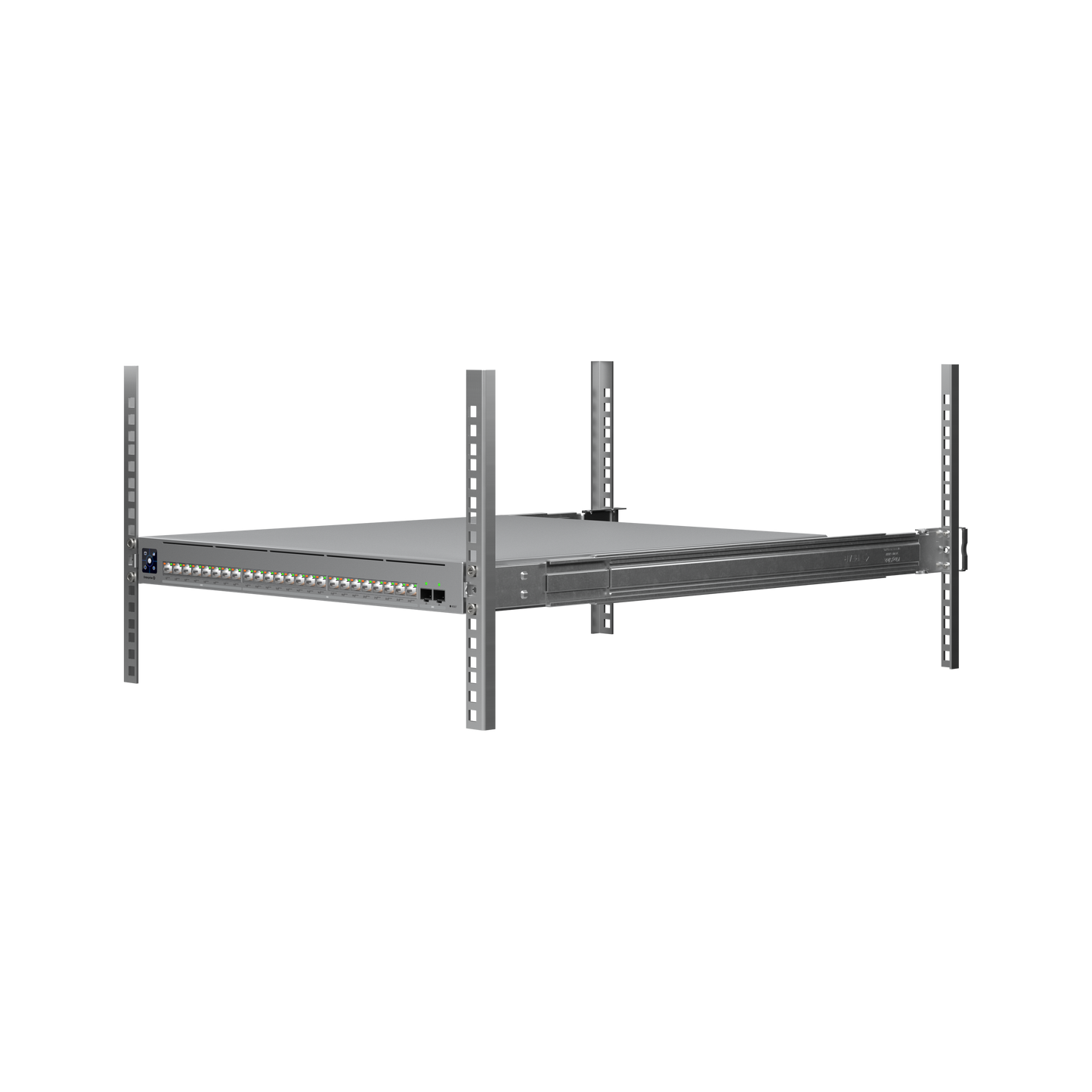

Build and Racking
1U rack-mount SGCC steel enclosure (17.4 x 19.5 x 1.7 in., 20.86 lb). 16x 1/2.5/5/10 GbE RJ45 PoE++ (802.3bt). 8x 1/2.5 GbE RJ45 PoE++ (802.3bt). 2x 25G SFP28 uplinks. 1050W total PoE budget. Layer 3: inter-VLAN routing, static routing, DHCP relay, DHCP snooping. Layer 2: 802.1Q VLANs, 802.1x, broadcast storm control. Dual redundant hot-swappable PSUs (100-240V AC). Managed through UniFi Network. Part Number: ECS-24-POE.
