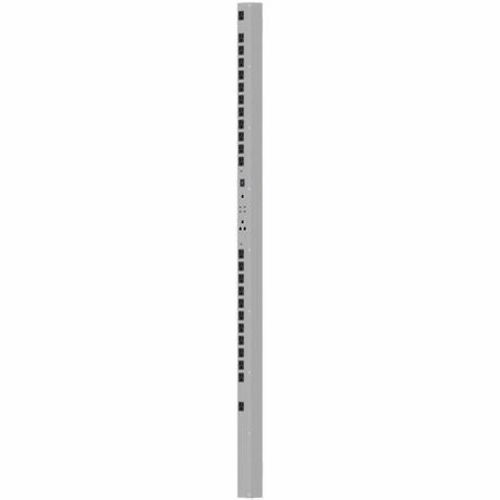

Ubiquiti Power Distribution Hi-Density - USP-PDU-HD
Key Features
- 120 V AC input voltage for optimal performance with maximum usability
- AC Power receptacle type to ensure maximum usability and reliable power output
- NEMA L5-30P plug/connector type for better, dependable connectivity and desired power output
- PDU allows power to be more efficiently distributed and controlled
Product Overview
Power distribution unit designed to support large, rack-mounted UniFi hardware deployments.
- (24) Remote-reset outlets
- (4) USB-C ports
- 3 m power cord with NEMA L5-30 plug
- 1.3" LCM touchscreen with automation rotation
- Compatible with 36U racks and taller
General Information
- Manufacturer: Ubiquiti Inc.
- Manufacturer Part Number: USP-PDU-HD
- Brand Name: Ubiquiti
- Product Name: Power Distribution Hi-Density
- Product Type: PDU
Technical Information
- Plug/Connector Type: NEMA L5-30P
- Receptacle Type:
- AC Power
- USB Type-C
- Receptacle Detail:
- 24 x AC Power
- 4 x USB Type-C
- Features: Touch Screen Display
Power Description
- Input Voltage: 120 V AC
- Input Voltage Range: 100 V AC - 125 V AC
- Input Current: 30 A
- Input Frequency: 60 Hz
Interfaces/Ports
- Network (RJ-45): Yes
Physical Characteristics
- Mount Type: Rack-mountable
- Rack Height: 36U
- Cord Length: 9.84 ft
- Height: 58.5"
- Width: 2.2"
- Depth: 2.2"
- Weight (Approximate): 13.89 lb
Environmental Conditions
- Minimum Operating Temperature: 32°F (0°C)
- Maximum Operating Temperature: 104°F (40°C)
- Minimum Operating Humidity: 10%
- Maximum Operating Humidity: 90%
