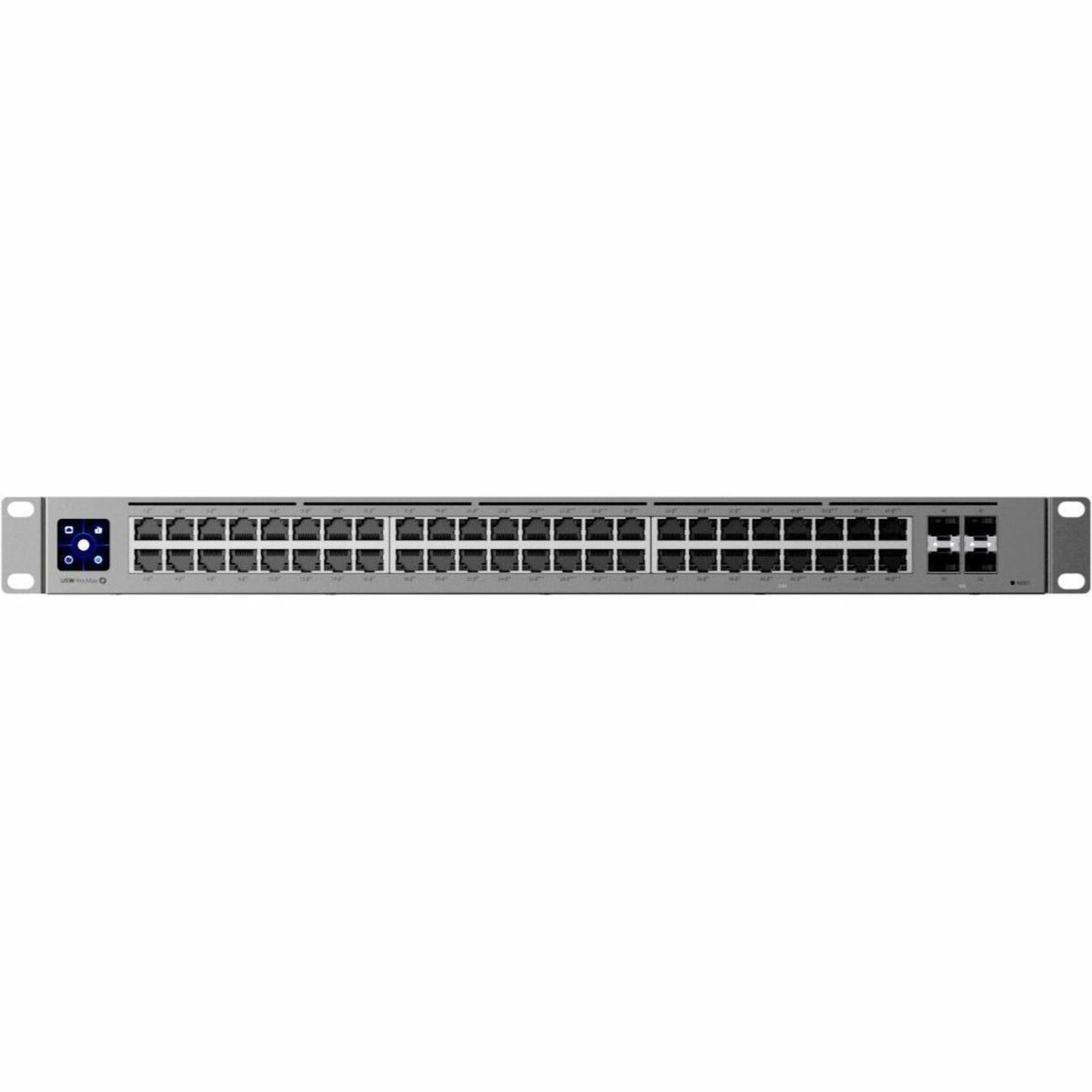

Ubiquiti Pro Max 48 PoE - USW-Pro-Max-48-PoE
Key Features
- Can work as layer 3 routing for scalable network design
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 48 ports
- Gigabit Ethernet port for ultra-fast network speeds
- Layer 3 Switch provides dependable and powerful connectivity for maximum usability
- Rack mounting enables you to organize wires & secure cables for professional installation
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
Product Overview
A 48-port, Layer 3 Etherlighting™ switch with 2.5 GbE and PoE++ output.
- Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network
- (16) 2.5 GbE ports including (8) PoE+ and (8) PoE++
- (32) GbE ports including (24) PoE+ and (8) PoE++
- (4) 10G SFP+ ports
- DC power backup ready
- 720W total PoE availability
- Managed with UniFi Network 8.0.24 and later
General Information
- Manufacturer: Ubiquiti Inc.
- Manufacturer Part Number: USWPROMAX48POE
- Brand Name: Ubiquiti
- Product Line: Pro Max
- Product Name: Pro Max 48 PoE
- Product Type: Layer 3 Switch
Interfaces/Ports
- Total Number of Network Ports: 48
- Network (RJ-45): Yes
- Modular: Yes
- Port/Expansion Slot Details:
- 8 x 2.5 Gigabit Ethernet PoE+
- 8 x 2.5 Gigabit Ethernet PoE++
- 24 x Gigabit Ethernet PoE+
- 8 x Gigabit Ethernet PoE++
- 4 x10 Gigabit Ethernet Expansion Slot
Media & Performance
- Media Type Supported:
- Optical Fiber
- Twisted Pair
- Ethernet Technology:
- 2.5 Gigabit Ethernet
- Gigabit Ethernet
- 10 Gigabit Ethernet
- Network Technology:
- 2.5GBase-T
- 10/100/1000Base-T
- 10GBase-X
I/O Expansions
- Total Number of Expansion Slots: 4.0
- Expansion Slot Type: SFP+
- Number of SFP+ Slots: 4
Network & Communication
- Layer Supported: 3
Power Description
- PoE (RJ-45) Port: Yes
- PoE Budget: 720 W
- Input Voltage:
- 120 V AC
- 230 V AC
- Power Source: AC/DC
- Number of Power Supplies Supported: 1
- Number of Power Supplies Installed: 1
- Power Consumption: 100 W
Physical Characteristics
- Product Material: Galvanized Cold Rolled Steel (SGCC)
- Compatible Rack Unit: 1U
- Form Factor: Rack-mountable
- Height: 1.7"
- Width: 17.4"
- Depth: 15.7"
- Weight (Approximate): 13.67 lb
