Ubiquiti Indoor/Outdoor Intercom Terminal (UA-Intercom)

Ubiquiti Indoor/Outdoor Intercom Terminal (UA-Intercom)

Regular price $499.99 USD
Regular price $564.99 USD Sale price $499.99 USD
Sale Sold out

 16 in stock

View full details

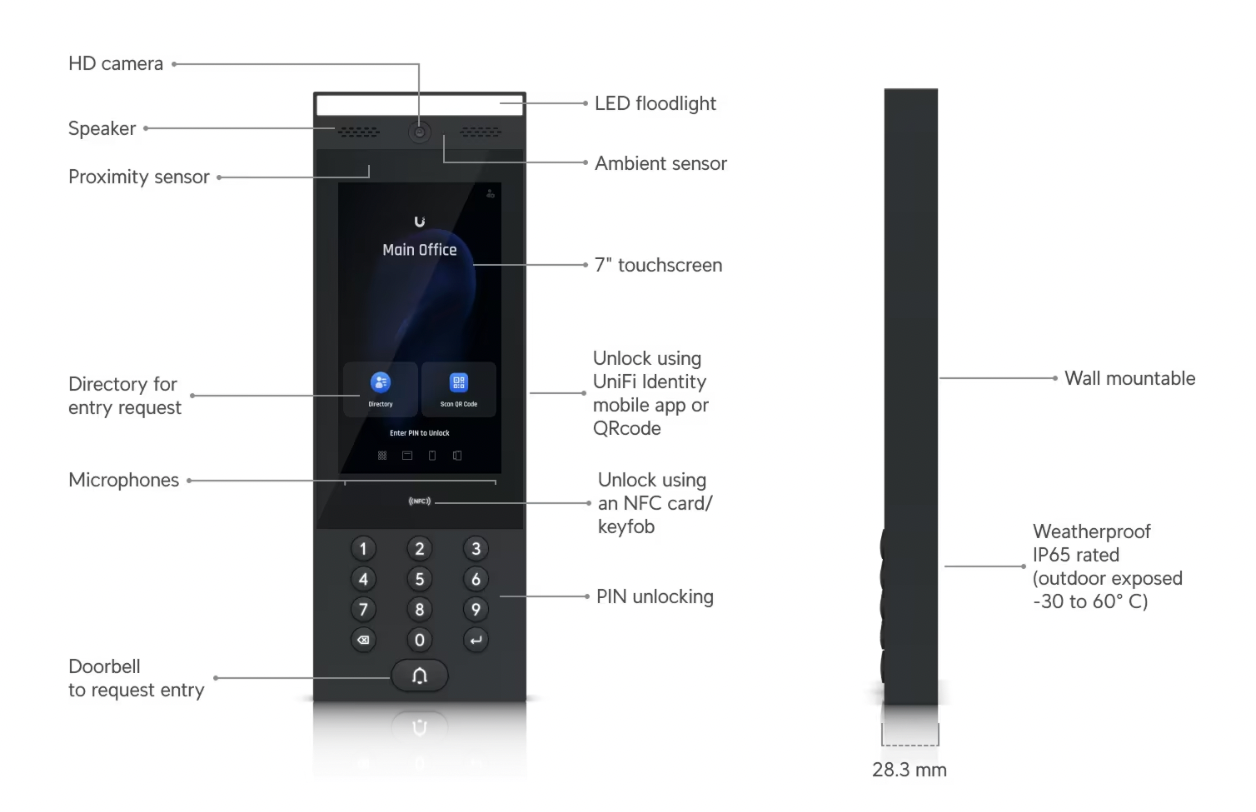

Ubiquiti UniFi Access Intercom – UA-Intercom

High-end outdoor intercom terminal for secure, multi-factor access control and remote entry management.

The UA-Intercom is a weather-resistant access terminal with a 7" high-brightness touchscreen and a built-in 8 MP camera, ideal for residential and commercial entry management. It supports multiple unlock methods, including NFC, QR code, PIN code, and the UniFi Identity app. Integrated two-way audio and directory features provide seamless visitor interaction, while compatibility with UniFi Intercom Viewers enables remote access control.

Key Features:

  • 7" 1024 x 600 capacitive multi-touch display
  • 8 MP camera with LED floodlight
  • Built-in microphone and speaker for two-way communication
  • Unlock with NFC card, mobile app, PIN, or QR code
  • Directory and doorbell for building access
  • Integrates with UniFi Access Hub and Intercom Viewers
  • PoE powered, IP65-rated for outdoor use

Key Highlights:

  • ✅ Multi-factor authentication for secure entry
  • ✅ Weatherproof IP65-rated design
  • ✅ Remote access control via UniFi Intercom Viewers
  • ✅ Easy PoE installation and UniFi integration

Frequently Asked Questions:

Q: Is the UA-Intercom weatherproof?
A: Yes, it is IP65-rated and operates from -30 to 60° C.

Q: What unlock methods are supported?
A: NFC, UniFi Identity app, QR code, and PIN code.

Q: What system does it integrate with?
A: It works with UniFi Access Hub and is managed via the UniFi Access platform (v1.22.17 and up).

Overview

Dimensions:

324.8 x 113.7 x 28.3 mm (12.8 x 4.5 x 1.1")

Integrated Camera:

Yes

NFC Card & Keyfob Access:

Yes

PIN Access:

Yes

Mobile Unlock:

Yes

Two-Way Intercom & Doorbell Access:

Yes

Weatherproofing:

IP65

Mechanical

Weight:

Device: 965 g (2.1 lb)

Bracket: 445 g (1 lb)

Enclosure Material:

Aluminum alloy, UV-stabilized polycarbonate, glass

Mount Material:

Powder-coated stainless steel

Mounting:

Wall mount, adapter to the gooseneck pedestal (Included)

Surface angle, flush mount, sunshield kit (Optional)

Hardware

Indoor/Outdoor Use:

Yes

Ambient Operating Temperature:

Device: -30 to 60° C (-22 to 140° F)

Display: -25 to 60° C (-13 to 140° F)

Ambient Operating Humidity:

5 to 90% noncondensing

Networking Interface:

(1) GbE RJ45 port

Connectivity:

BLE 4.2, NFC

Power Method:

PoE

UL 294 Power-limited Class 2 PSU

UL 60950-1/62368-1 LPS/PS2 PSU

Max Power Consumption:

13W

Supported Voltage Range:

48V DC

Sensors

Proximity sensor

ALS sensor

Display

Size:

177 mm (7") diagonal

Touch Screen Technology:

Capacitive multi-touch

Display Luminance:

Max. 1000 nits (Typical)

Screen Orientation:

Portrait

Resolution:

1024 x 600 px

Audio

Microphone:

Yes

Speaker:

Yes

NFC

Frequency:

13.56 MHz

Read Range:

< 30 mm (1.18")

Technology:

ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)

MIFARE Classic / MIFARE DESFIRE

Sony FeliCa™ (ID only)

NFC Forum tags T1T, T2T, T3T, T4T, T5T

LEDs

Amber Learn More

Buttons

(1) Factory-reset

PoE Cabling Requirements

Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.

The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm²) for patch cords; 24 AWG (0.21 mm²) for horizontal or riser cable.

UL 294 Level

Destructive attack: Level I

Line security: Level I

Endurance: Level I

Standby power: Level I

UL 294 Statement:

Compliance with IEEE 802.3 specifications was not verified as part of UL 294.

The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

CAN/ULC-60839-11-1 Grade

Grade assignment: I

Certifications

CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

NDAA Compliant: Yes

Document Number:

UA-Intercom, V01

Software

Management Application:

Access
