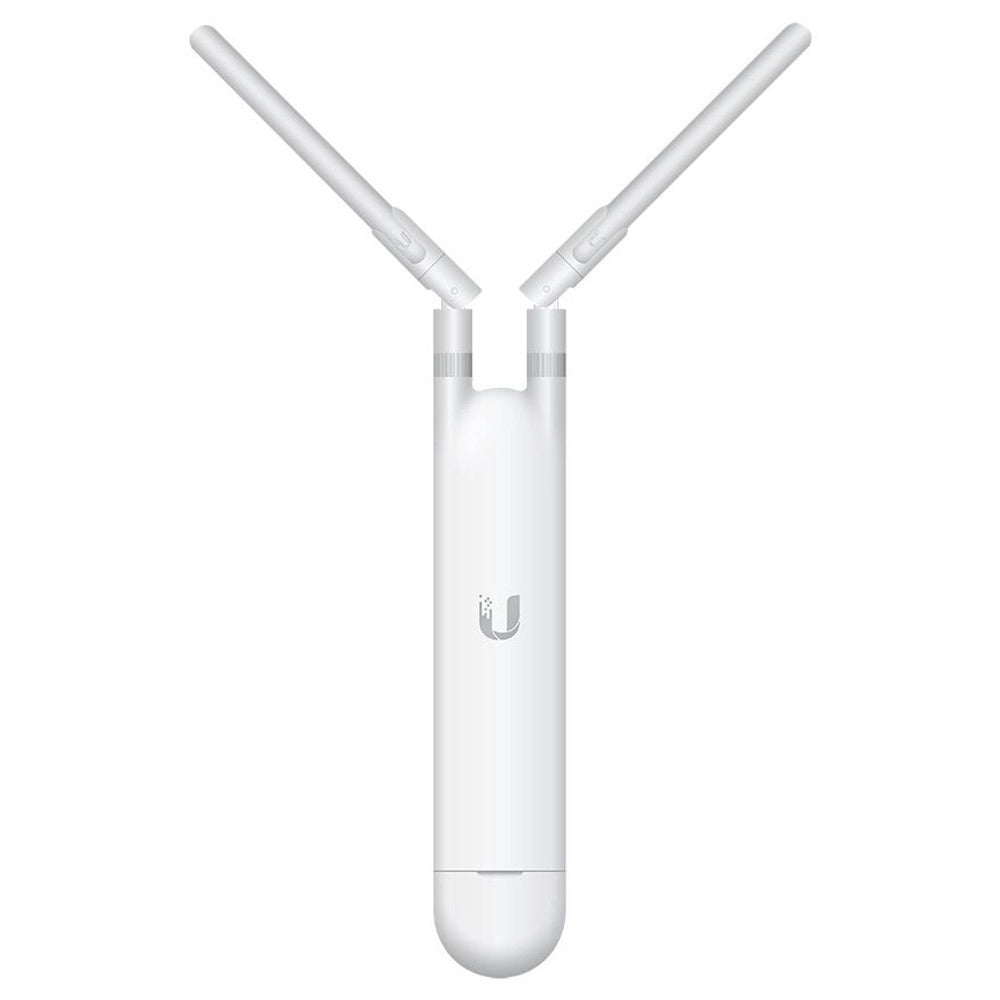

• Ubiquiti UAP-AC-Mesh dual-band mesh access point with external antennas
  • Ubiquiti UAP-AC-Mesh dual-band mesh access point with external antennas

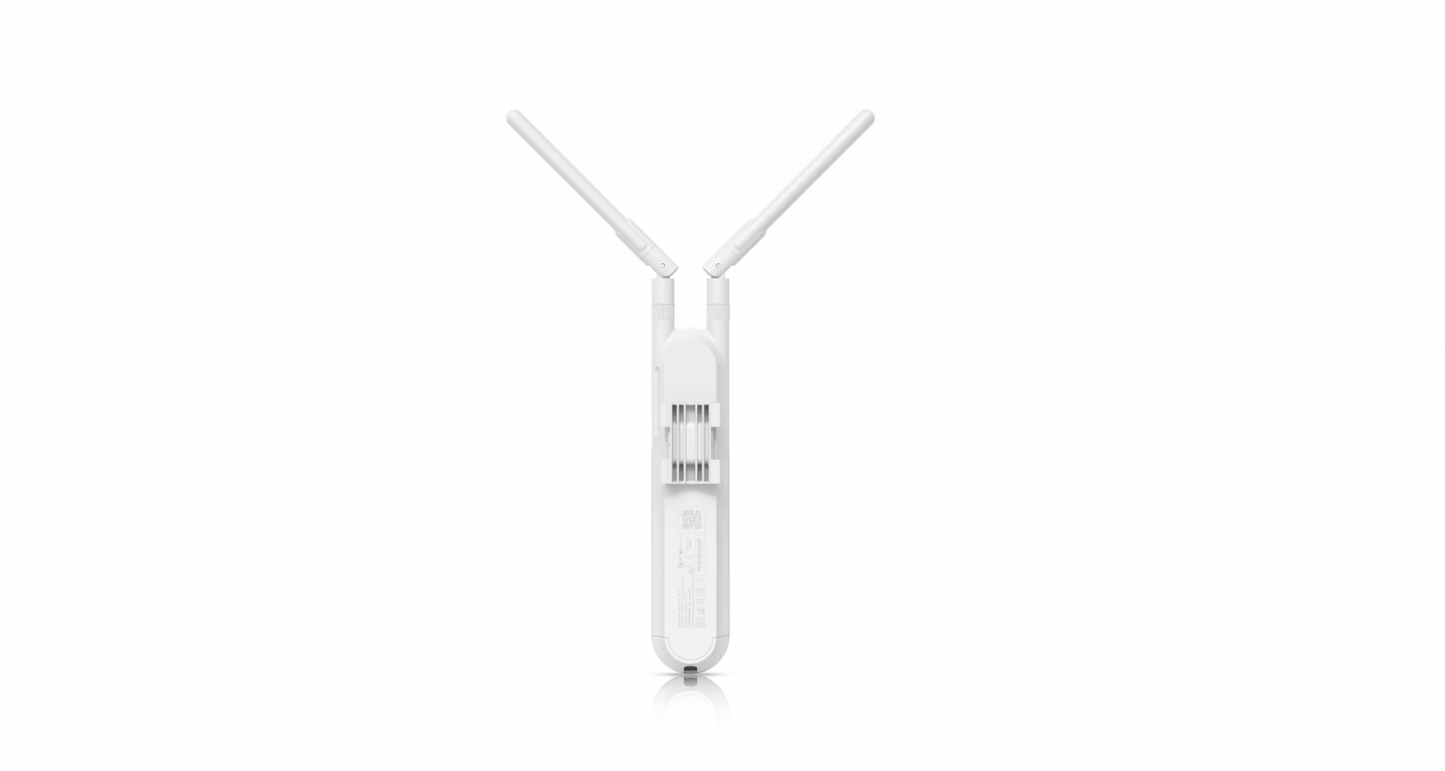

  • Ubiquiti UAP-AC-Mesh dual-band mesh access point flat view showing port

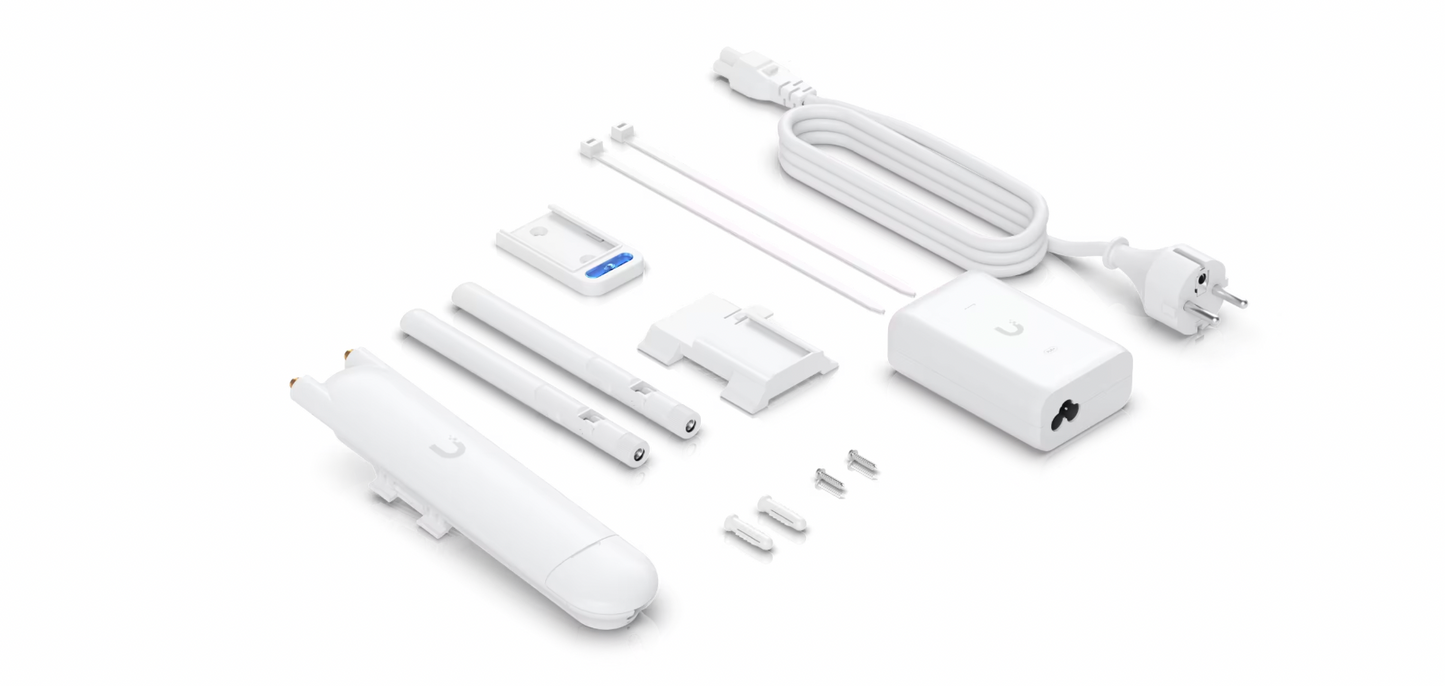

  • UAP-AC-Mesh product packaging with mounting accessories and antennas included

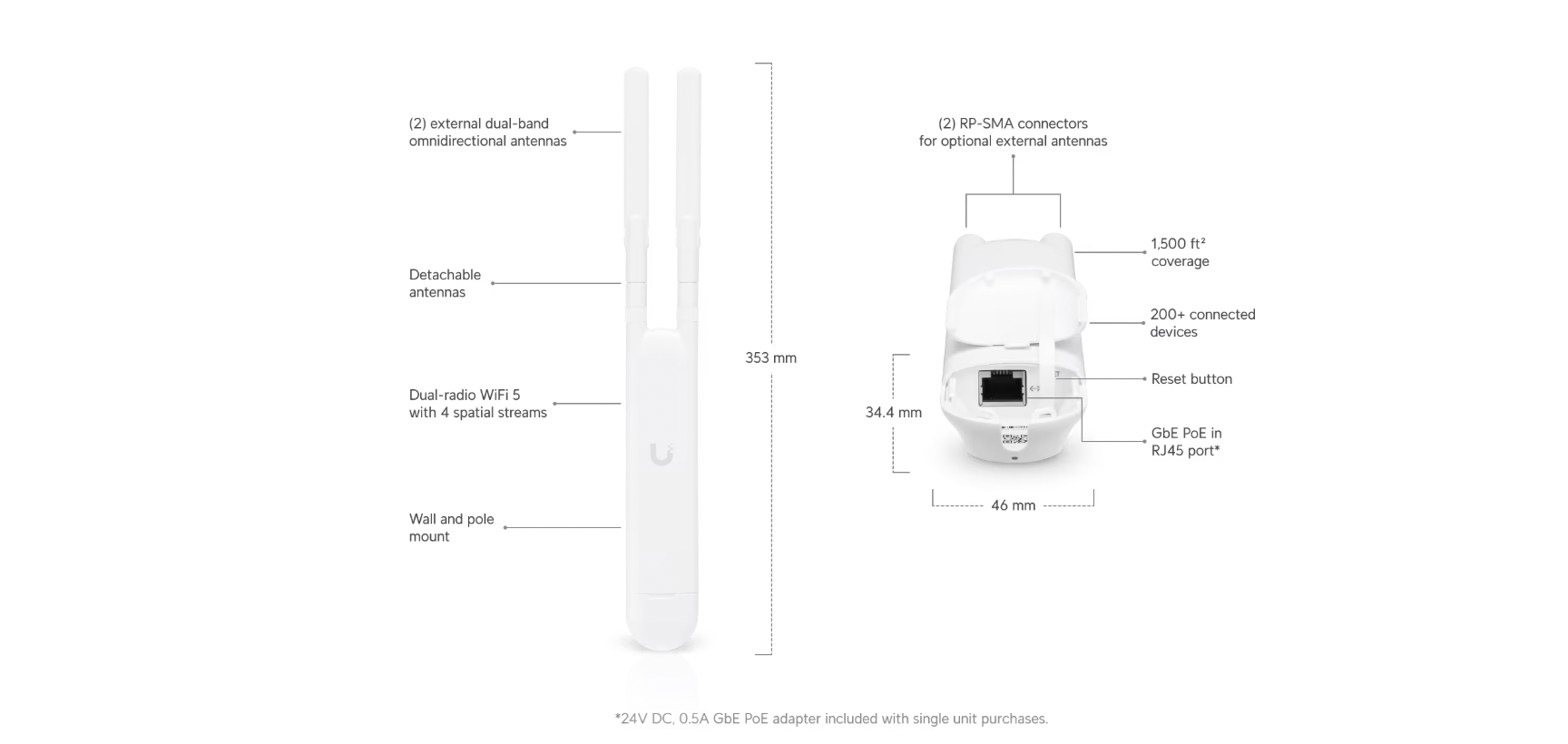

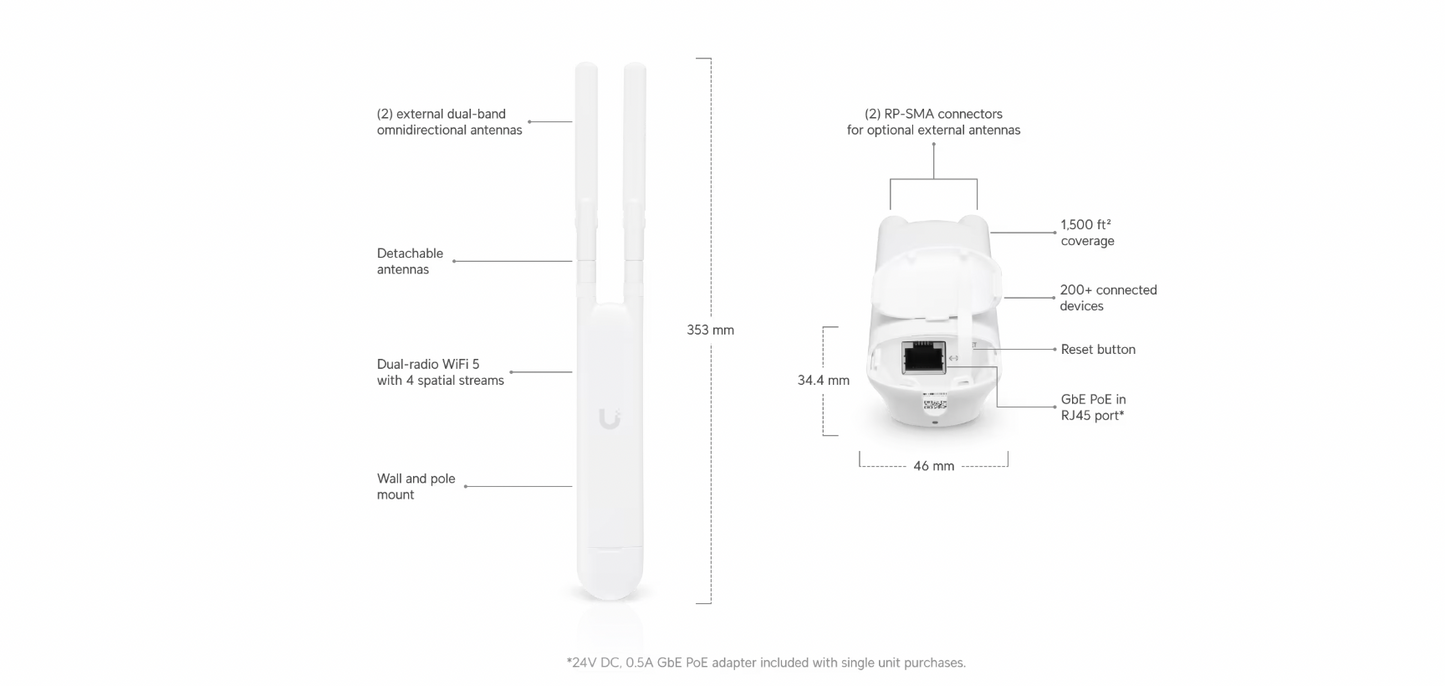

  • UAP-AC-Mesh with front and flat angle showing specifications
1 5

Ubiquiti | UniFi Access Point Mesh Outdoor

Ubiquiti | UniFi Access Point Mesh Outdoor

$114.99 USD
$129.99 USD $114.99 USD
Sale Sold out
Login to view business pricing

 12 in stock
View full details
  • Description
  • Specifications

Ubiquiti UniFi AC Mesh Access Point – UAP-AC-Mesh

Flexible, outdoor-ready 802.11ac dual-band access point with mesh capability.

The UAP-AC-Mesh is a UniFi dual-band access point designed for scalable wireless deployments in indoor and outdoor environments. It supports 802.11ac Wi-Fi and includes mesh technology, allowing it to extend UniFi networks wirelessly. Its compact, weather-resistant design and multiple mounting options make it suitable for nearly any application. Managed through the UniFi Network Application, it supports seamless integration into existing UniFi networks.

Key Features:

• 802.11ac Dual-Band WiFi: 2.4 GHz and 5 GHz support
• Mesh Technology: Enables wireless extension of UniFi networks
• Outdoor-Ready: Weather-resistant housing for external deployments
• Flexible Mounting: Includes wall, pole, and fast-mount accessories
• Compact Form Factor: Minimal design with two external antennas
• UniFi Network Managed: Full control and monitoring via UniFi app

Key Highlights:

  • ✅ Dual-band 802.11ac WiFi for high-performance coverage
  • ✅ Outdoor-rated housing with flexible mounting options
  • ✅ Mesh-capable for wirelessly extending UniFi networks
  • ✅ Managed through UniFi Network Application

Frequently Asked Questions:

Q: Can this be used indoors and outdoors?
A: Yes, it is weather-resistant and designed for both environments.

Q: Does it support wireless mesh?
A: Yes, it supports mesh networking to extend UniFi networks wirelessly.

Overview

Dimensions:

353 x 46 x 34.4 mm (13.9 x 1.8 x 1.4")

WiFi Standard:

WiFi 5

Spatial Streams:

4

Coverage Area:

140 m² (1,500 ft²)

Max Client Count:

200+

Uplink:

GbE

Mounting:

Wall, Pole (Mounts Included)

Weatherproofing:

IPX4

Power Method:

PoE

Performance

MIMO:

5 GHz: 2 x 2 (DL MU-MIMO)

2.4 GHz: 2 x 2 (DL MU-MIMO)

Max Data Rate:

5 GHz: 867 Mbps (BW80)

2.4 GHz: 300 Mbps (BW40)

Antenna Gain:

5 GHz: 4 dBi

2.4 GHz: 3 dBi

Max TX Power:

5 GHz: 20 dBm

2.4 GHz: 20 dBm

Max BSSIDs:

8 per Radio

Supported Data Rates:

802.11ac (WiFi 5): 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)

802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Features

Wireless Meshing: Yes

Band Steering: Yes

802.11v BSS Transition Management: Yes

802.11r Fast Roaming: Yes

802.11k Radio Resource Management (RRM): Yes

Advanced Radio Management: Yes

Passpoint (Hotspot 2.0): Yes

Captive Hotspot Portal with Custom Branding Landing Page: Yes

Voucher Authentication: Yes

Payment-Based Authentication: Yes

External Portal Server Support: Yes

Password Authentication: Yes

Guest Network Isolation: Yes

Private Pre-Shared Key (PPSK): Yes

WiFi Speed Limiting: Yes

Client Device Isolation: Yes

WiFi Schedules: Yes

RADIUS over TLS (RadSec): Yes

Dynamic RADIUS-assigned VLAN: Yes

Hardware

Max Power Consumption:

8.5W

Includes PoE Adapter:

Yes

Supported Voltage Range:

44–57V DC

Networking Interface:

(1) GbE RJ45 port

Weight:

152 g (5.4 oz)

Pole Mount Diameter:

1–3" (25–76 mm)

Management

Ethernet: Yes

Bluetooth: Yes

Enclosure Material:

Polycarbonate

Channel Bandwidth:

HT 20/40, VHT 20/40/80 (MHz)

Certifications

CE, FCC, IC, UKCA

NDAA Compliant: Yes

Operating Frequency

US/CA:

2400–2472 MHz

U-NII-1: 5150–5250 MHz

U-NII-2A: 5250–5350 MHz

U-NII-2C: 5470–5725 MHz

U-NII-3: 5725–5850 MHz

Worldwide:

2400–2483.5 MHz

5150–5725 MHz

Environment

Operating Temperature:

-30 to 70° C (-22 to 158° F)

Operating Humidity:

5 to 95% noncondensing
