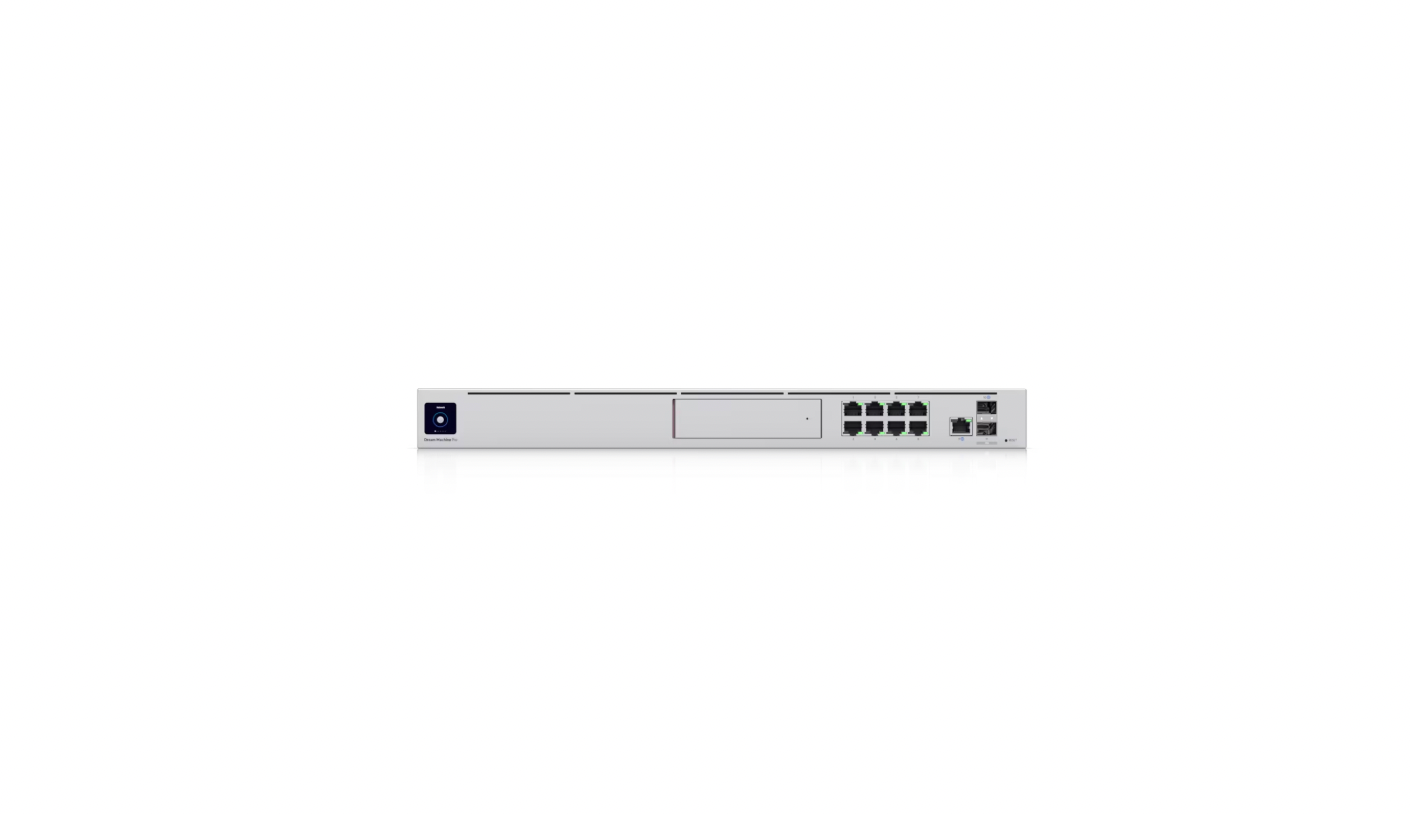

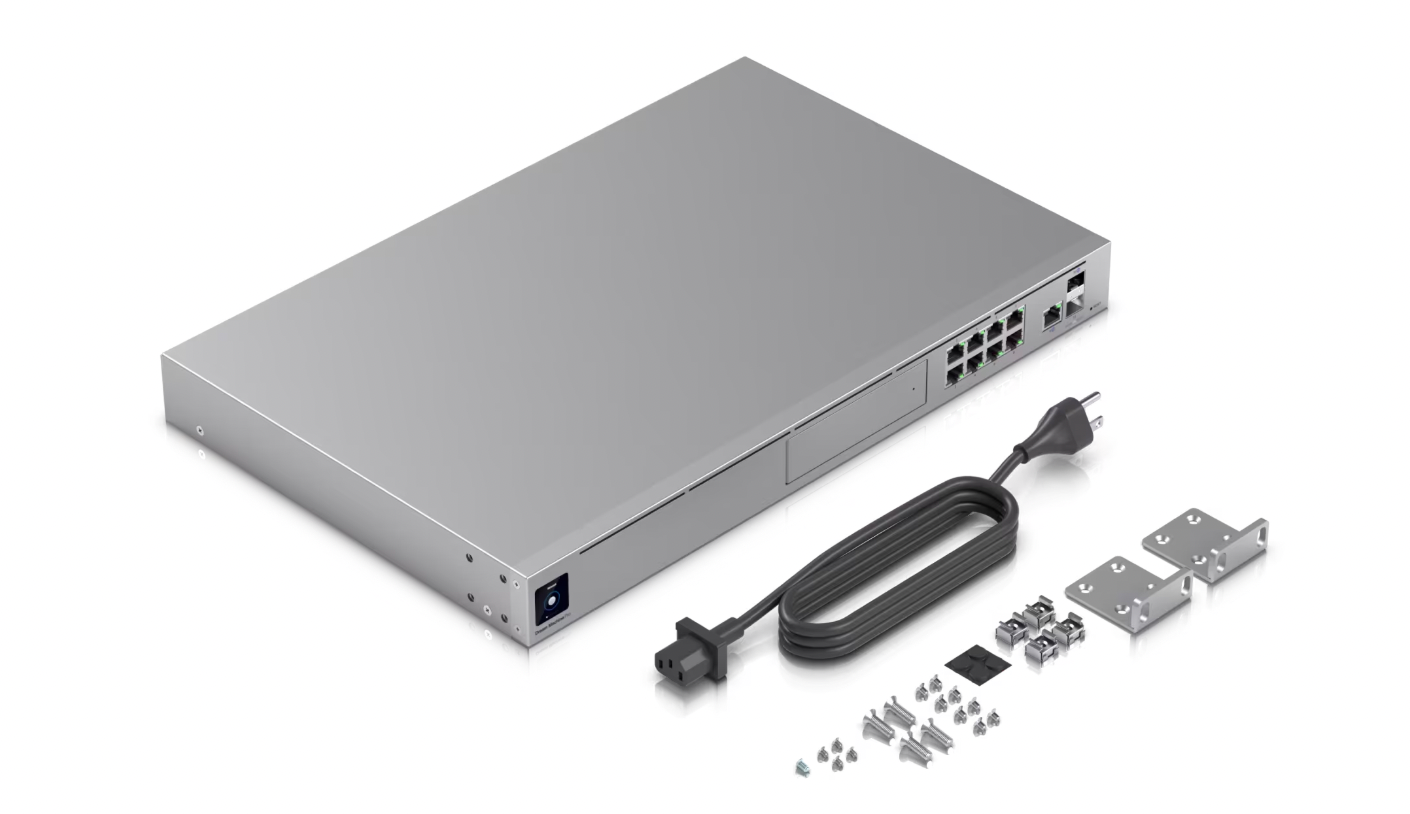

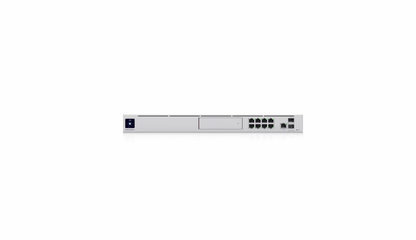

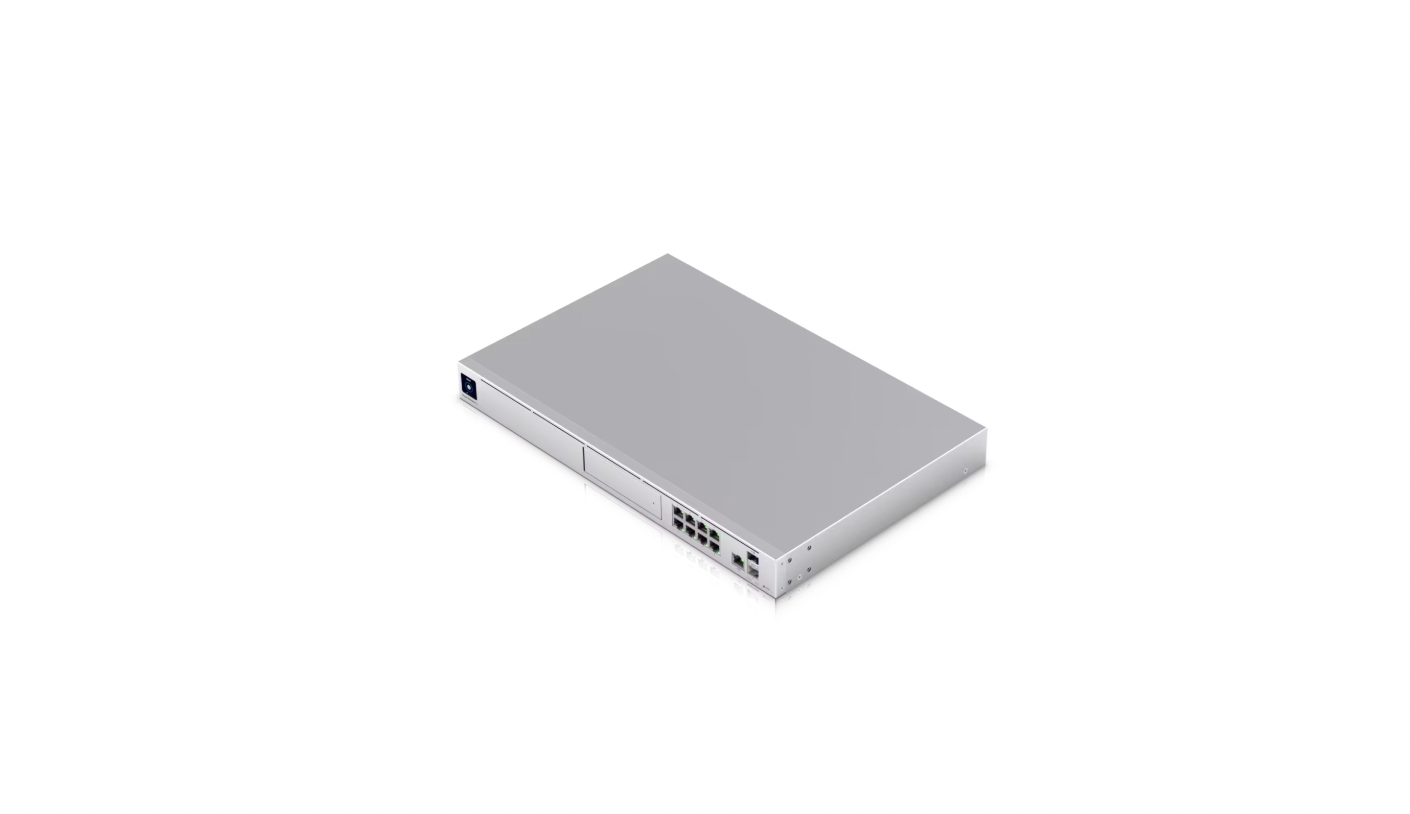

Ubiquiti UniFi Dream Machine Pro – UDM-Pro
All-in-one enterprise network appliance with 10G performance, advanced security, and central UniFi control.
The Ubiquiti UDM-Pro combines a high-performance security gateway, network controller, and 3.5 Gbps IDS/IPS throughput into a single 1U rackmount device. Ideal for scalable enterprise deployments, it supports over 100 UniFi devices and 1,000+ clients, with built-in 10G SFP+ and 8-port Gigabit switching. Integrated UniFi Network Controller and UniFi Protect NVR capabilities make this a central hub for your UniFi ecosystem.
Key Features:
• Throughput: 3.5 Gbps IDS/IPS
• Management: Built-in UniFi OS with Network and Protect support
• Interfaces: 8x GbE RJ45 ports, 1x 10G SFP+, 1x 1G SFP
• Storage: 3.5"/2.5" HDD bay for NVR storage
• Mounting: 1U Rackmount with included brackets
• Power: Internal AC power supply
Ideal For:
• Centralizing control of large UniFi deployments
• High-performance gateway needs with threat detection
• Integrated UniFi camera and video management
Why You Should Use This:
• Combines gateway, controller, and NVR in one
• 10G-capable for modern enterprise speeds
• Scalable and future-ready with UniFi OS platform
Key Highlights:
- ✅ 3.5 Gbps threat management throughput
- ✅ Supports 100+ UniFi devices and 1,000+ clients
- ✅ 10G SFP+ and GbE LAN ports for fast networking
- ✅ Built-in UniFi Network & Protect software
Frequently Asked Questions:
Q: Can the UDM-Pro replace my router and firewall?
A: Yes, it includes a security gateway with full routing, firewall, and threat management capabilities.
Q: Does it work with UniFi cameras?
A: Yes, it supports UniFi Protect for direct integration with UniFi video surveillance.
Q: Is it cloud-managed?
A: Yes, via UniFi OS cloud access or locally hosted UI.
Test data - UniFi Application SuiteFullUniFi Devices200+Client Devices200+WiFi-High AvailabilityShadow ModeMulti-WAN Load BalancingYesApplication-Aware FirewallYesMechanicalDimensions442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")Weight3.9 kg (8.6 lb)Enclosure materialAluminium CNC, SGCC steelMount materialSGCC steelHardwareProcessorQuad-core ARM® Cortex®-A57 at 1.7 GHzSystem memory4 GB DDR4On-board storage16 GB eMMCManagement interfaceEthernetBluetoothNetworking interfaceLAN:(8) GbE RJ45 ports(1) 10G SFP+ portWAN:(1) GbE RJ45 port(1) 10G SFP+ portIDS/IPS throughput3.5 Gbps**Measured with iPerf3 on a DHCP network. Performance may be reduced with PPPoE depending on ISP implementation.Power method(1) Universal AC input, 100—240V AC, 50/60 Hz(1) USP-RPS DC inputPower supplyAC/DC, internal, 50WSupported voltage range100—240V ACMax. power consumption33WESD/EMP protectionAir: ± 15kV, contact: ± 8kVLCM display(1) 1.3" touchscreenButtonFactory resetAmbient operating temperature-10° to 40° C (14° to 104° F)Ambient operating humidity5 to 95% noncondensingCertificationsCE, FCC, ICGateway FeaturesPerformanceRedundant WAN with failover and load balancingWiFi QoS with UniFi APsApplication, domain, and country-based QoSApplication and device type identificationAdditional internet failover with LTE BackupInternet quality and outage reportingNext-generation securityApplication-aware firewall rulesSignature-based IPS/IDS threat detectionContent, country, domain, and ad filteringVLAN/subnet-based traffic segmentationFull stateful firewallAdvanced networkingLicense-free SD-WANWireGuard, L2TP and OpenVPN serverOpenVPN clientOpenVPN and IPsec site-to-site VPNOne-click Teleport and Identity VPNPolicy-based WAN and VPN routingDHCP relayCustomizable DHCP serverIGMP proxyIPv6 ISP supportLEDsEthernetLink/activityGreen: 1GAmber: 10/100MSFP+Link/activityWhite: 10GGreen: 1GHDDWhite: disk activityAmber: disk errorRPSBlue: ready
