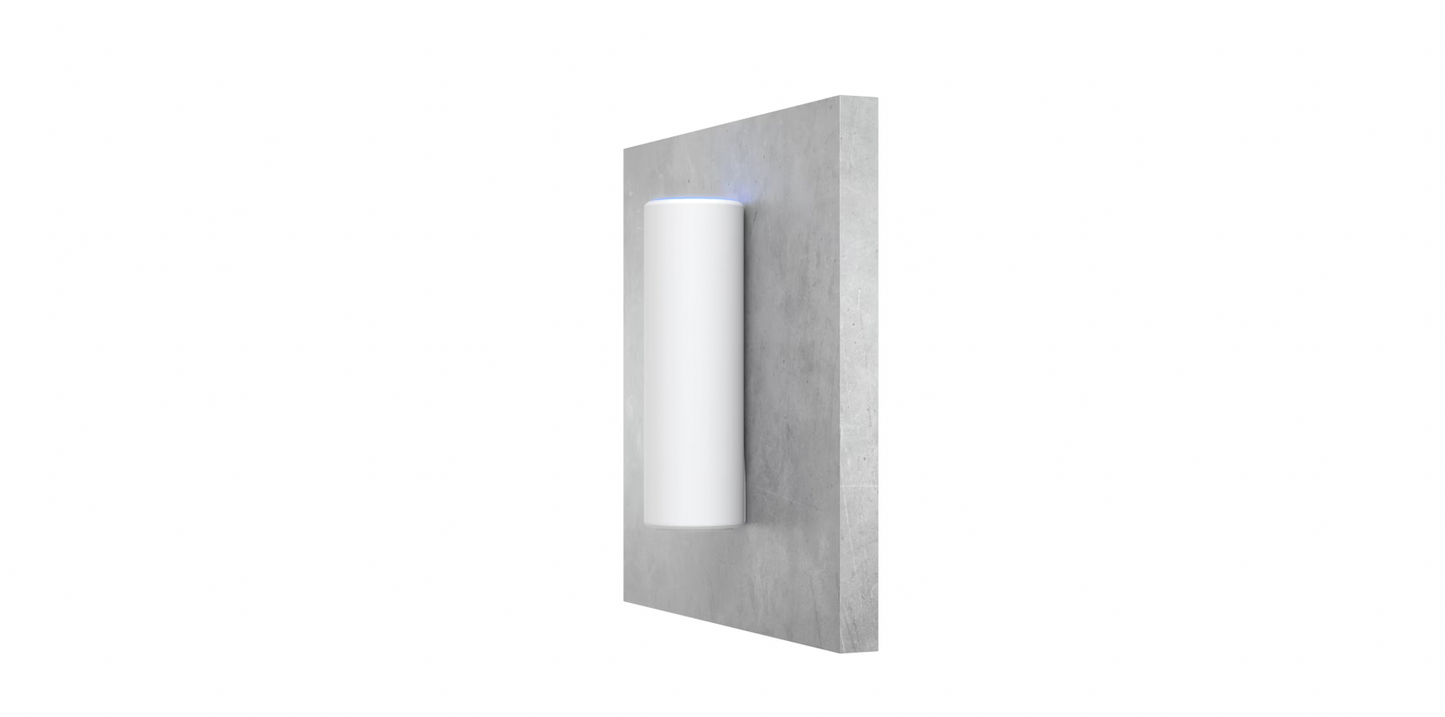

  • UAP-FlexHD mounted on wall indoor
  • UAP-FlexHD mounted on ceiling

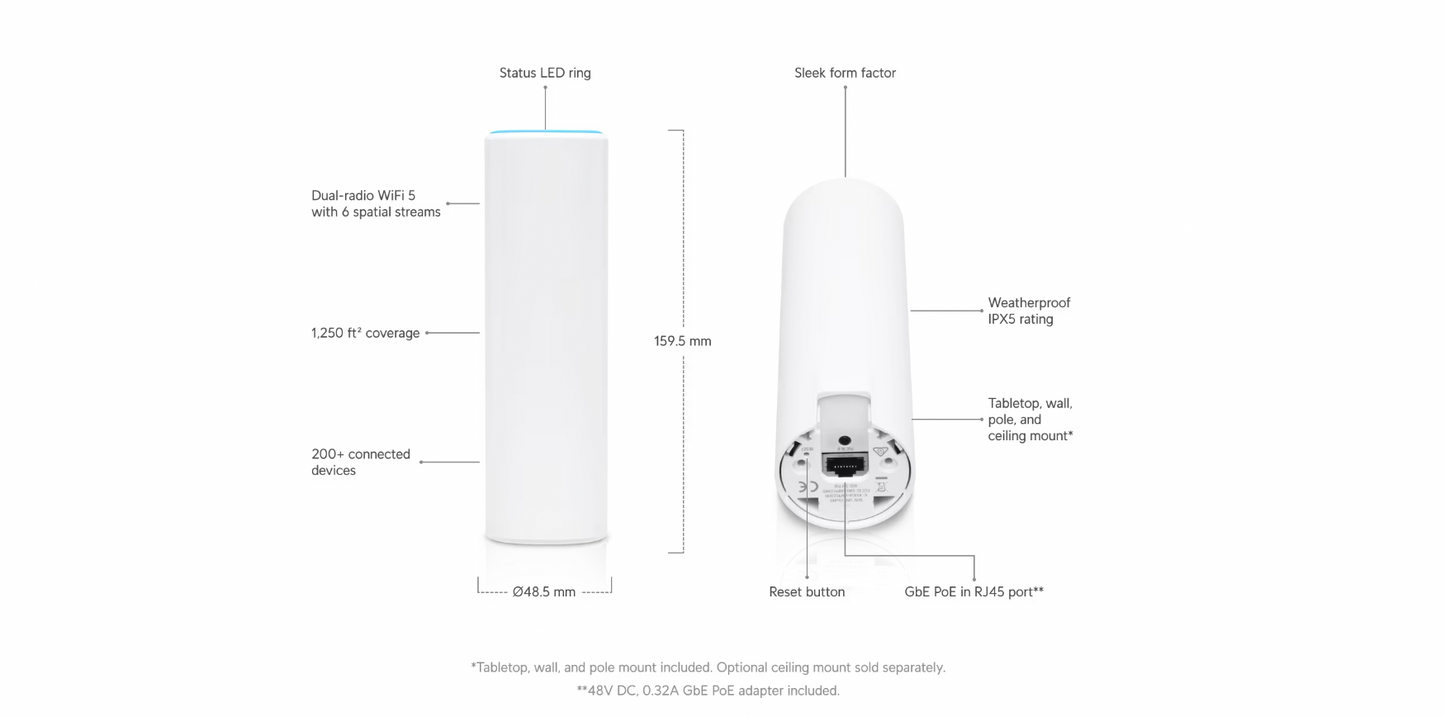

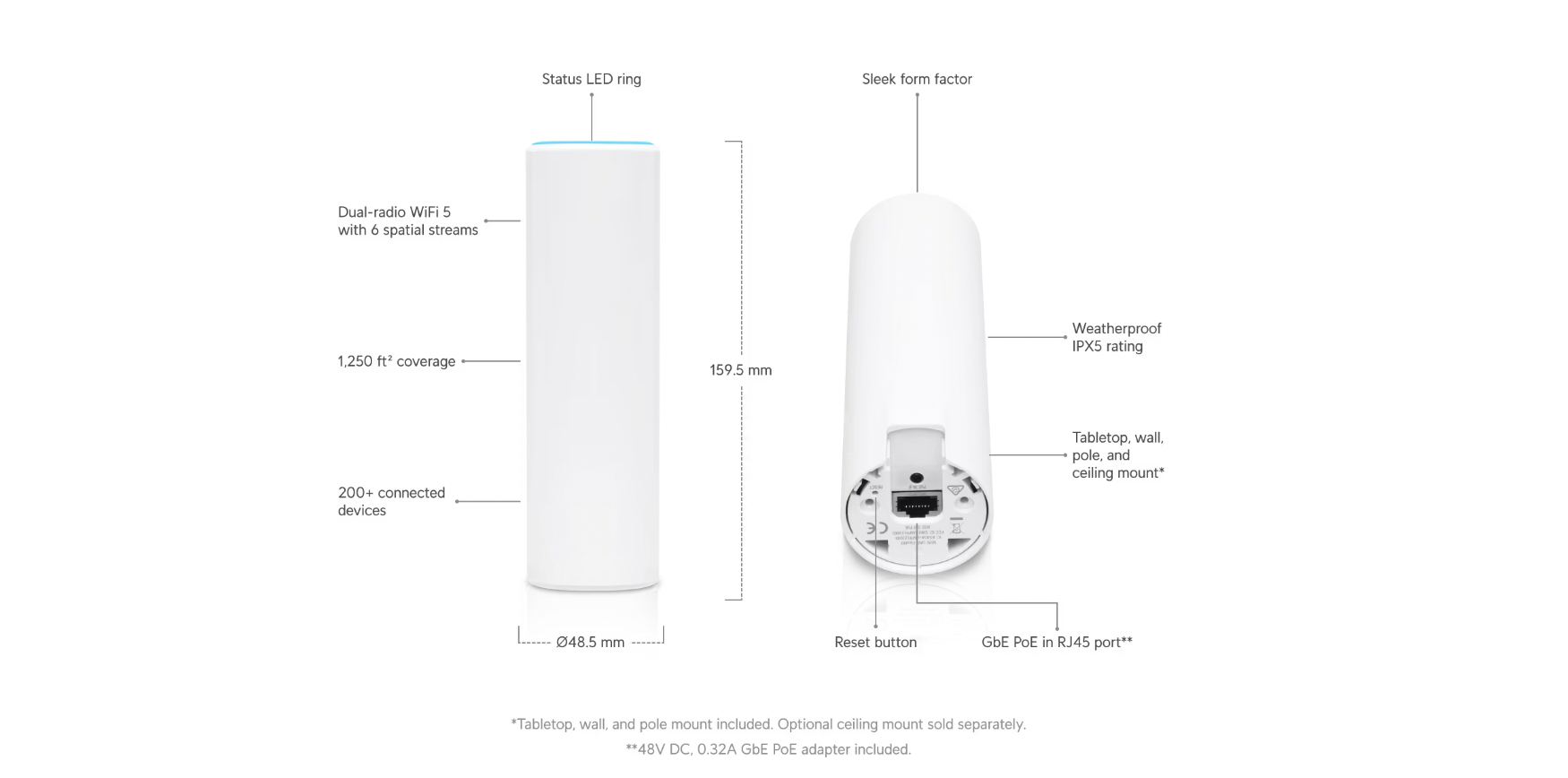

  • UAP-FlexHD with specs picture
1 6

Ubiquiti | Access Point FlexHD

Ubiquiti | Access Point FlexHD

$214.99 USD
$239.99 USD $214.99 USD
Sale Sold out
Login to view business pricing

 Out of stock
View full details
  • Description
  • Specifications

Ubiquiti UniFi FlexHD Access Point – UAP-FlexHD

Indoor/outdoor 802.11ac Wave 2 access point with flexible mounting and sleek design.

The UniFi FlexHD (UAP-FlexHD) is a compact dual-band access point that delivers high-performance wireless coverage indoors or outdoors. Featuring 802.11ac Wave 2 technology, it supports multiple mounting options and blends seamlessly into any environment. It is designed for use with the UniFi Network Application and is powered via PoE.

Key Features:

• Dual-band Wi-Fi: 2.4 GHz and 5 GHz
• 802.11ac Wave 2: Delivers high-performance wireless coverage
• Compact Form Factor: Minimalist design that fits in any space
• Flexible Mounting: Includes wall, pole, and tabletop options
• Outdoor/Indoor Use: Weather-resistant housing
• PoE Powered: Requires 802.3af PoE (adapter included)

Key Highlights:

  • ✅ Dual-band 802.11ac Wave 2 Wi-Fi performance
  • ✅ Indoor and outdoor deployment capability
  • ✅ Multiple mounting options for flexible installations
  • ✅ Clean, modern design that blends with surroundings

Frequently Asked Questions:

Q: What kind of PoE does the FlexHD use?
A: The UAP-FlexHD uses 802.3af PoE. A PoE adapter is included.

Q: Can this be used outdoors?
A: Yes, it is suitable for both indoor and outdoor environments.

Q: How is it managed?
A: It is managed through the UniFi Network Application.

Overview

Dimensions:

Ø48.5 x 159.5 mm (Ø1.9 x 6.3")

WiFi Standard:

WiFi 5

Spatial Streams:

6

Coverage Area:

140 m² (1,500 ft²)

Max Client Count:

200+

Uplink:

GbE

Mounting:

Wall, Pole, Table (Mounts Included)

Power Method:

PoE

Performance

MIMO:

5 GHz: 4 x 4 (DL MU-MIMO)

2.4 GHz: 2 x 2 (DL MU-MIMO)

Max Data Rate:

5 GHz: 1.7 Gbps (BW80)

2.4 GHz: 300 Mbps (BW40)

Antenna Gain:

5 GHz: 4 dBi

2.4 GHz: 1.6 dBi

Max TX Power:

5 GHz: 26 dBm

2.4 GHz: 23 dBm

Max BSSIDs:

8 per Radio

Supported Data Rates:

802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80)

802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Features

Wireless Meshing: Yes

Band Steering: Yes

802.11v BSS Transition Management: Yes

802.11r Fast Roaming: Yes

802.11k Radio Resource Management (RRM): Yes

Advanced Radio Management: Yes

Passpoint (Hotspot 2.0): Yes

Captive Hotspot Portal with Custom Branding Landing Page: Yes

Voucher Authentication: Yes

Payment-Based Authentication: Yes

External Portal Server Support: Yes

Password Authentication: Yes

Guest Network Isolation: Yes

Private Pre-Shared Key (PPSK): Yes

WiFi Speed Limiting: Yes

Client Device Isolation: Yes

WiFi Schedules: Yes

RADIUS over TLS (RadSec): Yes

Dynamic RADIUS-assigned VLAN: Yes

Hardware

Max Power Consumption:

10.5W

Includes PoE Adapter:

Yes

Supported Voltage Range:

44–57V DC

Networking Interface:

(1) GbE RJ45 port

Weight:

315 g (11.1 oz)

Management

Ethernet: Yes

LEDs:

System, Status

Channel Bandwidth:

HT 20/40, VHT 20/40/80/160 (MHz)

Certifications

CE, FCC, IC

NDAA Compliant: Yes

Operating Frequency

US/CA:

2400–2472 MHz

U-NII-1: 5150–5250 MHz

U-NII-2A: 5250–5350 MHz

U-NII-2C: 5470–5725 MHz

U-NII-3: 5725–5850 MHz

Worldwide:

2400–2483.5 MHz

5150–5725 MHz

Environment

Operating Temperature:

-30 to 70° C (-22 to 158° F)

Operating Humidity:

5 to 95% noncondensing
