Ubiquiti UniFi PowerAmp – UPL-Amp-B
Premium speaker amplifier for immersive, high-fidelity audio in UniFi-powered spaces.
The UniFi PowerAmp is a high-performance audio amplifier designed for immersive multi-zone streaming and spatial audio experiences. With powerful Class D amplification, Dolby Atmos support, and seamless UniFi ecosystem integration, it delivers crystal-clear sound with modern connectivity and advanced control via UniFi Play.
Key Features:
• Audio Output: 130W per channel at 8Ω, 260W at 4Ω
• Amplifier Type: Class D
• Surround Support: Dolby Atmos, Dolby TrueHD, Dolby Digital, Multichannel PCM, and more

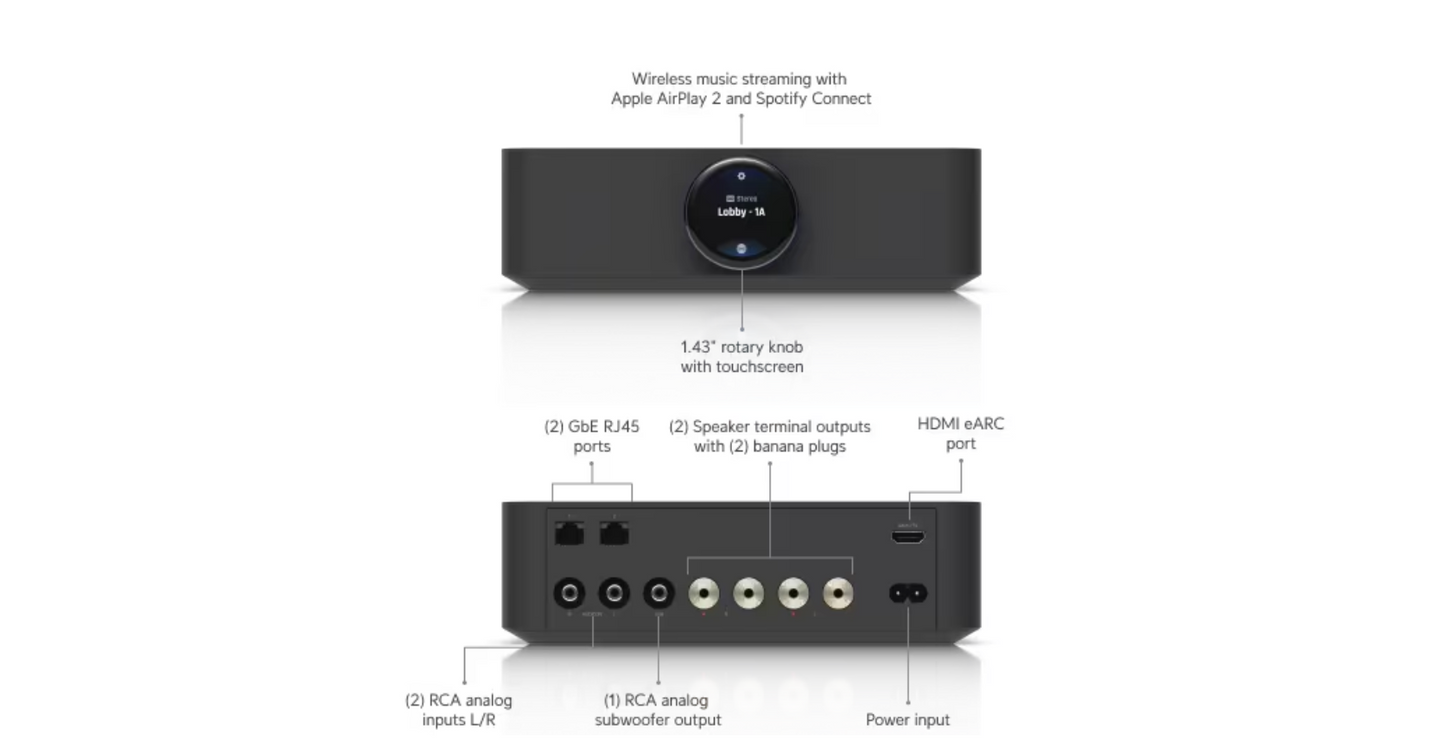

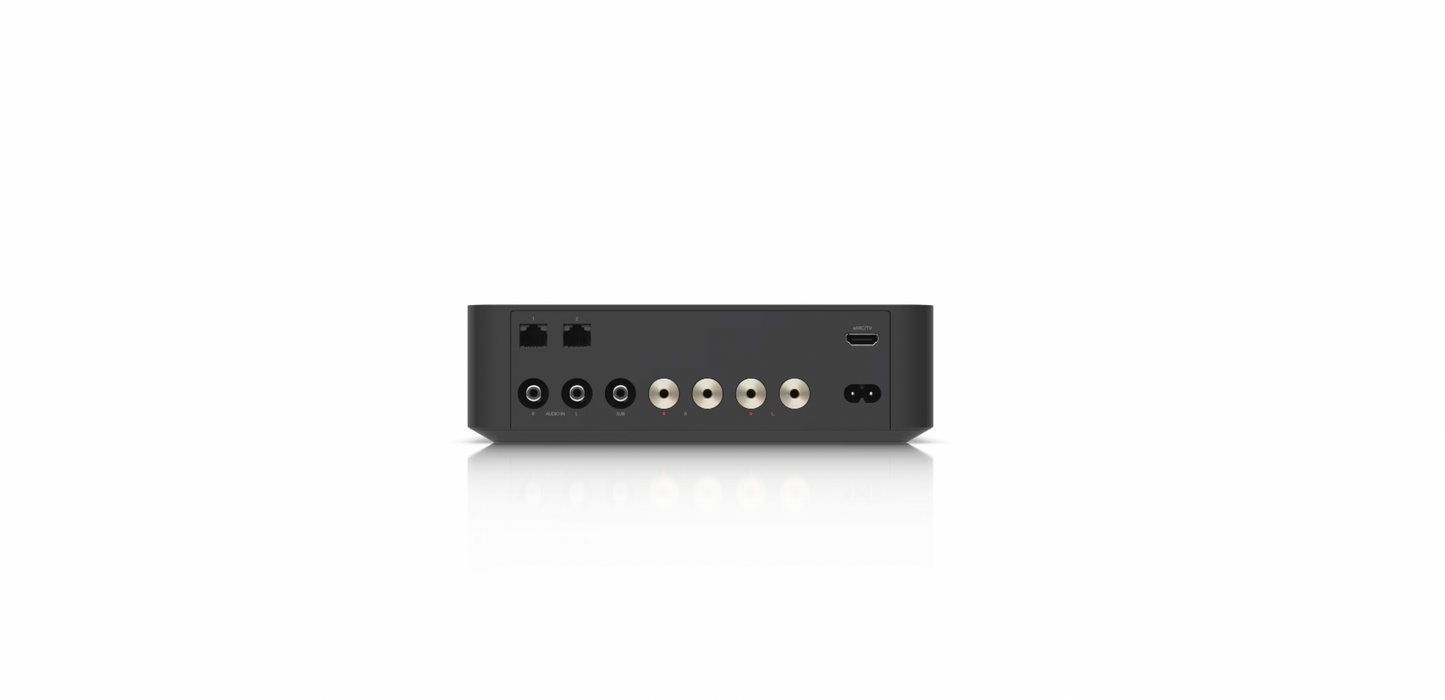

• Inputs: (1) HDMI eARC, (2) RCA analog inputs (L/R)
• Outputs: (1) RCA subwoofer out, (2) speaker terminal outputs with banana plugs
• Streaming: AirPlay 2, Spotify Connect, Soundtrack Your Brand
• Display: 1.43" rotary touchscreen
• Control App: UniFi Play (iOS & Android)
Connectivity:
• Dual GbE RJ45 ports
• WiFi 802.11a/b/g/n/ac
• PoE not required (AC-powered)
Mechanical:

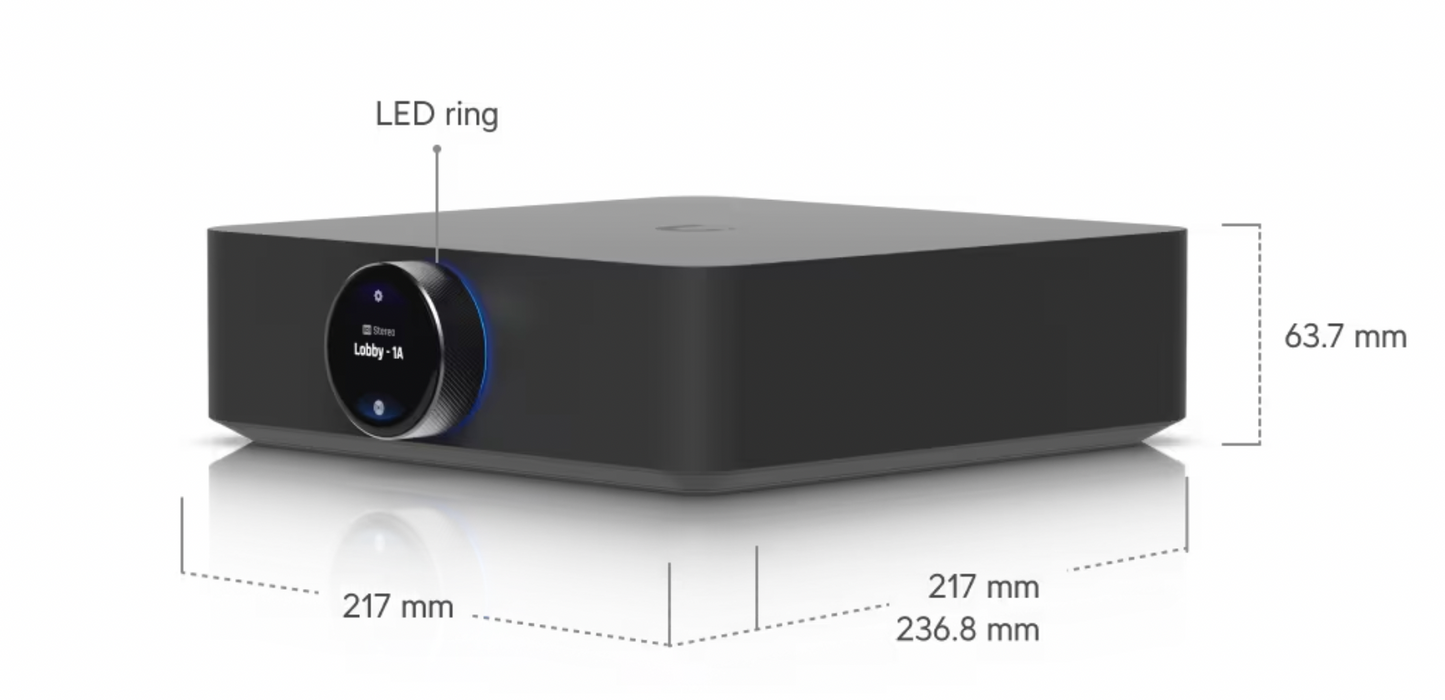

• Dimensions with knob: 217 x 236.8 x 63.7 mm (8.5 x 9.3 x 2.5")
• Weight: 2.4 kg (5.3 lb)
• Mounting: Desktop
• Color Options: Black, White
Environment:
• Operating Temp: -5 to 40°C (23 to 104°F)
• Humidity: 5 to 90% noncondensing
Key Highlights:
- ✅ Supports Dolby Atmos and immersive surround audio
- ✅ 130W/260W high-fidelity Class D amplification
- ✅ Native support for AirPlay 2 and Spotify Connect
- ✅ Seamless control via UniFi Play app
Frequently Asked Questions:
Q: Does it support wireless streaming?
A: Yes, including AirPlay 2 and Spotify Connect.
Q: Can I use this as a standalone amp without UniFi speakers?
A: Yes, speaker terminals and RCA outputs support third-party speakers and subwoofers.
Q: Does it require PoE?
A: No, it uses standard AC power (100–240V).
