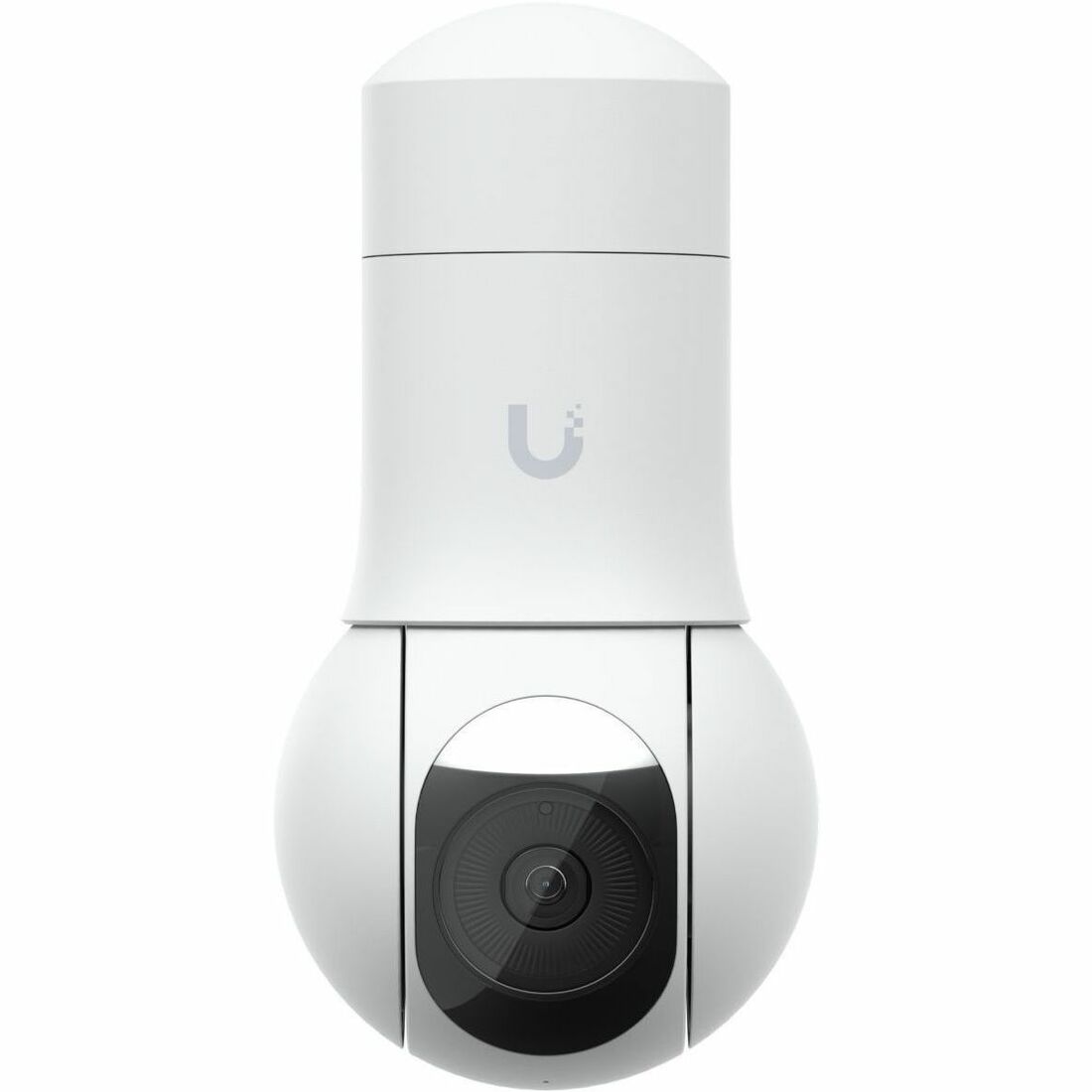

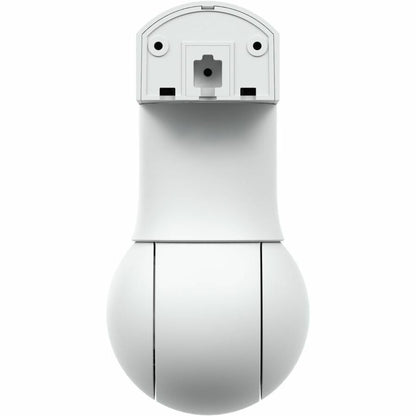

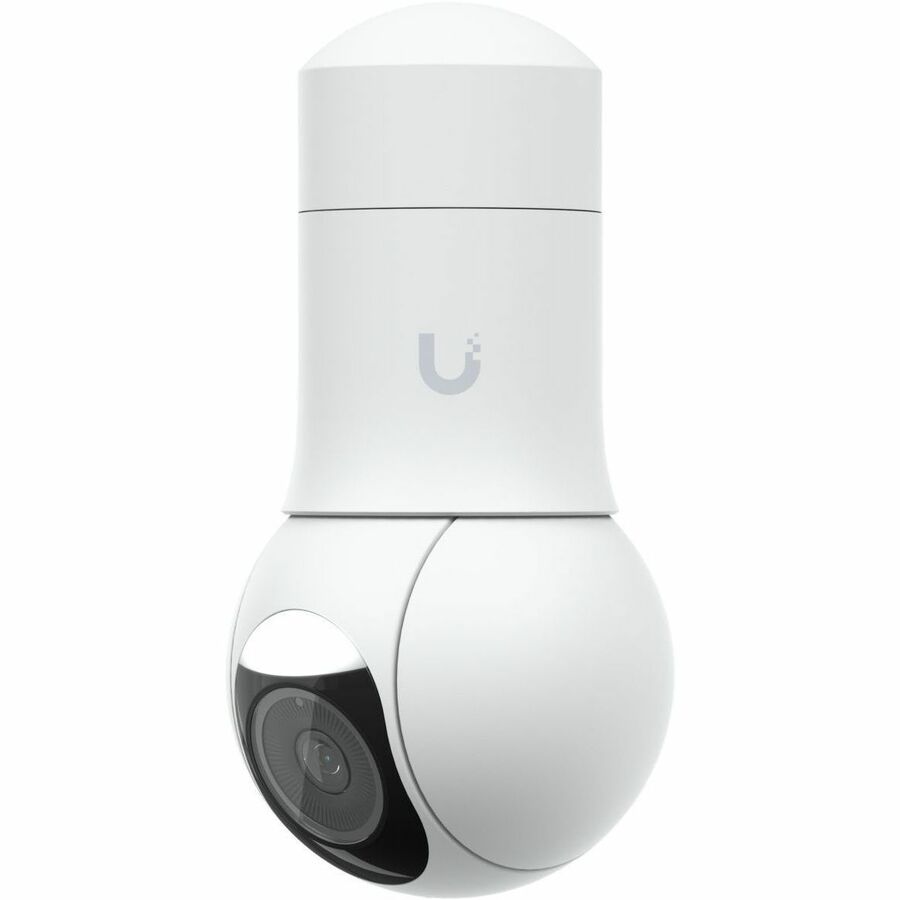

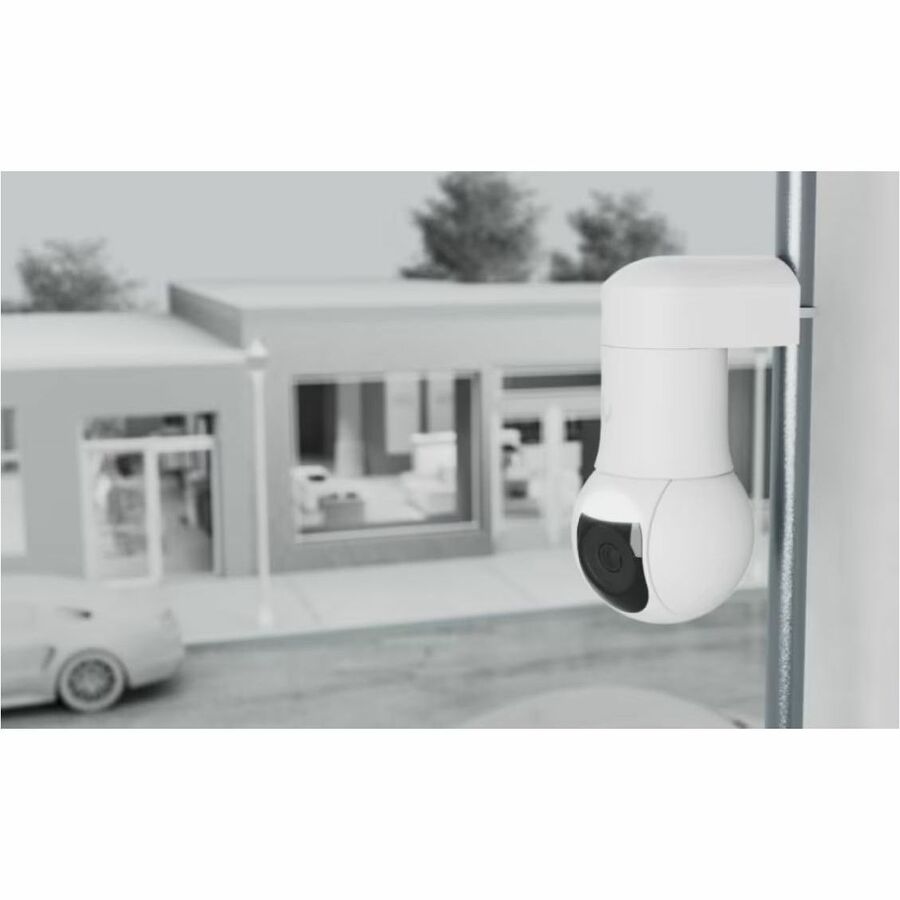

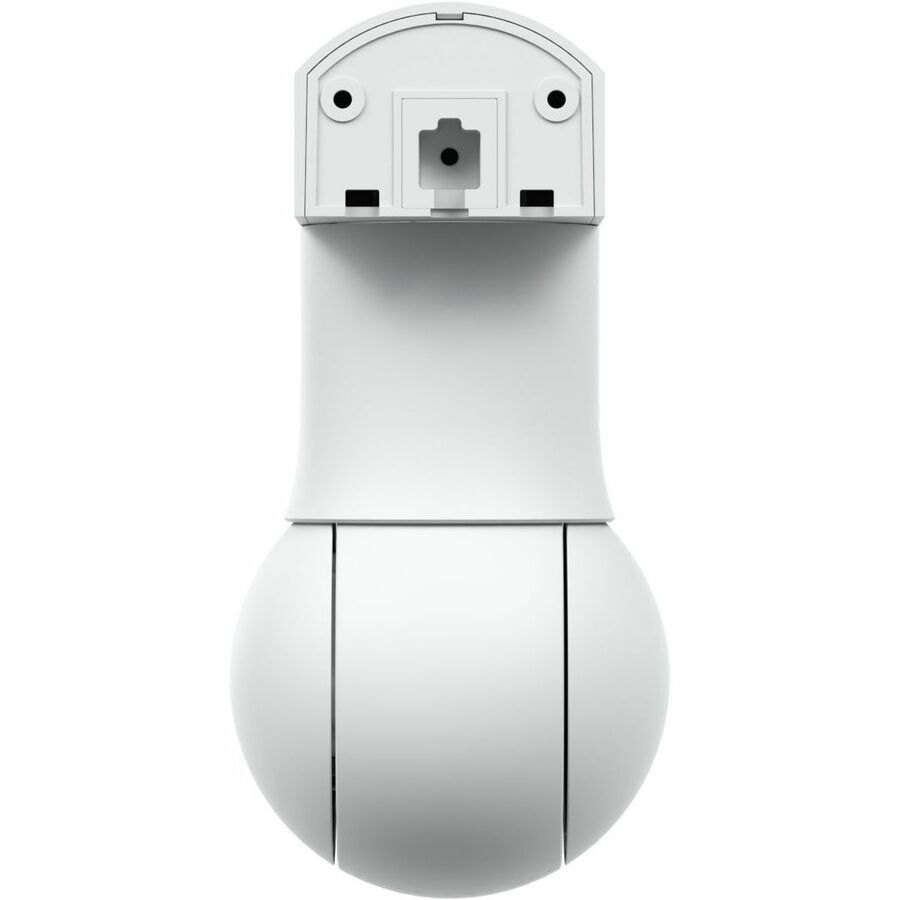

Ubiquiti UniFi Protect G5-PTZ 5 Megapixel Outdoor 2K Network Camera - Color - UVC-G5-PTZ
Key Features
- 2K recording format for stunning, vivid video results with maximum efficiency
- 2x optical zoom ensures maximum surveillance productivity without compromising quality
- 6.85 mm maximum focal length for dependable identification distances with better coverage
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- f/1.8 maximum aperture for productive capturing according to focal length and lighting conditions
- Infrared/Color night vision type for better feasibility and increased surveillance productivity
- Network camera - Helps achieve high-quality video results
- Provides night vision of objects at a distance of up to 65 ft
- Up to 2688 x 1512 resolution for surveillance in real-time
- Varifocal lens type for sharp, detailed focus to ensure maximum surveillance usability
General Information
- Manufacturer: Ubiquiti Inc.
- Manufacturer Part Number: UVC-G5-PTZ
- Brand Name: Ubiquiti
- Product Line: UniFi Protect
- Product Model: G5-PTZ
- Product Name: G5-PTZ Network Camera
- Product Type: Network Camera
Technical Information
- HD Recording: Yes
- Recording Formats: 2K
- Night Vision: Yes
- Night Vision Distance: 65 ft
- Night Vision Type: Infrared/Color
- AI-powered: Yes
- Infrared (IR) Cut-off Filter: Yes
Display & Graphics
- Image Sensor Type: CMOS
- Image Sensor Size: 1/2.7"
- Color Supported: Color
- Field of View: 16:9 Wide: H: 99.7°, V: 51.9°, D: 121° 16:9 Tele: H: 45.5°, V: 25.4°, D: 52.4°
- Effective Camera Resolution: 5 Megapixel
Video
- Maximum Video Resolution: 2688 x 1512
- Maximum Frame Rate: 30 fps
Lens
- Lens Type: Varifocal
- Minimum Focal Length: 3.42 mm
- Maximum Focal Length: 6.85 mm
- Lens Included: Yes
- Minimum Aperture: f/2.4
- Maximum Aperture: f/1.8
- Optical Zoom: 2x
Network & Communication
- Connectivity Technology: Wired
- Remote Management: Yes
- Ethernet Technology: Fast Ethernet
Interfaces/Ports

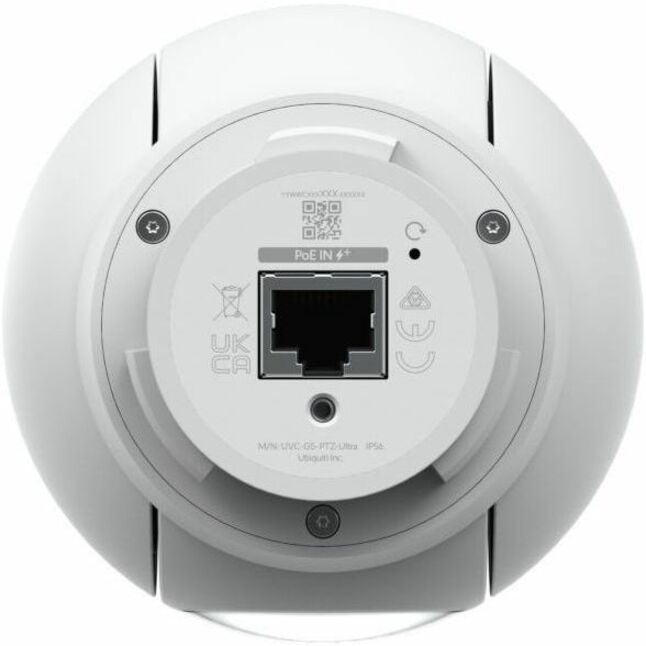

- Network (RJ-45): Yes
Power Description
- Maximum Power Consumption: 14 W
- Input Voltage:
- 37 V DC
- 57 V DC
- Power Source Type:
- PoE+
- DC
Physical Characteristics
- Product Material:
- Aluminum Alloy
- Polycarbonate

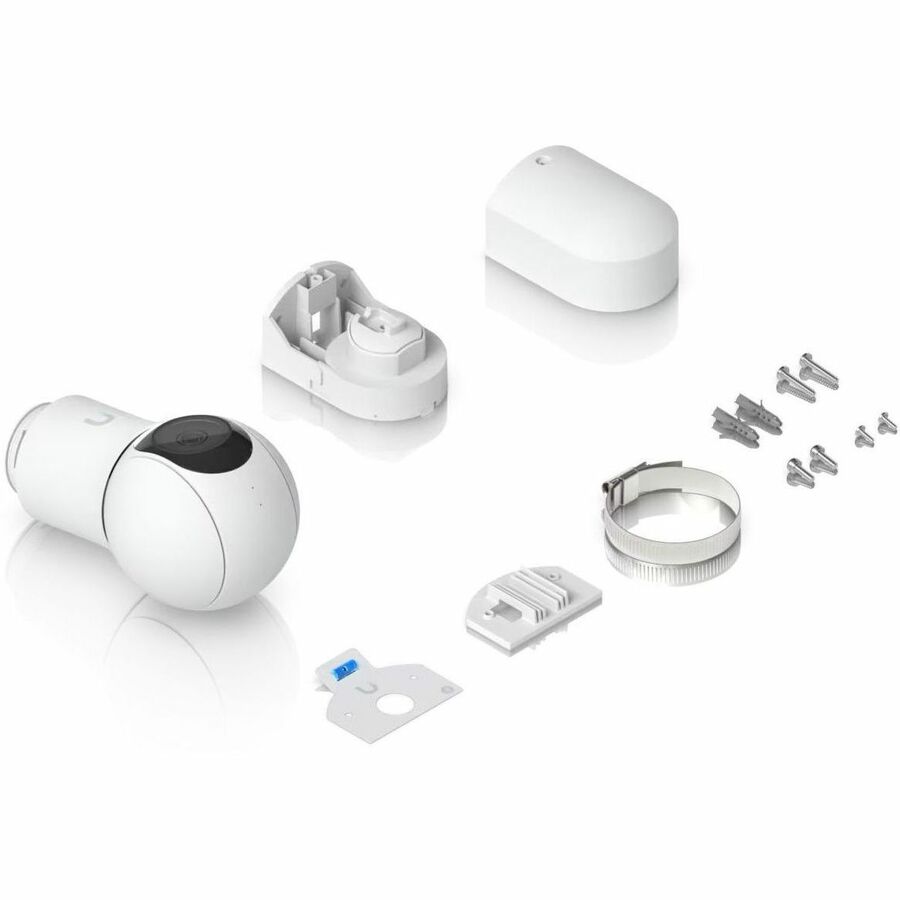

- Mount Type:

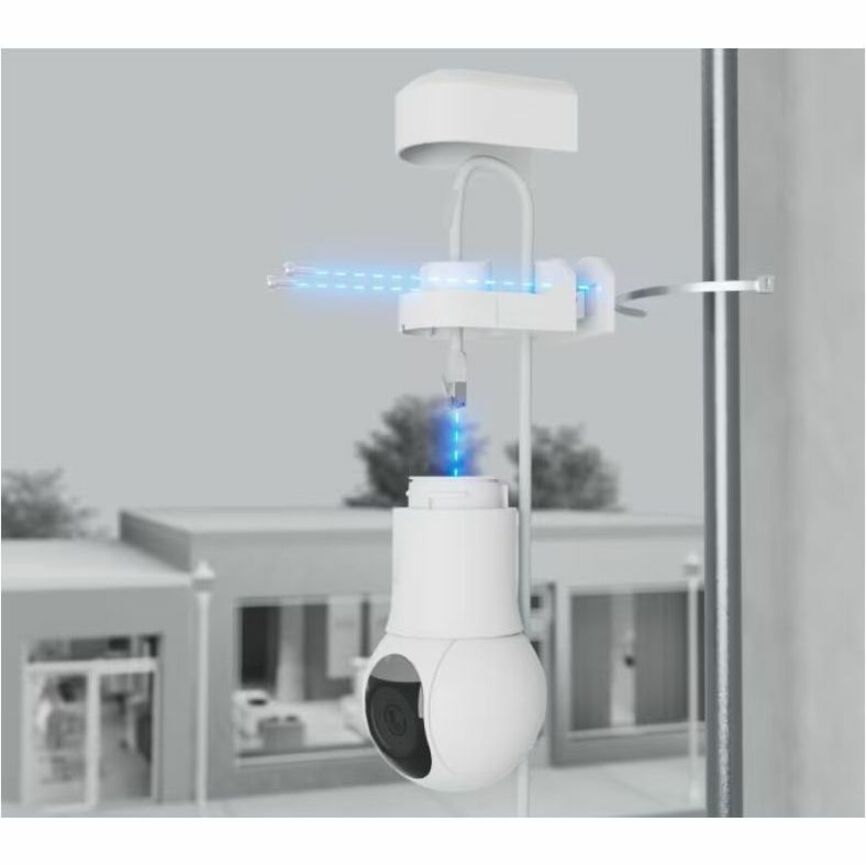

- Pole Mount
- Wall Mount
- Durability: Weather Proof
- Diameter: 3.5"
- Weight (Approximate): 1.28 lb
Environmental Conditions
- Minimum Operating Temperature: -22°F (-30°C)
- Maximum Operating Temperature: 113°F (45°C)
- Minimum Operating Humidity (Non-condensing): 0%
- Maximum Operating Humidity (Non-condensing): 90%
Miscellaneous
- Features: Built-in Microphone
- Indoor/Outdoor: Outdoor
- Impact Protection Rating: IK04
- Ingress Protection Rating:
- IP66
- IP56
