USW-Flex-XG | 5-Port 10GbE Layer 2 Switch with PoE/USB-C Power
The Ubiquiti USW-Flex-XG is a compact, 5-port Layer 2 switch that supports ultra-fast 10 Gigabit Ethernet speeds. With flexible power options including PoE+ and USB-C, this switch delivers high-performance switching in a desktop or wall-mounted form factor, ideal for professional-grade networks.
Ideal For:
High-speed aggregation and access layer switching
Deployments requiring compact, multi-10GbE switch with PoE or USB-C power options
Why You Should Use This:
✓ Four 10GbE RJ45 ports for lightning-fast throughput
✓ Managed with UniFi Network version 6.1.67 or later
✓ Supports 82 Gbps switching capacity and 1,000 VLANs
Key Highlights:
✓ Flexible power via PoE+ or USB-C
✓ Full Layer 2 feature set including VLANs, ACLs, and IGMP Snooping
✓ Compact, durable polycarbonate housing
Frequently Asked Questions:
Q: How is the switch powered?
A: The USW-Flex-XG can be powered via PoE+ or a 5V USB-C adapter.
Q: What UniFi version is required?
A: It requires UniFi Network version 6.1.67 or later for management.
Dimensions: 135 x 185 x 32 mm (5.3 x 7.3 x 1.3")

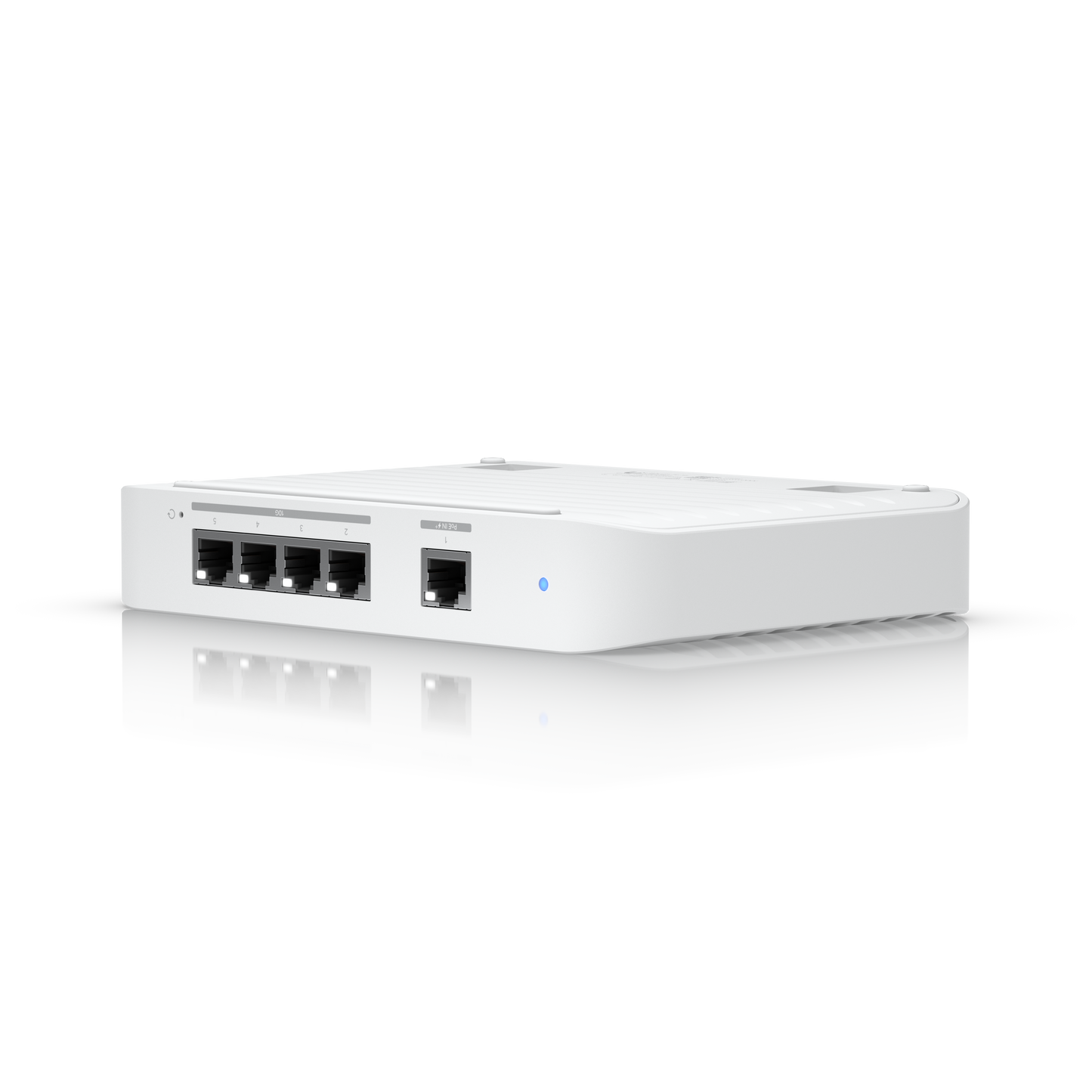

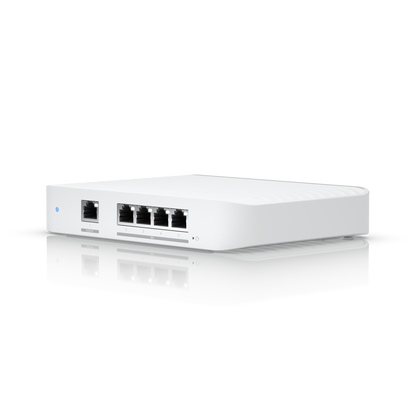

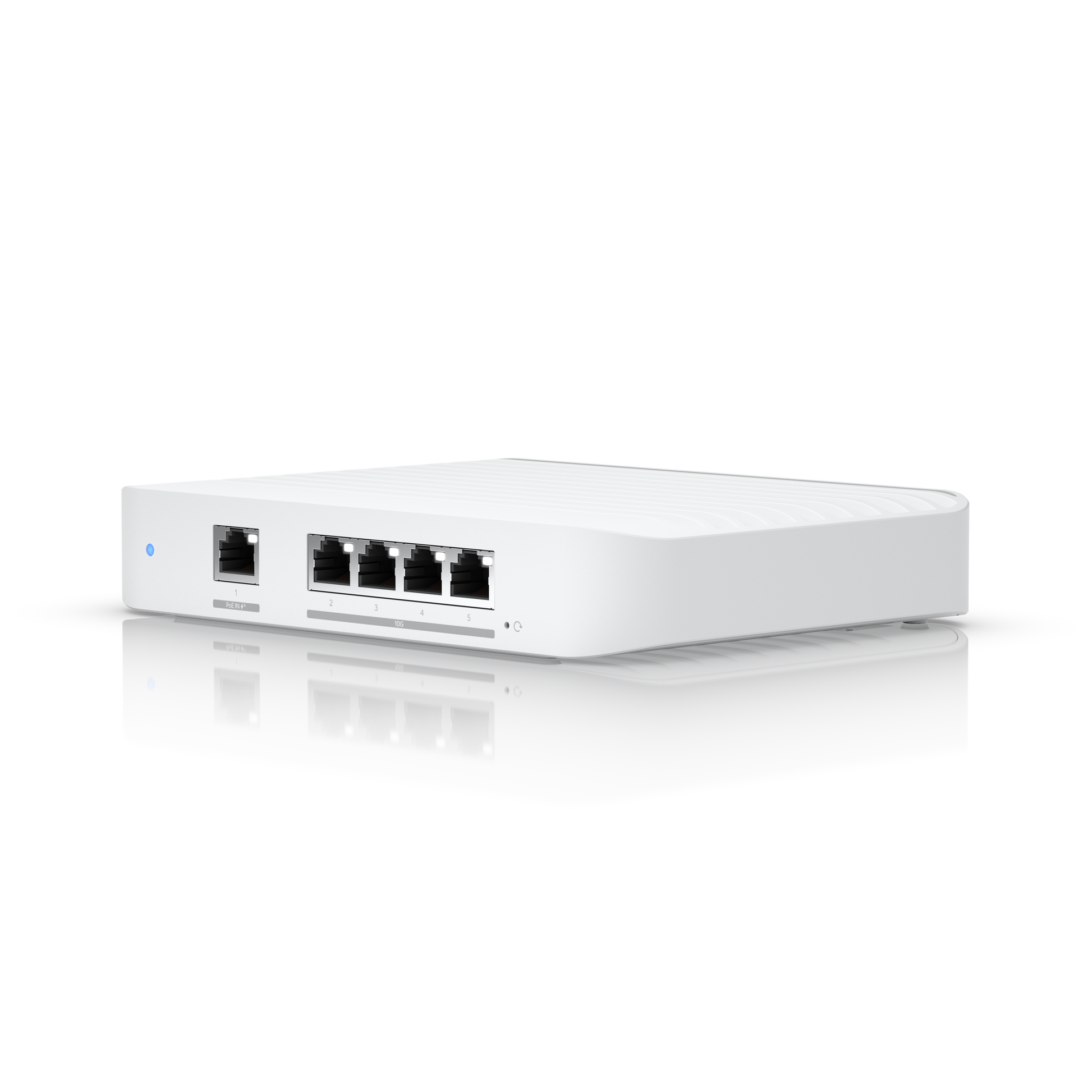

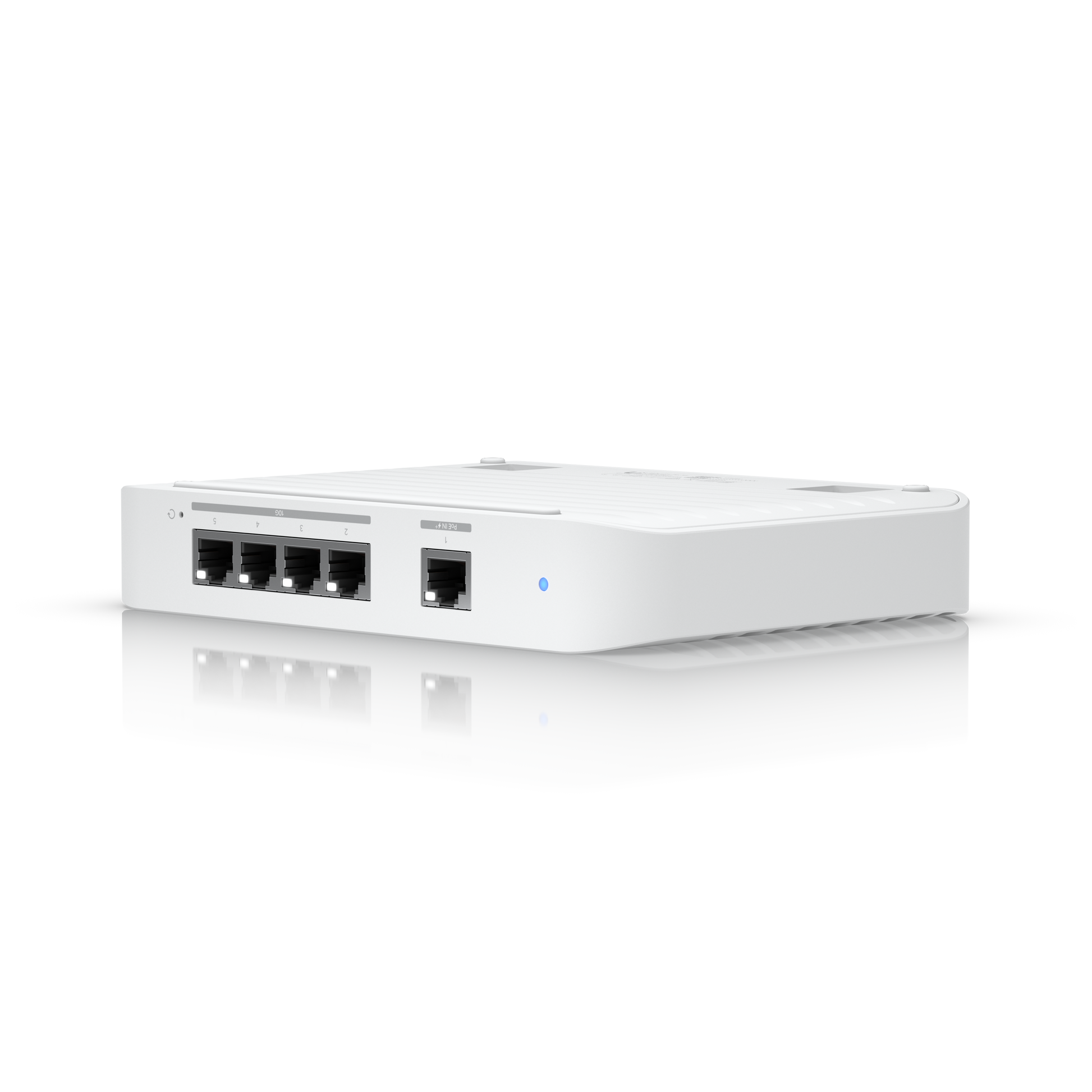

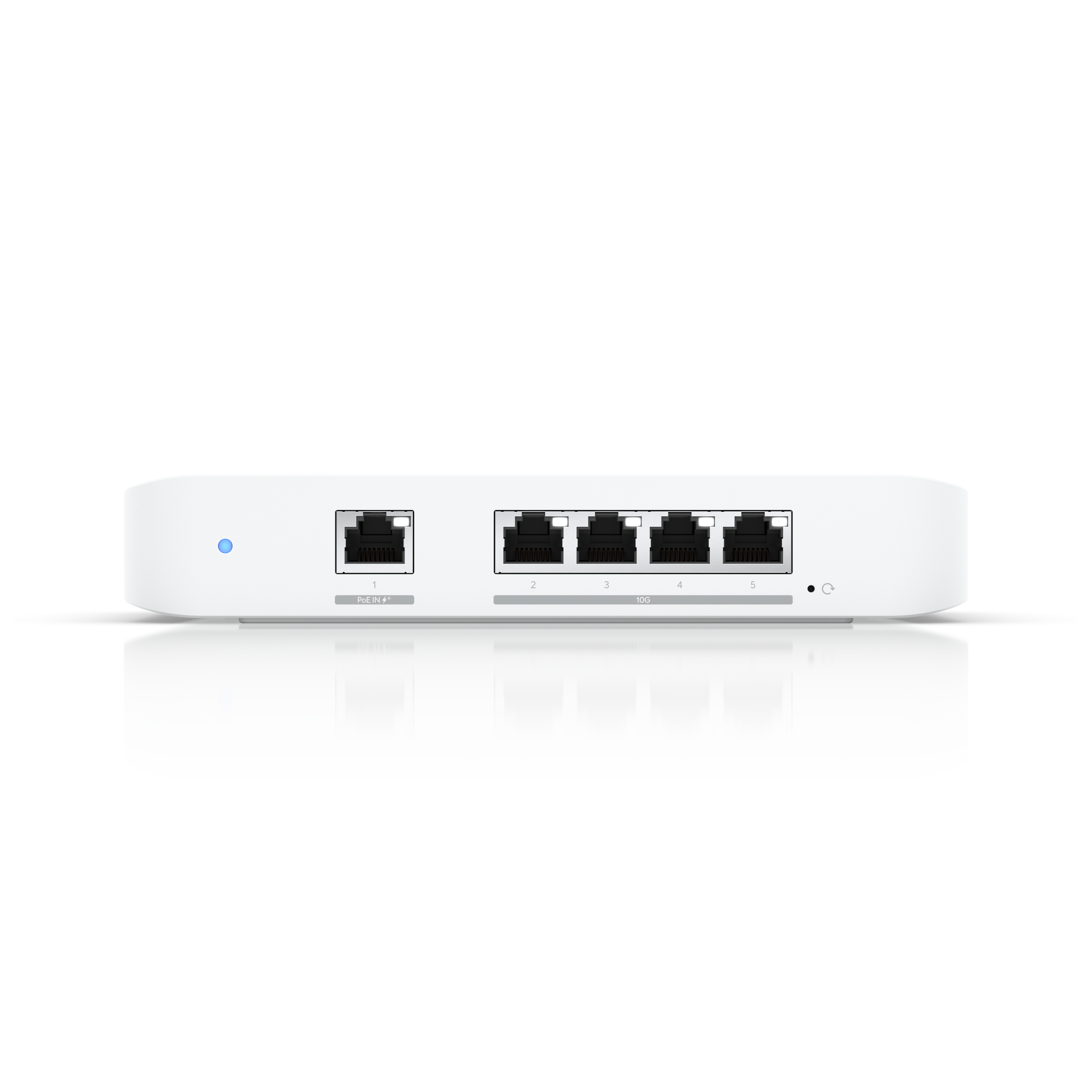

Port Layout:
- 1 GbE RJ45: 1 (1G/100M/10M)
- 10 GbE RJ45: 4

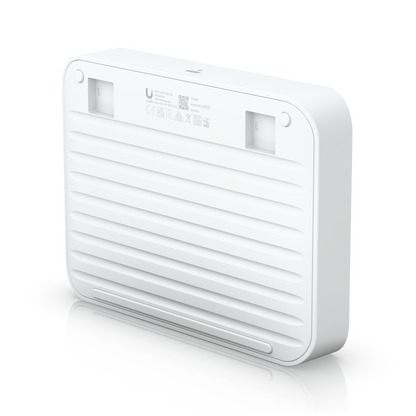

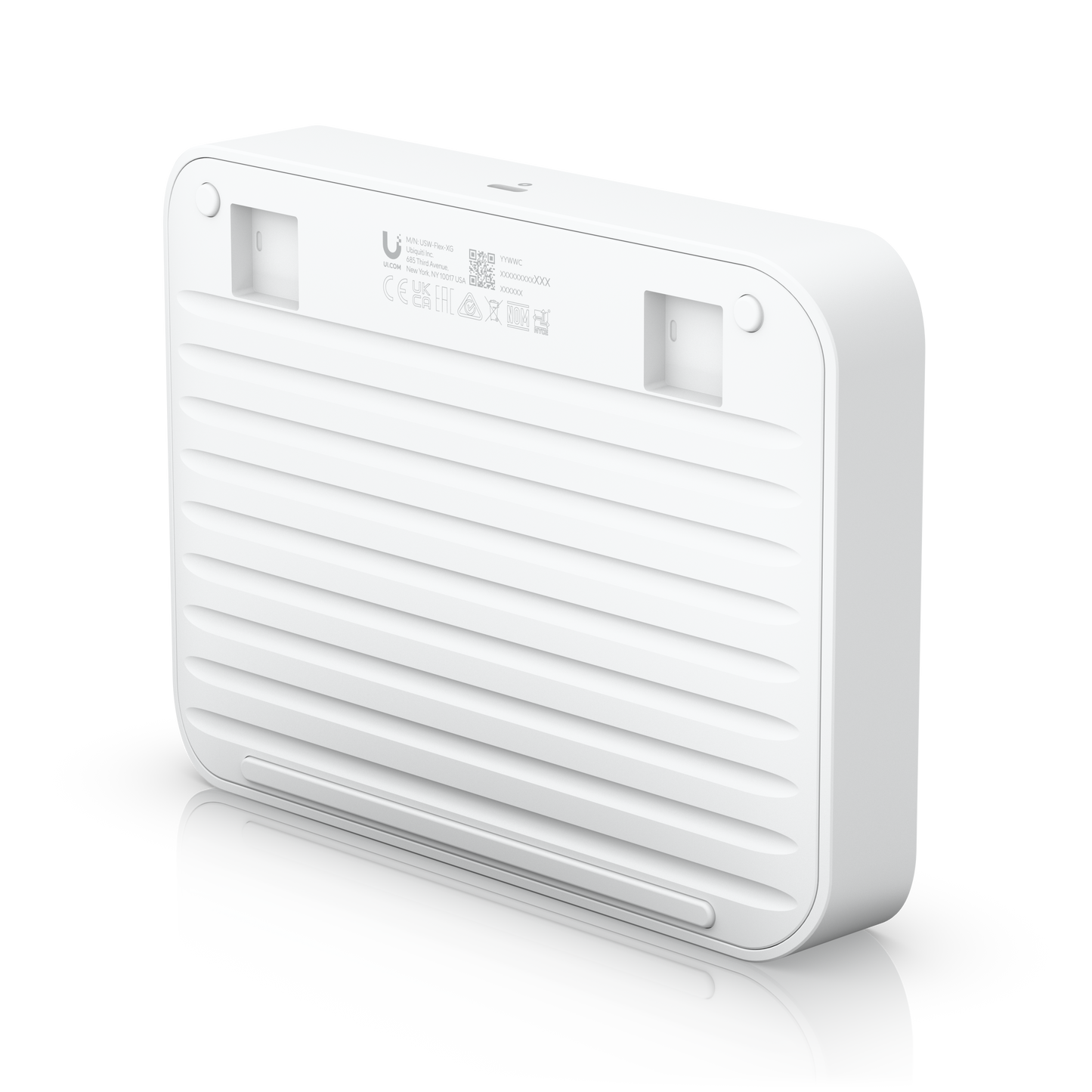

Form Factor: Compact desktop, wall
Switching Capacity: 82 Gbps
Total Non-Blocking Throughput: 41 Gbps
Forwarding Rate: 61 Mpps
Supported VLANs: 1,000
MAC Address Table Size: 16,000
Packet Buffer Size: 1.5 MB
Access Lists:
- IPv4: 12
- MAC: 10
Layer 2 Features:
LACP Port Aggregation ✓
STP & RSTP ✓
Advanced IGMP Configuration ✓
IGMP Snooping ✓
802.1X Control ✓
MAC-Based ACLs & Device Isolation ✓
DHCP Snooping & Guarding ✓
Egress Rate Limit ✓
Flow Control ✓
Storm Control ✓
Multicast & Broadcast Rate Limiting ✓
MAC Address Blocking ✓
IP-Based ACLs & Network Isolation ✓
MAC-Based Port Restriction ✓
Port Isolation ✓
Port Mirroring ✓
Jumbo Frames ✓
LLDP-MED ✓
Voice VLAN ✓
Loop Protection ✓
Max. Power Consumption: 25W
Power Method:
- (1) PoE+

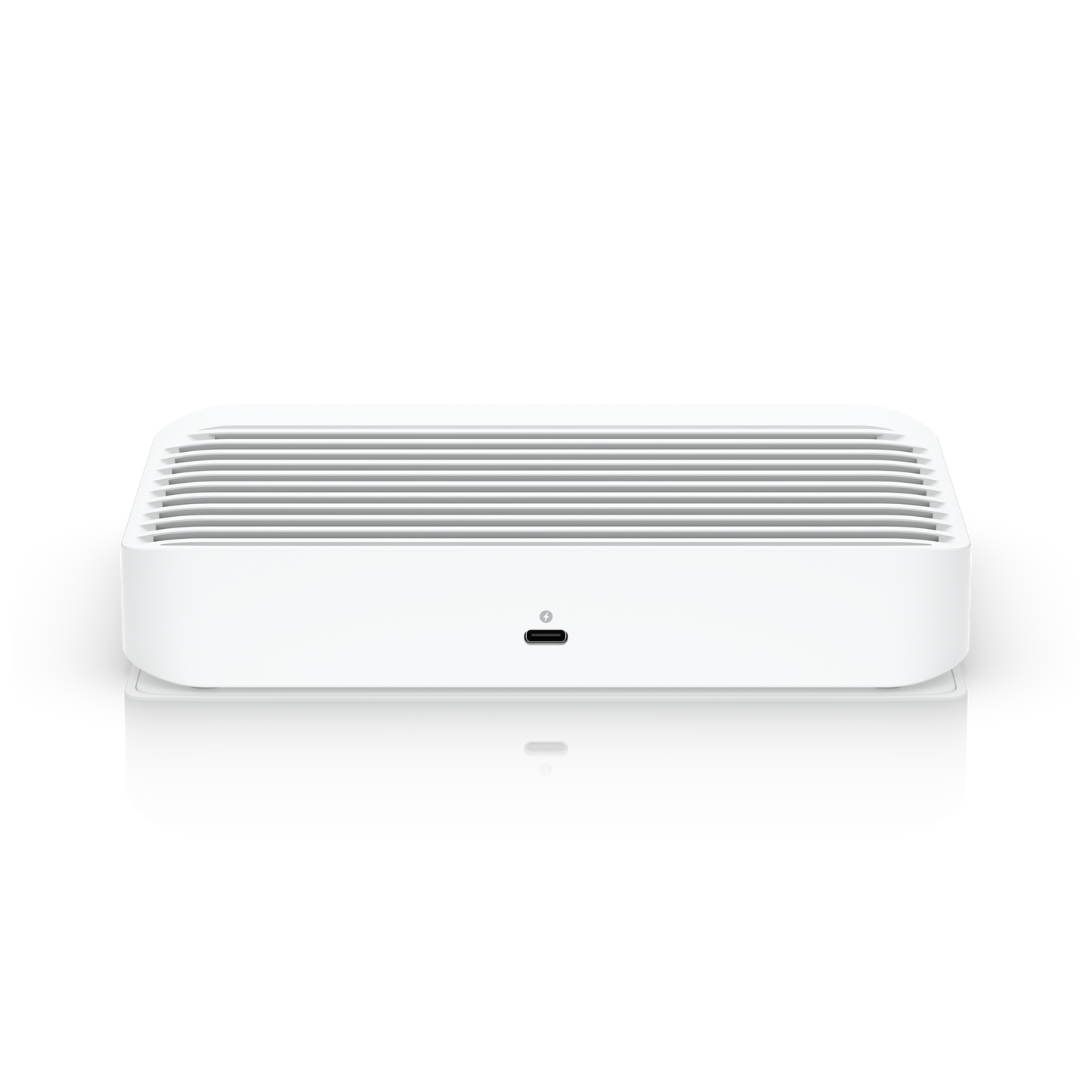

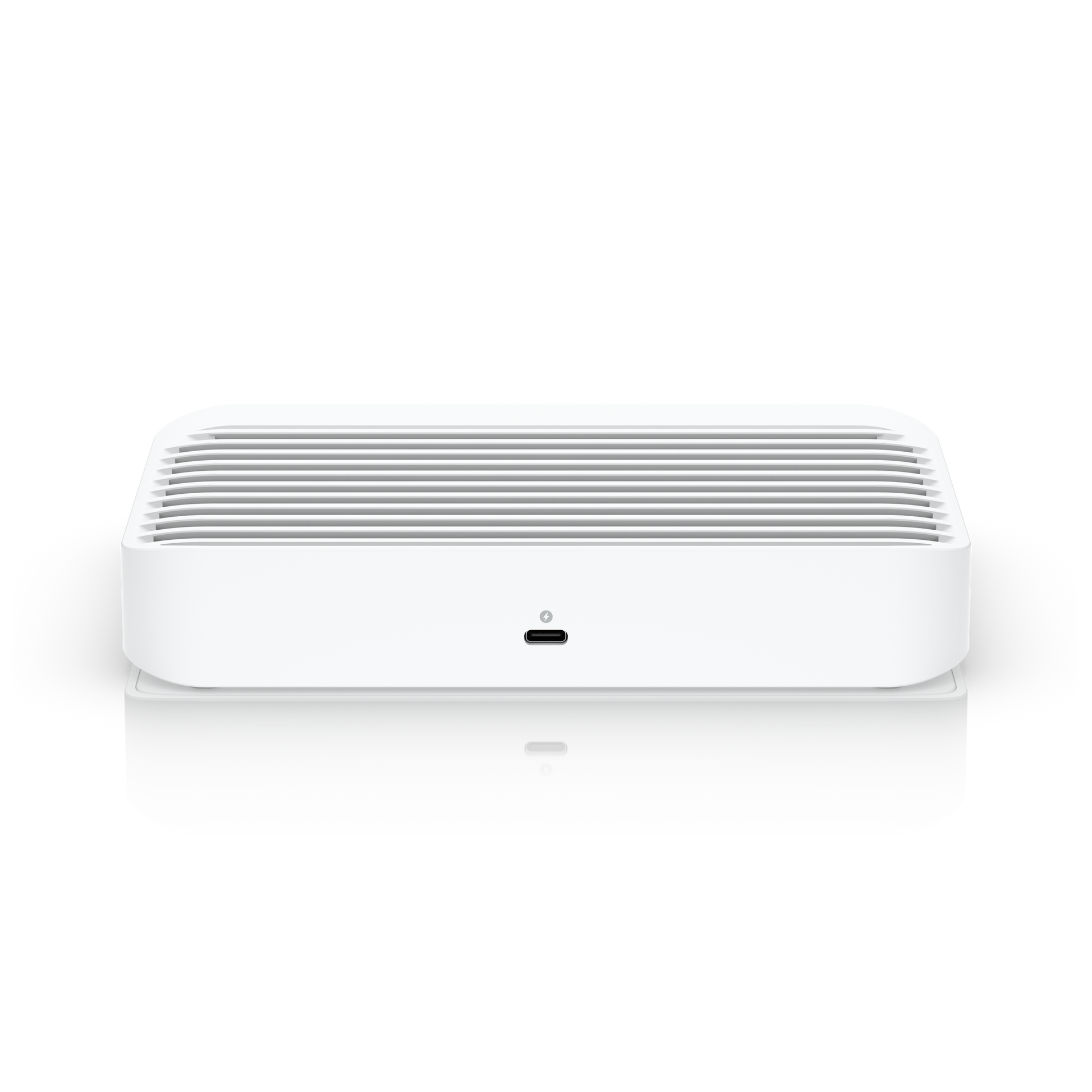

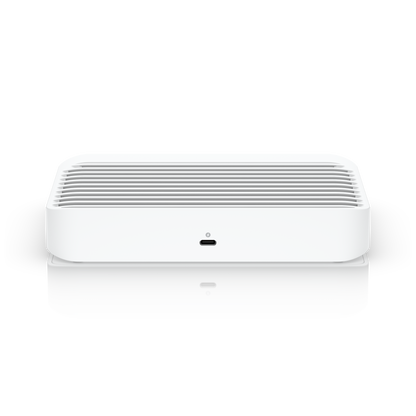

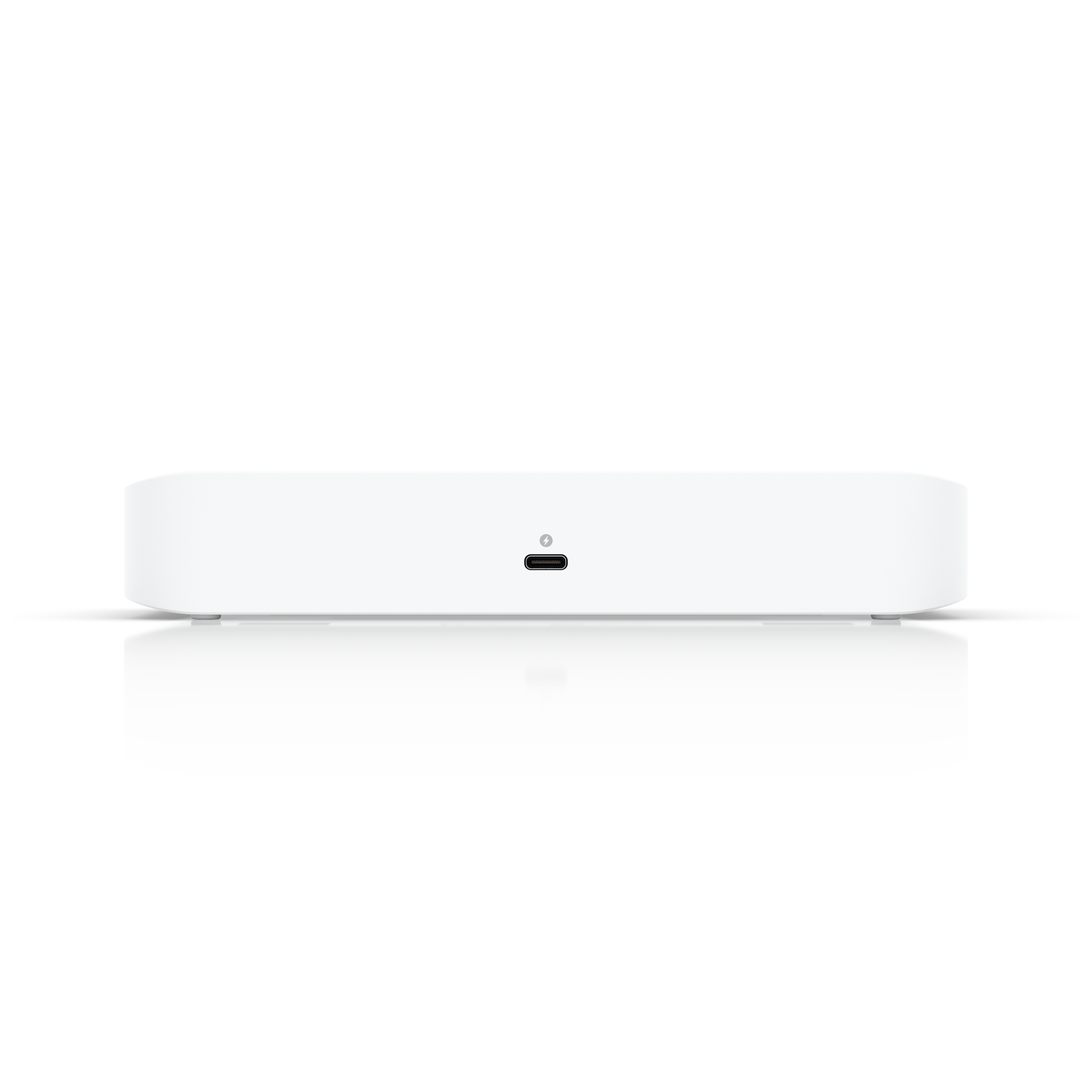

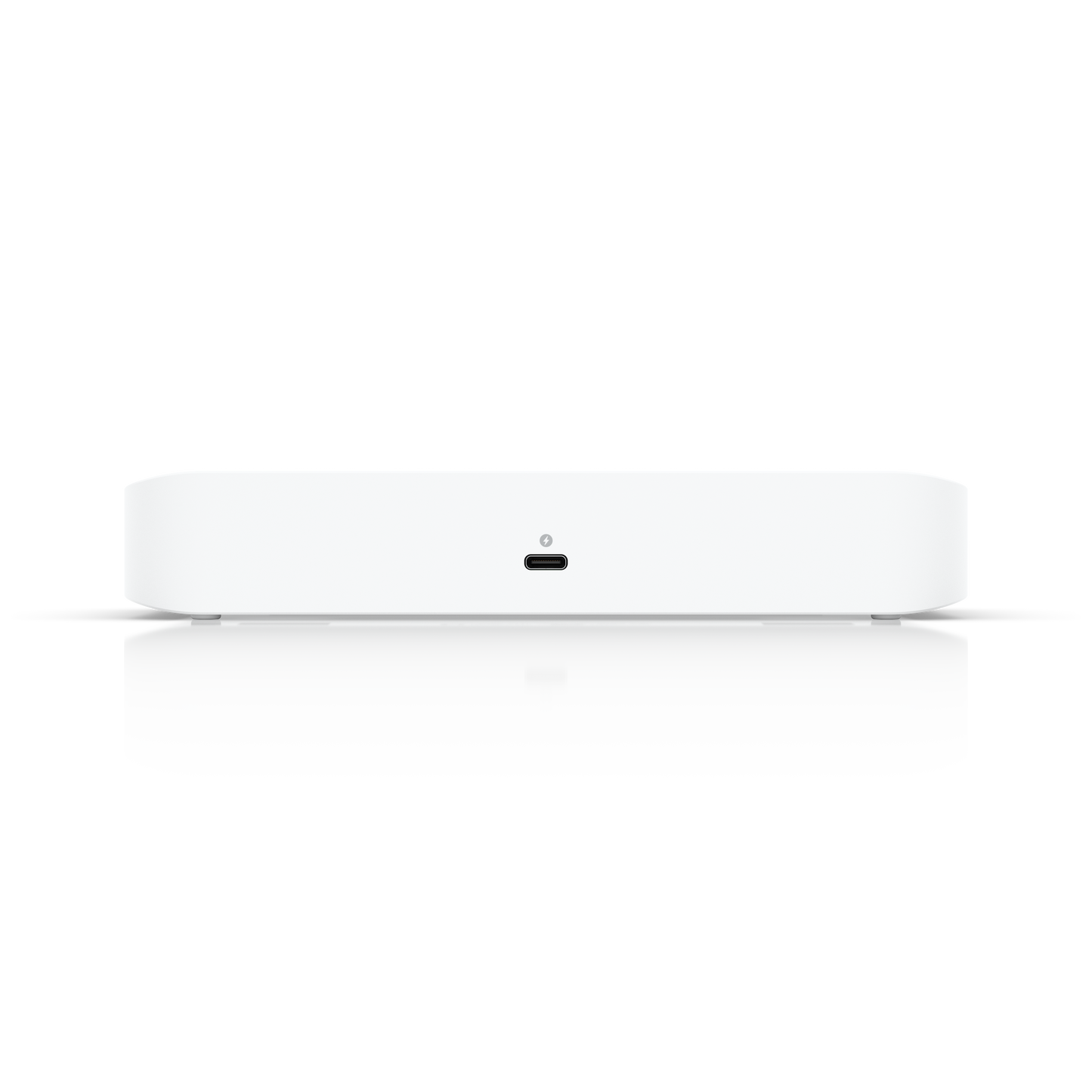

- (1) USB Type-C, 5V DC, 5A
Power Input Method: USB / PoE
Power Supply: AC/DC external, 25W
Supported Voltage Range:
- 4.8—5.2V DC (USB)
- 44—57V (PoE)
Management: Ethernet
Heat Dissipation (Excl. PoE Output): 85.3 BTU/hr
Weight: 1.2 kg (2.7 lb)
Enclosure Material: Polycarbonate
ESD Protection: Air: ±16kV, Contact: ±12kV
Ambient Operating Temperature: -5 to 45°C (23 to 113°F)
Ambient Operating Humidity: 10 to 90% noncondensing
NDAA Compliant: ✓
Certifications: CE, FCC, IC
Application Requirements: UniFi Network version 6.1.67 or later
