Twenty-Four Powered Ports and Two 10G Uplinks in a Single Rack Unit

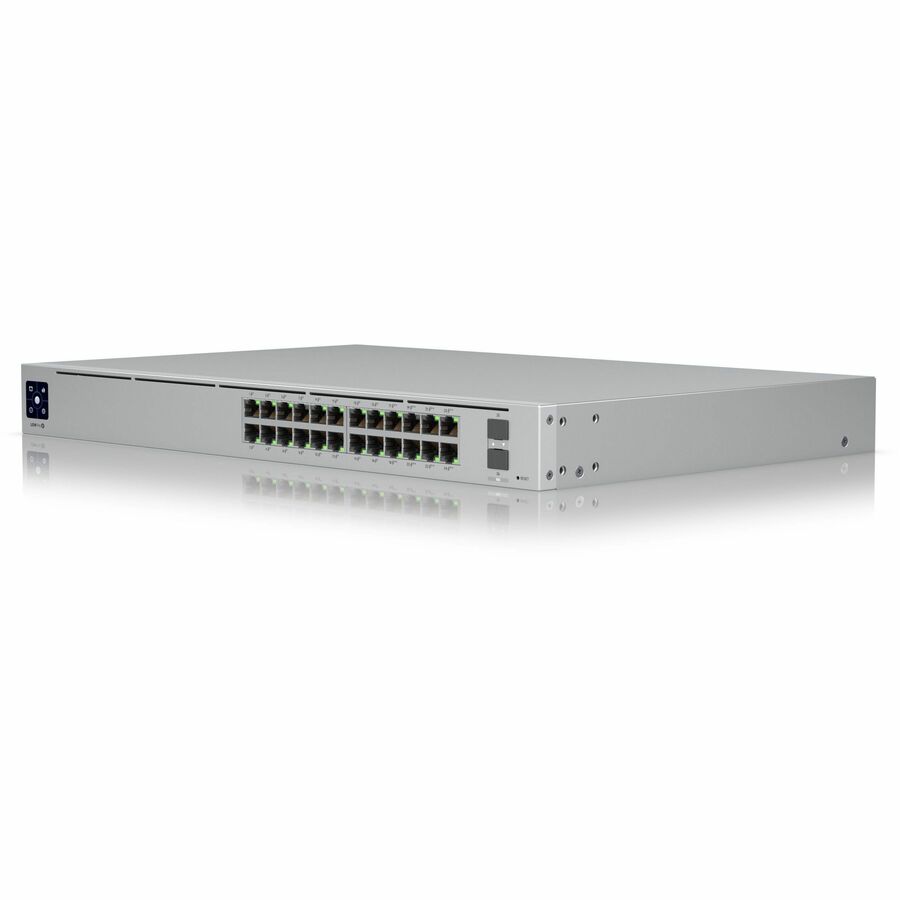

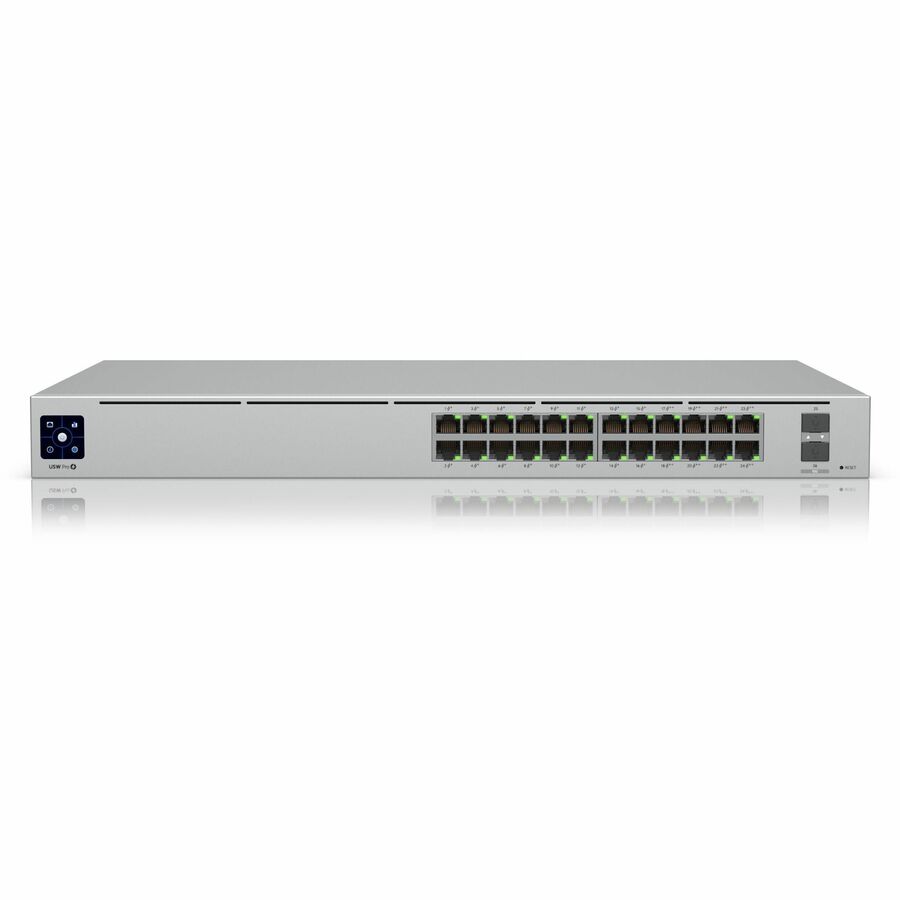

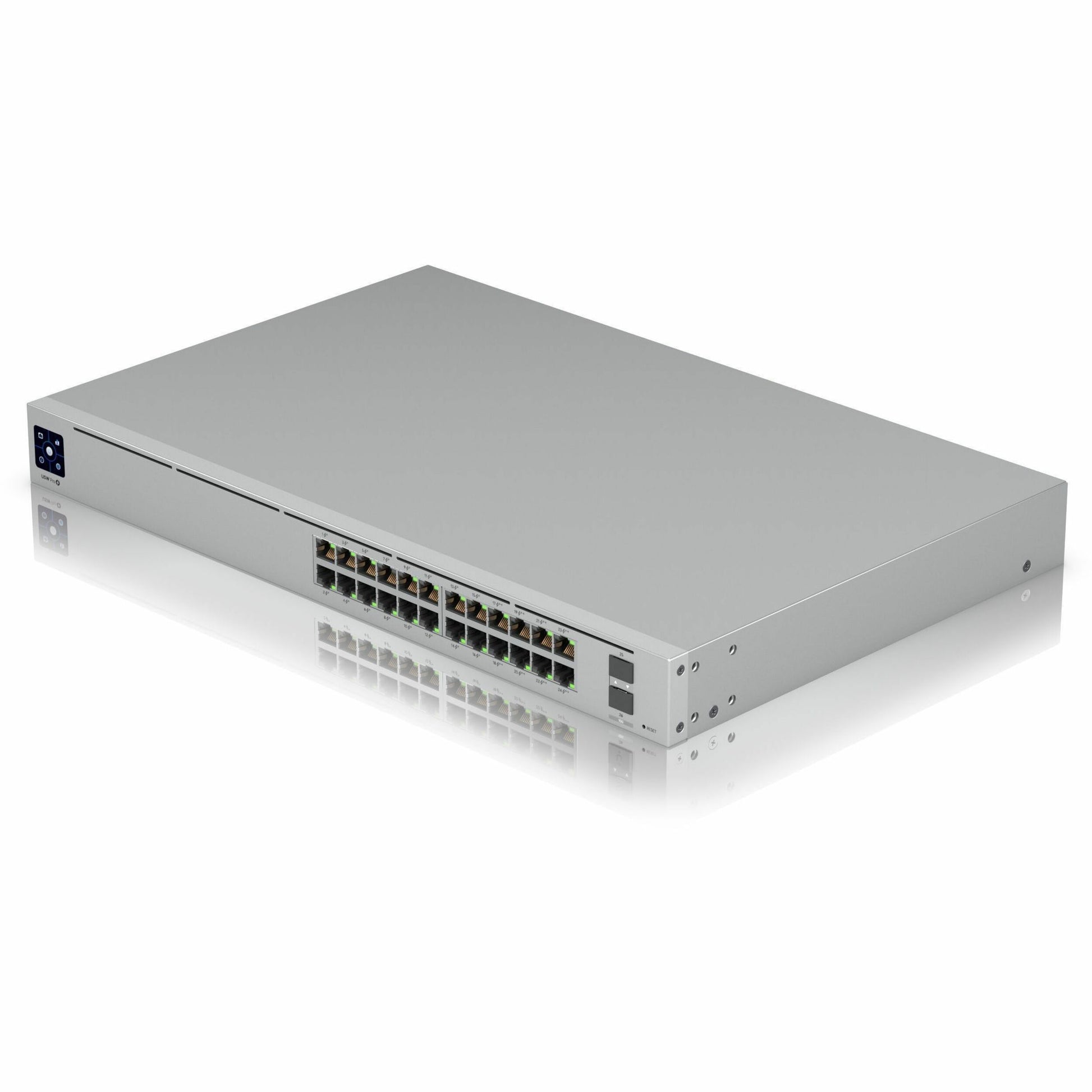

A closet running access points, cameras, and phones eventually hits the same wall: enough ports, but not enough power budget, and a gigabit uplink that has become the bottleneck. The USW-Pro-24-POE answers both at once, delivering 400W across 16 PoE+ and 8 PoE++ gigabit ports while carrying traffic upstream over two 10 Gigabit SFP+ slots. Ubiquiti ships it as a Layer 3 managed switch, so inter-VLAN routing can happen at the closet rather than being hairpinned back to a router. Compare it against the rest of the UniFi switches range at Island Electrical Supply.
Deployment Notes
- The 400W PoE budget sits against 450W total power consumption, so plan the circuit and the powered-device load together rather than in isolation.
- Eight PoE++ ports are the ones to reserve for higher-draw endpoints such as PTZ cameras and multi-radio access points; the remaining sixteen are PoE+.
- Both SFP+ slots take 10G optics or twisted pair, giving a fiber path between closets or a 10G run back to the core.

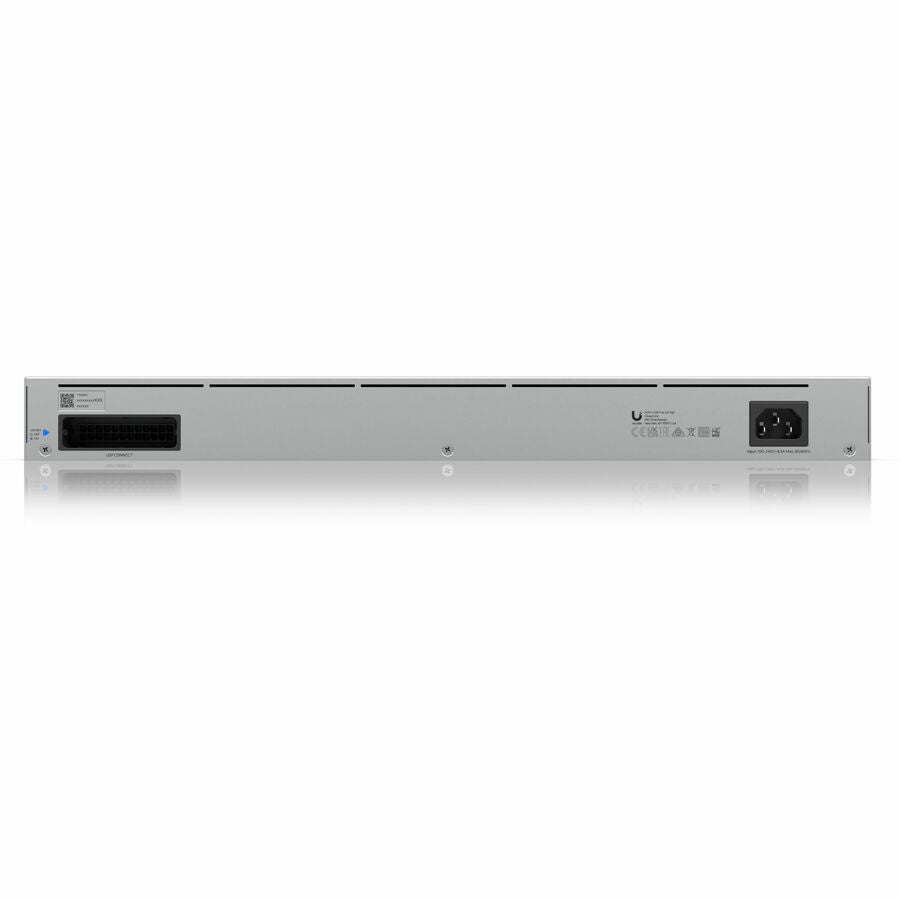

- The chassis is SGCC steel in a 1U rack form factor at 17.4 inches wide, 11.2 inches deep, and 9.48 lb.
Highlights
- Layer 3 routing for scalable segment design without adding a separate router hop.
- Managed feature set covering VLANs, ACLs, QoS, port mirroring, IGMP snooping, flow control, loop protection, DHCP relay, and DHCP snooping.
- 802.1x support for port-based authentication on networks that require it.
- Fiber and twisted pair media both supported, across 10/100/1000Base-T and 10GBase-X.
What Makes This the Pro Model?
Three things separate this switch from a standard 24-port UniFi PoE unit, and all three matter at the closet rather than the desk. First, it operates at Layer 3, so routing between VLANs can be handled locally instead of sending every cross-segment packet back to a gateway. Second, the uplinks are 10 Gigabit SFP+ rather than gigabit, which stops the switch itself from becoming the constraint once two dozen powered devices are active. Third, eight of the twenty-four ports deliver PoE++ rather than PoE+, which is what higher-draw hardware needs. For a small deployment none of that is required; for a closet feeding cameras, access points, and phones off one uplink, all three are the reason to step up.
