Ubiquiti USW-PRO-48-POE – 48-Port Layer 3 PoE++ Switch with 600W Power Budget and 10G SFP+ Uplinks
High-capacity Layer 3 UniFi switch with 600W total PoE budget, advanced routing features, and 10G SFP+ uplinks – perfect for demanding enterprise networks.

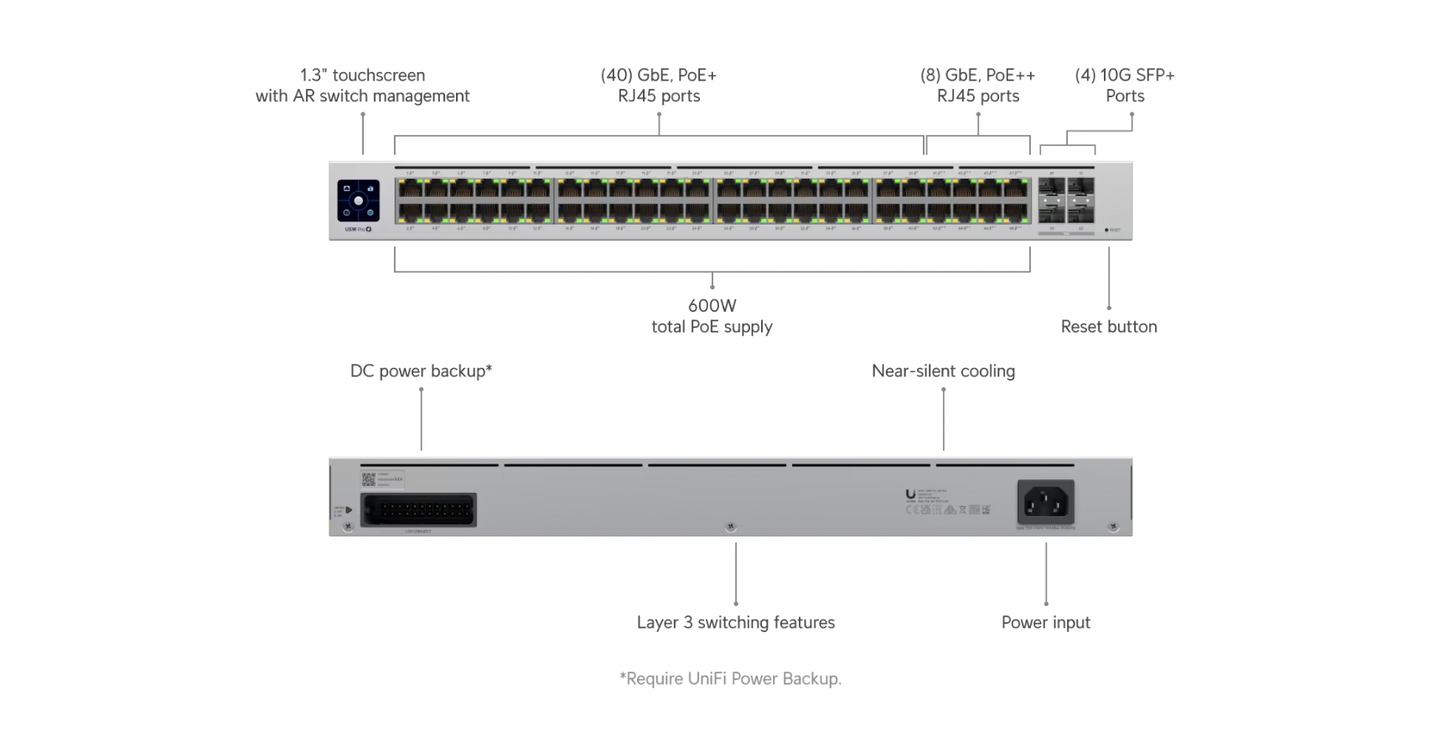

The Ubiquiti USW-PRO-48-POE is a 1U rackmount, Layer 3 managed switch featuring (48) 1G RJ45 ports, including (40) PoE+ and (8) PoE++ ports. With a total PoE availability of 600W, it delivers robust power for high-performance access points, cameras, phones, and other PoE devices. It includes (4) 10G SFP+ uplinks for high-throughput aggregation and a 1.3" touchscreen LCM display for local monitoring.
This switch supports inter-VLAN routing, DHCP services, static routes, and full Layer 2 capabilities, making it ideal for scalable enterprise deployments. Redundancy is supported via USP RPS DC backup. Management is handled through the UniFi Network application (version 5.10.5 and later).
Key Features:
• (48) 1G RJ45 ports (40 PoE+, 8 PoE++)
• (4) 10G SFP+ uplinks
• 600W total PoE power budget
• PoE++ output: up to 64W per port
• Layer 3 functionality with DHCP, static routing, and VLANs
• Switching capacity: 176 Gbps
• 1.3" LCM touchscreen for real-time device status
• Redundant power input via USP RPS
• Managed via UniFi Network (v5.10.5+)
Ideal For:
• Large-scale enterprise networks
• IP surveillance and security systems
• VoIP and pro AV infrastructure
• High-density PoE device environments
Key Highlights:
✅ 600W total PoE output across 48 ports
✅ 8 PoE++ ports supporting up to 64W each
✅ 4x 10G SFP+ uplinks for fast uplink/backbone integration
✅ Full Layer 3 routing, VLAN support, and IGMP snooping
✅ Built-in LCM touchscreen and RPS power redundancy
Frequently Asked Questions:
Q: What’s the total PoE power budget?
A: The switch provides 600W across all PoE ports (PoE+, PoE++).
Q: How many PoE++ ports are available?
A: 8 ports support PoE++ up to 64W; 40 ports support PoE+ up to 32W.
Q: Is this a Layer 3 managed switch?
A: Yes, it supports static routing, inter-VLAN routing, and DHCP features.
Q: Can I monitor the switch locally?
A: Yes, it has a 1.3" touchscreen for real-time status and alerts.
Q: What platform is required to manage it?
A: It’s managed via UniFi Network, version 5.10.5 or later.
