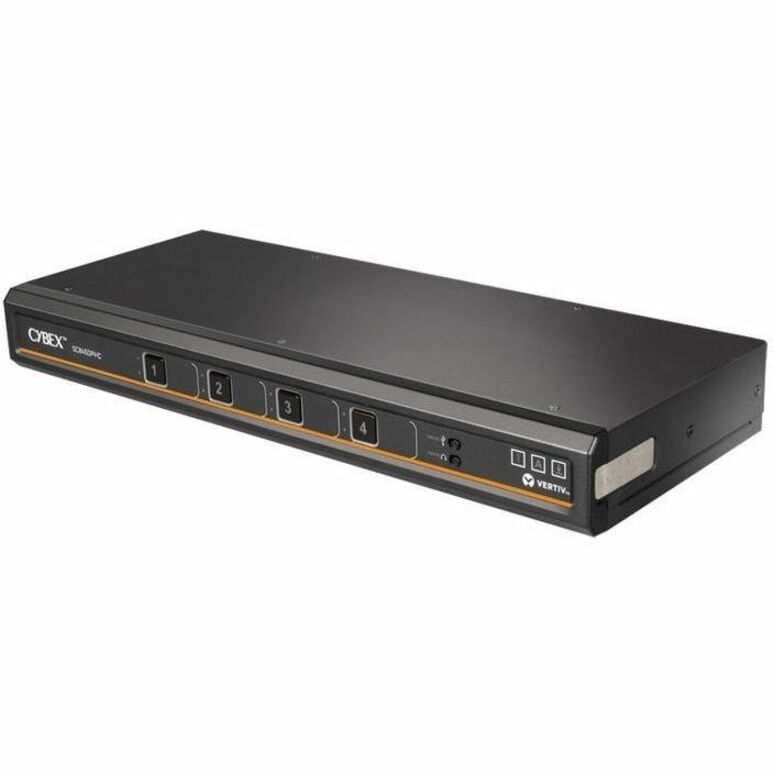

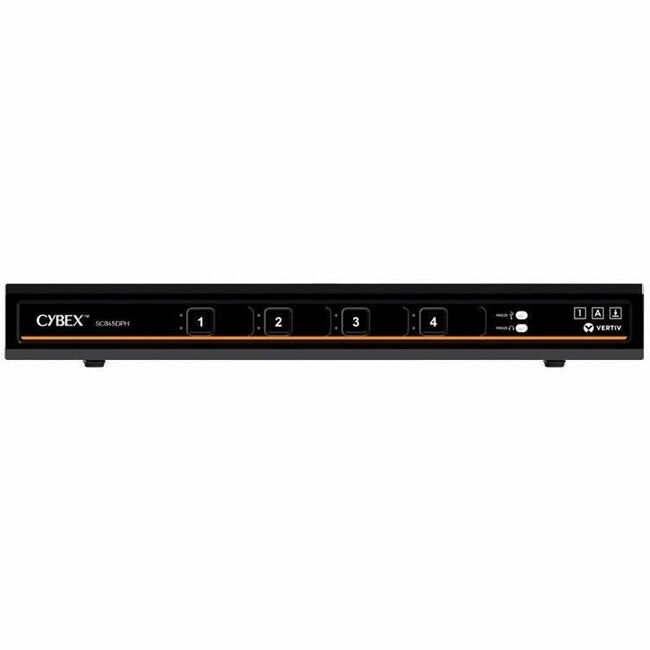

Vertiv Avocent Cybex SC800 Secure Desktop KVM, Single Head Monitor, 4 Port, Common Access Card (CAC), NIAP Version 4.0, TAA Compliant (SC845DPH-400) - SC845DPH-400
Key Features
- Enhanced Situational Awareness: Equipped with customizable indicators that display active channels.
- NIAP 4.0 Certified: Security: Secure 4-port KVM with always-on anti-tampering, NIAP 4.0 certified.
- Peripheral Isolation: Combines keyboard, mouse, and display into one setup for a clutter-free space.
- Versatile Video Support: Supports DP, HDMI, and DVI-I up to 3840 x 2160 resolution for HD visuals.
- Zero Delay Switching: Instant mouse and keyboard switching with emulation for lag-free transitions.
Product Overview
The Vertiv Avocent Cybex SC845DPH-400 secure desktop KVM switch provides secure connectivity across multiple resources. It lets users switch between computers with different security levels while preventing data leaks. Designed for security-conscious organizations, the SC845DPH-400 isolates each connected system, enforcing unidirectional data flow to safeguard sensitive information. It supports a maximum resolution of 3840 x 2160 at 60 Hz on a single display, delivering crisp, clear visuals. The four universal video ports (DisplayPort and HDMI) allow easy connection of up to two systems, while a 3.5mm audio jack supports alerts and notifications. Certified to the latest NIAP Common Criteria Protection Profile for Peripheral Sharing Switch (version 4.0), the SC845DPH-400 also features active intrusion detection and tamper-evident labels to alert users of unauthorized access. With a universal power supply and 4K support, it offers both security and performance in a streamlined solution.
General Information
- Manufacturer: Vertiv
- Manufacturer Part Number: SC845DPH-400
- Brand Name: Vertiv AVOCENT
- Product Line: Cybex
- Product Series: 800
- Product Model: SC845
- Product Name: Cybex SC800 Secure Desktop KVM, Single Head Monitor, 4 Port, Common Access Card (CAC), NIAP Version 4.0, TAA Compliant (SC845DPH-400)
- Packaged Quantity: 1
- Product Type: KVM Switchbox
Technical Information
- KVM Technology: Digital & Analog
- Connectivity Technology: Wired
- Number of Computers Supported: 4
- Number of Local Users Supported: 1
- Number of Remote Users Supported: 0
- Features:
- Tamper Resistant
- Intrusion Detection
- Maximum Operating Distance: 10 ft
Video
- Graphic Mode: 4K
- Maximum Video Resolution: 3840 x 2160
Interfaces/Ports
- Network (RJ-45): No
- PS/2 Port: Yes
- USB: Yes
- HDMI: Yes
- DVI: No
- VGA: No
- DisplayPort: Yes
- Management Port: No
- Number of Network (RJ-45) Ports: 0
- Number of PS/2 Ports: 4
- Number of USB Ports: 3
- Number of HDMI Ports: 4
- Number of DVI Ports: 0
- Number of VGA Ports: 0
- Number of DisplayPorts: 4
Power Description
- Input Voltage Range: 100VAC-240VAC
Physical Characteristics
- Form Factor:
- Desktop
- Rack-mountable
- Rack Height: 1U
- Height: 1.7"
- Width: 13.7"
- Depth: 5"
- Weight (Approximate): 3 lb
Miscellaneous
- Package Contents:
- Cybex SC800 Secure Desktop KVM, Single Head Monitor, 4 Port, Common Access Card (CAC), NIAP Version 4.0, TAA Compliant (SC845DPH-400)
- Power Supply
- Energy Star: No
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- Country of Origin: United States
- TAA Compliant: Yes
Warranty
- Limited Warranty: 3 Year
