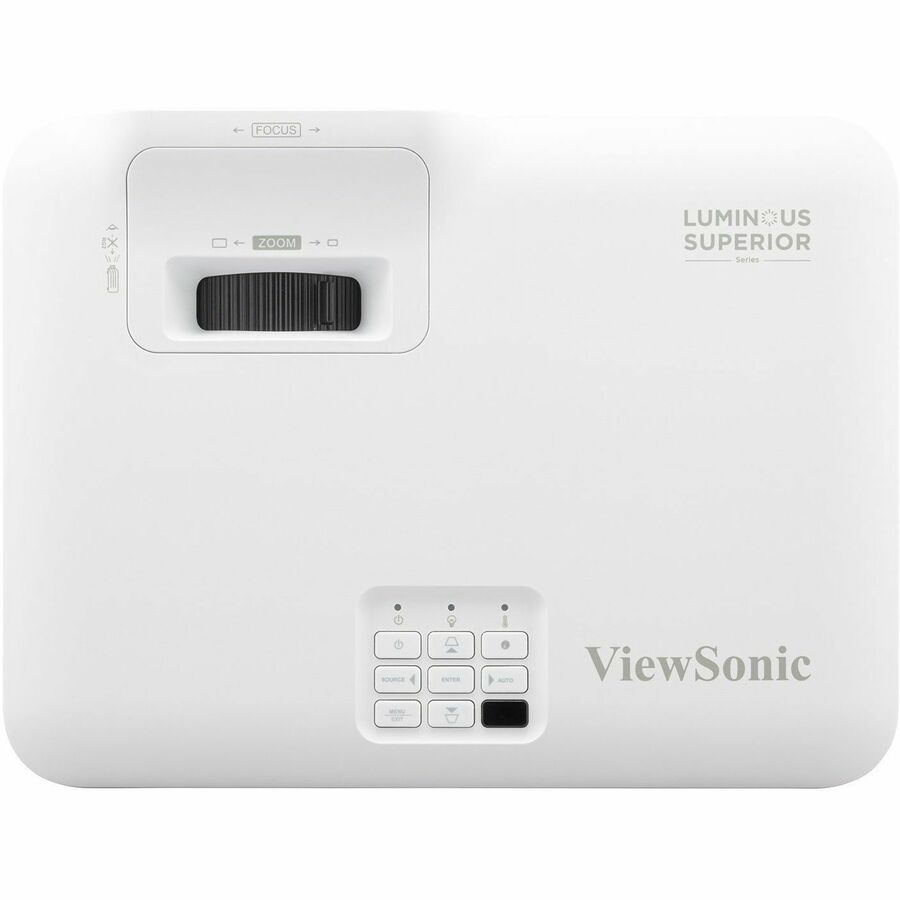

5000-Lumen 1080p Laser Installation Projector with Golf Mode, 1.3x Optical Zoom, and 360-Degree Mounting for Large Venues
The ViewSonic LS740HD is a 5000-lumen 1080p laser projector built for large venues where brightness and image size demand exceed what standard projectors can deliver. The 3rd-generation laser/phosphor light source provides up to 30,000 hours of maintenance-free operation with instant on/off and no lamp replacements. At 6.6 lbs with a compact form factor 35% smaller than previous generations, the LS740HD reduces installation complexity and ceiling mount hardware requirements. The 1.3x optical zoom provides flexible throw distance for a 100-inch image from approximately 13 feet, covering boardrooms through auditoriums without repositioning. A versatile projector from ViewSonic's Luminous Superior series with Golf Mode for simulator setups and full geometric correction for any installation angle.
The LS740HD fills the gap between entry-level conference projectors and premium large-venue installations. The 5000 ANSI lumens output delivers fully visible presentations in rooms with ambient light, fluorescent fixtures, or large windows that would wash out lower-brightness projectors. The 3,000,000:1 contrast ratio with Texas Instruments 0.65-inch DMD chip produces deep blacks and readable text at screen sizes up to 300 inches. Golf Mode provides optimized color and response for major golf simulator platforms, making the LS740HD a dual-purpose installation for conference rooms that double as after-hours entertainment spaces.
Where the LS740HD Fits
- Boardrooms, lecture halls, and auditoriums where 5000 lumens delivers fully visible 1080p presentations at screen sizes up to 300 inches without requiring blackout conditions or dimmed lighting
- Golf simulator installations where the dedicated Golf Mode provides optimized color temperature and response time for lifelike play on virtual courses alongside full daytime presentation capability
- Multi-site commercial deployments where the compact 6.6 lb form factor, 30,000-hour maintenance-free laser, and flexible 1.3x zoom reduce installation cost and eliminate lamp replacement across dozens of projectors
What the LS740HD Delivers
- 5000 ANSI lumens with 1080p resolution: High-brightness output ensures readable text and vivid color in fully lit rooms. Full HD resolution provides sharp detail for presentations, video, and digital signage content at screen sizes from 30 to 300 inches.
- 3rd-gen laser/phosphor (30,000 hours): 20% brighter and 32% more compact than previous-generation laser projectors. No lamp replacements, instant on/off, and consistent brightness throughout the projector's lifetime eliminate maintenance costs.
- Golf Mode for simulator use: Dedicated color profile and response optimization for major golf simulator platforms. Enables dual-use installations where the same projector serves daytime presentations and after-hours golf simulation.
- 1.3x optical zoom with geometric correction: Flexible throw distance positions the projector optimally without changing interior design. H/V keystone and 4-corner adjustment correct image geometry for any mounting position.
- 360-degree projection with portrait mode: Mount at any angle including vertical, inverted, or on floors and ceilings. Portrait mode enables creative applications including projection mapping, digital signage towers, and advertising displays.
What Is the Lifespan of the ViewSonic LS740HD
The ViewSonic LS740HD uses a 3rd-generation laser/phosphor light source rated for 20,000 hours in normal mode and up to 30,000 hours in SuperEco+ mode. At 8 hours of daily use, that translates to approximately 7 to 10 years of operation before the light source reaches end of life. Unlike lamp-based projectors that require bulb replacements every 3,000 to 5,000 hours (and experience significant brightness degradation after the first 1,000 hours), the LS740HD maintains consistent output throughout its rated life. The laser light source also eliminates the ongoing $200 to $400 cost per lamp replacement that adds up across multiple projectors in commercial deployments. Combined with instant on/off (no warm-up or cool-down cycles that stress components), the LS740HD delivers the longest operational lifespan in its class with zero maintenance interventions.
