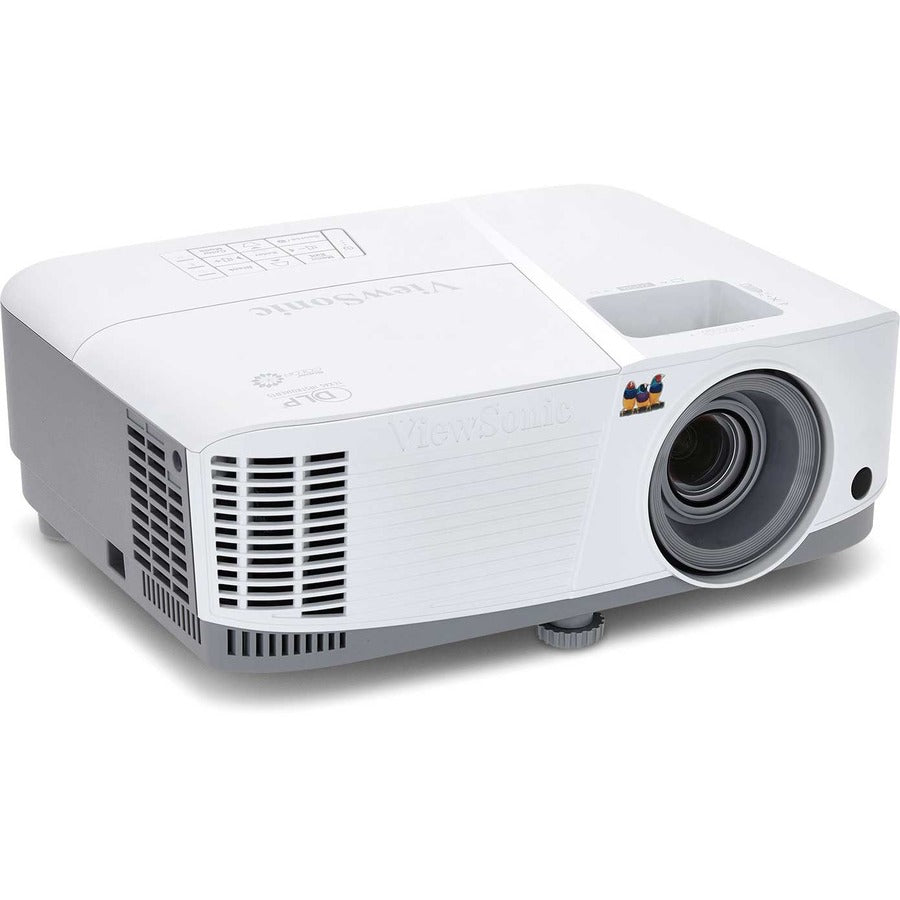

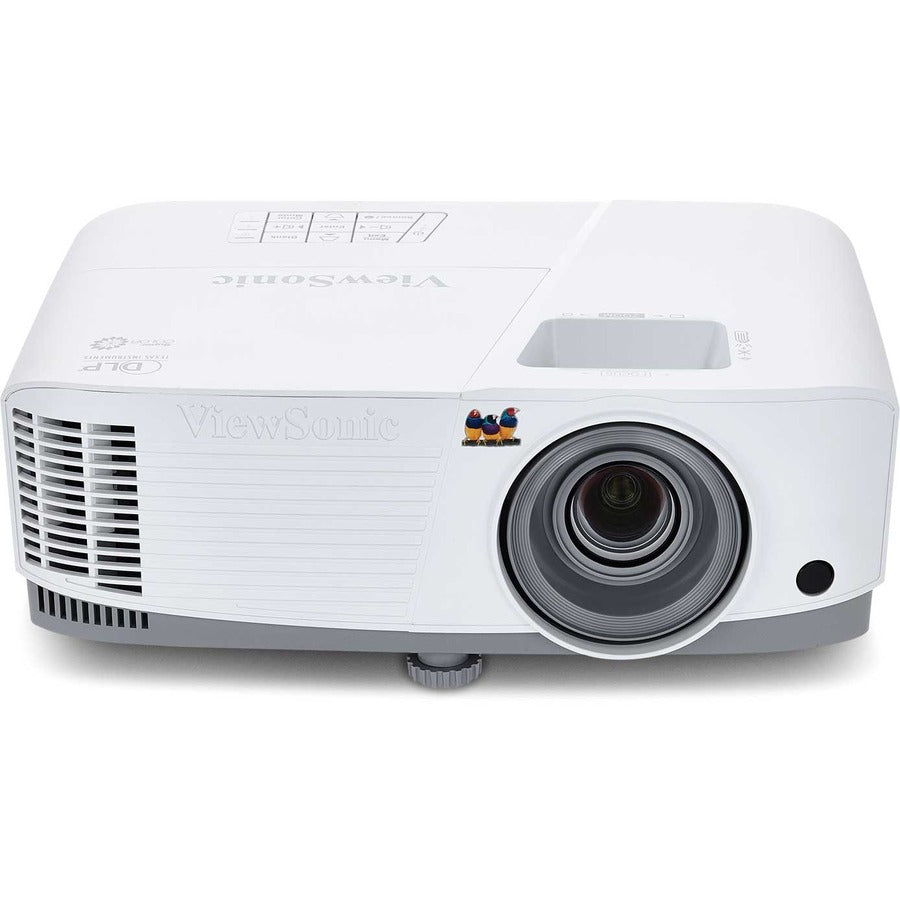

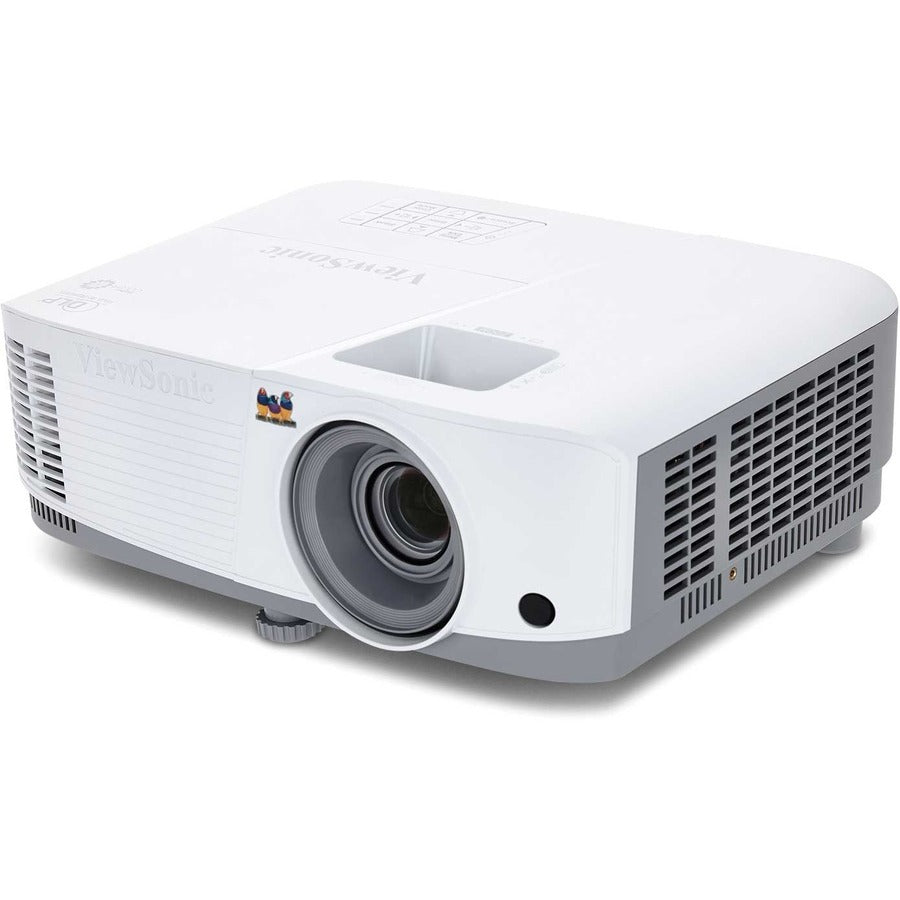

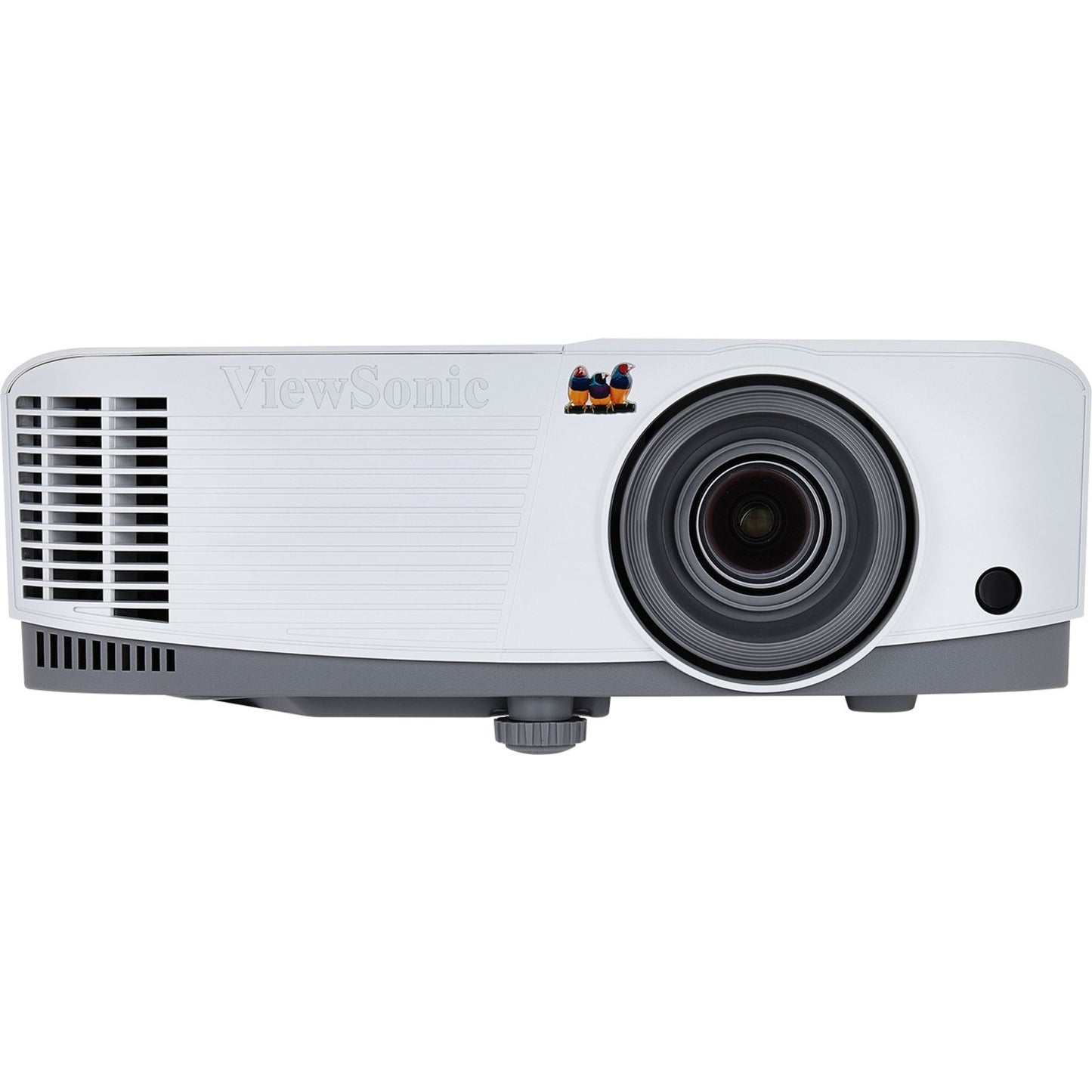

ViewSonic PA503W 4000 Lumens WXGA High Brightness Projector for Home and Office with HDMI Vertical Keystone - PA503W
Key Features
- A low 16ms input latency and 120Hz refresh rate provides faster frame-by-frame action for smooth images with minimal delay
- Projects screen sizes from 30" to 300" with a throw distance of 3.9 ft - 43 ft; displays a 100" image from 13 ft

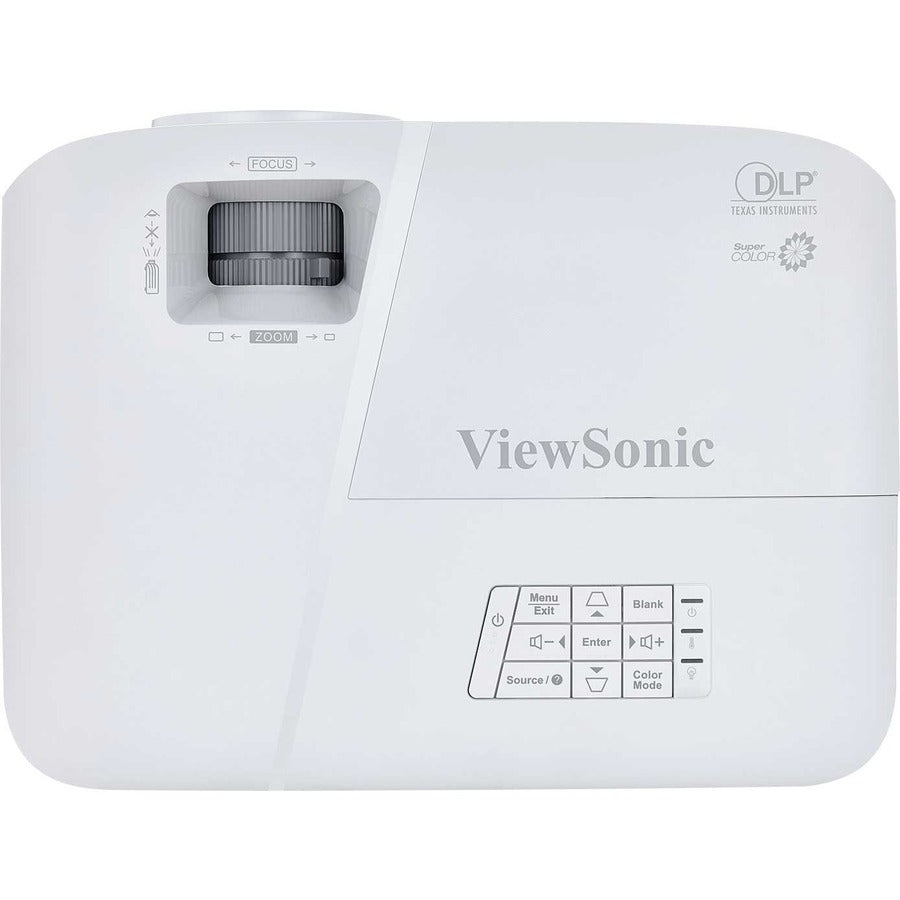

- Setup options include 1.1x optical zoom, 0.8x-2.0x digital zoom, and vertical keystone
- This projector is ceiling mountable; compatible with ViewSonic mount PJ-WMK-007
- WXGA (1280x800p) lamp projector with bright 4,000 ANSI lumens
Product Overview

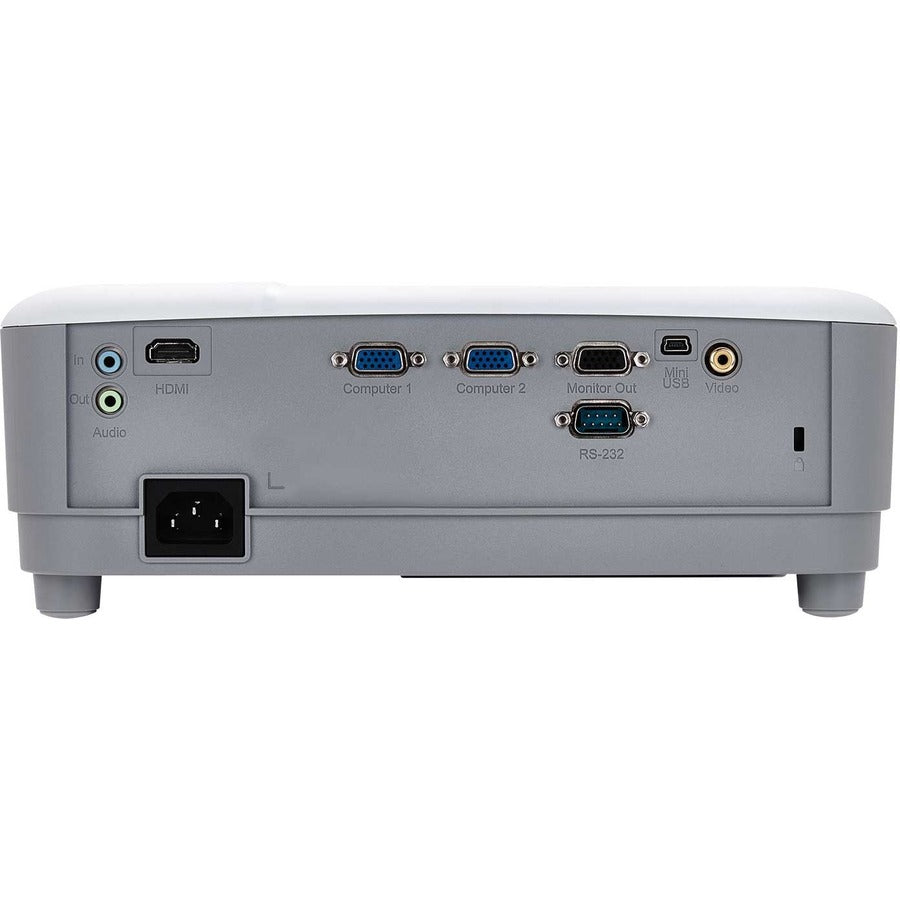

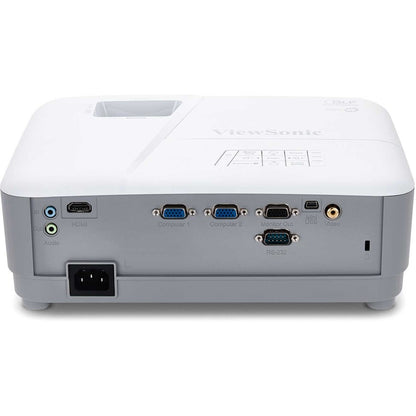

The ViewSonic® PA503W price-performance projector features 4,000 lumens, native WXGA 1280x800 resolution, and an intuitive, user-friendly design. Exclusive SuperColor™ technology offers a wider color range for lifelike image projection. The PA503W also features extensive connectivity including HDMI, 2 x VGA in, Composite Video, 1 x VGA output, and Audio in/out. An energy-saving SuperEco™ feature reduces power consumption by up to 70%, and extends the lamp life by up to 15,000 hours. With advanced audiovisual features, flexible connectivity options, and an affordable price, the PA503W is ideal for use in education and small business environments.
General Information
- Manufacturer: ViewSonic Corporation
- Manufacturer Part Number: PA503W
- Brand Name: ViewSonic
- Product Model: PA503W
- Product Name: PA503W 4000 Lumens WXGA HDMI Projector
- Package Type: Retail
- Product Type: DLP Projector
Technical Information
- Projection Method:
- Front
- Ceiling
- 3D Type: 3D Ready
Display & Graphics
- Native Resolution: 1280 x 800
- Graphic Mode: WXGA
- Maximum Resolution: 1920 x 1080
- Native Aspect Ratio: 16:10
Projection Lens
- Maximum Diagonal Image Size: 25 ft
- Optical Zoom: 1.1x
- Minimum Projection Distance: 39.37"
- Maximum Projection Distance: 36.02 ft
Lamp
- Number of Lamps: 1
- Lamp Power: 200 W
- Normal Mode Lamp Life: 5000 Hour
- Economy Mode Lamp Life: 10000 Hour
- Standard Mode Brightness: 4000 lm
- Contrast Ratio: 22,000:1
Video
- Video Signal Standard: HDTV
Interfaces/Ports
- HDMI: Yes
- USB: Yes
Power Description
- Operating Power Consumption: 260 W
Physical Characteristics
- Form Factor: Portable
- Height: 4.3"
- Width: 8.6"
- Depth: 11.6"
- Weight (Approximate): 4.89 lb
Miscellaneous
- Package Contents:
- PA503W projector
- power cable
- VGA cable
- laser remote control with batteries
- Quick Start Guide
- Environmentally Friendly: Yes
- Country of Origin: China
Warranty
- Limited Warranty: 3 Year
