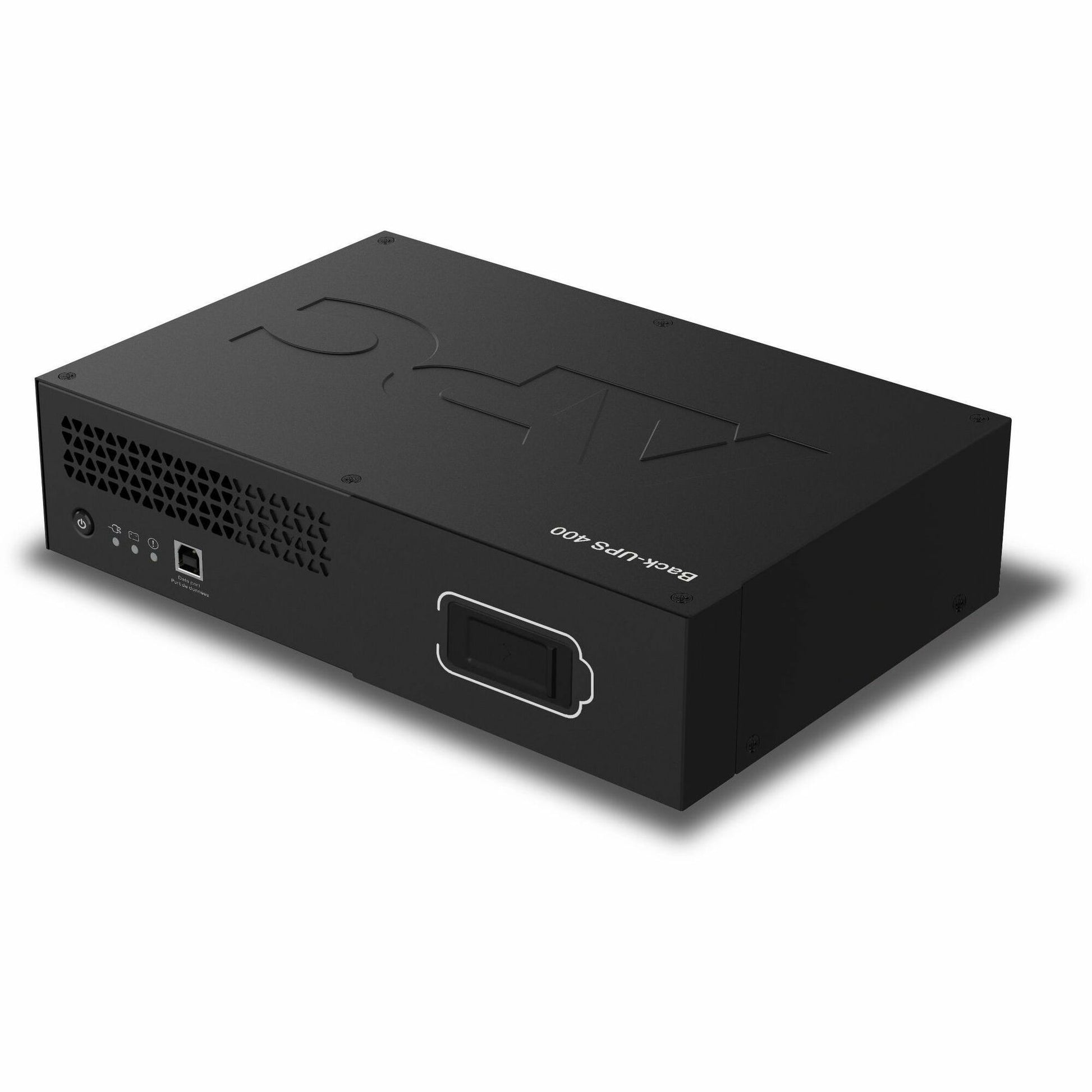

APC Back-UPS 400VA, 120V, Flexible Mounting, Low Profile, Industrial, 3 NEMA outlets - BV400XU
Key Features
- Can be mounted in various orientations, making it versatile for different setups
- Features LED status indicators and audible alarms for easy monitoring
- High temperature threshold provides better protection in areas with less optimal cooling resources
- PowerChute Serial Shutdown provides UPS management, graceful shutdown and innovative energy management capabilities
- Slim design allows you to save up to 30% valuable space in installation
Product Overview

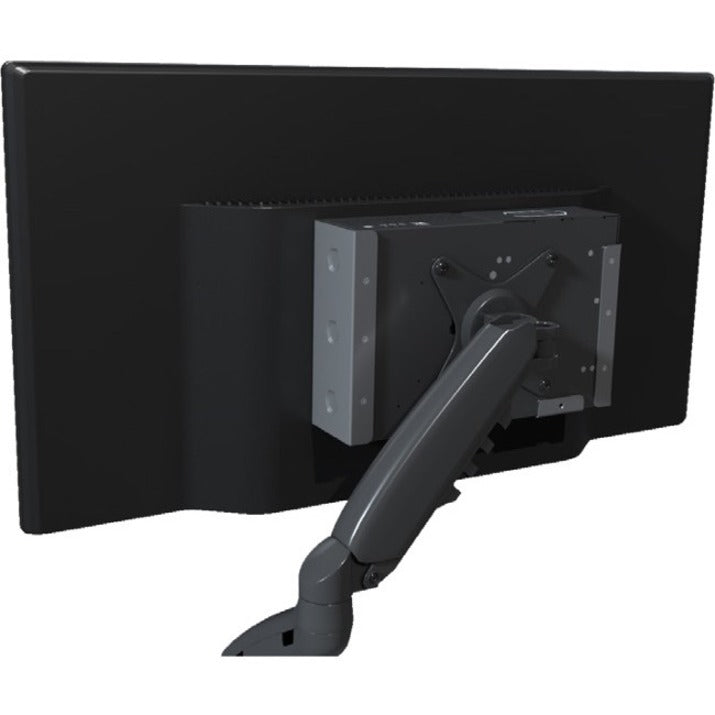

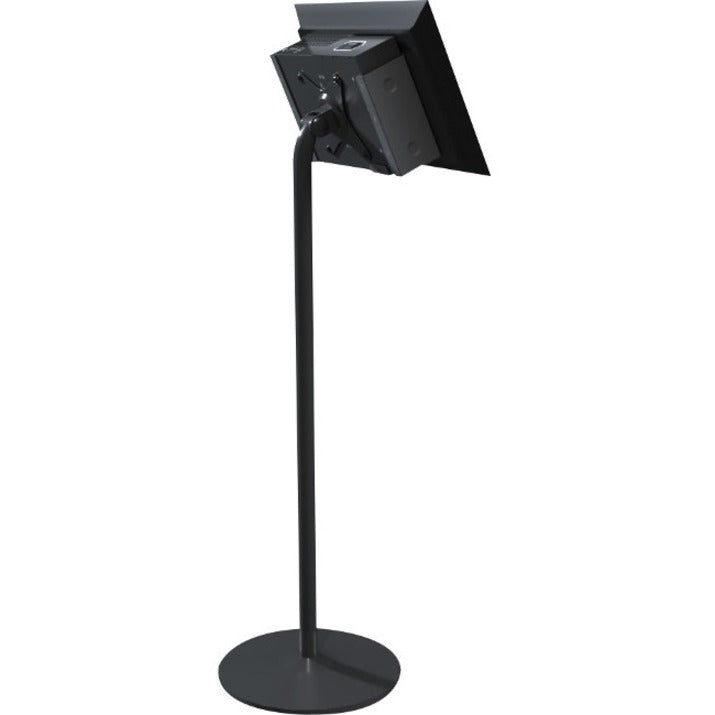

This APC Back-UPS is a flexible, high quality, ruggedized UPS developed to handle a wide temperature range and inconsistent power conditions. BV400XU provides 400VA and 220W of power, ensuring continuous operation of connected devices during power outages. It offers various mounting options, such as VESA mount, Din-Rail mount and Wall-mount making it ideal for commercial and industrial applications such as digital signage, industrial edge and retail. It has 3 battery + surge protector outlets to keep your valuable equipment running during power outage. Protect your UPS using the metal chassis cover while ensuring reliable power protection.
General Information
- Manufacturer: Schneider Electric SA
- Manufacturer Part Number: BV400XU
- Brand Name: APC
- Product Line: Back-UPS
- Product Name: Back-UPS 400VA, Flexible Mounting, Low Profile, Industrial
- Product Type: Standby UPS
Technical Information
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15P

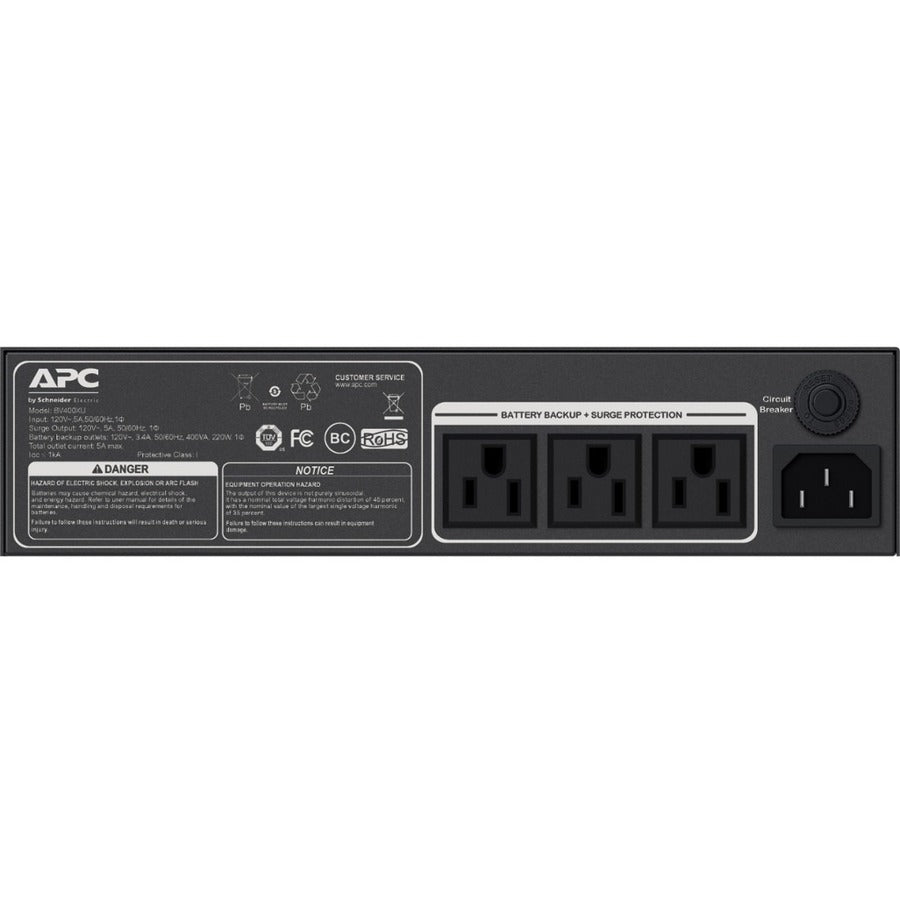

- Receptacle Detail: 3 x NEMA 5-15R
- Number of Battery & Surge Outlets: 3
- Cord Length: 5 ft
- Phase: Single Phase
Power Description
- Load Capacity (VA): 400 VA
- Input Voltage: 120 V
- Output Voltage: 120 V AC
- Waveform Type: Stepped Approximated Sine Wave
- Surge Energy Rating: 300 J
Battery Information
- Battery Chemistry: Lead Acid
- Typical Battery Recharge Time: 8 Hour
Physical Characteristics
- Product Color: Black
- Height: 2.44"
- Width: 6.69"
- Depth: 10.16"
- Form Factor: Tower
- Weight (Approximate): 8.82 lb
Miscellaneous
- Package Contents:
- Back-UPS 400VA, Flexible Mounting, Low Profile, Industrial
- User manual
- Country of Origin: Philippines
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
