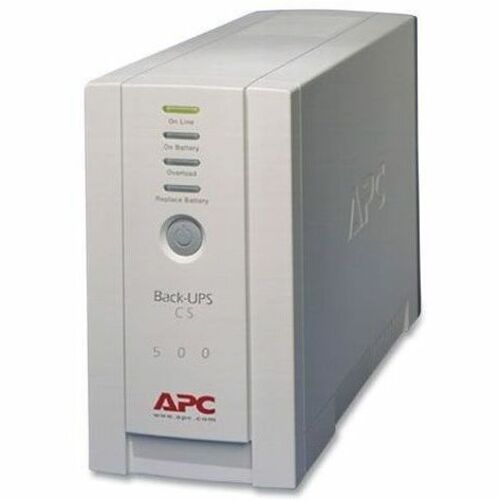

APC Back-UPS CS 500VA, 120V, beige, 6 NEMA outlets (3 surge) - BK500
Key Features
- Ensures stable power supply by correcting voltage fluctuations
- Includes LED status indicators and audible alarms for easy monitoring
- Protects connected equipment from surges, spikes, and other power disturbances
- Provides 500VA and 300W of power, suitable for protecting essential devices during power interruptions
Product Overview
Protect computers, wireless routers, IOT devices, and security systems with the APC Back-UPS BK 500VA. APC Back-UPS provide backup battery power during power outages and continuously safeguard devices from fluctuating power conditions and surges. With 6 outlets, this tower UPS (uninterruptible power supply) provides seamless battery power to connected electronics. The 300w capacity is ideal for workstations, keeping you connected and productive during power fluctuations. This computer backup offers lifetime guaranteed surge protection with a ,100,000 equipment protection policy. Use the included PowerChute software to configure settings and set up automatic graceful shutdown of a connected PC in the event of an extended power outage. Audible alarms provide notification of changing utility power and UPS conditions. Audible alarms can be muted. Package Contains UPS, CD with software, Cord management straps, USB cable, User manual
General Information
- Manufacturer: Schneider Electric SA
- Manufacturer Part Number: BK500
- Brand Name: APC by Schneider Electric
- Product Line: Back-UPS
- Product Series: CS
- Product Name: BK500 120V Backup System
- Packaged Quantity: 1 Each
- Product Type: Standby UPS
Technical Information
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15P
- Receptacle Detail:
- 3 x NEMA 5-15R
- 3 x NEMA 5-15R Surge
- Number of Battery & Surge Outlets: 6
- Dataline Protection: RJ-11
- Cord Length: 6 ft
Power Description
- Load Capacity (VA): 500 VA
- Load Capacity (Watt): 300 W
- Input Voltage: 120 V
- Input Current: 10 A
- Output Voltage: 120 V AC
- Waveform Type: Stepped Approximated Sine Wave
- Surge Energy Rating: 480 J
Management
- Alarm:
- On Battery
- Low Battery
- Overload
Controls/Indicators
- Status Indicators: LED status display with On Line, On Battery, Replace Battery, Site wiring fault and Overload Indicators
Interfaces/Ports
- Serial Port: Yes
- USB: Yes
Battery Information
- Battery Characteristics: Spill-proof, Maintenance-free
- Battery Chemistry: Lead Acid
- Backup/Run Time (Full Load): 3 Minute
- Backup/Run Time (Half Load): 15 Minute
- Typical Battery Recharge Time: 8 Hour
Environmental Conditions
- Maximum Operating Temperature: 113°F (45°C)
- Sound Emission (A-Weighted): 45 dB(A)
- Thermal Dissipation: 7.03 W
Physical Characteristics
- Product Color: Beige
- Height: 6.5"
- Width: 3.6"
- Depth: 11.2"
- Form Factor: Tower
- Weight (Approximate): 13.82 lb
Miscellaneous
- Package Contents:
- BK500 120V Backup System
- CD with software
- Cord management straps
- USB cable
- User manual
- Energy Star: Yes
- Country of Origin: Philippines
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information: UPS: 36 month(s)|Battery: 12 month(s)
