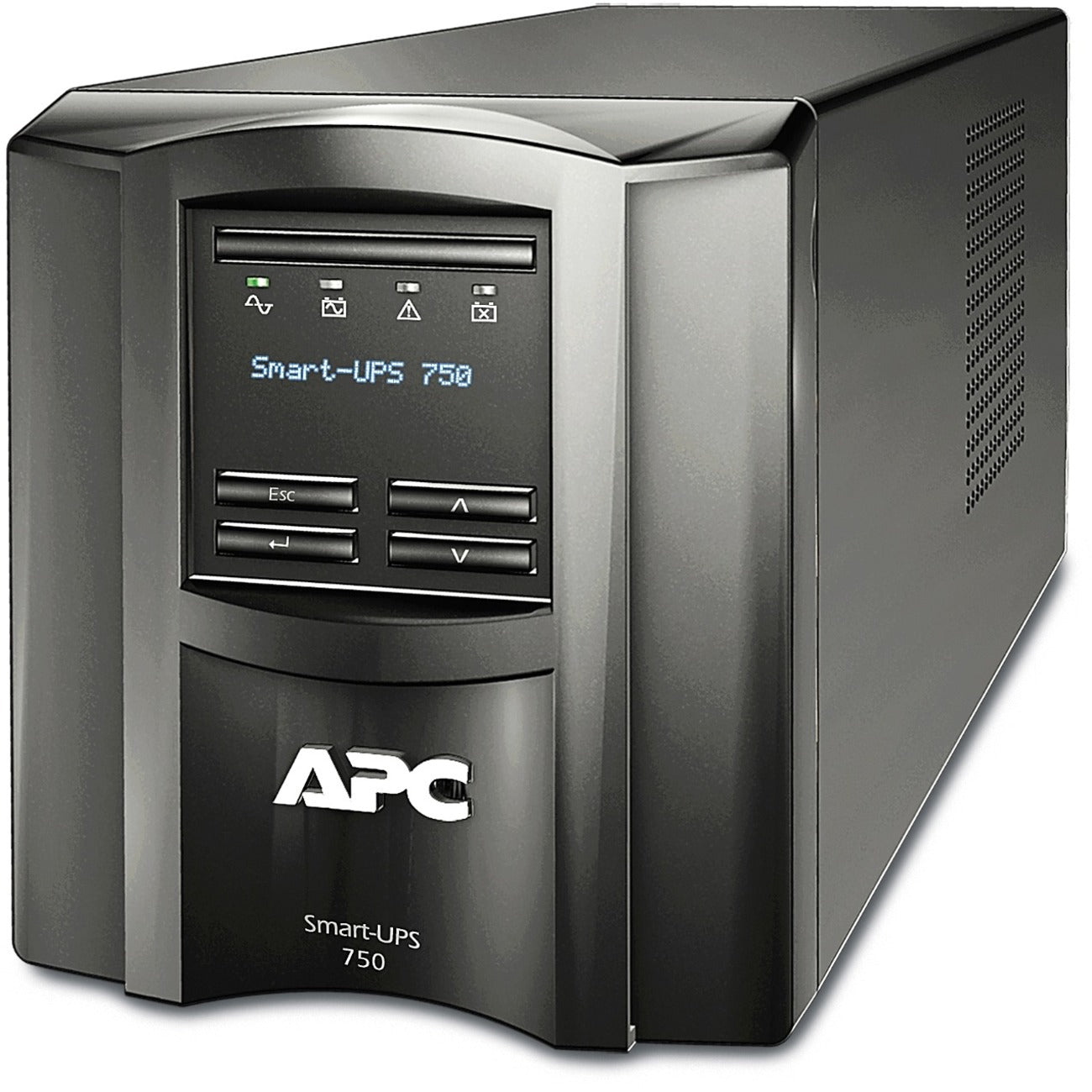

APC by Schneider Electric Smart-UPS 750VA LCD 230V with SmartConnect - SMT750IC
Key Features
- Cold-start capable - Provides temporary battery power when the utility power is out.
- Energy meter - Provides actual kilowatt hours of usage for energy conscious users.
- Green mode - Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- High online efficiency - Reduces utility costs, generates less heat.
- Intuitive LCD interface - Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Predictive replace battery date - Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Pure sine wave output on battery - Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- SmartConnect - Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
- SmartSlot - Customize UPS capabilities with management cards.
- Temperature-compensated battery charging - Prolongs battery life by regulating the charge voltage according to battery temperature.
Product Overview
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Smart-UPS™ are trusted by millions of IT professionals throughout the world to protect equipment and critical data from costly interruptions by supplying reliable, network-grade power reliably and efficiently. Available in a variety of forms factors and classes (entry level, standard and extended run), there is a model for nearly every application and budget. Standard models are the most popular UPS in the world for business servers, storage and network devices and have long been considered the benchmark for reliability and manageability. Entry level Smart-UPS models are an economical choice for small and medium businesses looking to protect small networking devices, point-of-sale (POS) equipment and entry level servers. The extended run models accept external battery packs for long runtime to power critical servers, security and communication systems through outages that could last hours.
General Information
- Manufacturer: Schneider Electric SA
- Manufacturer Part Number: SMT750IC
- Brand Name: APC by Schneider Electric
- Product Line: Smart-UPS
- Product Series: SMT
- Product Name: Smart-UPS 750VA LCD 230V with SmartConnect
- Product Type: Line-interactive UPS
Technical Information

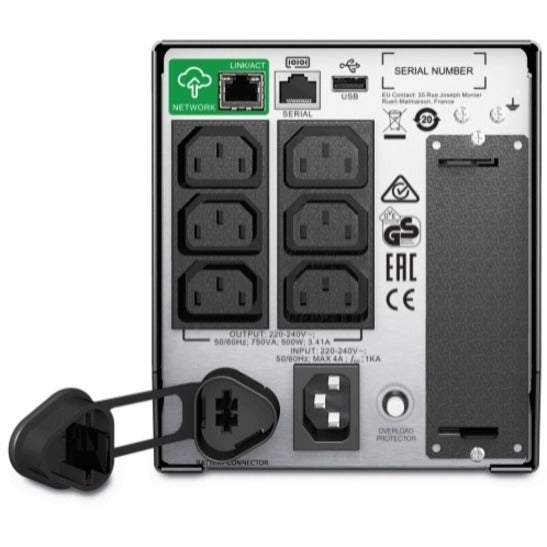

- Receptacle Type:
- IEC 60320 C13
- IEC Jumper
- Receptacle Detail:
- 6 x IEC 60320 C13
- 2 x IEC Jumper
- Number of Battery & Surge Outlets: 8
- Transfer Time: 10 ms
- Application/Usage:
- Server
- Router
- Switch
- Network Hub
- Network Device
- Storage Device
- POS Terminal
Power Description
- Load Capacity (VA): 750 VA
- Load Capacity (Watt): 500 W
- Input Voltage Range: 160 V AC - 280 V AC
- Output Voltage: 230 V AC
- Waveform Type: Sine Wave
Interfaces/Ports
- Network (RJ-45): Yes
Battery Information
- Battery Chemistry: Lead Acid
- Hot Swappable: Yes
- Typical Battery Recharge Time: 3 Hour
Physical Characteristics
- Product Color: Black
- Height: 6.2"
- Width: 5.4"
- Depth: 14.1"
- Form Factor: Tower
- Weight (Approximate): 29.06 lb
Miscellaneous
- Package Contents:
- Smart-UPS 750VA LCD 230V with SmartConnect
- USB cable
- Country of Origin: Philippines
- Environmentally Friendly: Yes
Warranty
- Limited Warranty: 3 Year
