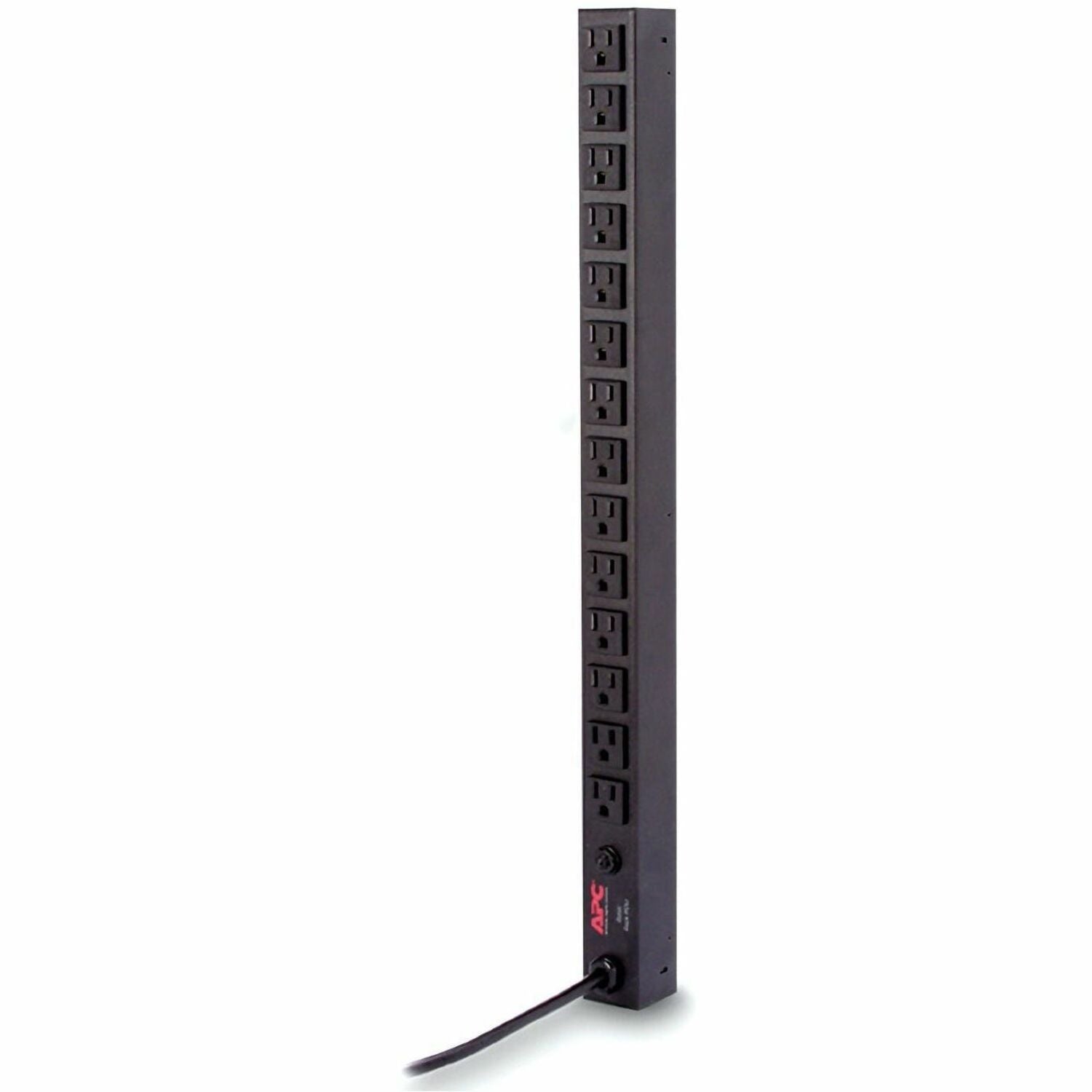

APC NetShelter Basic Rack PDU, 0U, 15A, 100/120V, 14 NEMA 5-15 outlets - AP9567
Key Features
- 0U
- 12' power cord with 15A input
- 2-year APC warranty
- Hydraulic-magnetic circuit breakers
- Input: NEMA 5-15P
- Outlets: (14) NEMA 5-15R
- Reliable rack power distribution to power servers, switches, and network devices
- Ultralow-profile, space-saving design

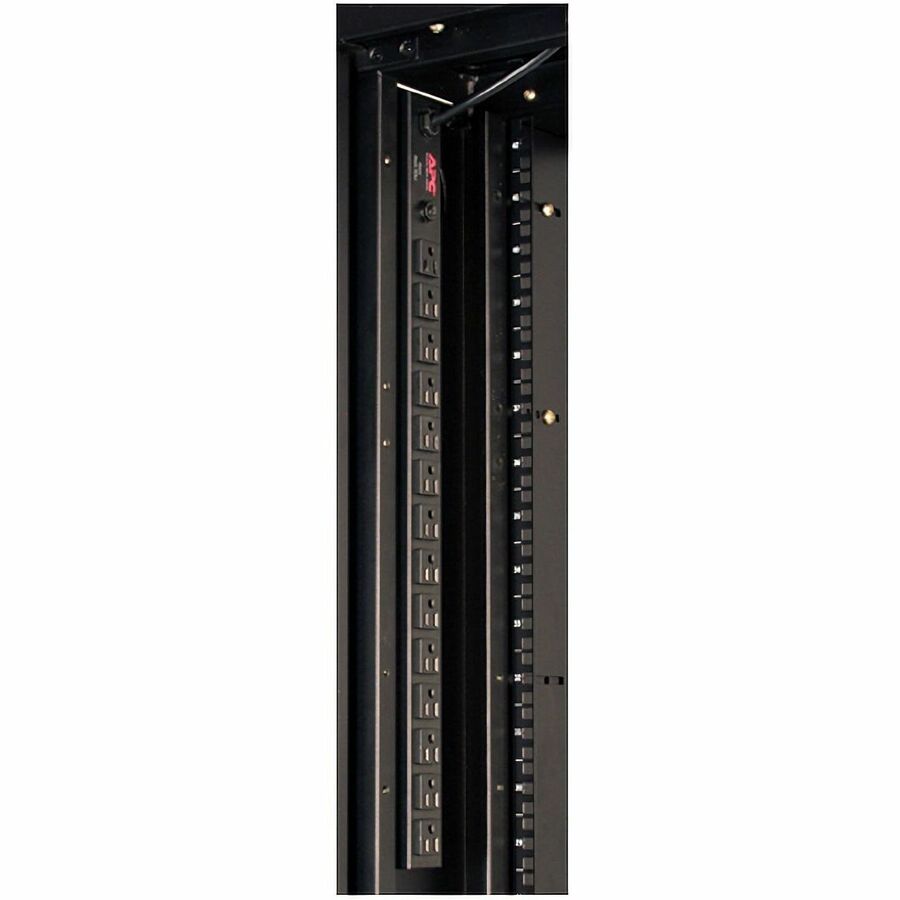

- Vertical Basic PDU is rack mountable
Product Overview
APC Basic Rack PDUs distribute reliable rack power distribution via a single input with multiple output receptacles. Easily mount this vertical PDU in racks or enclosures. It occupies zero U of valuable rack space, which allows space for more equipment in the rack. This vertical PDU does not require additional tools to mount into APC NetShelter Enclosures. Enables a quick recovery from overload events. Packaging Includes PDU, Installation guide, Rack Mounting brackets, Toolless Mounting KitGeneral Information
- Manufacturer: Schneider Electric SA
- Manufacturer Part Number: AP9567
- Brand Name: APC
- Product Line: Basic Rack
- Product Name: Basic Rack 1.8kVA PDU
- Packaged Quantity: 1 Each
- Product Type: PDU
Technical Information
- PDU Type: Basic
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R
- Receptacle Detail: 14 x NEMA 5-15R
- Protection Type: Overload Protection
Power Description
- Input Voltage:
- 100 V
- 120 V
- Output Voltage:
- 100 V AC
- 120 V AC
- Power Rating (VA): 1800 VA
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Mounting Orientation: Vertical
- Mount Type: Rack-mountable
- Placement: Side
- Rack Height: 0U
- Cord Length: 11.98 ft
- Height: 24"
- Width: 1.7"
- Depth: 1.7"
- Weight (Approximate): 4.81 lb
Miscellaneous
- Package Contents:
- Basic Rack 1.8kVA PDU
- Installation guide
- Rack mounting brackets
- Toolless mounting kit
- Country of Origin: United States
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 2 Year
