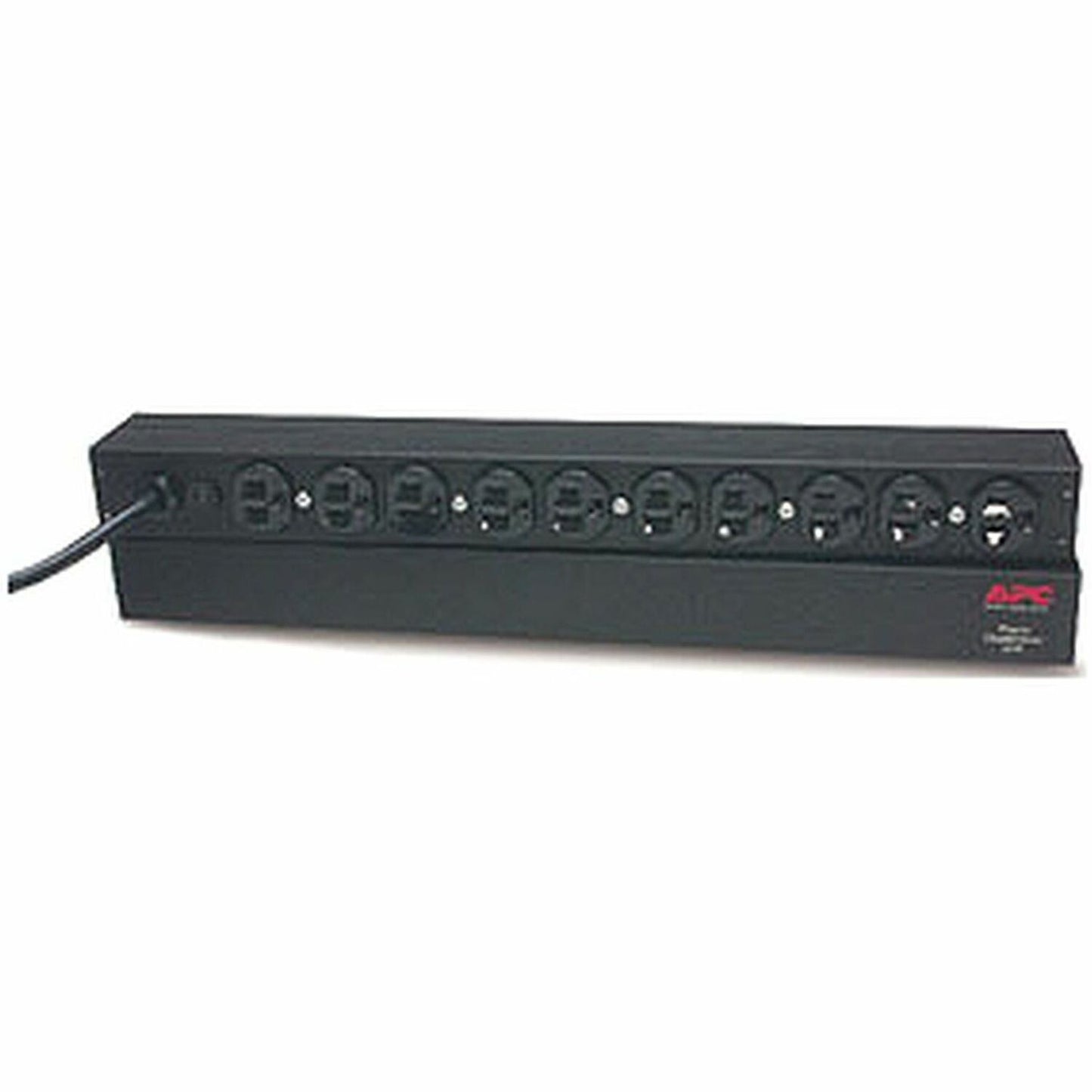

APC NetShelter Basic Rack PDU, 1U, 15A, 120V, 10 NEMA 5-15 outlets - AP9562
Key Features
- Features 10 NEMA 5-15R outlets for extensive power distribution
- Horizontal mounting to fit various rack configurations
- Includes toolless mounting kit for quick setup
- Supports up to 15A, 120V power distribution
Product Overview
It is a basic rack PDU with a 1U horizontal mounting design. It supports a maximum input current of 15A and operates at 120V. The PDU features 10 NEMA 5-15R outlets, providing ample connections for IT equipment. It includes a 12-foot power cord with a NEMA 5-15P plug. The unit is designed for reliable power distribution and includes rack mounting brackets and an installation guide.
General Information
- Manufacturer: Schneider Electric SA
- Manufacturer Part Number: AP9562
- Brand Name: APC by Schneider Electric
- Product Line: Basic Rack
- Product Name: Basic Rack 1.8kVA PDU
- Packaged Quantity: 1 Each
- Product Type: PDU
Technical Information
- PDU Type: Basic
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R
- Receptacle Detail: 10 x NEMA 5-15R
Power Description
- Input Voltage:
- 100 V
- 120 V
- Output Voltage: 120 V AC
- Power Rating (VA): 1800 VA
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Mounting Orientation: Horizontal
- Mount Type: Rack-mountable
- Placement:
- Front
- Rear
- Rack Height: 1U
- Cord Length: 11.98 ft
- Height: 1.7"
- Width: 17.6"
- Depth: 2.2"
- Weight (Approximate): 5.51 lb
Miscellaneous
- Package Contents:
- Basic Rack 1.8kVA PDU
- Installation guide
- Rack mounting brackets
- Country of Origin: India
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 2 Year
