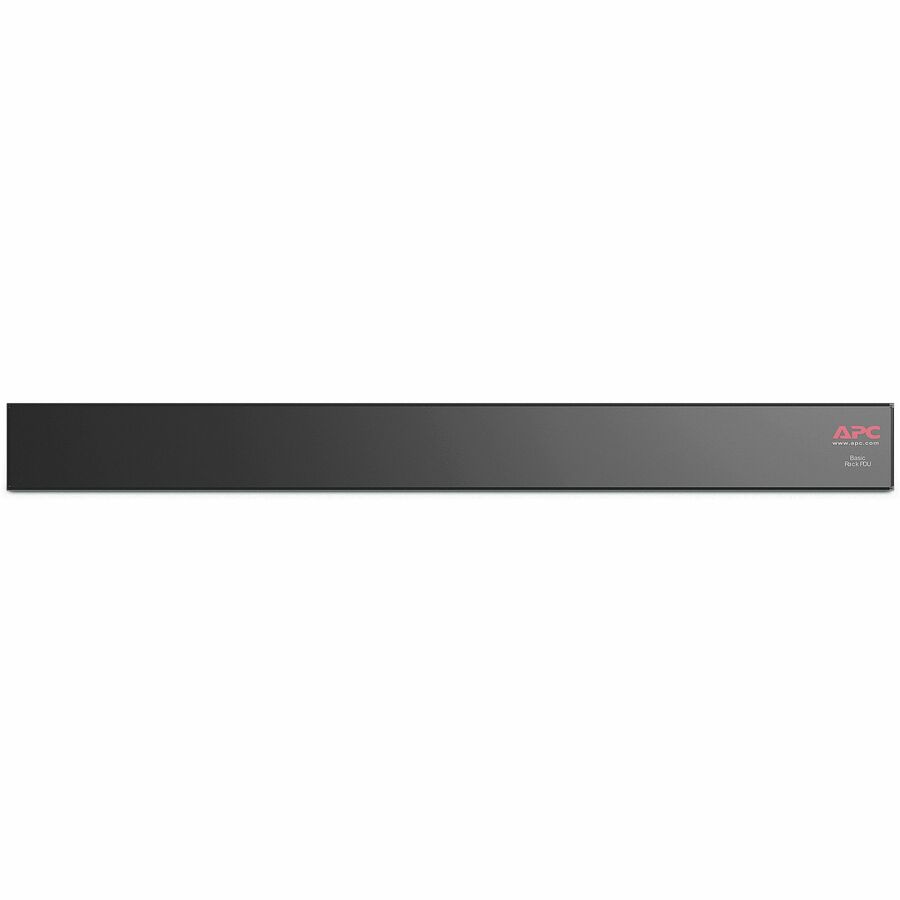

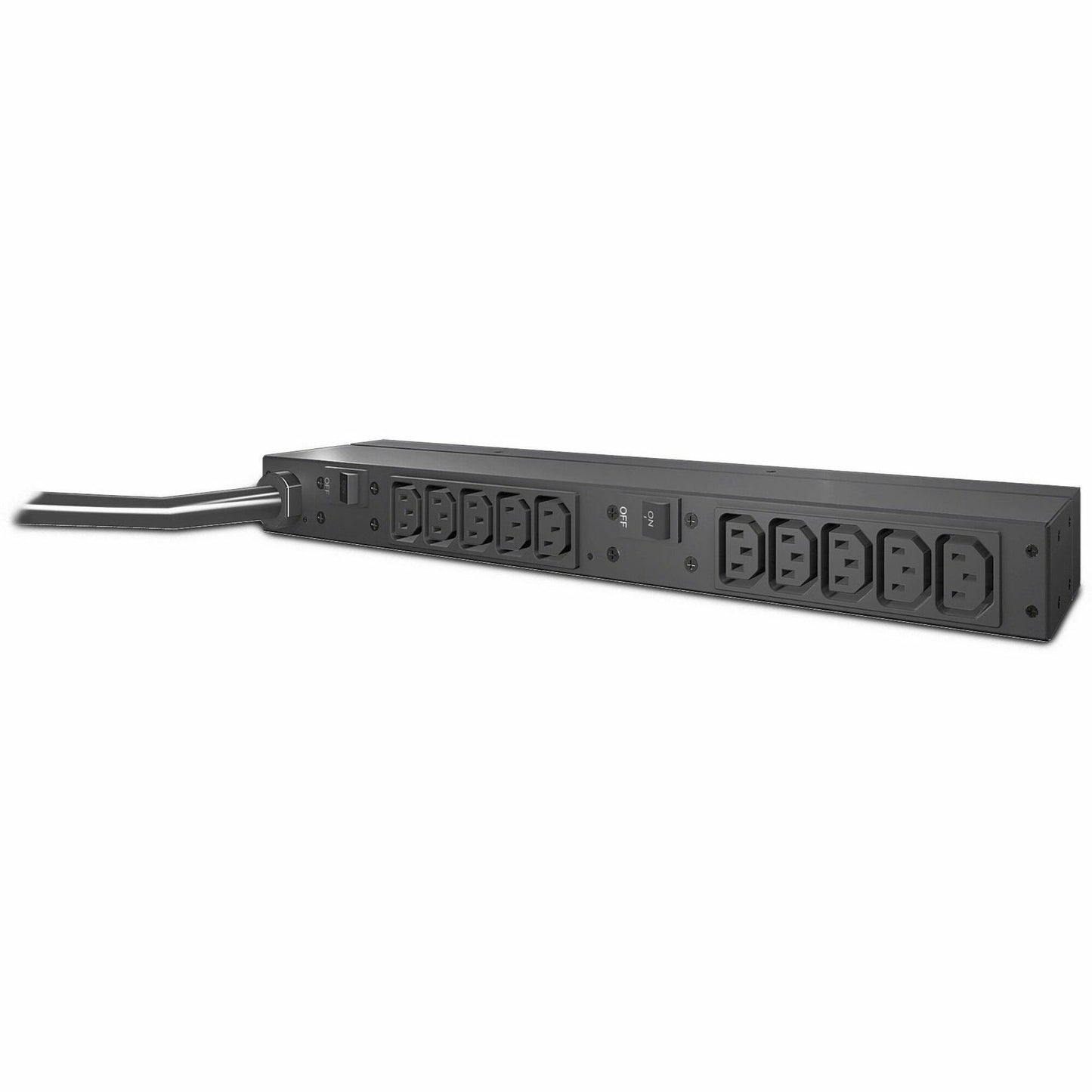

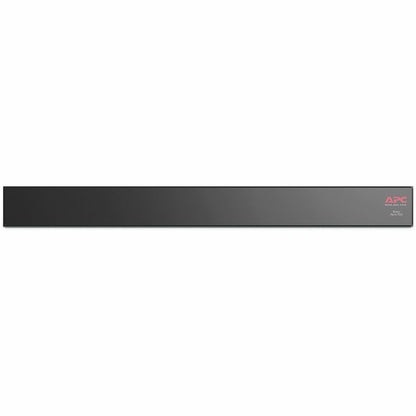

APC NetShelter Basic Rack PDU, 1U, 30A, 208V, 10 C13 outlets - AP9571A
Key Features
- Easy to install and integrate into existing rack setups
- It features 10 IEC 60320 C13 outlets, providing flexibility to connect a variety of IT equipment
- Suitable for high-density power distribution in data centers and network environments
- The 1U horizontal rack-mount design optimizes the use of space
Product Overview
It is a basic rack PDU with a 1U horizontal mounting design. It supports a maximum input current of 30A and operates at 208V. The PDU features 10 IEC 60320 C13 outlets, providing ample connections for IT equipment. It includes a 12-foot power cord with a NEMA L6-30P plug. The unit is designed for reliable power distribution and includes an installation guide and rack mounting brackets.
General Information
- Manufacturer: Schneider Electric SA
- Manufacturer Part Number: AP9571A
- Brand Name: APC by Schneider Electric
- Product Line: Basic Rack
- Product Name: Basic Rack 10-Outlets 4.99 kVA PDU
- Product Type: PDU
Technical Information
- PDU Type: Basic
- Plug/Connector Type: NEMA L6-30P
- Receptacle Detail: 10
Power Description
- Input Voltage:
- 200 V
- 208 V
- 230 V
- Input Voltage Range: 200 V AC - 240 V AC
- Output Voltage: 208 V AC
- Power Rating (VA): 4992 VA
Physical Characteristics
- Mounting Orientation: Horizontal
- Mount Type: Rack-mountable
- Rack Height: 1U
- Cord Length: 11.98 ft
- Height: 1.7"
- Width: 17.5"
- Depth: 3"
- Weight (Approximate): 5.62 lb
Miscellaneous
- Package Contents:
- Basic Rack 10-Outlets 4.99 kVA PDU
- Installation guide
- Rack mounting brackets
- User manual
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 2 Year
