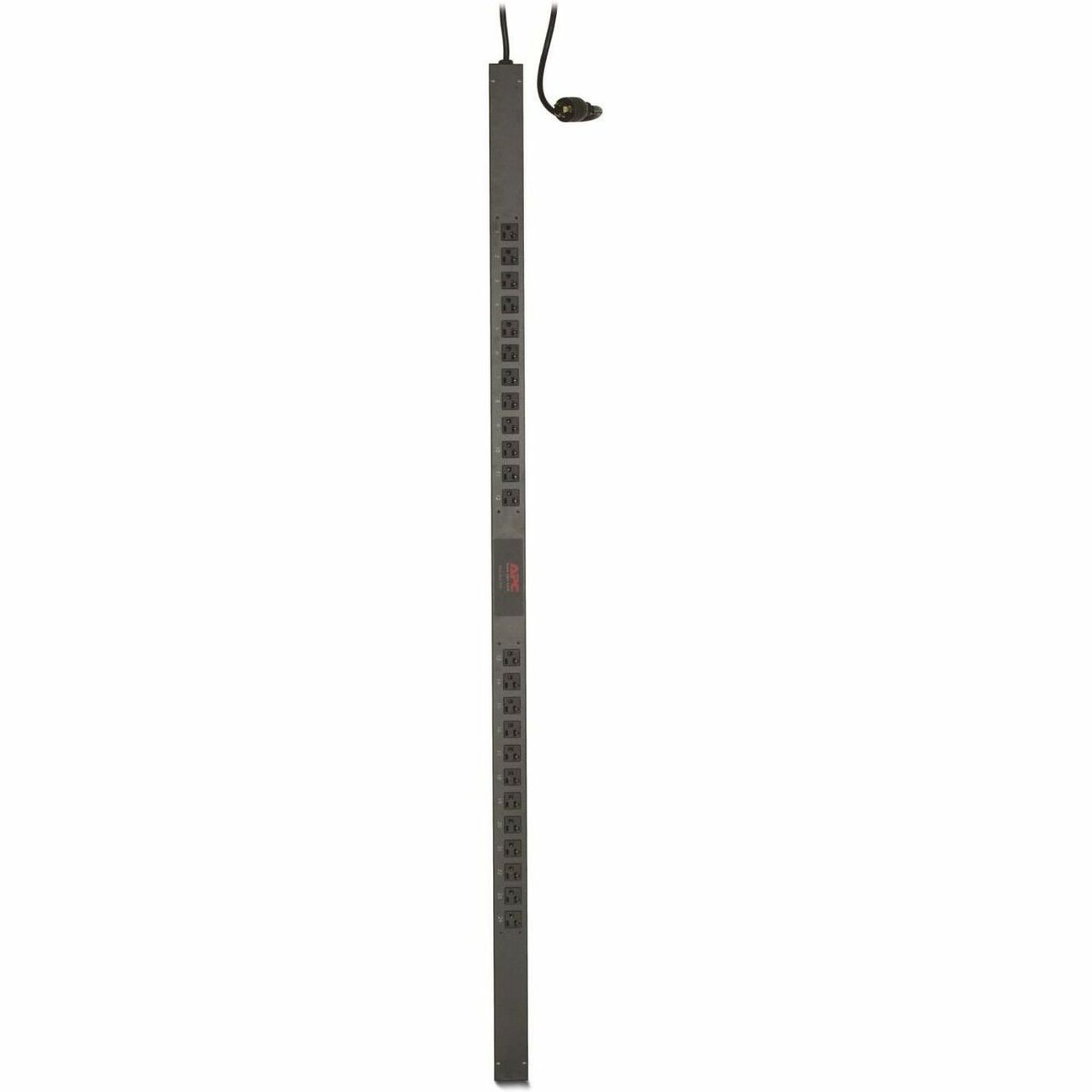

APC NetShelter Basic Rack PDU, Zero U, 20A, 120V, 24 NEMA 5-20 outlet - AP7530
Key Features
- Compatible with a variety of rack enclosures and power configurations

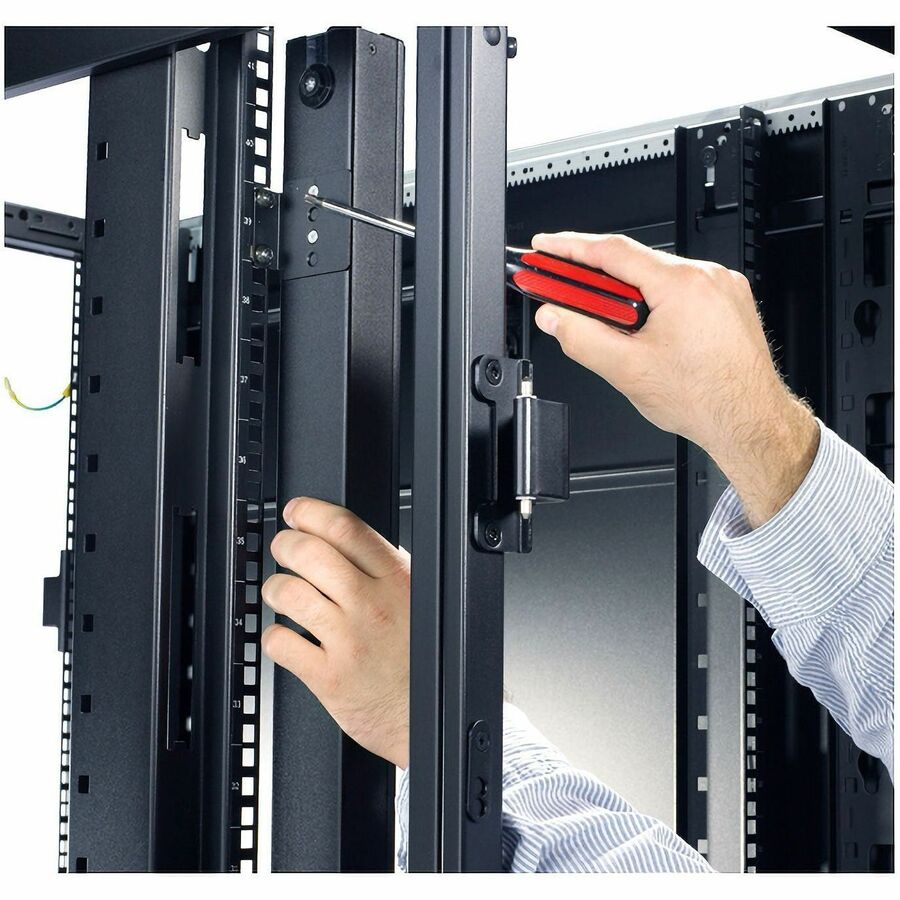

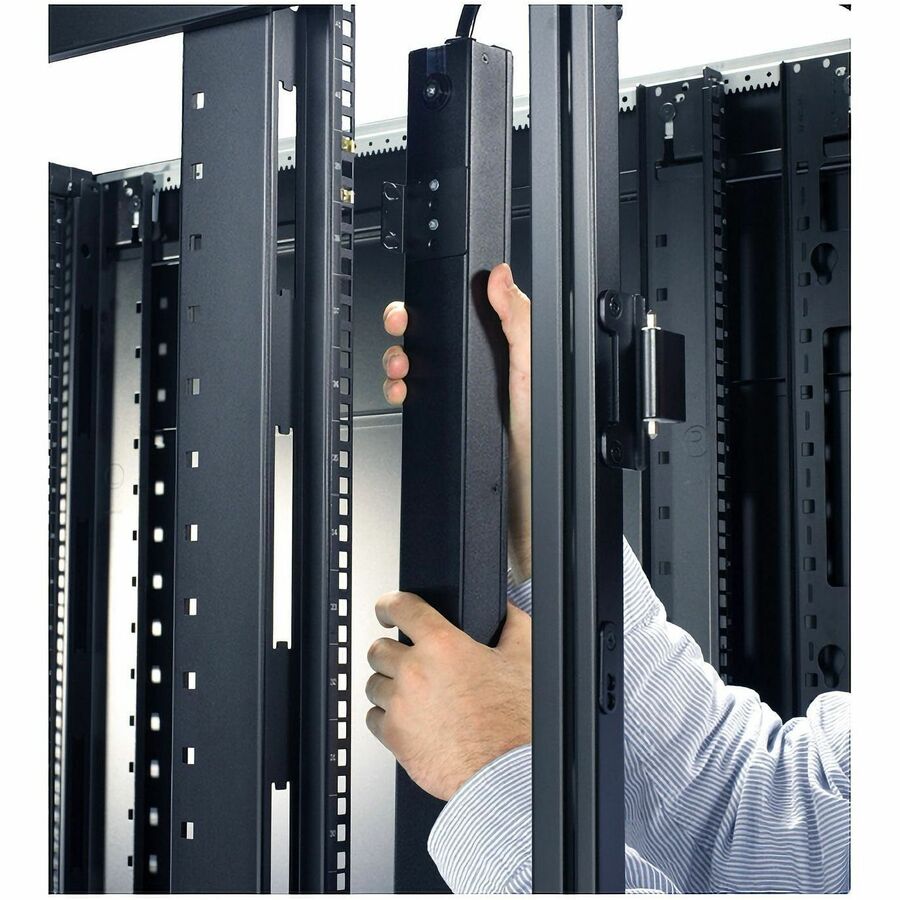

- Easy installation with toolless mounting capabilities

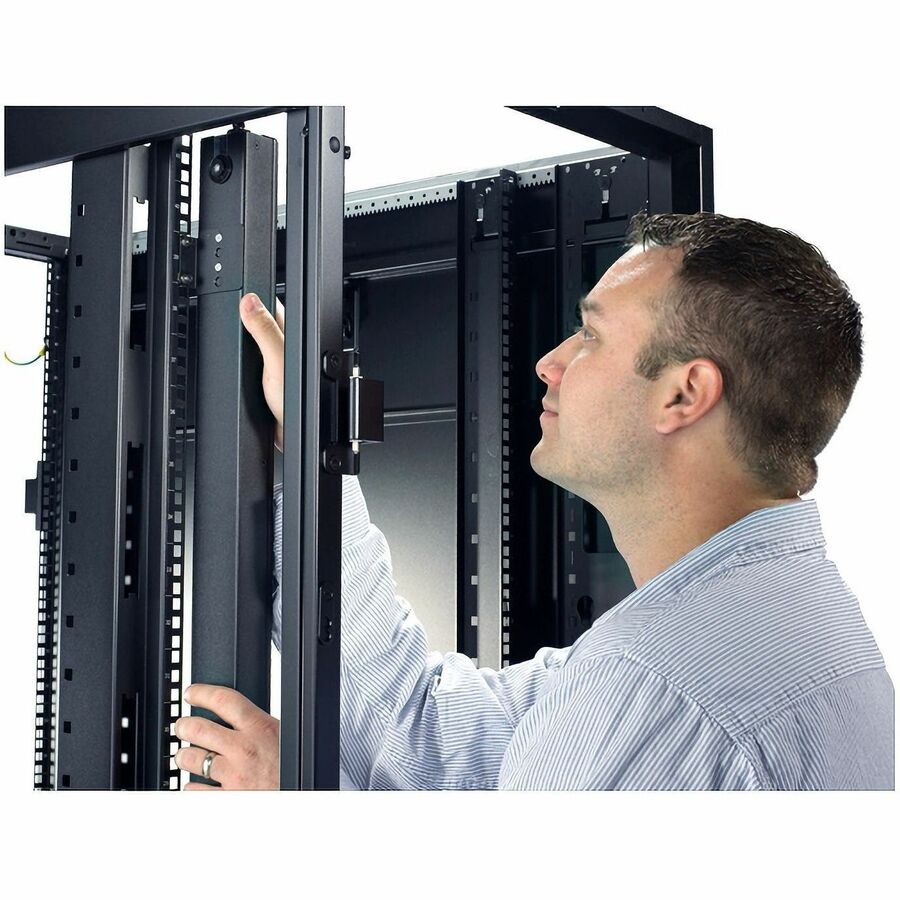

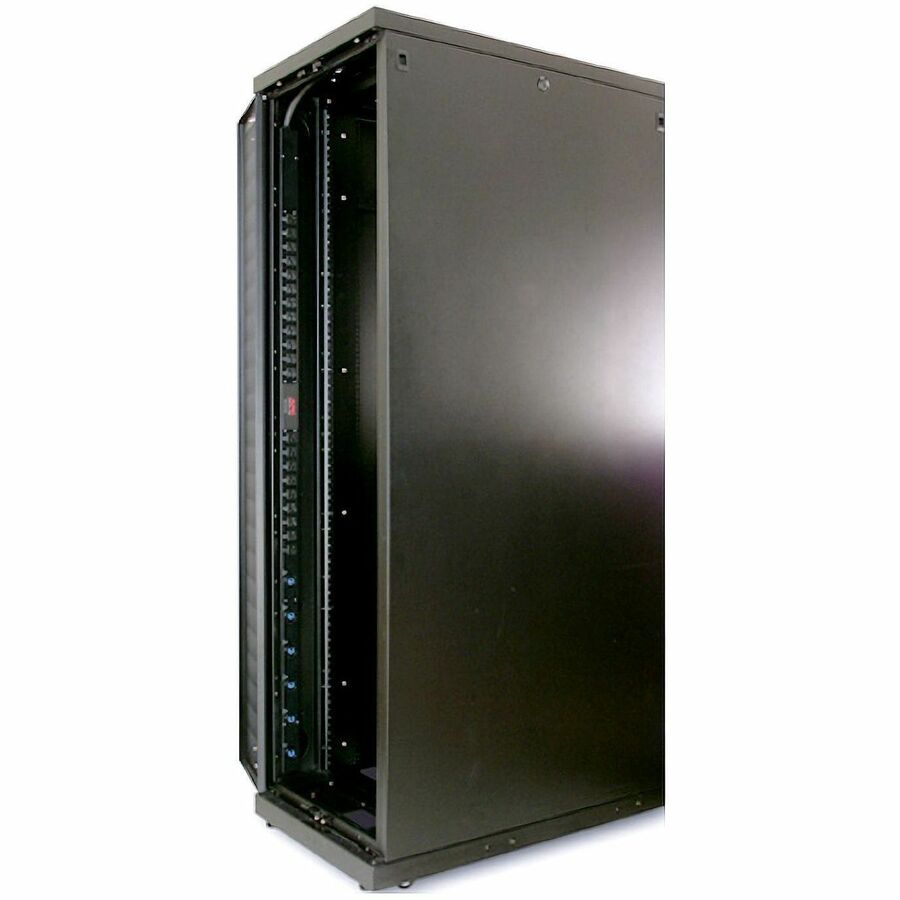

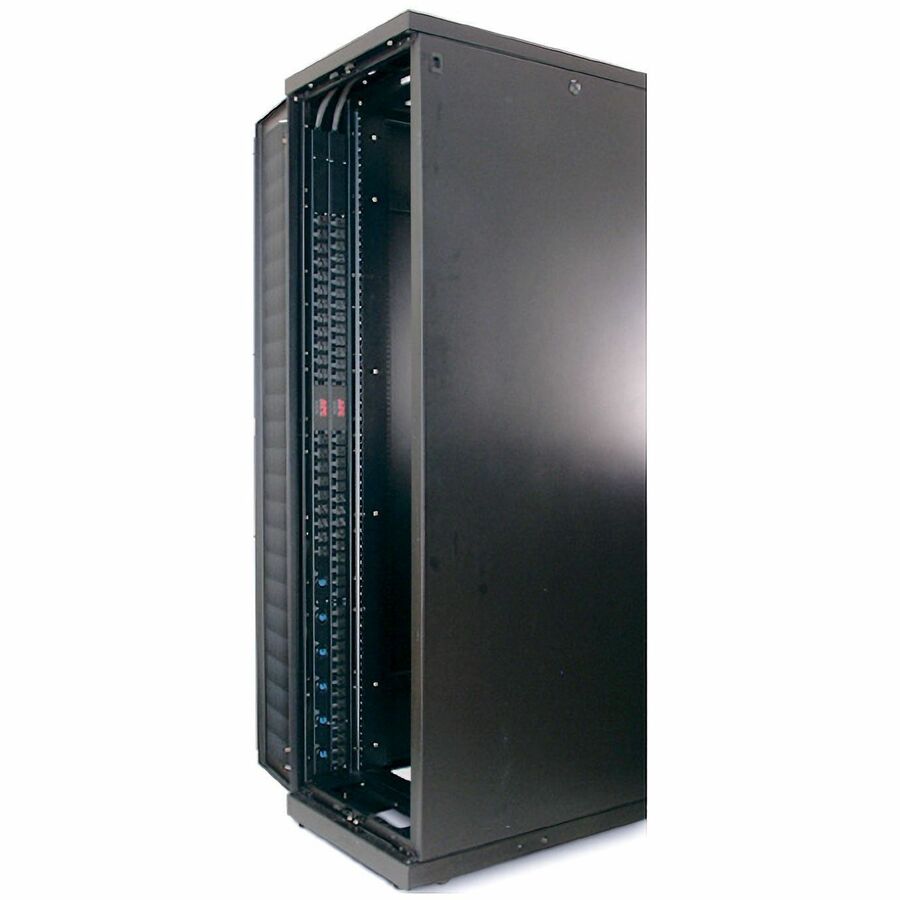

- Mounts vertically in the rack, saving valuable rack space for other equipment
- Supports up to 24 outlets, allowing for efficient power distribution in high-density environments
Product Overview
It is a basic rack PDU with a Zero U vertical mounting design. It supports a maximum input current of 20A and operates at 120V. The PDU features 24 NEMA 5-20R outlets, providing ample connections for IT equipment. It includes a 10-foot power cord with a NEMA L5-20P plug. The unit is designed for reliable power distribution and includes cord retention brackets, an installation guide, rack mounting brackets, and a toolless mounting kit.
General Information
- Manufacturer: Schneider Electric SA
- Manufacturer Part Number: AP7530
- Brand Name: APC
- Product Line: Basic Rack
- Product Name: Basic Rack 1.92kVA PDU
- Packaged Quantity: 1 Each
- Product Type: PDU
Technical Information
- PDU Type: Basic
- Plug/Connector Type: NEMA L5-20P
- Receptacle Type: NEMA 5-20R
- Receptacle Detail: 24 x NEMA 5-20R
Power Description
- Input Voltage:
- 100 V
- 120 V
- Output Voltage: 120 V AC
- Power Rating (VA): 1920 VA
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Mounting Orientation: Vertical
- Mount Type: Rack-mountable
- Placement: Side
- Rack Height: 0U
- Cord Length: 9.84 ft
- Height: 63.7"
- Width: 2.2"
- Depth: 1.7"
- Weight (Approximate): 10.71 lb
Miscellaneous
- Package Contents:
- Basic Rack 1.92kVA PDU
- Cord retention bracket(s)
- Installation guide
- Rack mounting brackets
- Toolless mounting kit
- User manual
- Country of Origin: India
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 2 Year
