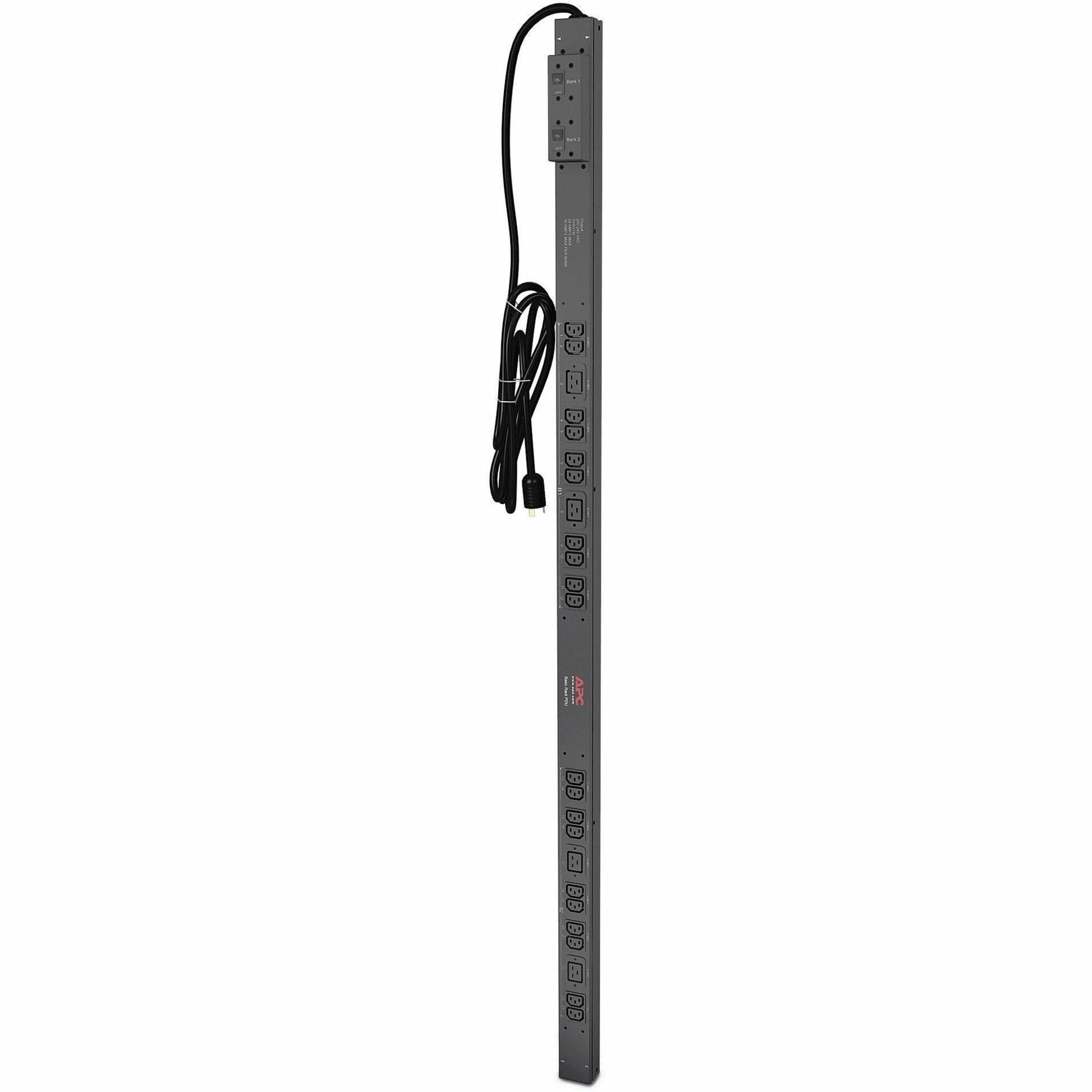

APC NetShelter Basic Rack PDU, Zero U, 30A, 200/208V, 20 C13 and 4 C19 outlet - AP7541
Key Features
- 0U
- 10' power cord with 30A input
- 2-year APC warranty
- Hydraulic-magnetic circuit breakers
- Input: NEMA L6-30P
- Outlets: (20) C13, (4) C19
- Reliable rack power distribution to power servers, switches, and network devices
- Ultralow-profile, space-saving design
- Vertical Basic PDU is rack mountable
Product Overview
APC Basic Rack PDUs distribute reliable rack power distribution via a single input with multiple output receptacles. Easily mount this vertical PDU in racks or enclosures. It occupies zero U of valuable rack space, which allows space for more equipment in the rack. This vertical PDU does not require additional tools to mount into APC NetShelter Enclosures. Enables a quick recovery from overload events. Packaging Includes PDU, Installation guide, Rack Mounting brackets, Toolless Mounting Kit
General Information
- Manufacturer: Schneider Electric SA
- Manufacturer Part Number: AP7541
- Brand Name: APC by Schneider Electric
- Product Line: Basic Rack
- Product Name: Basic Rack 4.992kVA PDU
- Packaged Quantity: 1 Each
- Product Type: PDU
Technical Information
- PDU Type: Basic
- Plug/Connector Type: NEMA L6-30P
- Receptacle Type:
- IEC 60320 C13
- IEC 60320 C19
- Receptacle Detail:
- 20 x IEC 60320 C13
- 4 x IEC 60320 C19
Power Description
- Input Voltage:
- 200 V
- 208 V
- 230 V
- Input Voltage Range: 208 V AC - 240 V AC
- Output Voltage:
- 200 V AC
- 208 V AC
- Power Rating (VA): 4992 VA
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Mounting Orientation: Vertical
- Mount Type: Rack-mountable
- Placement: Side
- Rack Height: 0U
- Cord Length: 9.84 ft
- Height: 63.7"
- Width: 2.2"
- Depth: 1.7"
- Weight (Approximate): 12.28 lb
Miscellaneous
- Package Contents:
- Basic Rack 4.992kVA PDU
- Installation guide
- Rack mounting brackets
- Toolless mounting kit
- Country of Origin: India
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 2 Year
