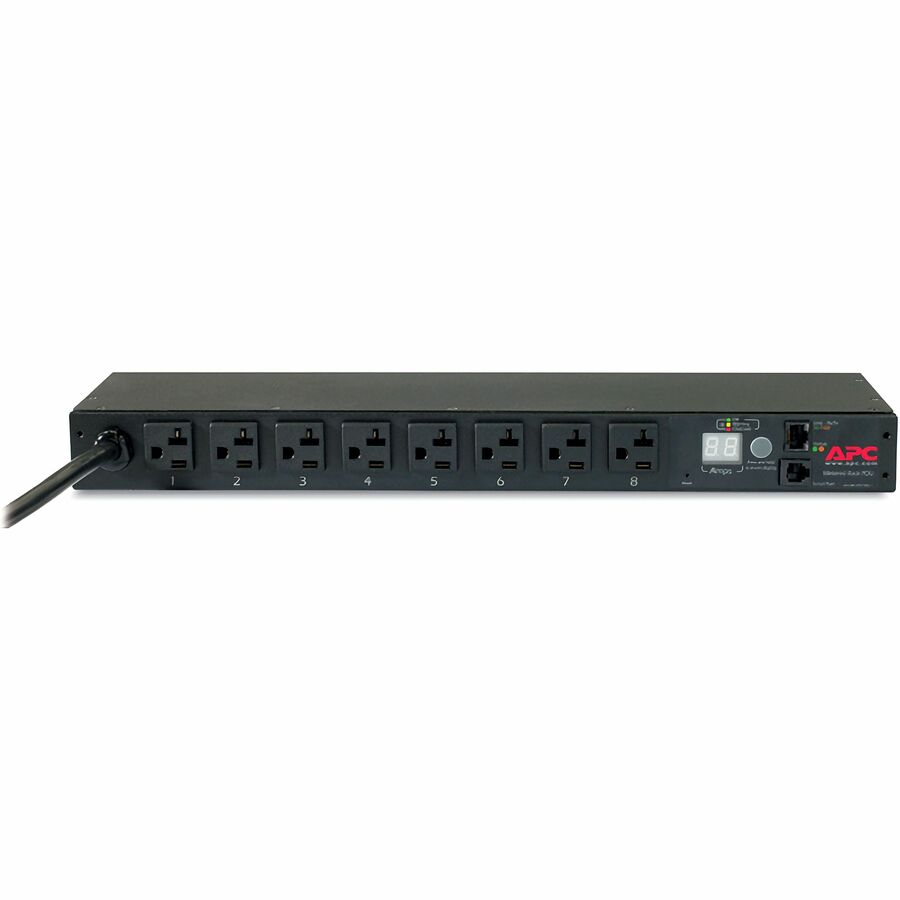

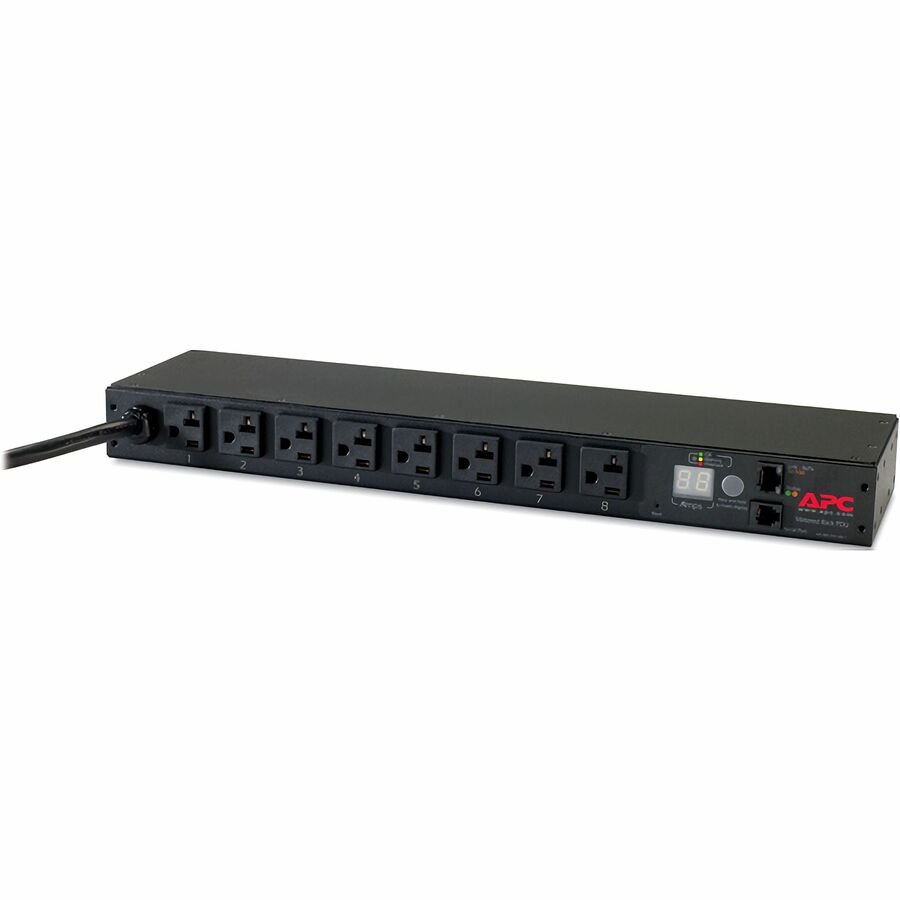

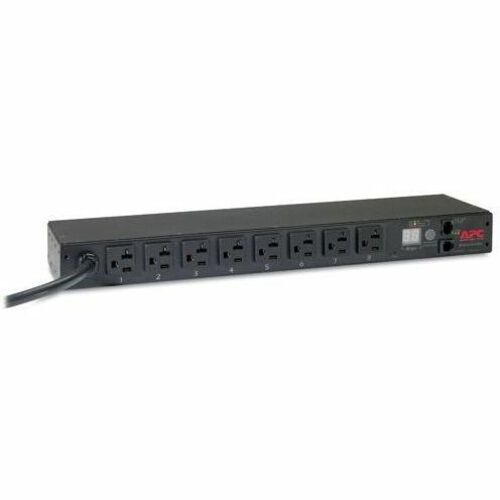

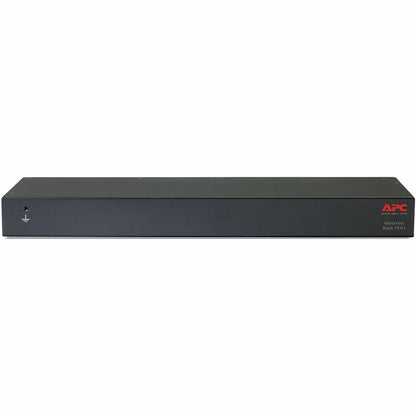

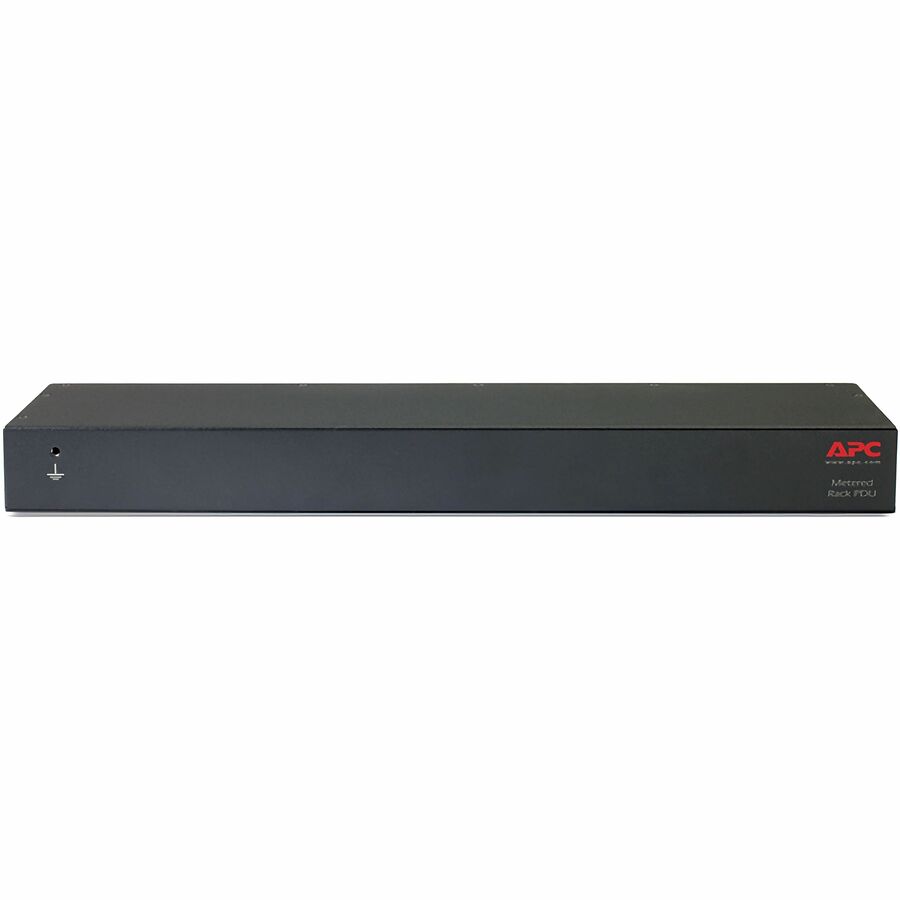

APC NetShelter Metered Rack PDU, 1U, 20A, 120V, 8 NEMA 5-20 outlet - AP7801B
Key Features
- Horizontal mounting to fit various rack configurations, conserving space
- Includes a cord retention bracket and toolless mounting kit for quick setup
- Provides 8 NEMA 5-20R outlets for comprehensive power distribution
- Supports up to 20A, 120V power distribution, ensuring reliable power delivery
Product Overview
It is a metered rack PDU designed for 1U horizontal mounting. It supports a maximum current of 20A and operates at 120V. The PDU features 8 NEMA 5-20R outlets and a 12-foot power cord with a NEMA L5-20P plug. It has a load capacity of 1920 VA and includes a cord retention bracket, installation guide, and rack mounting brackets.
General Information
- Manufacturer: Schneider Electric SA
- Manufacturer Part Number: AP7801B
- Brand Name: APC by Schneider Electric
- Product Name: Rack PDU, Metered, 1U, 20A, 120V, (8) 5-20
- Product Type: PDU
Technical Information
- PDU Type: Metered
- Plug/Connector Type: NEMA L5-20P
- Receptacle Type: NEMA 5-20R
- Receptacle Detail: 8 x NEMA 5-20R
Power Description
- Input Voltage:
- 100 V
- 120 V
- Output Voltage: 120 V AC
- Power Rating (VA): 1920 VA
- Input Current: 20 A
Physical Characteristics
- Mounting Orientation: Horizontal
- Mount Type: Rack-mountable
- Placement:
- Front
- Rear
- Rack Height: 1U
- Cord Length: 11.98 ft
- Height: 1.7"
- Width: 17.5"
- Depth: 4"
- Weight (Approximate): 3.81 lb
Miscellaneous
- Package Contents:
- Rack PDU, Metered, 1U, 20A, 120V, (8) 5-20
- Cord retention bracket(s)
- Installation guide
- Rack mounting brackets
- User manual
- Country of Origin: Philippines
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 2 Year
