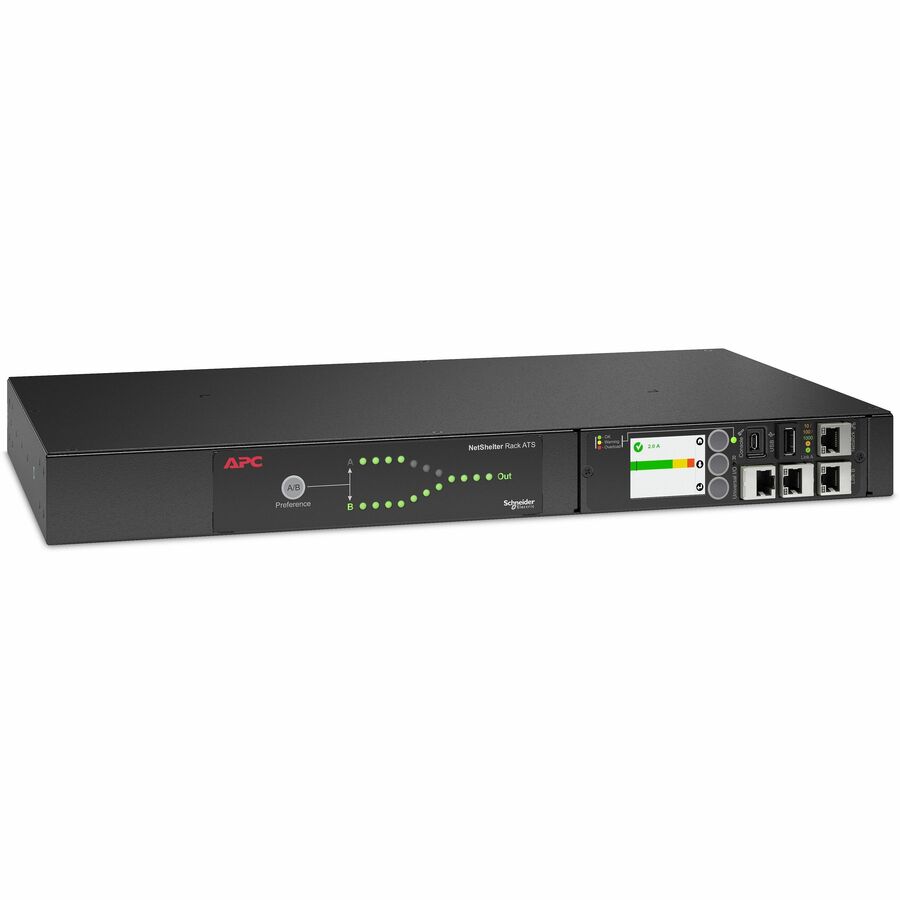

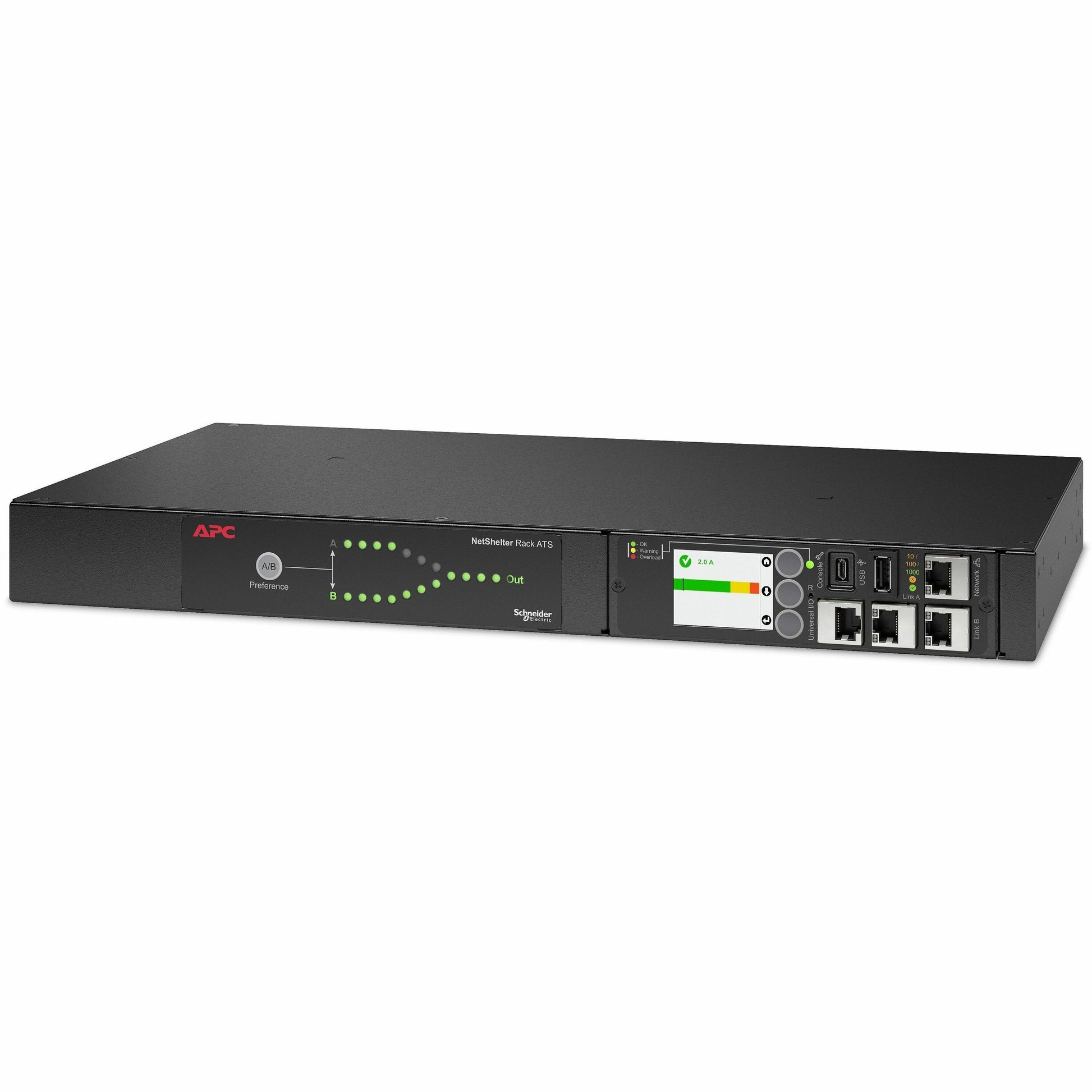

APC Netshelter Rack Automatic Transfer Switch, 1U, 15A, 100/120V, 5-15 IN, 10 5-15R OUT, 50/60Hz - AP4450A
Key Features
- APC NMC3 integrated for enhanced cyber security
- Connect and manage up to 32 Rack ATSs from one IP address
- Dual input power cords to enhance uptime for critcal loads
- Gigabit Ethernet support for faster Communication
- Minimized downtime disruption with Field-replaceable NMC
- Monitor temperature and humidity efficiently
- Remote management via Web UI, CLI, SNMP or EcoStruxure expert
- Seamless switching with transfer time 10ms
- Supports APC Wi-fi USB device for cableless installation & setup
Product Overview
APC NetShelter Rack Automatic Transfer Switch (ATS) AP4450A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4450A is single phase 1U Rack ATS with 15A rated current, 100V/120V rated voltage and 1440VA load capacity. For North America region, the Regulatory Derated Input Current is 12A. It comes with 2 NEMA 5-15P inlet and 10 NEMA 5-15R outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
General Information
- Manufacturer: Schneider Electric SA
- Manufacturer Part Number: AP4450A
- Brand Name: APC by Schneider Electric
- Product Line: NetShelter
- Product Name: NetShelter Automatic Transfer Switch
- Product Type: Automatic Transfer Switch
Technical Information
- Plug/Connector Type: NEMA 5-15P 12A (2P + E)
- Receptacles: 10 x NEMA 5-15R
Power Description
- Input Voltage:
- 100 V AC
- 120 V AC
- Output Voltage:
- 100 V AC
- 120 V AC
- Current: 15 A
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Form Factor: Rack-mountable
- Rack Height: 1U
- Height: 1.7"
- Width: 17"
- Depth: 9.3"
- Weight (Approximate): 9.70 lb
Miscellaneous
- Package Contents:
- NetShelter Automatic Transfer Switch
- Mounting Hardware
- Rack Mounting Brackets
- Serial Configuration Cable
- Country of Origin: Philippines
- Environmentally Friendly: Yes
- Environmental Certification: RoHS
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 2 Year
