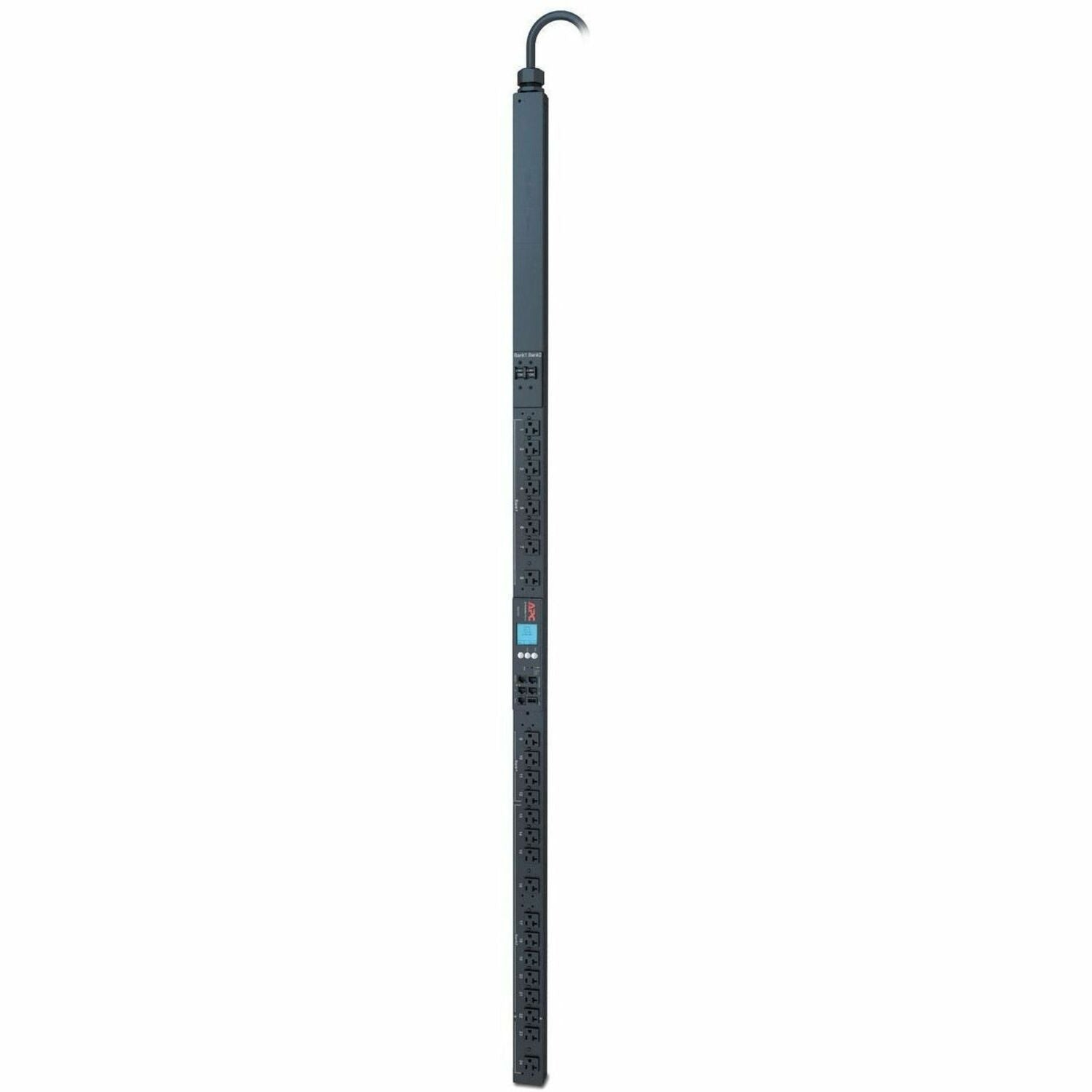

APC NetShelter Rack PDU, Switched, 0U, 2.9kW 100V-120V 30A, (24) NEMA 5-20R outlets - AP8932US
Key Features
- Ideal for Colocation, large data centers or distributed IT sites
- Plan capacity and balance loads with +/- 3% metering accuracy (amps, volts, kW, kWh)
- Power sequencing delays determine the order in which power is turned on or off
- Real-time remote monitoring of connected load through EcoStruxure IT and other platforms
- Remote management of rack PDUs for efficient time-saving
- Stay on top of potential circuit overloads with user-defined alarms
- Zero U toolless installation
Product Overview
The APC Switched Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles. The AP8932US offers advanced load management combined with remote on/off switching control of individual outlets for power cycling, delayed power sequencing, and outlet use management. The 0U PDU includes a NEMA L5-30P input plug with 3m (9.84 ft) cord, and (24) NEMA 5-20R output receptacles. The PDU can operate in a maximum ambient air temperature of up to 60°C (140°F) at full load. The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy. The rack PDU integrates with EcoStruxure IT through Network Management Card and can be accessed, configured, and managed remotely via Web, SNMP and Command Line Interface. Color user-interactive LCD interface details current, real power, voltage, and energy measurements for local user access. The outlet level control allows power on/off functionality for power recycling/reboot of remote equipment and restricts unauthorized use of individual outlets. The Switched Rack PDU includes a temperature/humidity sensor port, locking IEC outlets when used with locking power cords, low-profile circuit breakers and USB port for local Firmware updates The rack PDU supports daisy-chaining of up to 4 PDUs on a single IP address. The rack PDU comes with a standard two-year warranty. The switched PDU is compliant with the Trade Agreements Act (TAA) requirements.
General Information
- Manufacturer: Schneider Electric SA
- Manufacturer Part Number: AP8932US
- Brand Name: APC
- Product Line: NetShelter
- Product Name: NetShelter 24-Outlets PDU
- Product Type: PDU
Technical Information
- PDU Type: Switched
- Plug/Connector Type: NEMA L5-30P
- Receptacle Type: NEMA 5-20R
- Receptacle Detail: 24 x NEMA 5-20R
- Features: LCD Display
- Load Capacity (Watt): 2900 W
Power Description
- Input Voltage:
- 120 V AC
- 100 V AC
- Output Voltage:
- 100 V AC
- 120 V AC
- Input Current: 30 A
Management
- Management:
- Web
- SNMP
- Remote Outlet Switching: Yes
Physical Characteristics
- Mounting Orientation: Vertical/Toolless
- Mount Type: Rack-mountable
- Form Factor: Rack
- Placement: Side
- Rack Height: 0U
- Cord Length: 9.51 ft
- Height: 70.5"
- Width: 2.2"
- Depth: 1.8"
- Weight (Approximate): 17.31 lb
Environmental Conditions
- Maximum Operating Temperature: 140°F (60°C)
Miscellaneous
- Application/Usage: Data Center
- Country of Origin: United States
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- UL Listed: Yes
Warranty
- Limited Warranty: 2 Year
