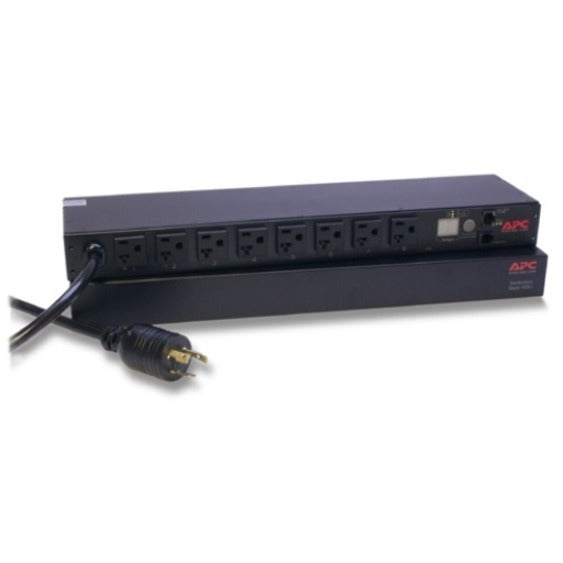

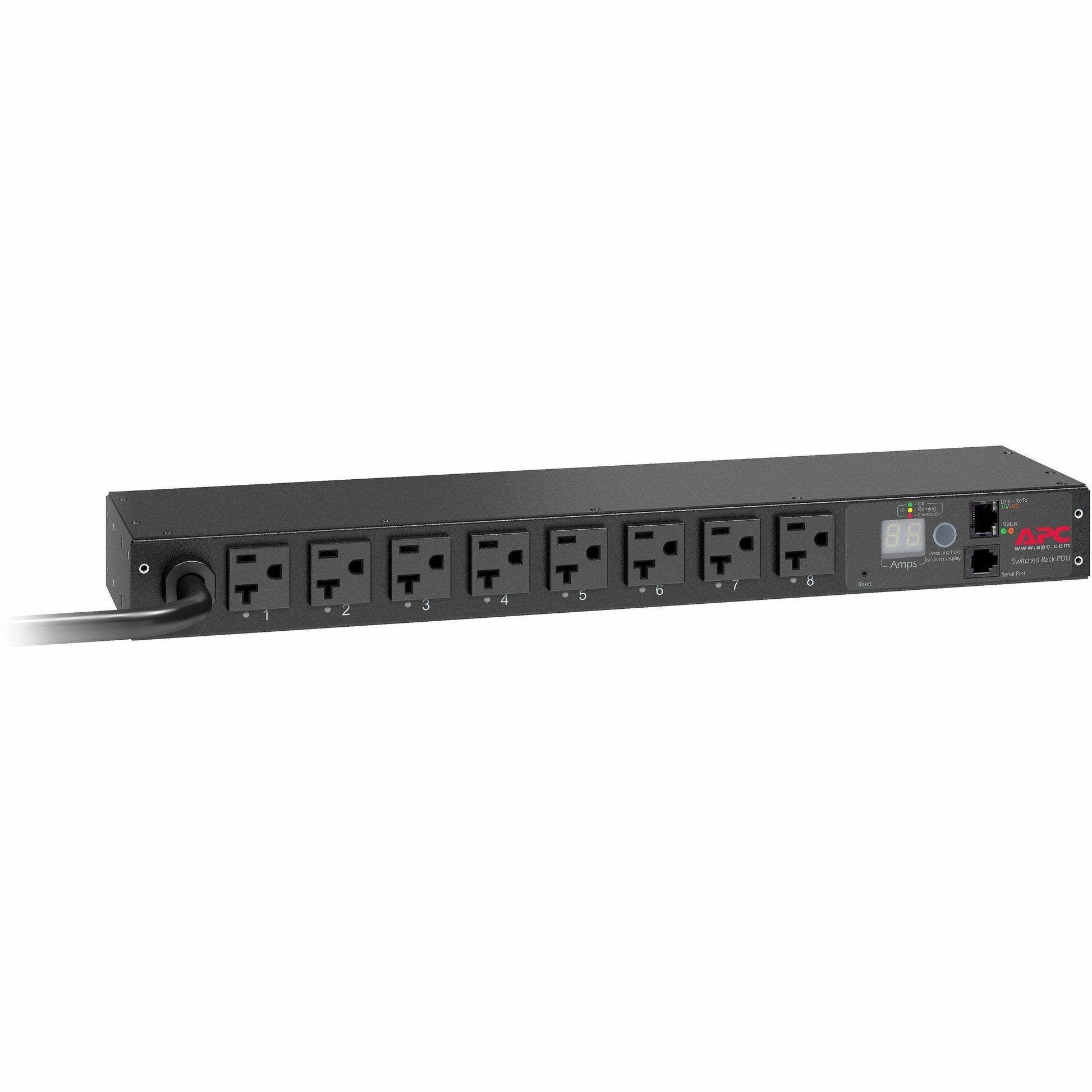

APC NetShelter Switched Rack PDU, 1U, 20A, 120V, 8 NEMA 5-20 outlet - AP7901B
Key Features
- It can handle a maximum current capacity of 20A, making it suitable for various applications
- It features 8 NEMA 5-20R outlets, providing ample connectivity options for different devices
- Supports remote monitoring and control, enabling users to manage power distribution from a distance
- With a 1U form factor, it saves valuable rack space and allows for efficient cable management
Product Overview
It is a switched rack PDU with a maximum current capacity of 20A and an input voltage of 120V. It features 8 NEMA 5-20R outlets and a NEMA L5-20P input connection. The PDU has a 1U form factor and a cord length of 12 feet. It supports remote monitoring and user-defined alarms, with outlet-level on/off switching capabilities. The unit is UL Listed and CSA certified, ensuring high safety and performance standards.
General Information
- Manufacturer: Schneider Electric SA
- Manufacturer Part Number: AP7901B
- Brand Name: APC by Schneider Electric
- Product Name: Rack PDU, Switched, 1U, 20A, 120V, (8)5-20
- Product Type: PDU
Technical Information
- PDU Type: Switched
- Plug/Connector Type: NEMA L5-20P
- Plug/Connector Detail: 1 x NEMA L5-20P
- Receptacle Type: NEMA 5-20R
- Receptacle Detail: 8 x NEMA 5-20R
Power Description
- Input Voltage:
- 100 V
- 120 V
- Output Voltage: 120 V AC
- Power Rating (VA): 2400 VA
- Input Current: 20 A
Interfaces/Ports
- Network (RJ-45): Yes
Physical Characteristics
- Mounting Orientation: Horizontal
- Mount Type: Rack-mountable
- Placement:
- Front
- Rear
- Rack Height: 1U
- Cord Length: 11.98 ft
- Height: 1.7"
- Width: 17.5"
- Depth: 4.3"
- Weight (Approximate): 5 lb
Miscellaneous
- Package Contents:
- Rack PDU, Switched, 1U, 20A, 120V, (8)5-20
- Cord retention bracket(s)
- Horizontal mounting brackets
- Installation guide
- User manual
- Country of Origin: India
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 2 Year
