APC Smart-UPS Step-Down Transformer, 5kVA, rackmount, 2U, 12x NEMA 5-20R outlets - SRT5KRMTF
Key Features
- 5kVA step-down transformer Smart-UPS accessory
Product Overview
This step-down transformer is part of the Smart-UPS accessories. This is a 5kVA step-down transformer and can be used with 5kVA SRT On-Line rackmount UPS. It can be installed in a 19 inch rack with supplied rail kit. The UPS has an additional SmartSlot for connectivity and PowerChute Network Shutdown support for graceful unattended shutdown. It comes with NEMA L6-30P input and 12x NEMA 5-20R output. The UPS has a 2-year warranty. Its dimensions are 637mm (depth) x 89mm (height) x 432mm (width) and weighs 43.09kg. Ideal for servers, voice/data networks, medical labs, and light industrial applications. It conforms to CSA and UL 1778. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
General Information
- Manufacturer: Schneider Electric SA
- Manufacturer Part Number: SRT5KRMTF
- Brand Name: APC by Schneider Electric
- Product Name: Smart-UPS 5kVA 2U RM Step-Down Transformer
- Product Type: Step Down Transformer
Technical Information
- Power Rating: 5000 VA
- Input Receptacle Type: NEMA L6-30P

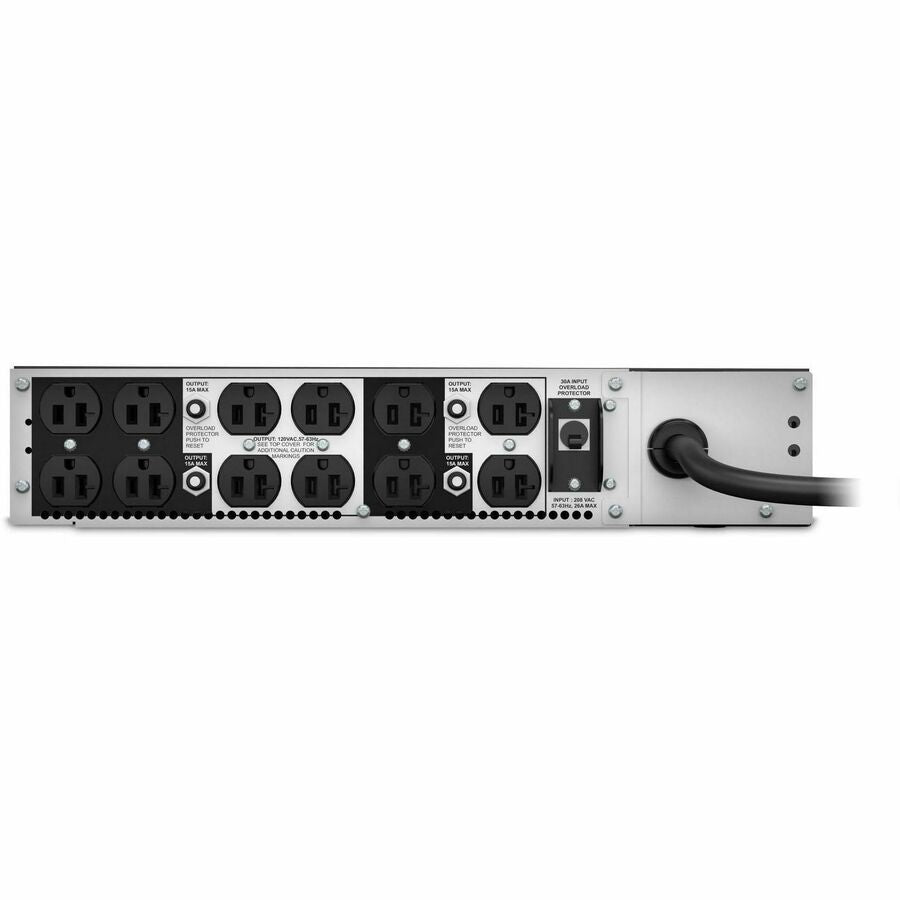

- Output Receptacle Type: NEMA 5-20R
Power Description
- Input Voltage: 208 V
- Output Voltage: 120 V
- Maximum Line Current: 30 A
Physical Characteristics
- Height: 3.5"
- Width: 17"
- Depth: 25.1"
- Form Factor: Rack-mountable
- Rack Height: 2U
- Weight (Approximate): 95 lb
Miscellaneous
- Package Contents:
- Smart-UPS 5kVA 2U RM Step-Down Transformer
- Mounting hardware
- Rack mounting brackets
- User manual
- Warranty card
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 2 Year
