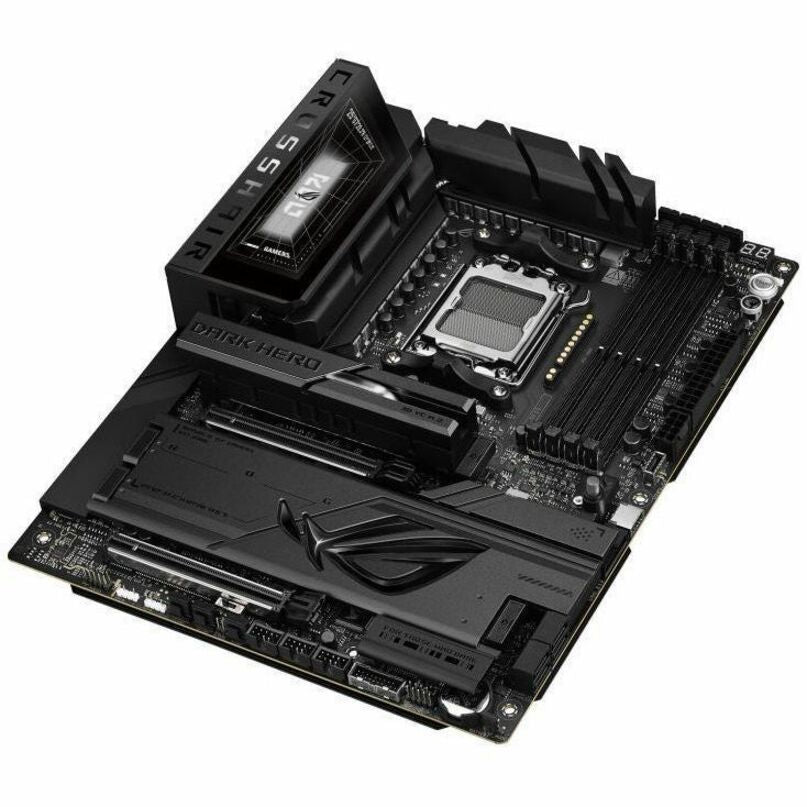

Asus ROG Crosshair X870E DARK HERO Gaming Desktop Motherboard - AMD X870E Chipset - Socket AM5 - ATX - ROG CROSSHAIR X870E DARK HERO
Key Features
- ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
- Compatible Ryzen 9 processor lets you perform all your computational tasks at a swift pace
- DisplayPort host interface allows audio and video signals to be shared in a single cable transmission to ensure maximum efficiency
- HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
- Supported 0 RAID levels provide data reliability and fault tolerance
- The DDR5 SDRAM efficiently move data across electric components and provide smooth PC performance
- Wireless LAN support lets you connect to the internet and have instant access to social media, music, movies and online games
Product Overview

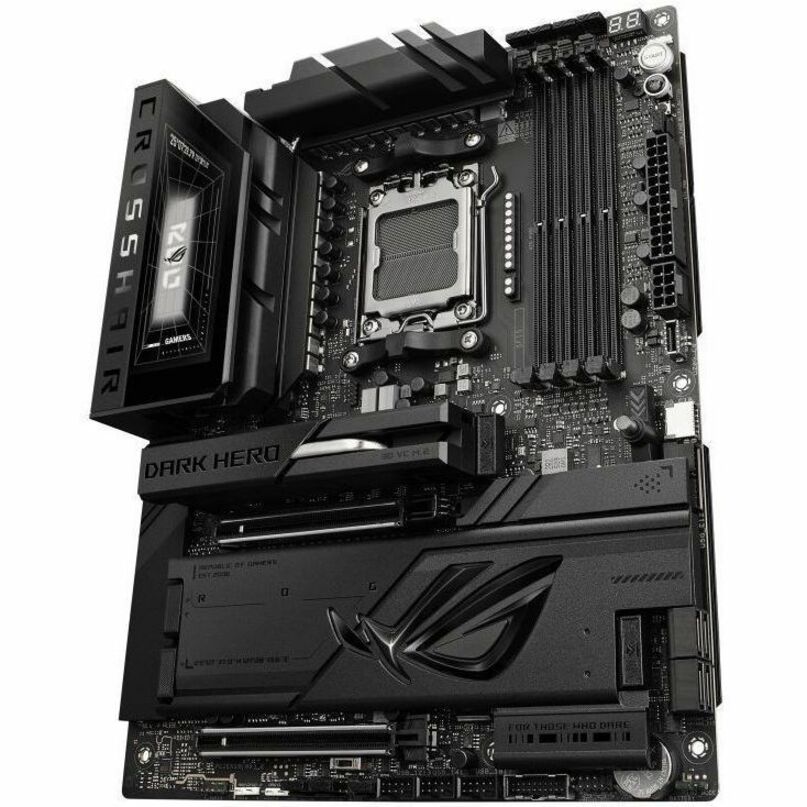

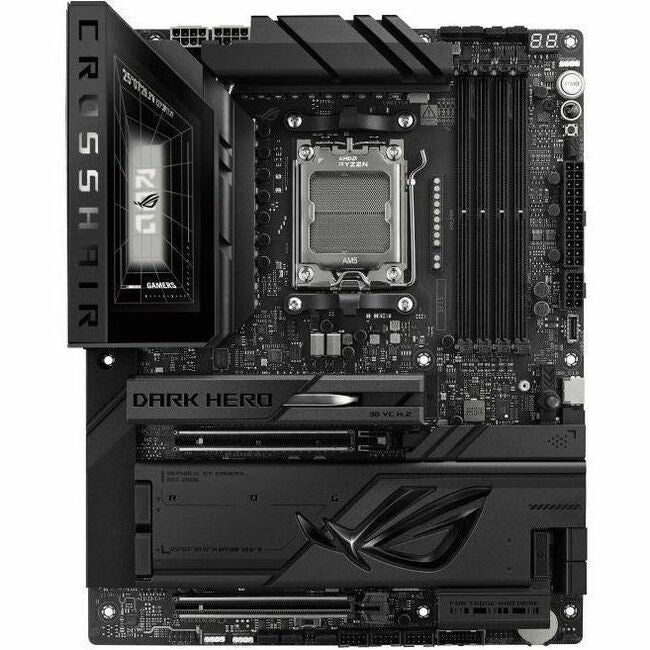

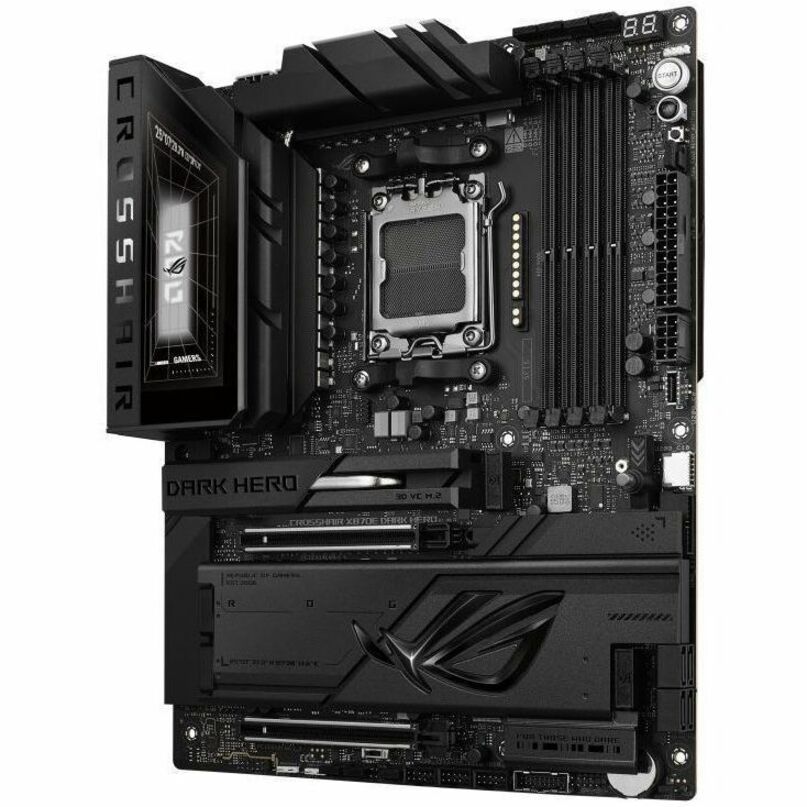

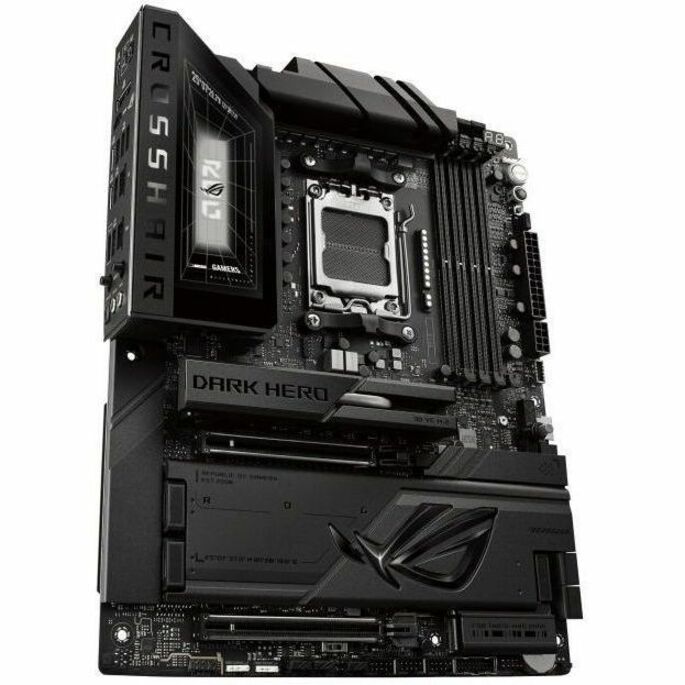

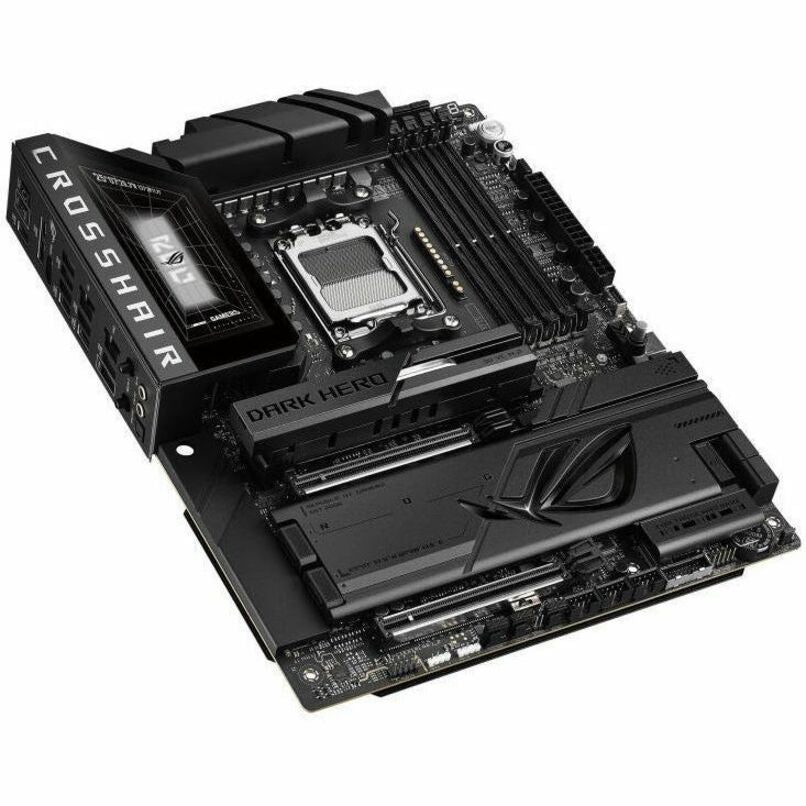

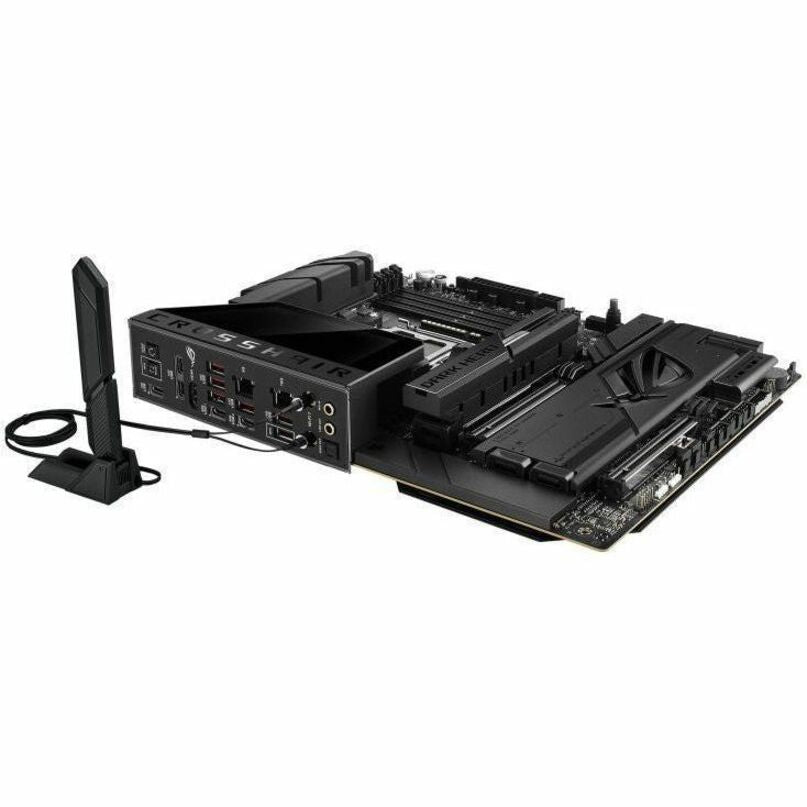

ROG CROSSHAIR X870E DARK HERO
Clad in a sleek, understated black design, the ROG Crosshair X870E Dark Hero delivers refined performance for high-end builds, featuring a robust 20+2+2 power stage design, support for high-speed DDR5 memory, and the latest PCIe® 5.0 connectivity. It offers five onboard M.2 SSD slots with heatsinks, including a 3D VC M.2 heatsink for advanced thermal performance, along with Realtek 10G Ethernet and USB4® ports for next-generation connectivity. ASUS-exclusive AI technologies and Polymo Lighting II complete the platform, balancing intelligent tuning with a clean, premium aesthetic.
ASUS AI INTELLIGENCE | AI CACHE BOOST
Supercharge your large language model (LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 and 600 series motherboards that use Ryzen™ 9000 Series CPUs, this BIOS setting optimizes CPU cache and memory pathways to deliver up to 29% faster local LLM performance with high-speed memory tuning.
ASUS AI ADVISOR
Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way
General Information
- Manufacturer: ASUS Computer International
- Manufacturer Part Number: ROG CROSSHAIR X870E DARK HERO
- Brand Name: Asus ROG
- Product Line: Crosshair
- Product Model: X870E DARK HERO
- Product Name: CROSSHAIR X870E DARK HERO Gaming Desktop Motherboard
- Product Type: Gaming Desktop Motherboard
Technical Information
- AI-powered: Yes
Processor & Chipset
- Chipset Manufacturer: AMD
- Chipset Model: X870E
- Total Processor Supported: 1
- Processor Socket: Socket AM5
- Processor Supported:
- Ryzen 9
- Ryzen 7
Memory
- Number of Memory Slots: 4
- Memory Form Factor:
- DIMM
- UDIMM
- Maximum Memory Supported: 256 GB
- Memory Speed Supported:
- 9600 MHz
- 9200 MHz
- 8600 MHz
- 8200 MHz
- 8000 MHz
- Memory Technology: DDR5 SDRAM
- Error Checking: ECC
I/O Controller
- Controller Type: Serial ATA/600
- RAID Supported: Yes
- RAID Levels:
- 0
- 1
- 5
- 10
Video
- Onboard Video: CPU Dependent Video
Audio
- Audio Channels: 7.1
Network & Communication
- Bluetooth: Yes
- Bluetooth Standard: Bluetooth 5.4
- Gigabit Ethernet: Yes
- 2.5Gigabit Ethernet: Yes
- 10Gigabit Ethernet: Yes
- Wireless LAN: Yes
- Wireless LAN Standard: IEEE 802.11be
I/O Expansions
- Total Number of Expansion Slots: 6
- Total Number of PCI Express Slots: 6
- Number of PCI Express x16 Slots: 6
- PCI Express Standard:
- PCI Express 5.0
- PCI Express 4.0
- PCI Express 3.0
Interfaces/Ports
- Total Number of USB Ports: 11
- S/PDIF: Yes
- VGA: Yes
- HDMI: Yes
- DisplayPort: Yes
- Number of Network (RJ-45) Ports: 2
Onboard Interfaces
- Number of SATA Interfaces: 4
- Number of M.2 Interfaces: 5
- Total Number of Onboard USB Ports: 12
- Number of Onboard USB 2.0 Ports: 6
Physical Characteristics
- Form Factor: ATX
- Height: 14.6"
- Width: 4.3"
- Depth: 12"
- Weight (Approximate): 9.90 lb
Miscellaneous
- Package Contents:
- CROSSHAIR X870E DARK HERO Gaming Desktop Motherboard
- 4 x SATA 6Gb/s cables
- 1 x DDR5 fan holder
- 1 x ROG assistant fan (60mm)
- 1 x Screw package for cooling kit
- 1 x Thermal pad for M.2 22110
- 1 x ASUS WiFi Q-Antenna
- 1 x Q-connector
- 3 x M.2 Q-Slide package
- 5 x M.2 backplate rubber packages
- 1 x ROG stickers
- 1 x ROG VIP card
- 1 x ROG Bottle Opener
- 1 x Quick start guide
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
- China Restriction of Hazardous Substances (China RoHS)
Warranty
- Limited Warranty: 3 Year
