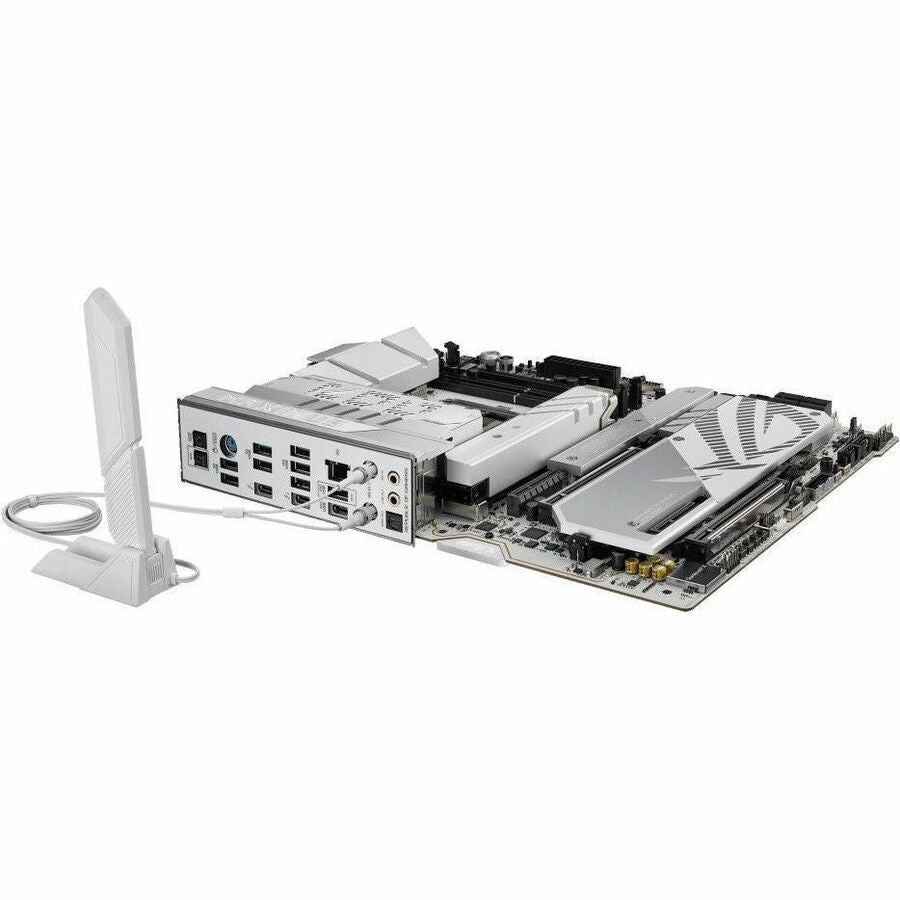

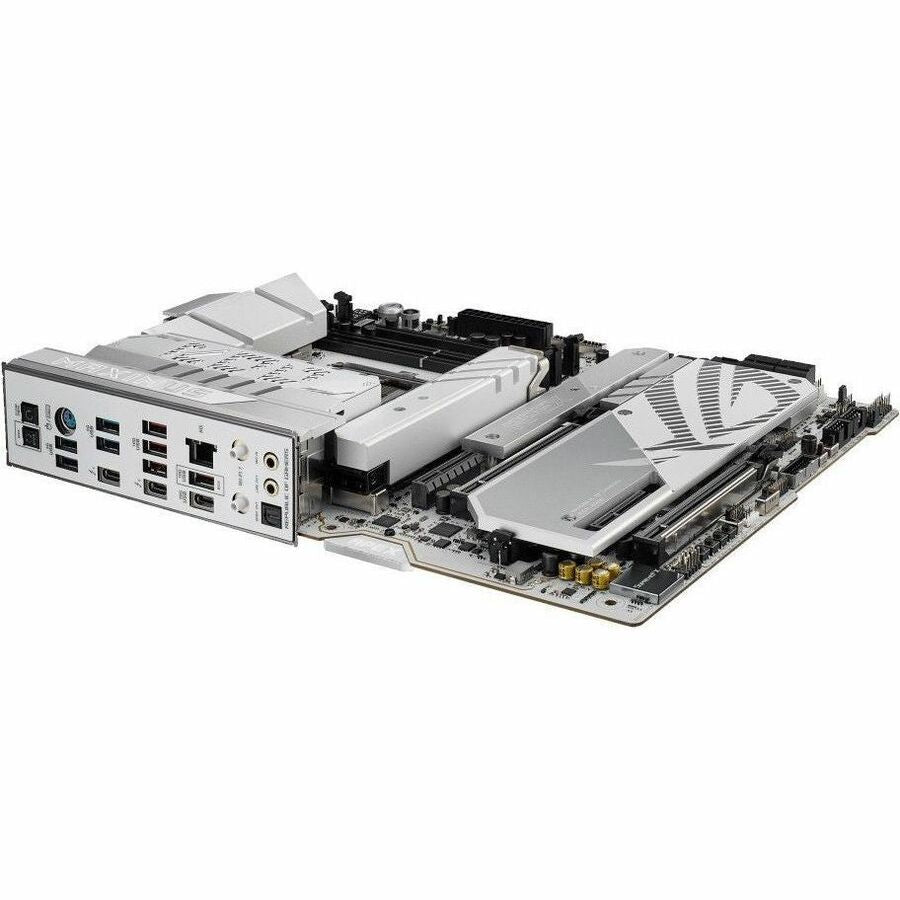

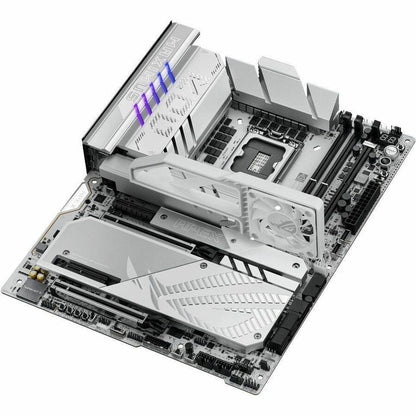

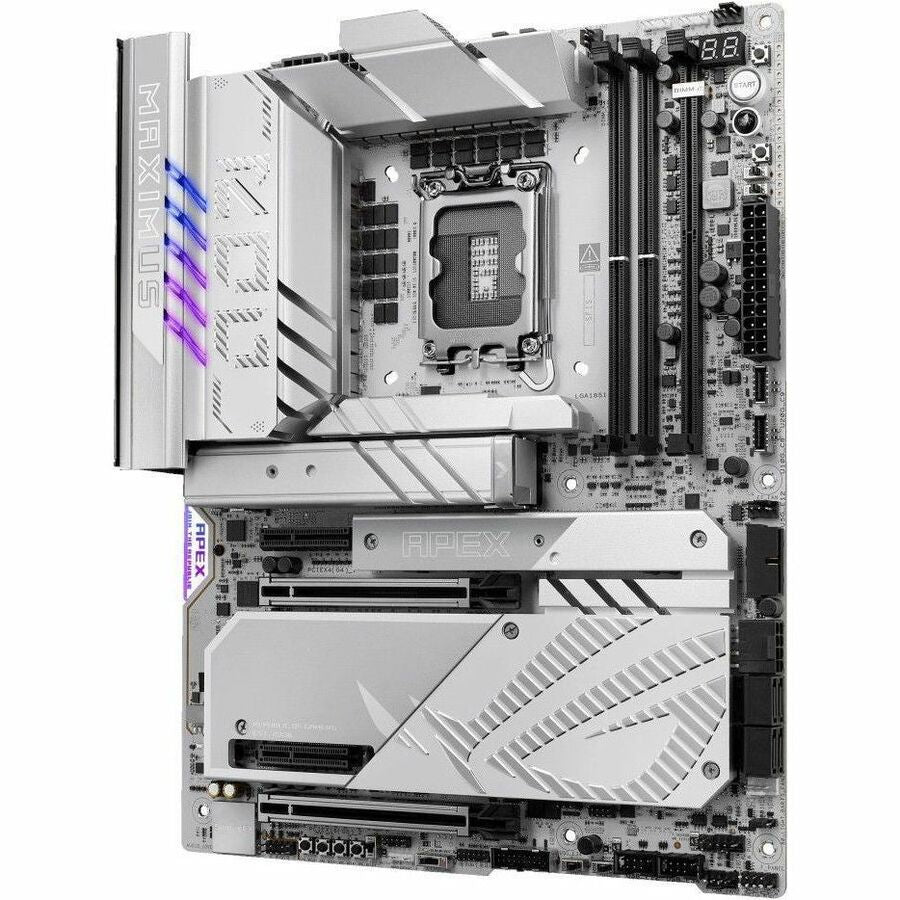

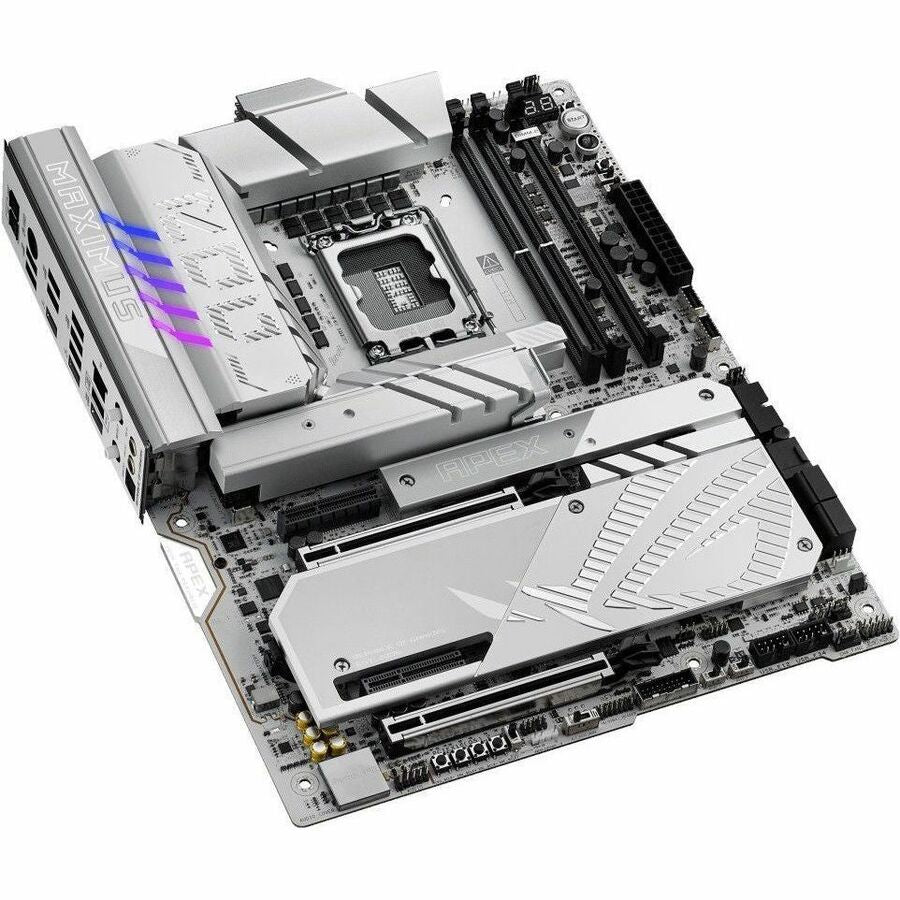

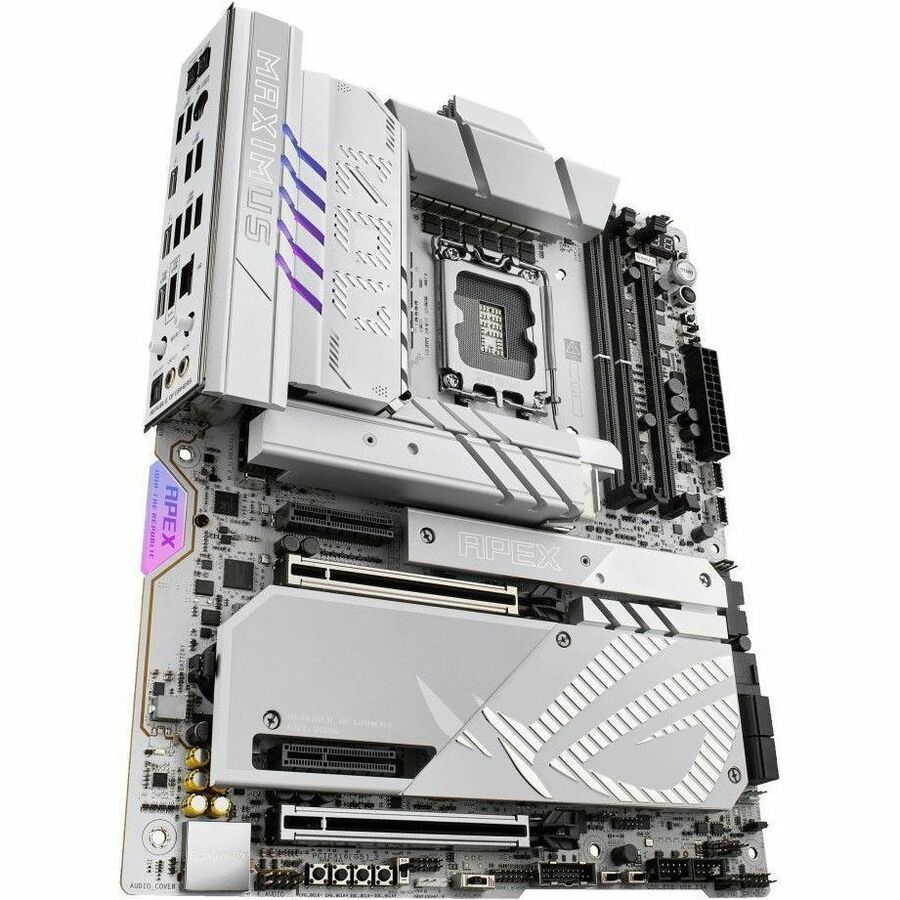

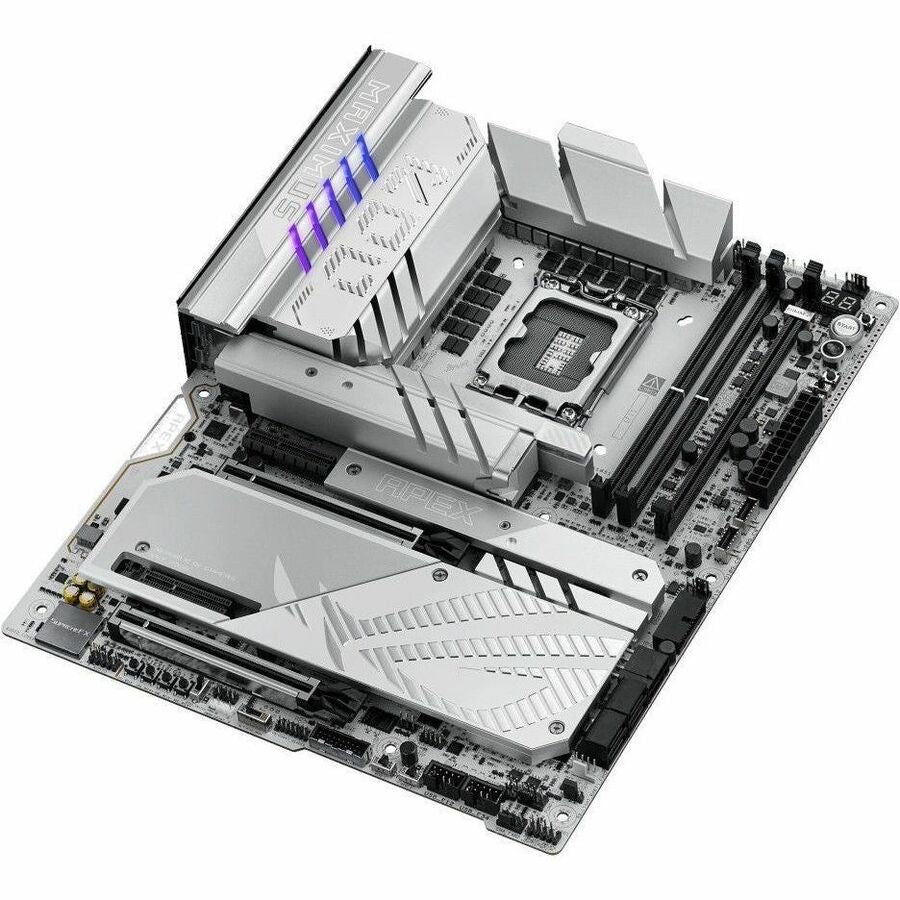

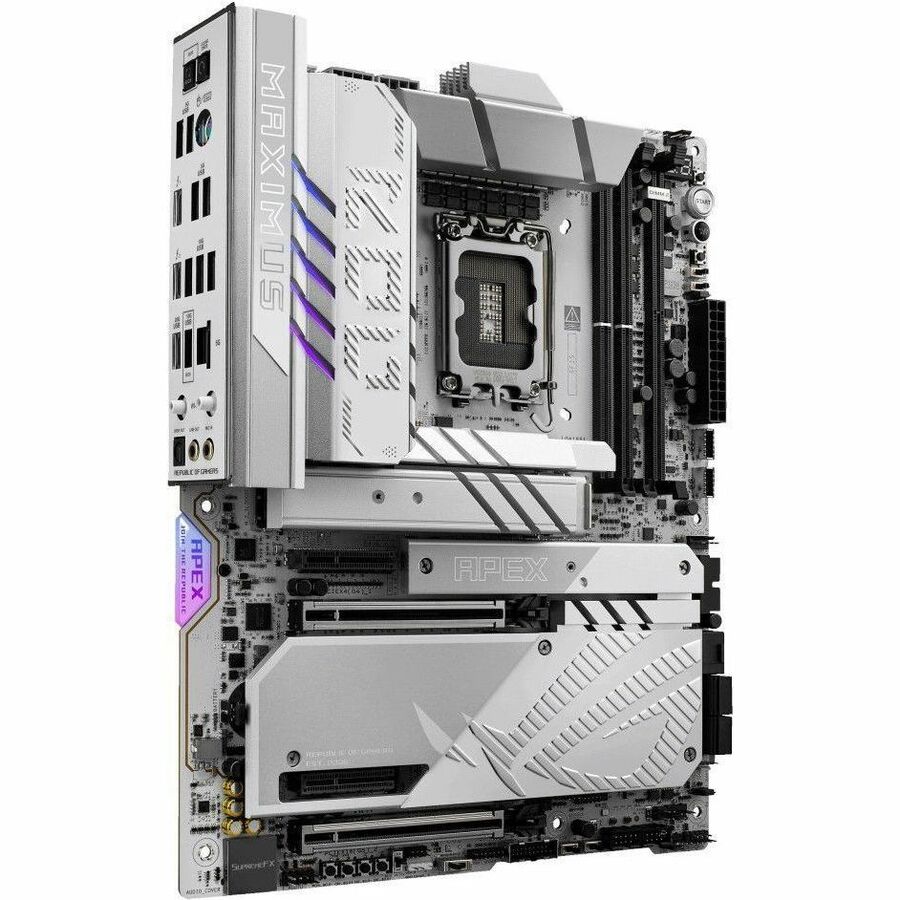

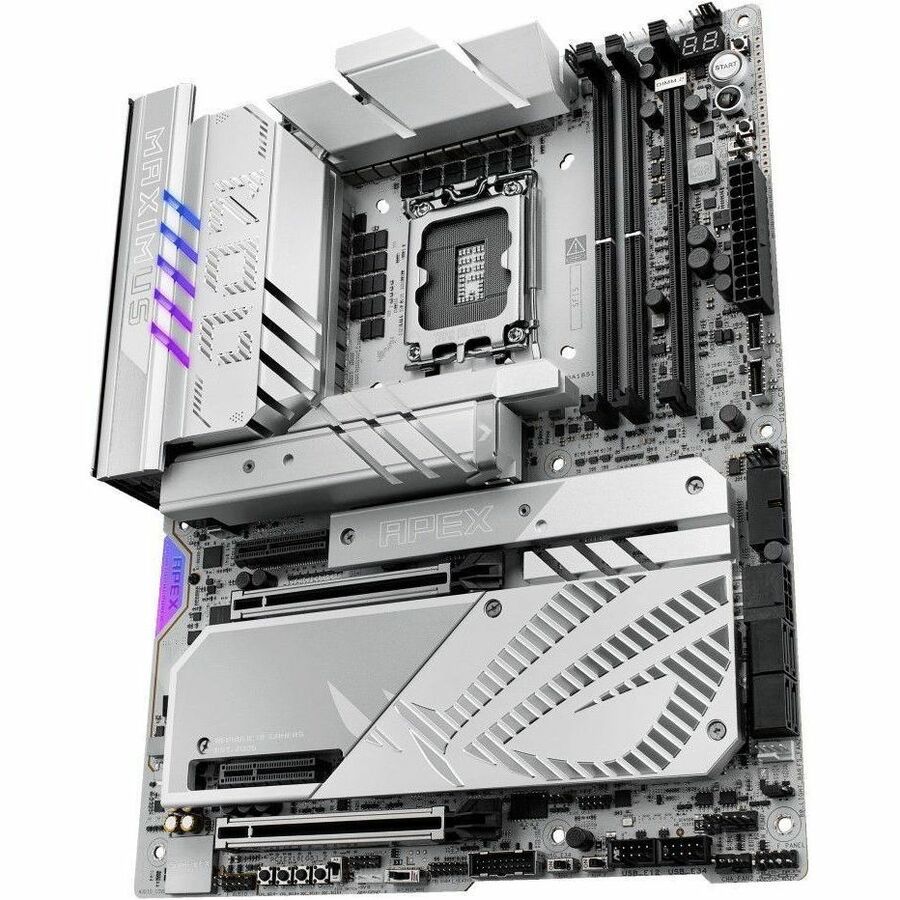

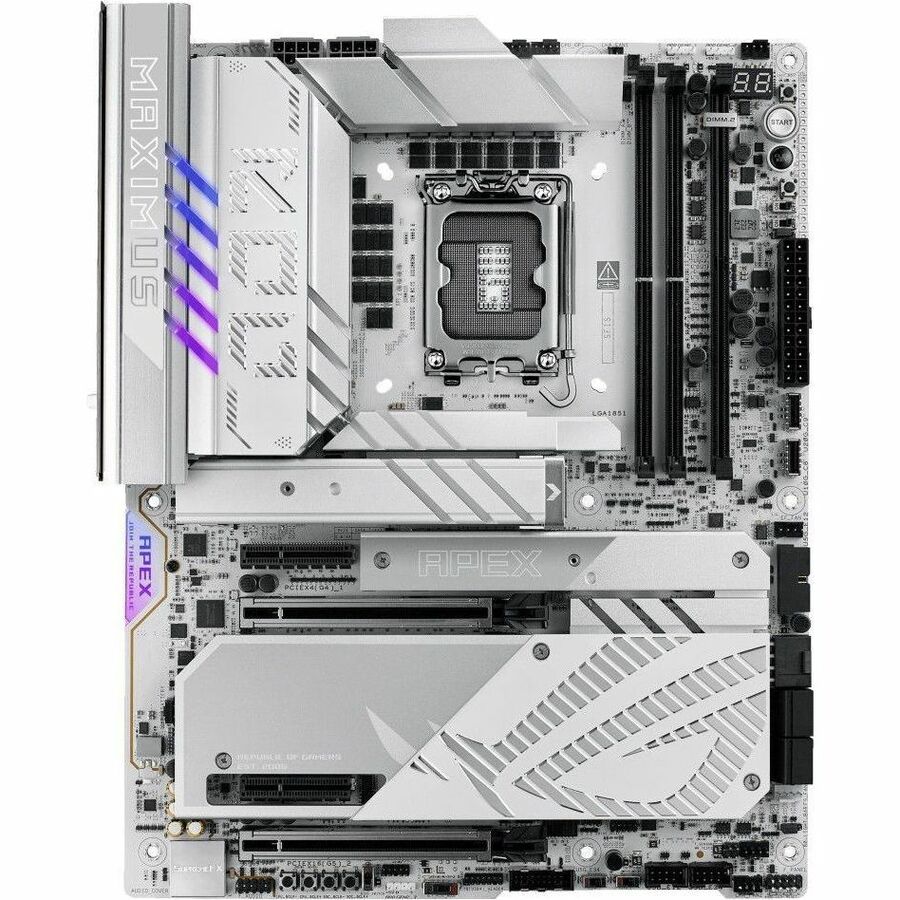

Asus ROG MAXIMUS Z890 APEX Gaming Desktop Motherboard - Intel Z890 Chipset - Socket LGA-1851 - ATX - ROG MAXIMUS Z890 APEX
Key Features
- Compatible Core processor lets you perform all your computational tasks at a swift pace
- DisplayPort host interface allows audio and video signals to be shared in a single cable transmission to ensure maximum efficiency
- Enjoy the freedom of Wi-Fi and connect devices faster
- RAID supported levels provide data reliability and fault tolerance
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX gaming desktop motherboard
- Thunderbolt host interface lets you move data between your devices and your computer with unprecedented speed
- With DDR5 SDRAM get efficient data transfer rate and enhanced computer's performance
Product Overview
AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7.
ai OVERCLOCKING
Tuning is now faster and smarter than ever before.
AI COOLING II
Balance the thermals and acoustics of any build with a single click.
ASUS AI ADVISOR
Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple andstraightforward way.
Performance
OVERCLOCKING
NPU BOOST
The integrated NPU in Intel®Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows - and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.
General Information
- Manufacturer: ASUS Computer International
- Manufacturer Part Number: ROG MAXIMUS Z890 APEX
- Brand Name: Asus ROG
- Product Model: MAXIMUS Z890 APEX
- Product Name: MAXIMUS Z890 APEX Gaming Desktop Motherboard
- Product Type: Gaming Desktop Motherboard
Technical Information
- AI-powered: Yes
Processor & Chipset
- Chipset Manufacturer: Intel
- Chipset Model: Z890
- Total Processor Supported: 1
- Processor Socket: Socket LGA-1851
- Processor Supported: Core
Memory
- Number of Memory Slots: 2
- Memory Form Factor:
- DIMM
- UDIMM
- Maximum Memory Supported: 96 GB
- Memory Technology: DDR5 SDRAM
I/O Controller
- Controller Type: Serial ATA/600
- RAID Supported: Yes
- RAID Levels:
- 0
- 1
- 5
- 10
Video
- Onboard Video: CPU Dependent Video
Audio
- Audio Channels: 7.1
Network & Communication
- Bluetooth: Yes
- Bluetooth Standard: Bluetooth 5.4
- Gigabit Ethernet: Yes
- Wireless LAN: Yes
- Wireless LAN Standard: IEEE 802.11be
I/O Expansions
- Total Number of Expansion Slots: 4
- Total Number of PCI Express Slots: 4
- Number of PCI Express x4 Slots: 2
- Number of PCI Express x16 Slots: 2
- PCI Express Standard:
- PCI Express 5.0
- PCI Express 4.0

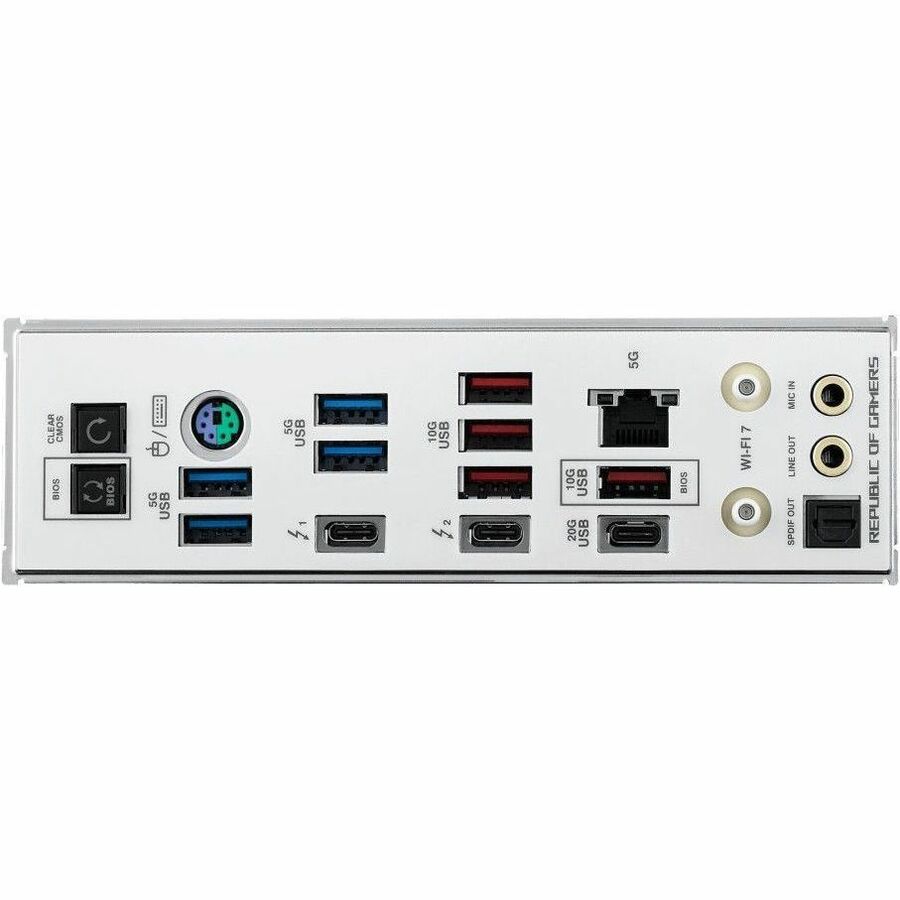

Interfaces/Ports
- Total Number of USB Ports: 11
- S/PDIF: Yes
- DisplayPort: Yes
- Number of Network (RJ-45) Ports: 1
- Thunderbolt: Yes
- Number of Thunderbolt 4 Ports: 2
Onboard Interfaces
- Number of SATA Interfaces: 4
- Number of M.2 Interfaces: 6
- Total Number of Onboard USB Ports: 10
- Number of Onboard USB 2.0 Ports: 4
Physical Characteristics
- Form Factor: ATX
- Width: 12"
- Depth: 9.6"
