Asus ROG Strix B650-A GAMING WIFI Gaming Desktop Motherboard - AMD B650 Chipset - Socket AM5 - ATX - ROG STRIX B650-A GAMING WIFI
Key Features
- ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
- DisplayPort host interface allows audio and video signals to be shared in a single cable transmission to ensure maximum efficiency
- HDMI interface connects the top of the line PCs, Blu-ray players, and cutting edge Gaming Controllers
- RAID supported levels provide data reliability and fault tolerance
- Ryzen processors supported for enhanced, dependable system performance with maximum usability
- Thunderbolt host interface provides a fast and reliable transfer of information from your computer to the connected devices
- Wireless LAN support lets you connect to the internet and have instant access to social media, music, movies and online games
- With DDR5 SDRAM get efficient data transfer rate and enhanced computer's performance
Product Overview
The ROG Strix B650-A Gaming WiFi comes equipped with potent performance and thermal prowess in a fresh-looking package. Robust power delivery designed to handle the latest AMD Ryzen™ 7000 Series processors is cooled with thick metal heatsinks that stand out against a black PCB. A PCIe 5.0 M.2 slot, speedy DDR5 memory support, and the latest WiFi 6E networking fleshes out the futuristic feature set.
PCIE® SLOT Q-RELEASE
A physical button unlocks the first PCIe slot's security latch with a simple press, greatly simplifying the process of removing a PCIe card from the motherboard when it's time to upgrade to a new GPU or add-in card.
ALL-ROUND PERFORMANCE
Robust power delivery, speedy storage and RAM, and comprehensive cooling controls are core fundamentals of the ROG Strix B650-A, thoroughly preparing you for the future of gaming
Blazing fast storage is at your command with a PCIe 5.0 and two PCIe 4.0 M.2 slots, all featuring robust heatsinks to maximize performance. Push speeds even further, create a mirrored backup, or both; NVMe and SATA RAID configurations (0/1/10) are available through AMD RAIDXpert2. The top PCIe 4.0 x16 SafeSlot supports heavy graphics cards and features Q-Release for easy upgrades.
LEADING CONNECTIVITY
The ROG Strix B650-A delivers next-gen connectivity for ultrafast data transfers and low-latency networking. An advanced audio solution allows you to pick out the smallest cues and home in on your opponents.
WIFI 6E
Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.
Intel 2.5G Ethernet
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel@ 2.5 Gbps Ethernet.
General Information
- Manufacturer: ASUS Computer International
- Manufacturer Part Number: ROG STRIX B650-A GAMING WIFI
- Brand Name: Asus ROG
- Product Line: Strix
- Product Model: B650-A GAMING WIFI
- Product Name: STRIX B650-A GAMING WIFI Gaming Desktop Motherboard
- Product Type: Gaming Desktop Motherboard
Processor & Chipset
- Chipset Manufacturer: AMD
- Chipset Model: B650
- Total Processor Supported: 1
- Processor Socket: Socket AM5
- Processor Supported: Ryzen
Memory
- Number of Memory Slots: 4
- Memory Form Factor:
- DIMM
- UDIMM
- Maximum Memory Supported: 128 GB
- Memory Speed Supported:
- 6400 MHz
- 6200 MHz
- 6000 MHz
- 5800 MHz
- 5600 MHz
- 5400 MHz
- 5200 MHz
- 5000 MHz
- 4800 MHz
- Memory Technology: DDR5 SDRAM
I/O Controller
- Controller Type: Serial ATA/600
- RAID Supported: Yes
- RAID Levels:
- 1
- 10
- 0
Video
- Onboard Video: CPU Dependent Video
Audio
- Audio Channels: 7.1
Network & Communication
- Bluetooth: Yes
- Bluetooth Standard: Bluetooth 5.2
- Gigabit Ethernet: Yes
- 2.5Gigabit Ethernet: Yes
- Wireless LAN: Yes
- Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
I/O Expansions
- Total Number of Expansion Slots: 4
- Total Number of PCI Express Slots: 4
- Number of PCI Express x16 Slots: 3
- PCI Express Standard:
- PCI Express 3.0
- PCI Express 4.0

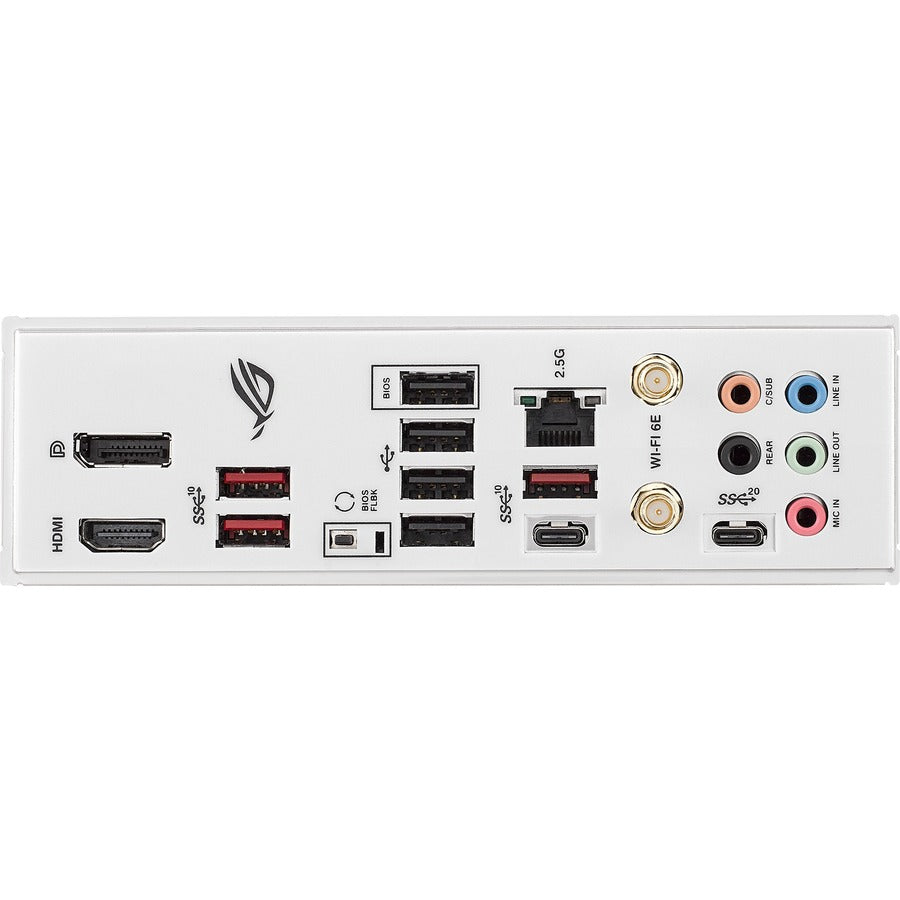

Interfaces/Ports
- Total Number of USB Ports: 9
- Number of USB 3.2 Gen 2 Type-A Ports: 3
- Number of USB 3.2 Gen 2 Type-C Ports: 1
- HDMI: Yes
- DisplayPort: Yes
- Number of Network (RJ-45) Ports: 1
- Thunderbolt: Yes
Onboard Interfaces
- Number of SATA Interfaces: 4
- Number of M.2 Interfaces: 3
- Total Number of Onboard USB Ports: 7
- Number of Onboard USB 2.0 Ports: 4
Physical Characteristics
- Form Factor: ATX
- Width: 12"
- Depth: 9.6"
Miscellaneous
- Package Contents:
- STRIX B650-A GAMING WIFI Gaming Desktop Motherboard
- 2 x SATA 6Gb/s cables
- 1 x Thermal pad for M.2
- 1 x ASUS Wi-Fi moving antennas
- 1 x Cable ties pack
- 1 x M.2 Q-Latch package
- 1 x ROG key chain
- 1 x ROG Strix stickers
- 1 x ROG Strix thank you card
- 2 x M.2 Rubber Packages
- 1 x User guide
