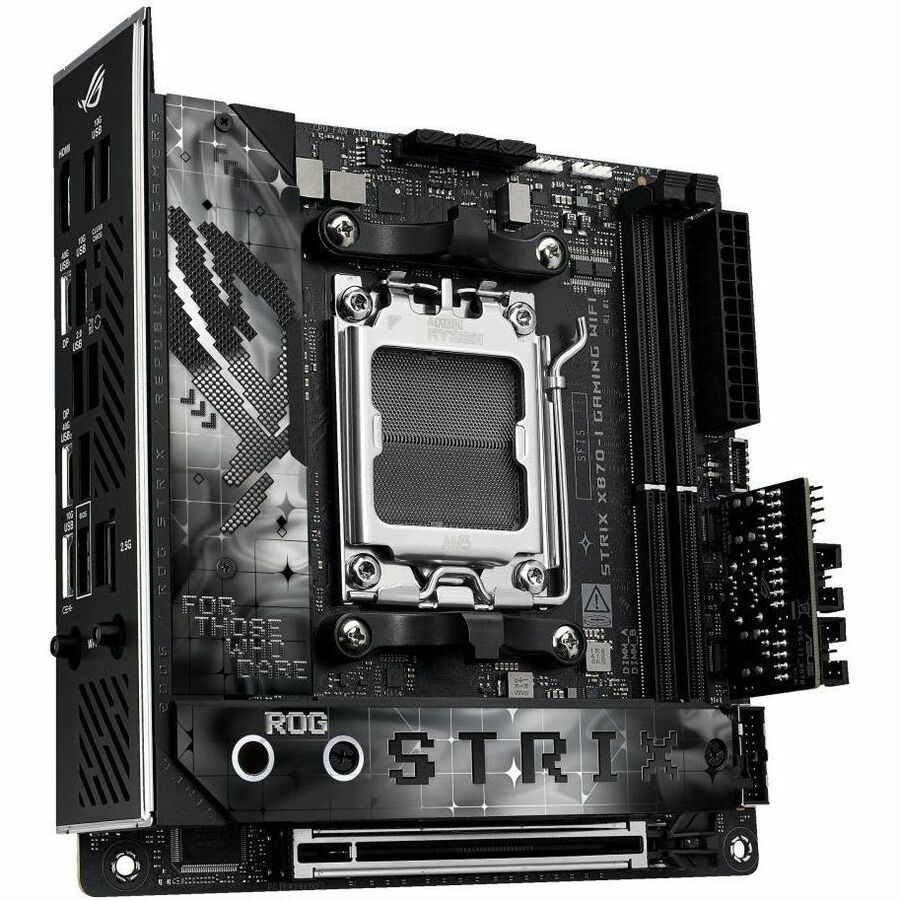

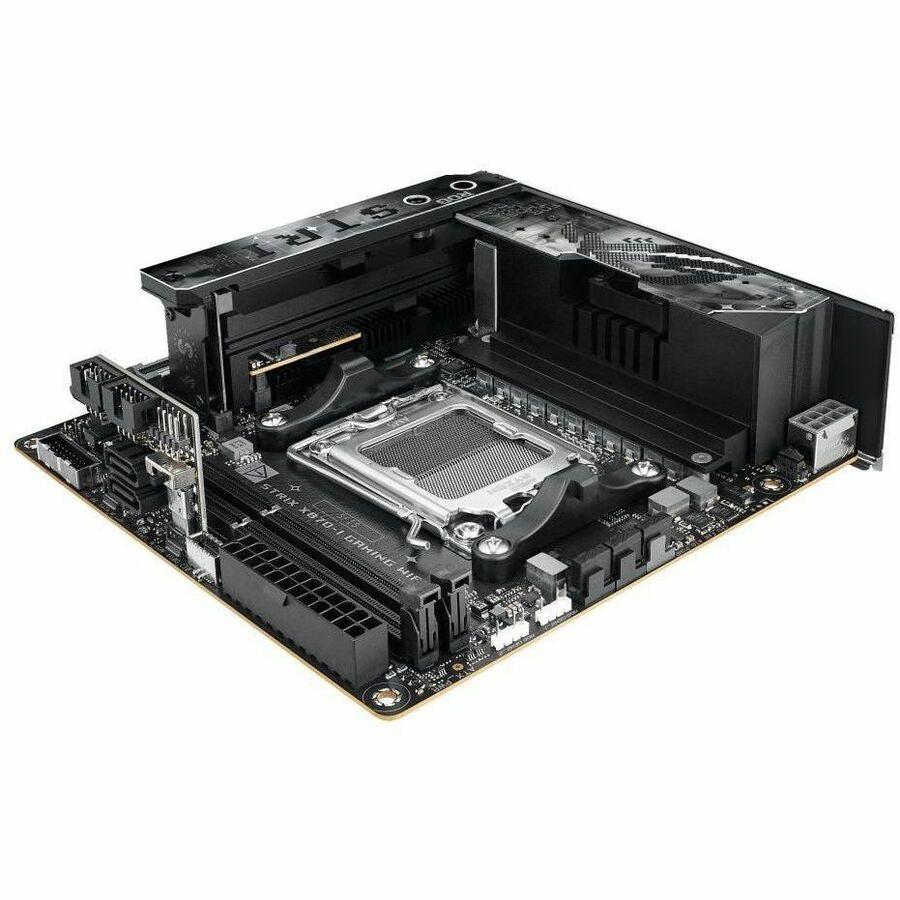

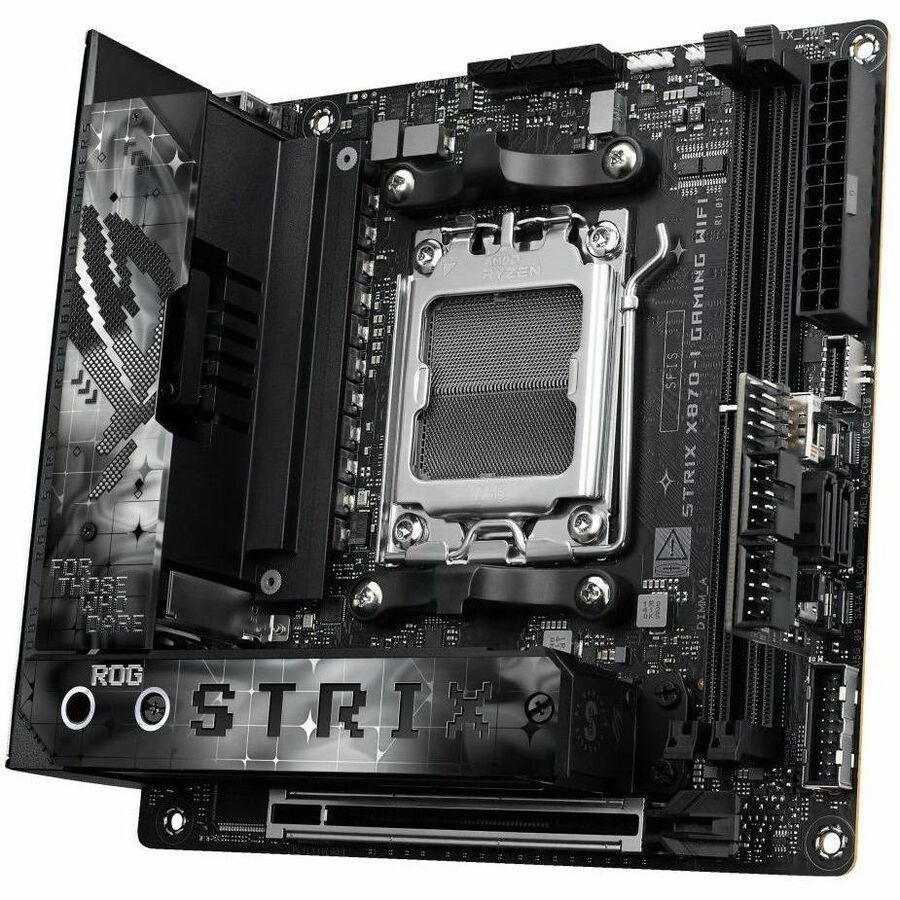

Asus ROG Strix X870-I GAMING WIFI Gaming Desktop Motherboard - AMD X870 Chipset - Socket AM5 - Mini ITX - ROGSTRIXX870IGAMINGWIFI
Key Features
- DisplayPort host interface lets you conveniently connect multiple monitors to increase productivity
- HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
- IEEE 802.11be wireless standard support enables a hassle-free peripheral connection
- Mini ITX form factor builds a perfect symmetry of hardware components needed in media server or NAS box
- RAID supported levels provide data reliability and fault tolerance
- Ryzen 7 processors supported for enhanced, dependable system performance with maximum usability
- The DDR5 SDRAM efficiently move data across electric components and provide smooth PC performance
Product Overview

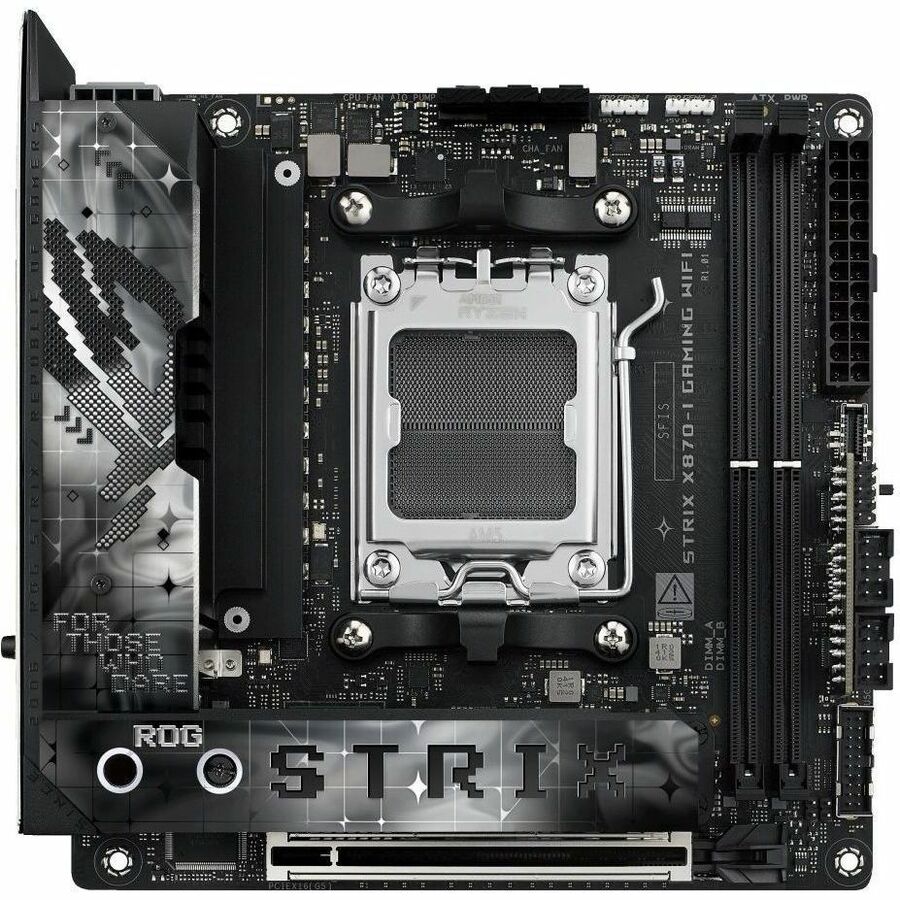

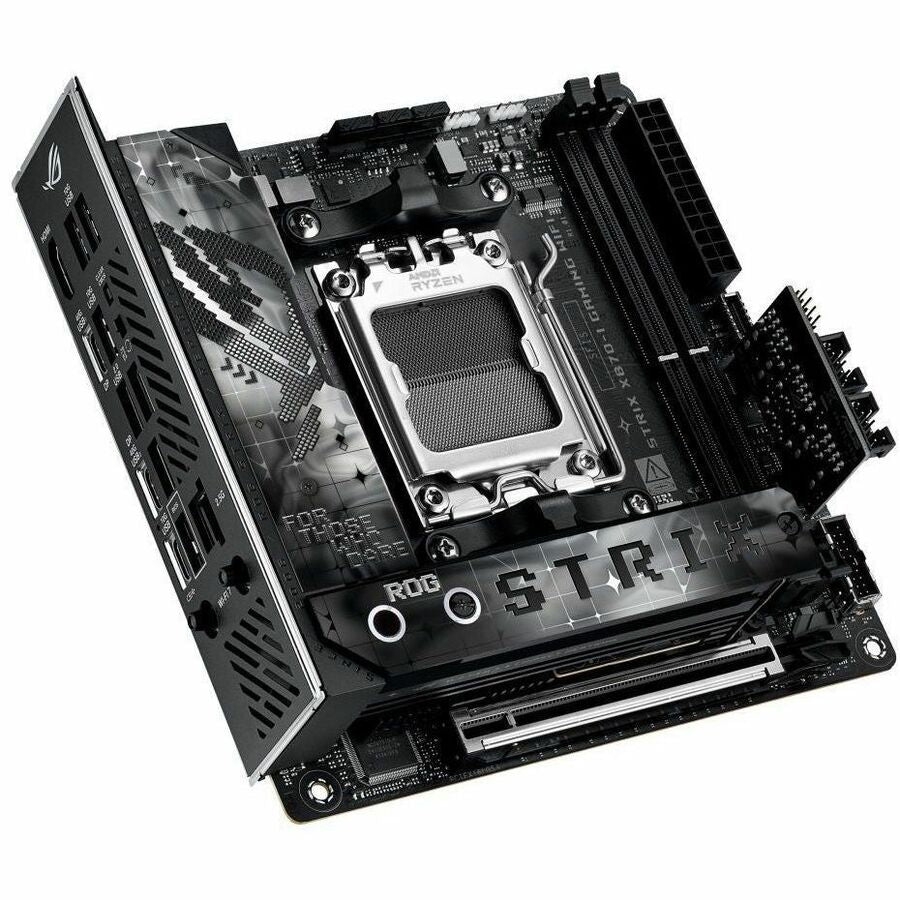

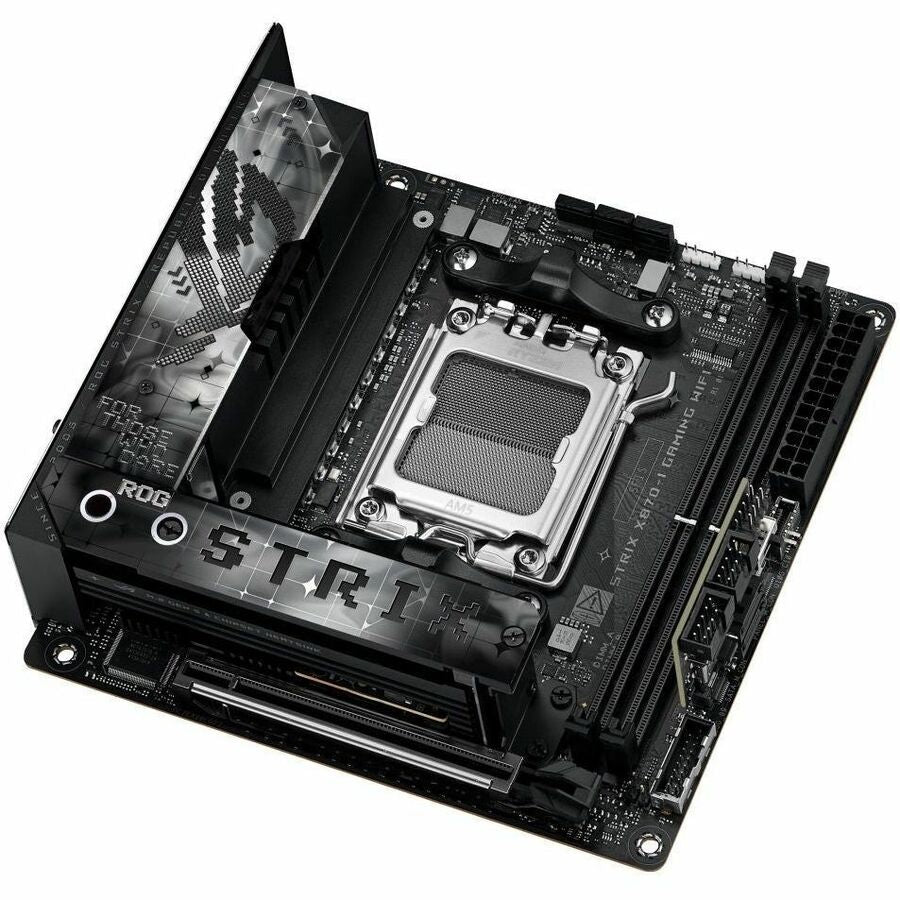

AMD X870 Mini-ITX motherboard with 10+2+1 power stages, Dynamic OC Switcher, Core Flex, DDR5 slots with AEMP, WiFi 7 with ASUS WiFi Q-Antenna, two M.2 slots, PCIe®5.0 x16 SafeSlots with PCIe Slot Q-Release Slim, two USB4®ports, ROG Strix Hive II, AI Overclocking, AI Cooling II, AI Networking II, and Aura Sync RGB lighting.
- Ready for Advanced AI PC:Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AMD AM5 Socket:Ready for AMD Ryzen™ 9000, 8000 and 7000 series desktop processors
- Intelligent Control:ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking II and AEMP to simplify setup and improve performance
- ROG Strix Overclocking technologies:Dynamic OC Switcher, Core Flex, Asynchnorous Clock and PBO Enhancement
- Robust Power Solution:10+2+1 power solution rated for 110A per stage with ProCool II power connectors

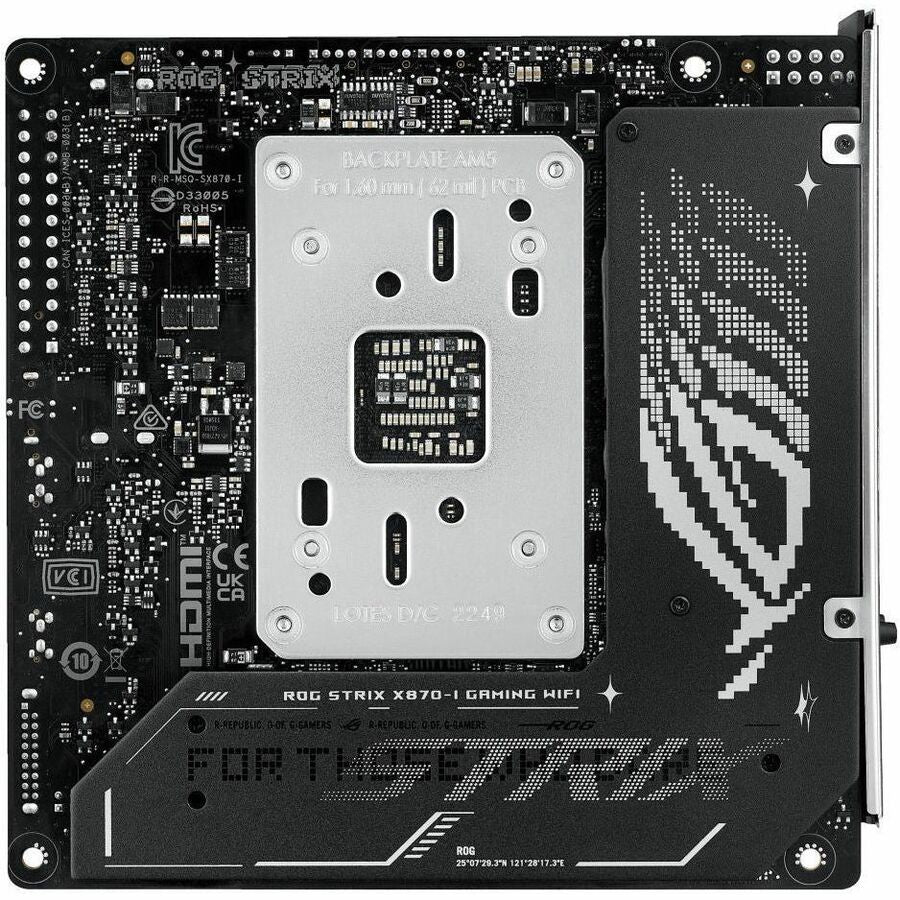

- Optimized Thermal Design:Massive heatsinks with integrated I/O cover and high-conductivity thermal pads, connected with an L-shaped backplate
- Latest M.2 Support:One onboard PCIe®5.0 M.2 slot and one PCIe 4.0 M.2 slots, all with substantial cooling solutions

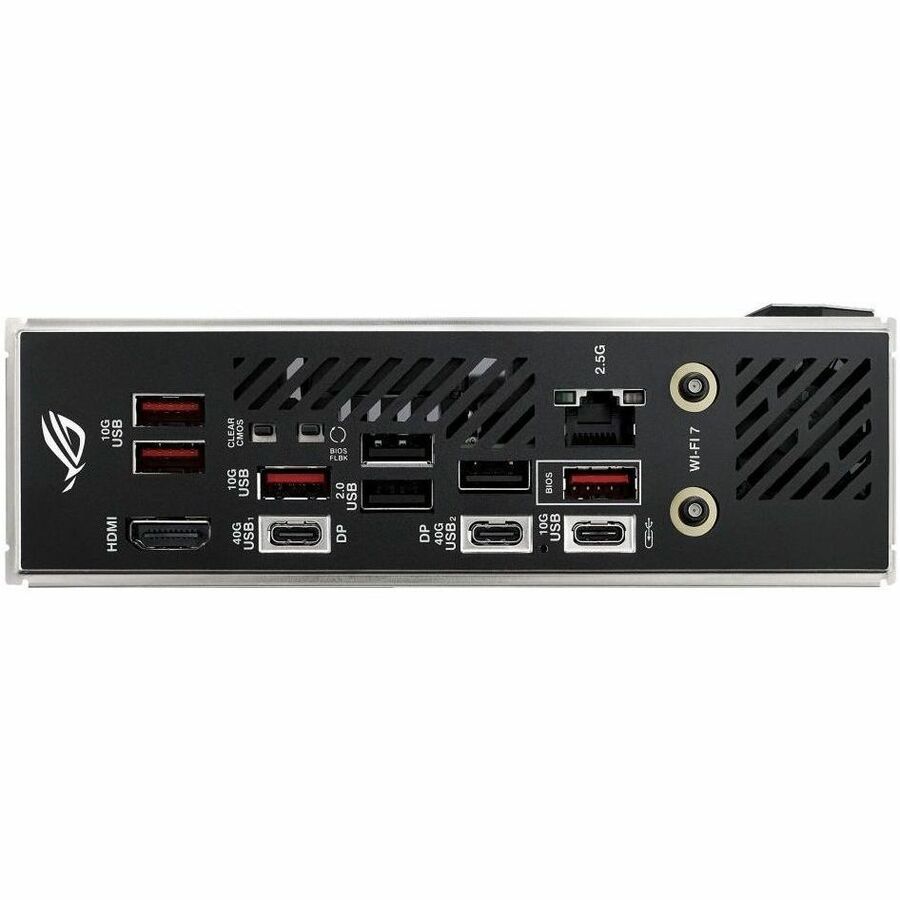

- Abundant Connectivity:Dual USB4®Type-C ports, USB 10Gbps Type-C®front-panel connector, seven additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlot, HDMI™ port
- High-Performance Networking:On-board WiFi 7 (802.11be) with Intel®2.5 Gb Ethernet

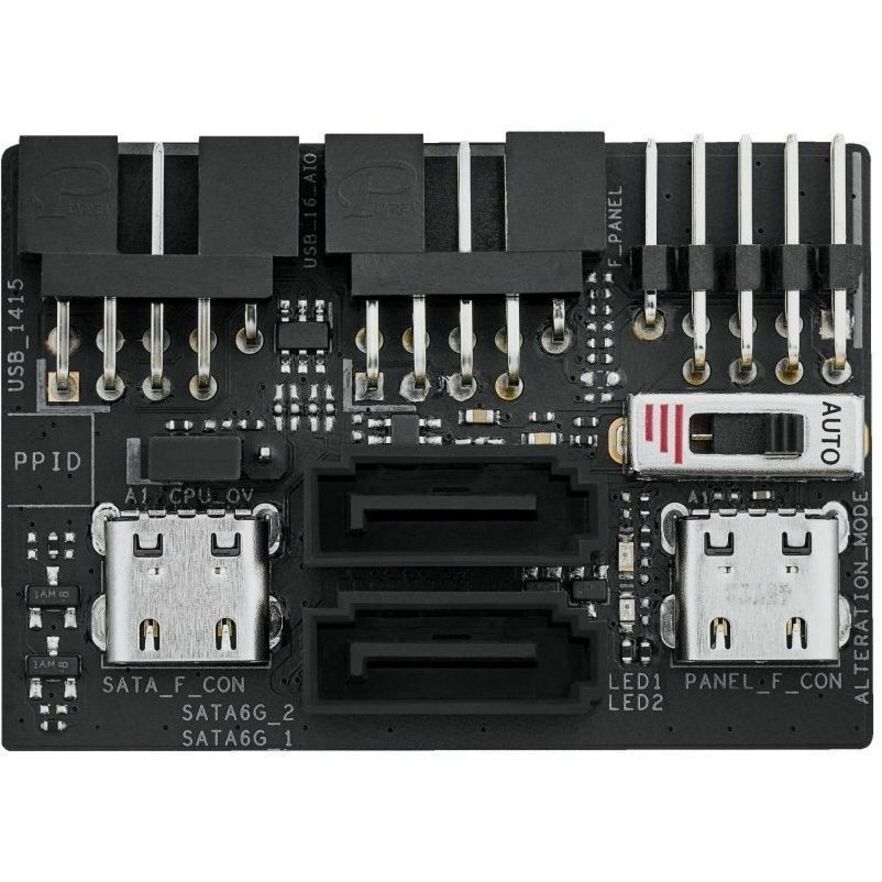

- DIY Friendly Design:Bundled ROG FPS-II Card and ROG Strix Hive II, PCIe Slot Q-Release Slim, M.2 Q-Latch, Q-Antenna, Q-Dashboard, Q-LED, BIOS FlashBack™ button, Clear CMOS button and pre-mounted I/O shield

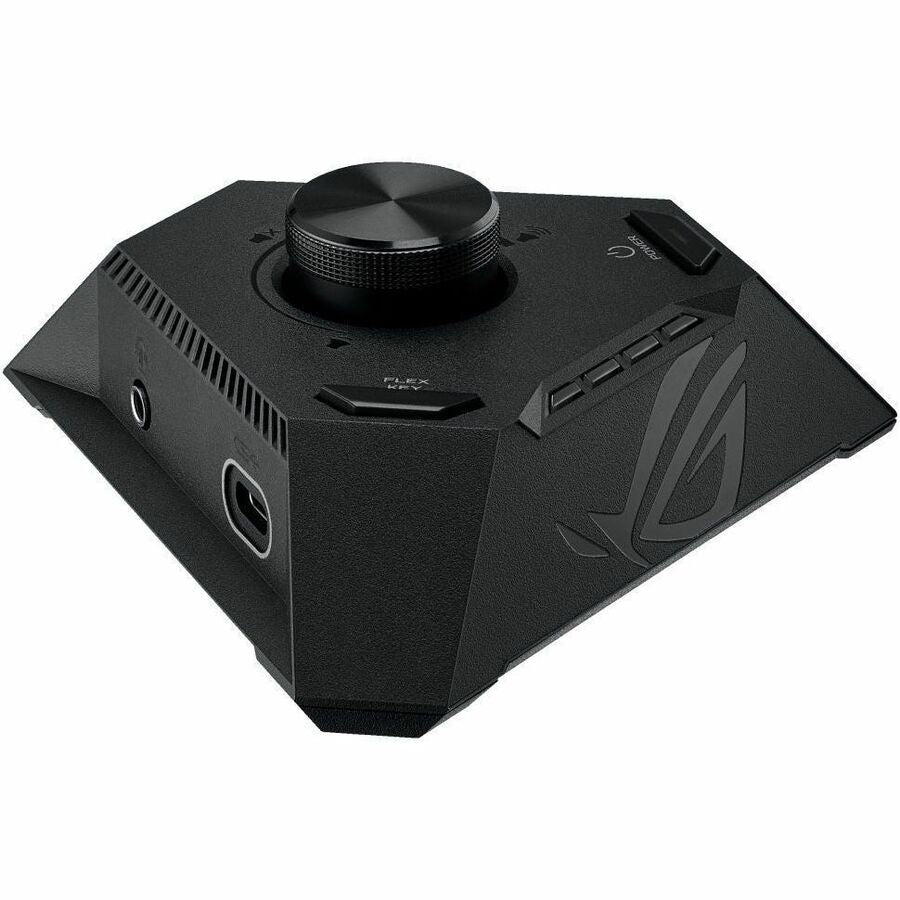

- Immersive Audio:ROG Strix Hive II external audio solution with ESS™ SABRE 9260Q DAC, along with Dolby Atmos®
- Unmatched Personalization:ASUS-exclusive Aura Sync RGB lighting, including two addressable Gen 2 headers
- Renowned Software:ASUS DriverHub, ASUS GlideX, HWiNFO, Norton 360 for Gamers (60-day free trial), bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard.
General Information
- Manufacturer: ASUS Computer International
- Manufacturer Part Number: ROGSTRIXX870IGAMINGWIFI
- Brand Name: Asus ROG
- Product Line: Strix
- Product Model: X870-I GAMING WIFI
- Product Name: Strix X870-I GAMING WIFI Gaming Desktop Motherboard
- Product Type: Gaming Desktop Motherboard
Technical Information
- AI-powered: Yes
Processor & Chipset
- Chipset Manufacturer: AMD
- Chipset Model: X870
- Total Processor Supported: 1
- Processor Socket: Socket AM5
- Processor Supported:
- Ryzen 7
- Ryzen 9
Memory
- Number of Memory Slots: 2
- Memory Form Factor:
- DIMM
- UDIMM
- Maximum Memory Supported: 96 GB
- Memory Speed Supported: 8000 MHz
- Memory Technology: DDR5 SDRAM
- Error Checking: ECC
I/O Controller
- Controller Type: Serial ATA/600
- RAID Supported: Yes
- RAID Levels:
- 0
- 1
- 10
Video
- Onboard Video: CPU Dependent Video
Network & Communication
- Bluetooth: Yes
- Bluetooth Standard: Bluetooth 5.4
- Gigabit Ethernet: Yes
- 2.5Gigabit Ethernet: Yes
- Wireless LAN: Yes
- Wireless LAN Standard: IEEE 802.11be
I/O Expansions
- Total Number of Expansion Slots: 2
- Total Number of PCI Express Slots: 2
- Number of PCI Express x16 Slots: 2
- PCI Express Standard:
- PCI Express 4.0
- PCI Express 5.0
Interfaces/Ports
- Total Number of USB Ports: 10
- VGA: Yes
- HDMI: Yes
- DisplayPort: Yes
- Number of Network (RJ-45) Ports: 1
Onboard Interfaces
- Number of SATA Interfaces: 2
- Number of M.2 Interfaces: 2
- Total Number of Onboard USB Ports: 3
Physical Characteristics
- Form Factor: Mini ITX
- Width: 6.7"
- Depth: 6.7"
- Weight (Approximate): 3.95 lb
Miscellaneous

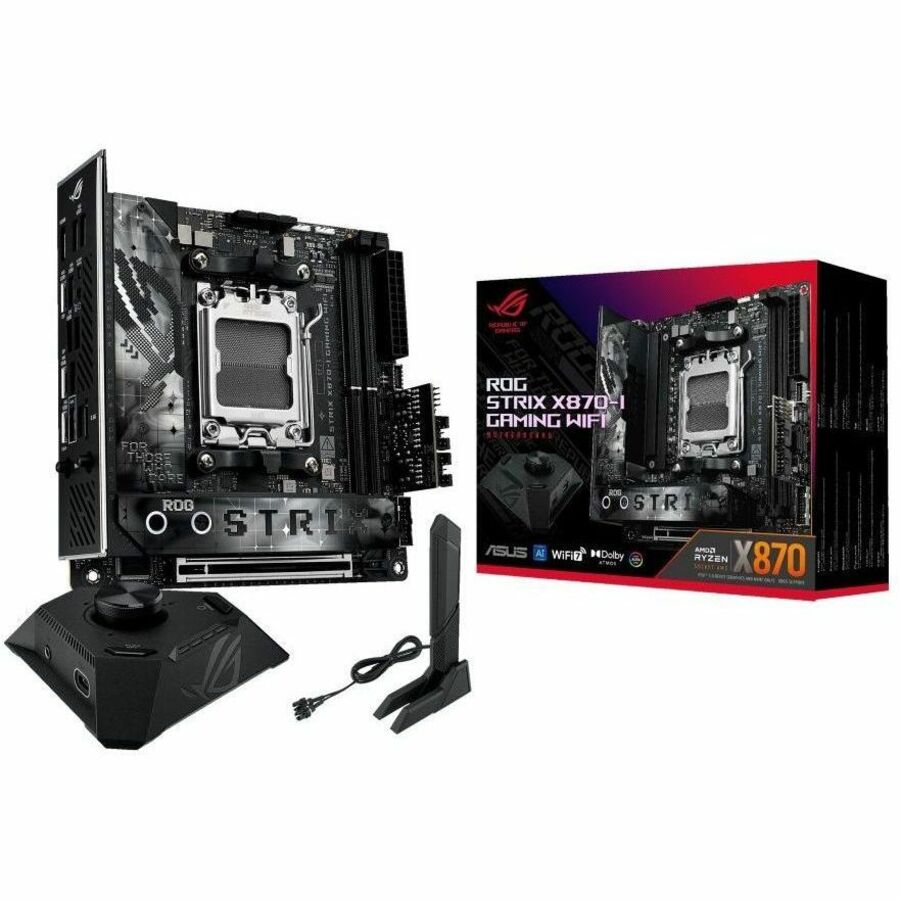

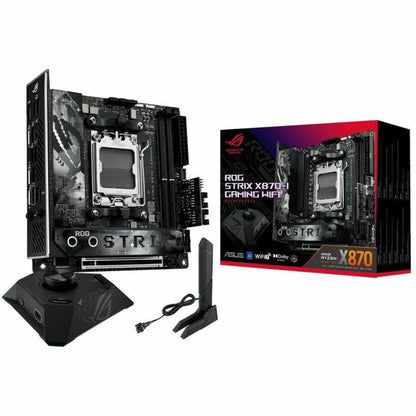

- Package Contents:
- Strix X870-I GAMING WIFI Gaming Desktop Motherboard
- 1 x Panel cable
- 1 x ROG USB2.0 splitter cable
- 2 x SATA 6Gb/s cables
- 1 x ROG FPS Card
- 1 x ROG STRIX HIVE II
- 1 x USB Type-C® power connection cable
- 1 x ASUS WiFi Q-Antenna
- 1 x Cable ties package
- 1 x M.2 Q-Latch package(s)
- 1 x ROG key chain
- 1 x ROG Strix stickers
- 1 x M.2 rubber package(s)
- 1 x Quick start guide
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
