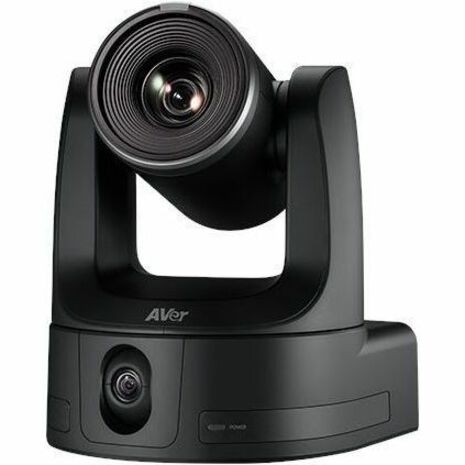

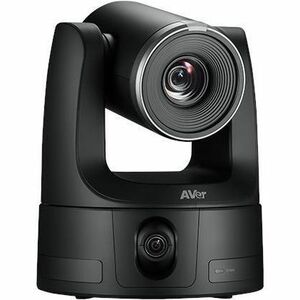

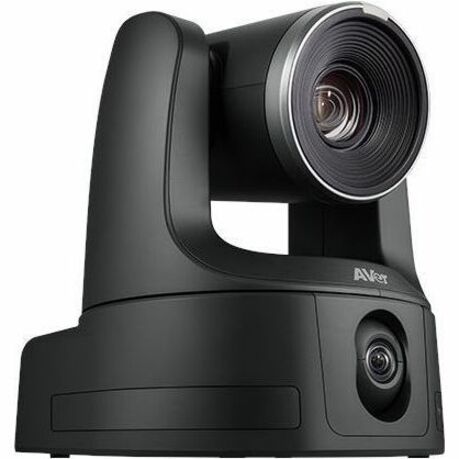

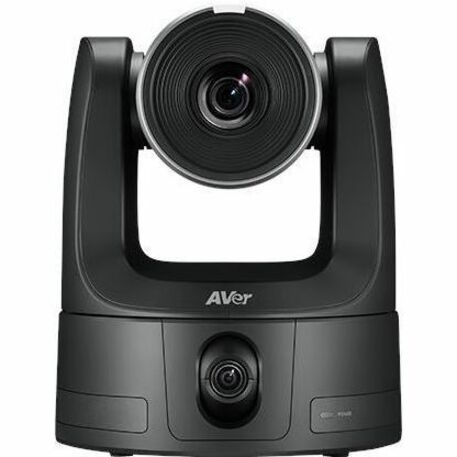

AVer Professional TR535N 8 Megapixel Indoor 4K Network Camera - Color - TAA Compliant - PTR535NV1
Key Features
- 135 mm maximum focal length for dependable identification distances with better coverage
- 30x optical zoom ensures maximum surveillance productivity without compromising quality
- 4K recording format for stunning, vivid video results with maximum efficiency
- DC power source type for your network camera provides optimal performance with maximum usability
- Enjoy HD quality videos on your HDTV with the HDMI port facility
- Exmor CMOS image sensor type for maximum power efficiency and improved quality results
- f/1.8 maximum aperture for reliable, detailed, and sharp output with added dependability
- For remote surveillance needs, this network camera is best suited
- Up to 3840 x 2160 video resolution
- Varifocal lens type to ensure maximum surveillance dependability and optimal performance
Product Overview
Limitless Options with No Trade-offs
The AVer TR535N 30X 4K NDI® Dual Lens Auto Tracking Camera is built for enterprise, government, higher education, and other organizations with similar collaboration needs, offering professional-quality videos without needing a videographer. Its 30X optical zoom, 8MP camera, and 4K60 resolution deliver outstanding range and clarity, while advanced AI and dual lenses ensure reliable tracking in any setting. The camera's innovative dual-camera design allows flexible installation, including wall and ceiling mounts. Ideal for collaboration spaces, broadcasting, streaming, and video distribution, it features dual HDMI, USB, 3G-SDI, IP, and NDI® connectivity for low-latency video. PoE++ support simplifies power and control through a single CAT cable
General Information
- Manufacturer: AVer Information Inc
- Manufacturer Part Number: PTR535NV1
- Brand Name: AVer
- Product Line: Professional
- Product Model: TR535N
- Product Name: 30X 4K NDI Dual Lens Auto Tracking
- Product Type: Network Camera
Technical Information
- HD Recording: Yes
- Recording Formats: 4K
Display & Graphics
- Image Sensor Type: Exmor CMOS
- Image Sensor Size: 1/2.8"
- Color Supported: Color
- Field of View: 69.2° (wide) ~ 2.8° (Tele)/62.3° (wide) ~ 2.5° (Tele)/37.3° (wide) ~ 1.4° (Tele)
- Effective Camera Resolution: 8 Megapixel
Video
- Video Formats:
- H.264
- H.265
- MJPEG
- Maximum Video Resolution: 3840 x 2160
- Maximum Frame Rate: 60 fps
- Analog Video Signal Format:
- 3G-SDI
- NDI
Audio
- Audio Support: Yes
Lens
- Lens Type: Varifocal
- Minimum Focal Length: 4.50 mm
- Maximum Focal Length: 135 mm
- Lens Included: Yes
- Minimum Aperture: f/4.7
- Maximum Aperture: f/1.8
- Optical Zoom: 30x
Exposure
- Shortest Shutter Speed: 1/10000 Second
- Longest Shutter Speed: 1/1 Second
Network & Communication
- Connectivity Technology: Wired
- Remote Management: Yes
- Ethernet Technology: Gigabit Ethernet
- Protocols:
- IPv4
- TCP
- UDP
- ARP
- ICMP
- IGMP
- HTTP
- HTTPS
- DHCP
- RTP
- RTCP
- RTSP
- RTMP
- SRT
- LLDP
- VISCA over IP

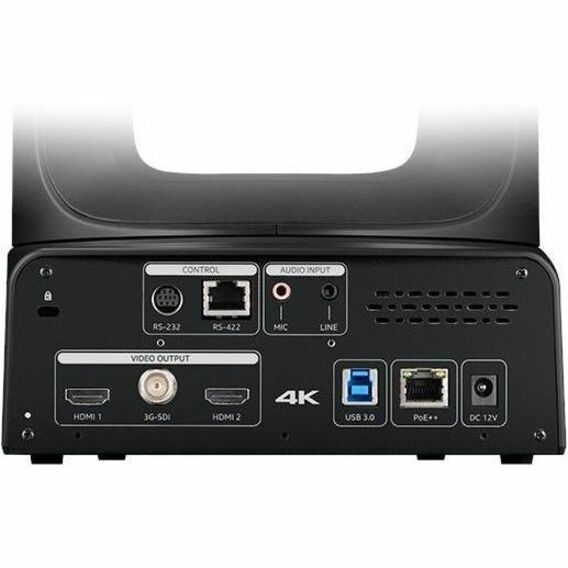

Interfaces/Ports
- USB: Yes
- HDMI: Yes
- Network (RJ-45): Yes
Power Description
- Maximum Power Consumption: 29 W
- Input Voltage:
- 100 V AC
- 240 V AC
- 12 V DC
- Power Source Type:
- DC
- AC
- PoE++
Physical Characteristics
- Mount Type:
- Wall Mount
- Ceiling Mount
- Height: 8.6"
- Width: 8"
- Depth: 9.9"
Environmental Conditions
- Minimum Operating Temperature: 32°F (0°C)
- Maximum Operating Temperature: 104°F (40°C)
- Minimum Storage Temperature: -4°F (-20°C)
- Maximum Storage Temperature: 140°F (60°C)
- Minimum Operating Humidity: 20%
- Maximum Operating Humidity: 80%
- Minimum Storage Humidity: 20%
- Maximum Storage Humidity: 95%
Miscellaneous
- Features:
- 2D Noise Reduction
- 3D Noise Reduction
- Back Light Compensation (BLC)
- Auto Gain Control
- Automatic White Balance
- Audio Compression
- PTZ
- Mirror
- Wide Dynamic Range
- Microphone In
- Indoor/Outdoor: Indoor
- Package Contents:
- 30X 4K NDI Dual Lens Auto Tracking
- Remote Control
- RS-232 In/Out Cable
- Din 8 To D-Sub 9 Cable
- Power Adapter
- Power Cord
- Cable Tie (x7)
- M2 x 4 mm Screw (x5)
- M3 x 6 mm Screw (x3)
- 1/4"-20L 6.5 mm Screw (x2)
- , Cable Fixing Plate (x2)
- Ceiling Mount Bracket (x2)
- Drilling Paper
- Quick Start Guide
- TAA Compliant: Yes
Warranty
- Limited Warranty: 5 Year
- Additional Warranty Information:
Accessories 1 Year
